Kern EWJ 600-2SM Precision Balance, 600 g / 0.01 g, Suitable for Calibration
€365.00
% Manufacturer's RRP: €470.00 22% below manufacturer's RRP
- Precision balance, weighing range 600 g, readability 0.01 g
- Internal automatic calibration, standard interval 2 hours
- Calibration in accordance with NAWI optional, available to order ex-works only (Item No. 965-216)
- Weighing plate Ø 120 mm made of stainless steel, IP65 load cell
- Basic model without data interface; Bluetooth available as an option ex-works
- Manufacturer’s part number (MPN): EWJ 600-2SM

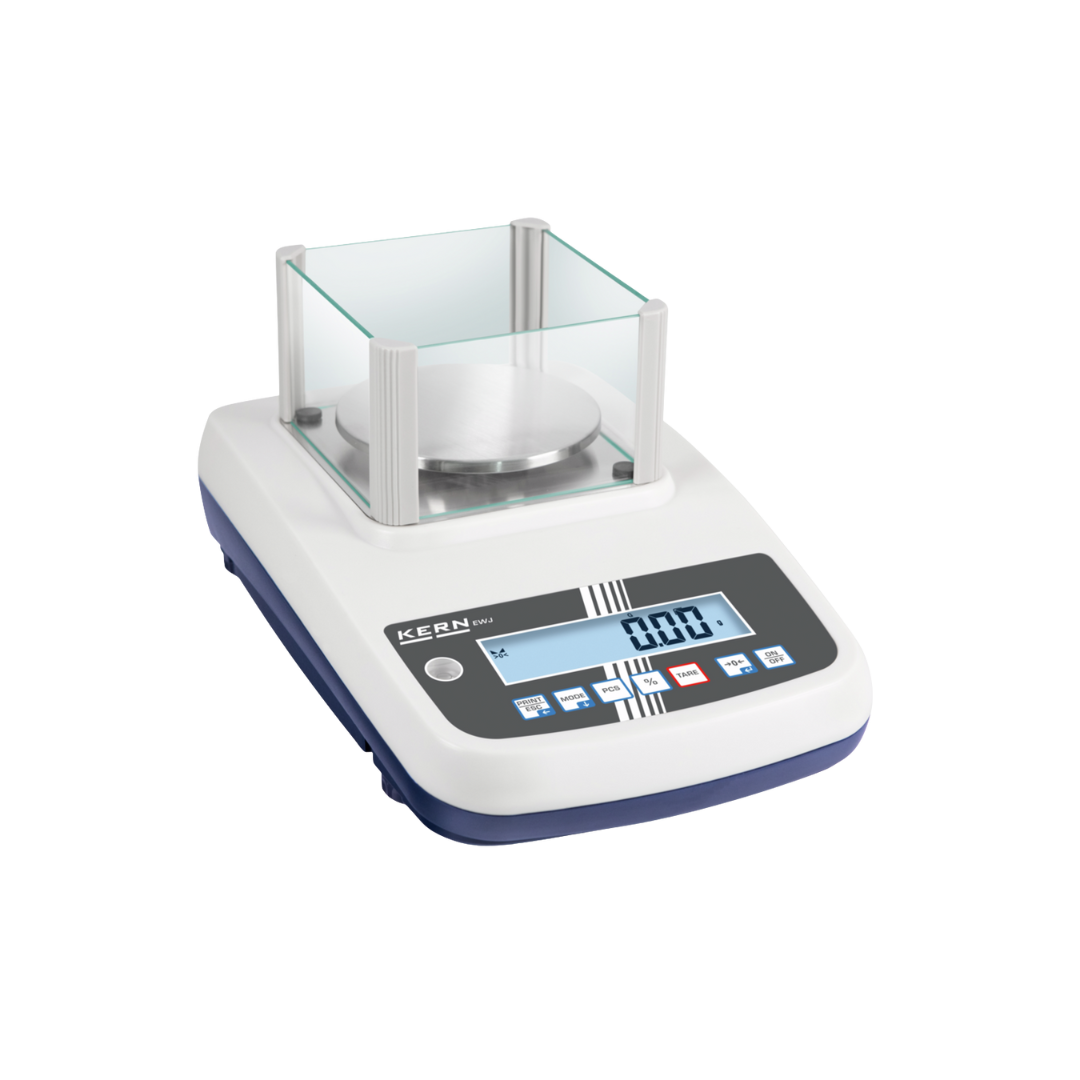

Product information "Kern EWJ 600-2SM Precision Balance, 600 g / 0.01 g, Suitable for Calibration"
The Kern EWJ 600-2SM is a compact precision balance for everyday laboratory use, with a weighing range of up to 600 grams and a readability of 0.01 grams. The balance calibrates itself automatically at regular intervals, every two hours as standard, without the need for an external calibration weight or user intervention. If you require a calibrated display for the same balance, you should order the conformity assessment in accordance with the NAWI Calibration Directive (2014/31/EU) at the same time as the balance. Subsequent initial calibration is not possible.
Automatic internal calibration
The EWJ 600-2SM features an automatic internal calibration system that recalibrates at standard intervals of every two hours. Reproducibility and linearity are 0.01 gram and ± 0.03 gram respectively, whilst the resolution is 60,000 parts per unit. Once the sample has been placed on the balance, the reading stabilises within 2 seconds. According to Kern, a minimum sample weight of 20 grams is required to achieve a measurement uncertainty of 0.1 per cent at k=2.
Calibration optional: NAWI conformity assessment
In its standard configuration, the EWJ 600-2SM is an uncalibrated precision balance. For applications requiring a calibrated display, conformity assessment in accordance with the NAWI Calibration Directive (2014/31/EU) can be ordered as an option (item no. 965-216), but only in conjunction with the balance ex works. Subsequent initial verification is not possible. In the verified version, the verification value (e) is 0.1 grammes, and the smallest verifiable load is 0.5 grammes.
Weighing plate, draught shield and housing
The weighing plate has a diameter of 120 millimetres and is made of stainless steel, as is the weighing platform. The supplied draught shield is rectangular and removable; its internal dimensions are 134 x 128 x 80 millimetres, and its external dimensions are 144 x 139 x 81 millimetres. When fully assembled, the housing has external dimensions of 220 x 340 x 180 millimetres, and the net weight is 2.8 kilograms. The aluminium load cell is silicone-coated and protected against dust and water jets in accordance with IP65.
Interfaces: Basic model without data connection, Bluetooth optional
In the basic model, the EWJ 600-2SM has no data interface. Users wishing to process measured values digitally can choose between Bluetooth BTC version 2.0 and Bluetooth BLE version 4.0 ex-works.
Typical applications
With a weighing range of 600 grams and a readability of 0.01 grams, the EWJ 600-2SM covers classic laboratory weighing tasks, from sample preparation to formulation weighing. If ordered factory-calibrated (item no. 965-216), it is also suitable for applications where a calibrated display is required.
- Industrial and research laboratories
- Quality control
- Formulation and sample weighing
- Applications requiring calibration, provided it is ordered pre-calibrated ex-works (item no. 965-216)
Frequently asked questions about the EWJ 600-2SM
Is the balance calibrated on delivery?
No, the EWJ 600-2SM is not calibrated in its standard configuration. Conformity assessment in accordance with NAWI (2014/31/EU, item no. 965-216) can only be ordered together with the balance ex works. Subsequent initial calibration is not possible.
How often does the scale self-calibrate?
Automatically, at standard intervals of every two hours, via the internal automatic calibration system.
Can the scale be connected to a PC or tablet?
Not in the basic model; the EWJ 600-2SM does not have a data interface for this purpose. Bluetooth BTC 2.0 or Bluetooth BLE 4.0 can be ordered ex-works as an option.
How big is the weighing plate?
120 millimetres in diameter, made from stainless steel.
Technical details
| Weighing range (max) | 600 g |
| Readability (d) | 0.01 g |
| Verification value (e) | 0.1 g |
| Smallest calibrated weighable load | 0.5 g |
| Minimum weighing capacity (k=2, U=0.1 %) | 20 g |
| Reproducibility | 0.01 g |
| Linearity | ± 0.03 g |
| Resolution | 60,000 parts |
| Stabilisation time | 2 s |
| Weighing system | Strain gauge, single-range balance |
| Weighing plate size | Ø 120 mm |
| Draft shield | Standard, rectangular, removable, internal dimensions 134 x 128 x 80 mm, external dimensions 144 x 139 x 81 mm |
| Housing dimensions (assembled) | 220 x 340 x 180 mm |
| Housing material | Plastic |
| Weighing plate material | Stainless steel |
| Load cell material | Aluminium, IP65 silicone-coated |
| Interfaces | Basic model without data interface; Bluetooth BTC 2.0 or Bluetooth BLE 4.0 available as an option ex works |
| Calibration | Internal, automatic, standard interval every 2 hours |
| Operating temperature | 10 °C to 35 °C |
| Protection rating | IP65 (load cell) |
| Weight (net) | 2.8 kg |
| Warranty | 24 months |
Scope of delivery
- EWJ 600-2SM precision balance
- Draft shield (standard, rectangular, removable)
- Protective cover
Individual requirements and procurement service
The NAWI conformity assessment (item no. 965-216) can only be ordered ex-works together with the balance; in addition, a DAkkS calibration certificate (item no. 963-127) and a certificate of conformity as a factory certificate (item no. 969-517) are also available. LT Laborhandel’s procurement service provides support for these and other accessory requests relating to Kern precision balances. Enquiries should be sent to lt-laborhandel.com/service.
