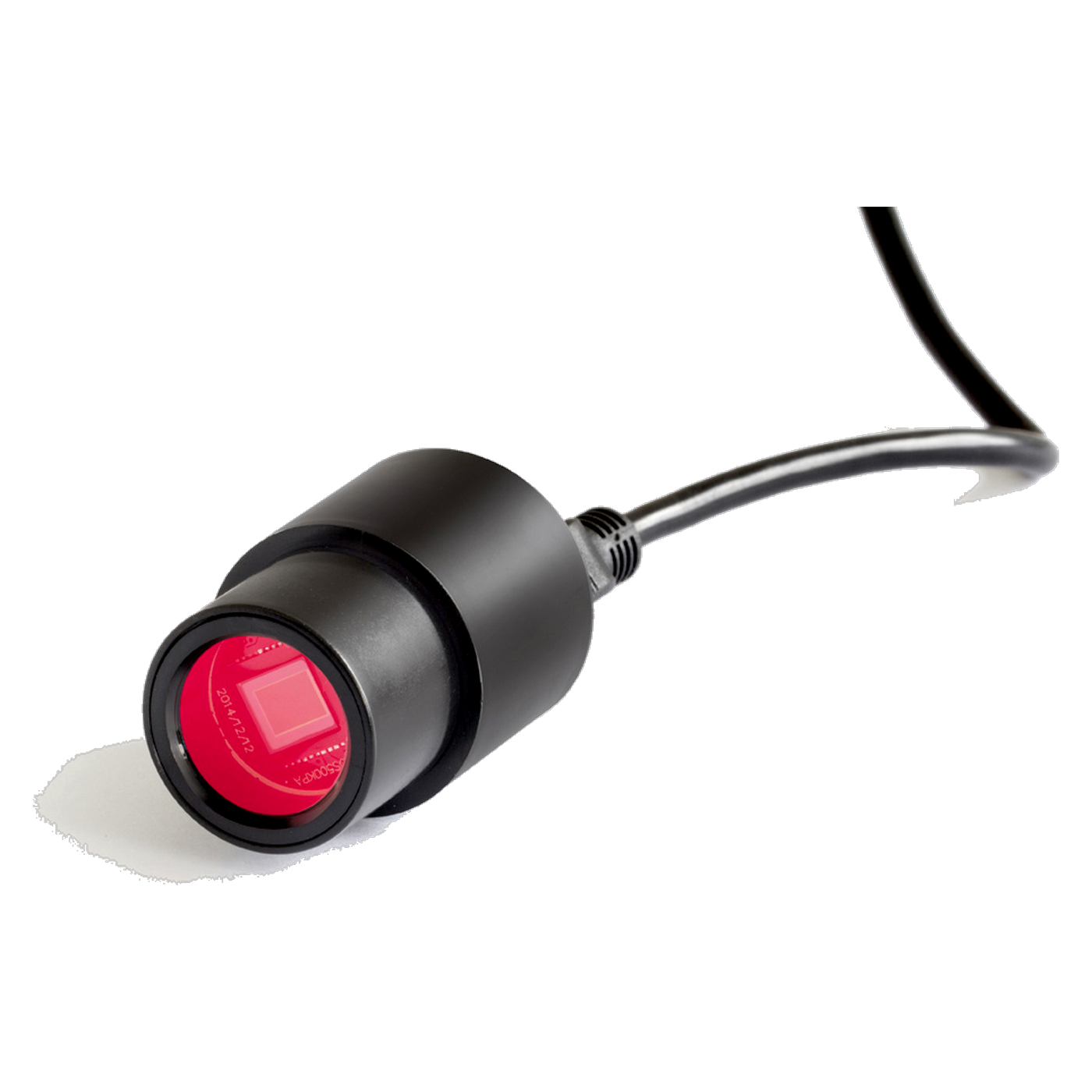

Kern ODC 881 eyepiece camera for microscopes, 5.1 MP, USB 3.0, 23.2 mm tube
€270.00
% Manufacturer's RRP: €300.00 10% below manufacturer's RRP
- Eyepiece camera with 5.1 MP, 1/2.8-inch Aptina CMOS, USB 3.0
- Replaces an eyepiece; tube diameter 23.2 mm; with 30.0 and 30.5 mm adapters
- 20 frames per second at 2,592 x 1,944
- VIS 2.0 PRO or LITE software for Windows 8, 10 and 11
- Powered via USB, dimensions 56 x 32 x 32 mm
- 1.5 m USB cable, two eyepiece adapters and an stage micrometer included in the scope of delivery
Product information "Kern ODC 881 eyepiece camera for microscopes, 5.1 MP, USB 3.0, 23.2 mm tube"
The Kern ODC 881 is an eyepiece camera with 5.1 megapixels and a USB 3.0 connection. It replaces one of the microscope’s eyepieces and transmits the image to a computer. Power is supplied via the USB cable. Compared to the ODC 874, which has 3.1 MP and USB 2.0, it has a higher pixel count and a faster interface. Measuring 56 x 32 x 32 mm and weighing 0.45 kg, it is slightly longer but just as light.
Insertion into the eyepiece tube
Remove one eyepiece and insert the camera into the eyepiece tube using the plug-in connection. The standard tube diameter is 23.2 mm. With the two eyepiece adapters supplied, the camera also fits into tubes with diameters of 30.0 mm and 30.5 mm. Further adapters are available as the ODC-A8106 (Ø 23.2 to 30 mm) and the ODC-A8107 (Ø 23.2 to 30.5 mm). You should check before purchasing whether the tube of your microscope matches one of these dimensions.
Sensor and frame rate
The Aptina CMOS colour sensor has a format of 1/2.8 inch (5.18 x 3.89 mm) with pixels measuring 2 x 2 µm and uses a rolling shutter. According to the data sheet, the frame rate is 20 frames per second for all three resolutions mentioned: 2,592 x 1,944, 1,280 x 960 and 640 x 480. The data sheet does not specify an exposure time for the ODC 881.
Software and PC
Analysis is carried out using the Microscope VIS 2.0 PRO (OXM 902) or VIS 2.0 LITE software, which, according to Kern, are free of charge. The data sheet lists Windows 8, 10 and 11. The computer requires a quad-core CPU (x64) running at 2.5 GHz, 8 GB of RAM, a 256 GB SSD, a graphics card supporting DirectX 12 and a 13-inch Full HD (1,920 x 1,080) display. A suitable port on the computer is required for the USB 3.0 interface.
Power
The camera draws 5 V at 180 mA via USB. The supplied USB cable is 1.5 m long. It may be stored at temperatures between -5 °C and 40 °C.
Typical applications
- Schools, training and laboratories: retrofitting existing microscopes with digital capabilities
- Documentation of specimens using photos and video
- Measuring and counting on screen
- Microscopes with an eyepiece tube of 23.2 mm, 30.0 mm or 30.5 mm
Technical details
| Camera type | USB 3.0 eyepiece camera for 23.2 mm diameter tube |
| Sensor | Aptina CMOS, colour, 5.1 MP, 1/2.8 inch (5.18 x 3.89 mm), pixel size 2 x 2 µm, rolling shutter |
| Frame rate | 20 frames per second at 2,592 x 1,944, 1,280 x 960 and 640 x 480 |
| Tube diameter | 23.2 mm (standard); 30.0 mm and 30.5 mm with eyepiece adapter |
| Interface | USB 3.0 |
| Software | Microscope VIS 2.0 PRO (OXM 902) |
| Operating systems | Windows 8, 10, 11 |
| System requirements | Quad-core x64, 2.5 GHz, 8 GB RAM, 256 GB SSD, DirectX 12, 13-inch Full HD display |
| Power supply | via USB, 5 V / 180 mA |
| Dimensions (W x D x H) | 56 x 32 x 32 mm |
| Net weight | approx. 0.45 kg |
| Storage temperature | -5 °C to 40 °C |
| Labelling | CE |
| Warranty (manufacturer) | 24 months according to Kern, excluding wear parts |
Scope of delivery
- ODC 881 eyepiece camera
- USB cable, 1.5 m
- Two eyepiece adapters
- Stage micrometer for calibrating the software
Warranty
According to Kern & Sohn, this device comes with a 2-year warranty. Kern grants 3 years on products with a list price of €500 or more and 2 years on products below that and on components; wear parts such as batteries and rechargeable batteries are excluded. Warranty repairs are carried out by Kern or by a Kern dealer.
Downloads
Operating instructions Kern ODC-88 (PDF)Regulatory information
As an electrical device, the camera falls under the ElektroG. The manufacturer Kern & Sohn GmbH is registered under the WEEE registration number DE 80821200. How to return old appliances is described on the page Environment and disposal.
Individual requirements and procurement service
The ODC-A2404 calibration slide, the ODC-A8106 and ODC-A8107 eyepiece adapters for eyepiece cameras, and the OXM 902 (VIS 2.0 PRO) and OXM 903 (VIS 2.0 LITE) software are also available. Kern lists the ODC 881 as an accessory for the Kern microscopes OBT 104, OBT 105, OBE 121, OBE 122, OBE 131 and OBL 146, among others. Enquiries are handled via our procurement service.
