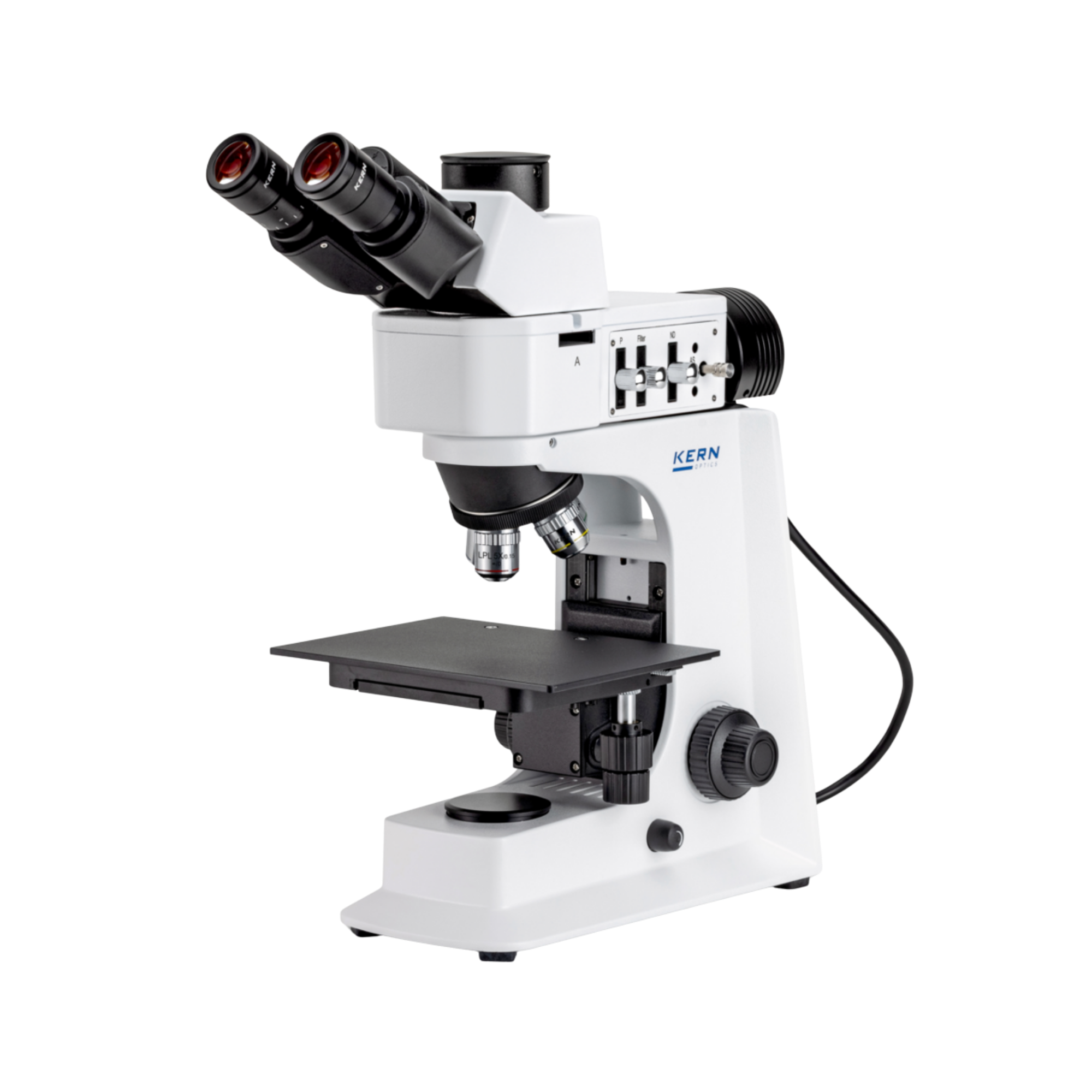

KERN OKM 173 Metallurgical Microscope, reflected light, trinocular, infinite-corrected optics
€1,554.00
% Manufacturer's RRP: €2,220.00 30% below manufacturer's RRP
- Metallurgical reflected-light microscope with infinity optics
- 5 W LED reflected light, continuously dimmable, with 5-position filter wheel
- Trinocular tube, inclined at 30°, rotatable through 360°
- Infinity Plan objectives 5x, 10x, 20x and 50x (LWD)
- Stage with 76 x 52 mm travel range
- Polarisation unit with polariser and analyser
ⓘ This product description has been translated from German using AI. Despite careful review, we do not guarantee that the translation is error-free; in case of doubt, the German version shall prevail.
Product information "KERN OKM 173 Metallurgical Microscope, reflected light, trinocular, infinite-corrected optics"
The Kern OKM 173 is a metallurgical reflected-light microscope for materials and surface testing. It visualises surfaces, fracture edges and coatings on specimens through which light does not pass, such as metallographic sections or workpieces. Illumination comes from above through the objective. The microscope has an upright design, features infinity optics, four objectives and a trinocular tube for connecting a camera.
Reflected light with filter wheel
The reflected light illumination consists of a 5 W LED and is continuously dimmable. A 5-position filter wheel is integrated into the illumination unit, containing colour filters in blue, green, yellow and grey, as well as an open position. This allows for quick switching between different contrast modes. A simple polarisation unit with a polariser and analyser is also included in the scope of delivery. Kern lists bright-field and polarisation as the contrast methods.
Objectives and eyepieces
The 4-position objective turret carries four Infinity Plan objectives with a long working distance (LWD) and anti-fungus coating. Key specifications at a glance:
| Objective | Numerical aperture | Note |
|---|---|---|
| 5x | 0.15 | Infinity Plan, LWD |
| 10x | 0.25 | Infinity Plan, LWD |
| 20x | 0.4 | Infinity Plan, LWD |
| 50x | 0.75 | Infinity Plan, LWD, with suspension |
The eyepieces are HWF 10x with a 20 mm field of view, high eye point and anti-fungal coating. The interpupillary distance can be adjusted from 50 to 75 mm, and the dioptre adjustment works on one side with ± 5. With the 10x eyepiece, total magnifications range from 50x to 500x.
Tube, stage and focus

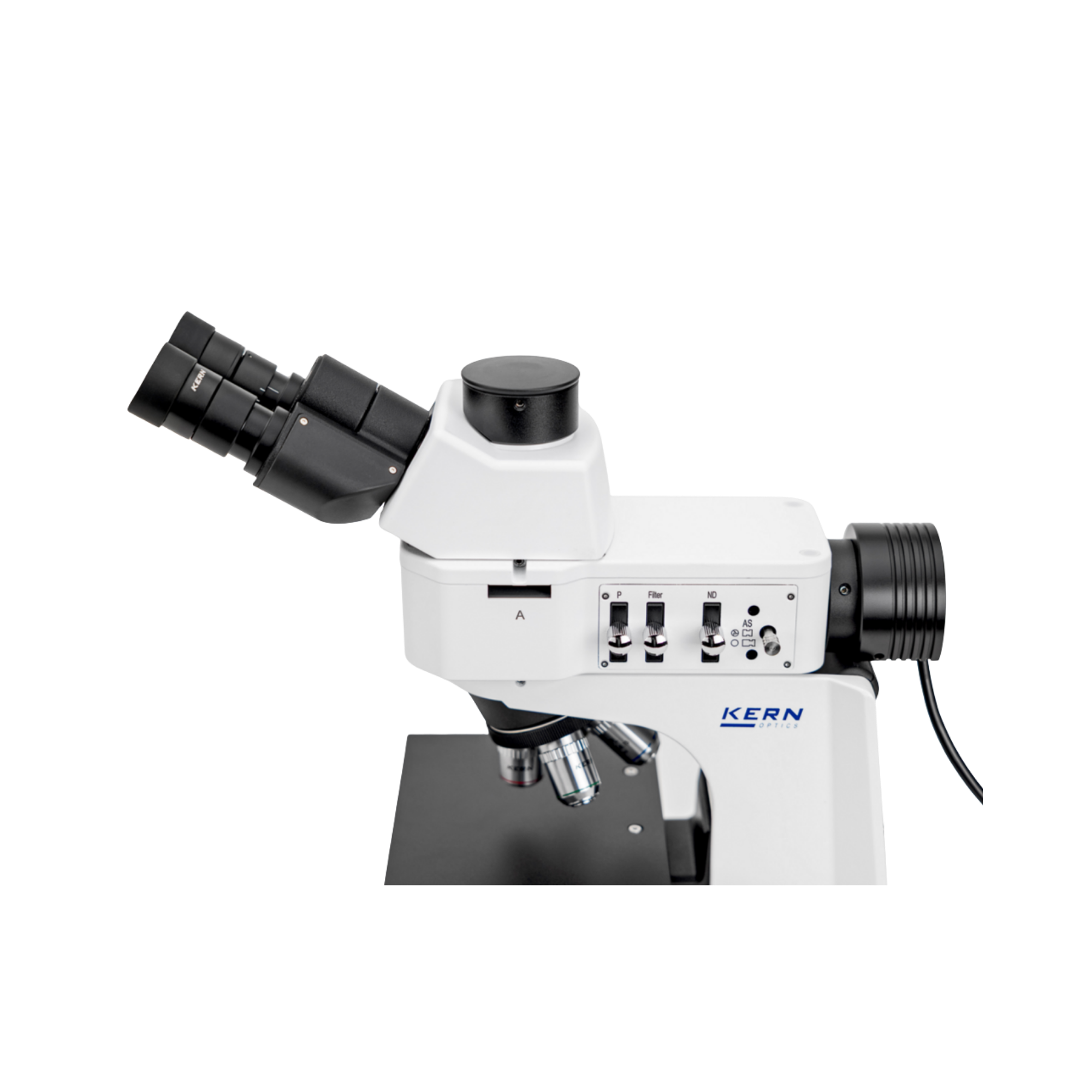

The trinocular tube (butterfly design) is inclined at 30° and can be rotated through 360°. Light is distributed in a ratio of 20:80 between the eyepieces and the camera mount. The mechanical stage is designed for reflected-light applications; the travel range is 76 mm and 52 mm. The coarse and fine adjustment knobs are positioned coaxially on both sides; the fine adjustment knob moves in increments of at least 0.002 mm. The focus knob features torque control.
A C-mount adapter is required to connect a camera; this is not included in the scope of delivery. Adapters for 1x and 0.5x are also available.
Camera and documentation
A microscope camera can be connected via the trinocular tube. The following cameras are available: ODC 825 (5.1 MP, USB 2.0), ODC 832 (5.1 MP, USB 3.0), ODC 841 (Sony CMOS, 1-inch, USB 3.0) and ODC 854 (8 MP, 4K, USB and HDMI), as well as the tablet cameras ODC 241 (5 MP, Wi-Fi) and ODC 251 (8 MP, 4K, Ethernet and Wi-Fi). All of these are also available and require the appropriate C-mount adapter.
Typical applications
- Metallurgy: assessment of the microstructure on polished sections
- Materials testing: examining surfaces, fracture edges and coatings
- Industrial quality assurance: visual inspection of raw materials and finished parts
- Thick samples and workpieces that fit on the stage
For microstructural analysis, metal samples are usually ground and polished before being examined under reflected light. In the surface testing of raw materials and finished products, the focus is on the surface itself; a polished section is not a prerequisite for this.
With the OKM 173, the sample is placed on the stage with the surface to be inspected facing upwards. Those wishing to place heavy, large workpieces with the surface to be inspected facing downwards should consider the inverted models OLM 170 and OLM 171.
Technical details
| Optical system | Infinity (infinity optics) |
|---|---|
| Design | upright, reflected light |
| Tube | Trinocular (butterfly), tilted 30°, rotatable 360° |
| Beam path distribution | 20:80 |
| Eyepieces | HWF 10x, 20 mm field of view, high eye point, anti-fungal |
| Interpupillary distance | 50 mm to 75 mm |
| Dioptre adjustment | on one side, ± 5 |
| Objective turret | 4-position |
| Objectives | Infinity Plan LWD 5x, 10x, 20x, 50x |
| Illumination | 5 W LED, reflected light, dimmable, 5-position filter wheel |
| Stage | mechanical, travel range 76 mm x 52 mm |
| Focusing | Coaxial coarse and fine adjustment, fine adjustment 0.002 mm |
| Power supply | Mains adaptor, 100 V to 240 V AC, 50/60 Hz, rated current 0.3 A |
| Dimensions (W x D x H) | 440 x 200 x 400 mm |
| Net weight | approx. 8 kg |
| Storage temperature | -5 °C to 40 °C |
Scope of delivery
- Kern OKM 173 microscope with eyepieces and four objectives
- Polarisation unit with polariser and analyser
- Mains power supply with EU adapter
- Dust cover
- Eyecups
- Multilingual operating instructions
The scope of delivery does not include a C-mount adapter for the camera connection.
According to Kern & Sohn, this device comes with a 3-year warranty. Kern grants 3 years on products with a list price of €500 or more and 2 years on products below that and on components; wear parts such as batteries and rechargeable batteries are excluded. Warranty repairs are carried out by Kern or by a Kern dealer.
Regulatory information
As an electrical device, the microscope falls under the ElektroG. The manufacturer Kern & Sohn GmbH is registered under the WEEE registration number DE 80821200. How to return old appliances is described on the page Environment and disposal.
Individual requirements and procurement service
Eyepieces with different magnifications or with a scale, objectives with 2x, 80x and 100x magnification, C-mount adaptors, ODC series microscope cameras, filters and accessory plates are also available. Enquiries are handled via our procurement service.
