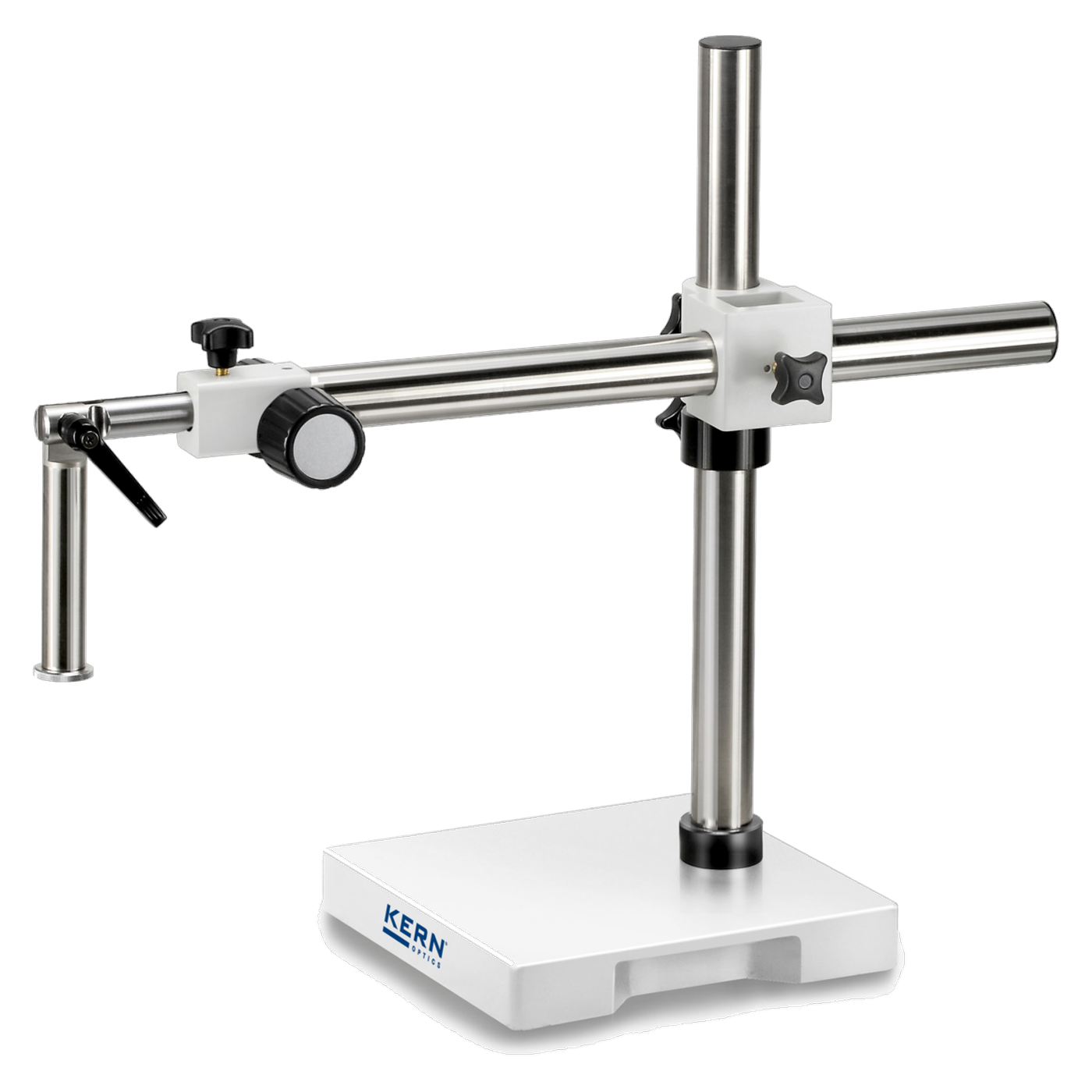

Kern OZB-A5201 stereo microscope stand, telescopic arm with base plate, column 515 mm, arm 614 mm
€531.00
% Manufacturer's RRP: €590.00 10% below manufacturer's RRP
- Stereo microscope stand: telescopic arm with base plate
- Column height 515 mm, arm length 614 mm
- Dimensions 254 x 614 x 515 mm, net weight approx. 18 kg
- Supplied without holder, head mount Ø 76 mm
- Mounting: plate, free-standing
Product information "Kern OZB-A5201 stereo microscope stand, telescopic arm with base plate, column 515 mm, arm 614 mm"
The Kern OZB-UP range comprises eight large universal stands for stereo microscopes. They have a column height of 515 mm and a mounting diameter of 37 mm for the universal stand. There are three arm types (telescopic arm, articulating arm and ball-bearing double arm) and three mounting options for each: free-standing on a plate, clamped to the table edge or with screws in the centre of the table. The stands are supplied without holders and are purely mechanical. Kern describes the large universal stands as a pedestal-base variant, optionally with a table clamp for the table edge or for central mounting on a desk or workbench.
Comparison of arm types
The telescopic arm is 614 mm long, the articulating arm 553 mm and the ball-bearing double arm 545 mm. The telescopic arm therefore has the greatest reach. The arms differ in the way the head is guided. The data sheet gives no information on mobility or load capacity; the weight of the intended head should therefore be checked with our advisory service.
Plate, clamp or screws
With a base plate (OZB-A5201, OZB-A5203), the stand is freestanding; it then weighs 18 kg and 22 kg. When fitted with a clamp (OZB-A5211, OZB-A5212, OZB-A5213), it is attached to the edge of the table; the clamp can grip table tops up to 62 mm thick, and the weight is reduced to between 6 and 9 kg. It is mounted in the centre of the table using screws (OZB-A5221, OZB-A5222, OZB-A5223), which requires a hole to be drilled in the tabletop. These stands weigh between 8 and 9 kg.
Holder and head
All eight stands are described without holders. The head mount has a diameter of 76 mm. Kern lists the items OZB-A5301 and OZB-A5306 as holders for stereo microscope stands. The accessories for the OZM 544 stereo zoom microscope include the stands OZB-A5201, OZB-A5203, OZB-A5211, OZB-A5212 and OZB-A5213; Kern thereby lists them for heads in the OZM series.
Typical applications
- Custom microscope setup with stereo zoom head and external illumination
- Test stations for large samples that lie beneath the head
- Workbenches in electronics, assembly and repair (clamps or screws)
- Laboratory workstations with a fixed installation on the worktop
Models at a glance
| Model | Design | Mounting | Column height | Arm length | Dimensions (W x D x H) | Net weight |
|---|---|---|---|---|---|---|
| OZB-A5201 | Telescopic arm with plate | Plate | 515 mm | 614 mm | 254 x 614 x 515 mm | approx. 18 kg |
| OZB-A5203 | Double arm with plate | Plate | 515 mm | 545 mm | 254 x 545 x 515 mm | approx. 22 kg |
| OZB-A5211 | Telescopic arm with clamp | Clamp | 515 mm | 614 mm | 80 x 614 x 515 mm | approx. 6 kg |
| OZB-A5212 | Articulating arm with clamp | Clamp | 515 mm | 553 mm | 80 x 553 x 515 mm | approx. 7 kg |
| OZB-A5213 | Double arm with clamp | Clamp | 515 mm | 545 mm | 80 x 545 x 515 mm | approx. 9 kg |
| OZB-A5221 | Telescopic arm for screw mounting | Screws | 515 mm | 614 mm | 150 x 614 x 515 mm | approx. 8 kg |
| OZB-A5222 | Articulating arm for screw mounting | Screws | 515 mm | 553 mm | 150 x 553 x 515 mm | approx. 9 kg |
| OZB-A5223 | Double arm for screw mounting | Screws | 515 mm | 545 mm | 150 x 545 x 515 mm | approx. 9 kg |
Technical details
These values apply to all stands. Any differing values are listed in the model table.
| Stand type | Stereo microscope stand (universal stand), without holder |
| Column height | 515 mm |
| Universal stand mounting | Ø 37 mm |
| Head mount | Ø 76 mm |
| Clamp span | max. 62 mm (OZB-A5211, A5212, A5213) |
| Electrical | none |
| Storage temperature | -5 °C to 40 °C |
| Warranty (manufacturer) | 24 months according to Kern, excluding wear parts |
Scope of delivery
- Stereo microscope stand depending on the model, without holder
- For OZB-A5211, OZB-A5212 and OZB-A5213: table-edge clamp
Warranty
According to Kern & Sohn, these components come with a 2-year warranty. Kern grants 3 years on products with a list price of €500 or more and 2 years on products below that and on components; wear parts such as batteries and rechargeable batteries are excluded. Warranty repairs are carried out by Kern or by a Kern dealer.
Downloads
Operating instructions Kern OZB-A5201 (PDF)- Operating instructions Kern OZB-A5203 (PDF)
- Operating instructions Kern OZB-A5211 (PDF)
- Operating instructions Kern OZB-A5212 (PDF)
- Operating instructions Kern OZB-A5213 (PDF)
- Operating instructions Kern OZB-A5221 (PDF)
- Operating instructions Kern OZB-A5222 (PDF)
- Operating instructions Kern OZB-A5223 (PDF)
Individual requirements and procurement service
The holders for the OZB-A5301 and OZB-A5306 stereo microscope stands are also available. We can assemble suitable heads and lighting units on request. Enquiries are handled via our procurement service.
| Design: | OZB-A5201 · Telescope/Plate |
|---|
