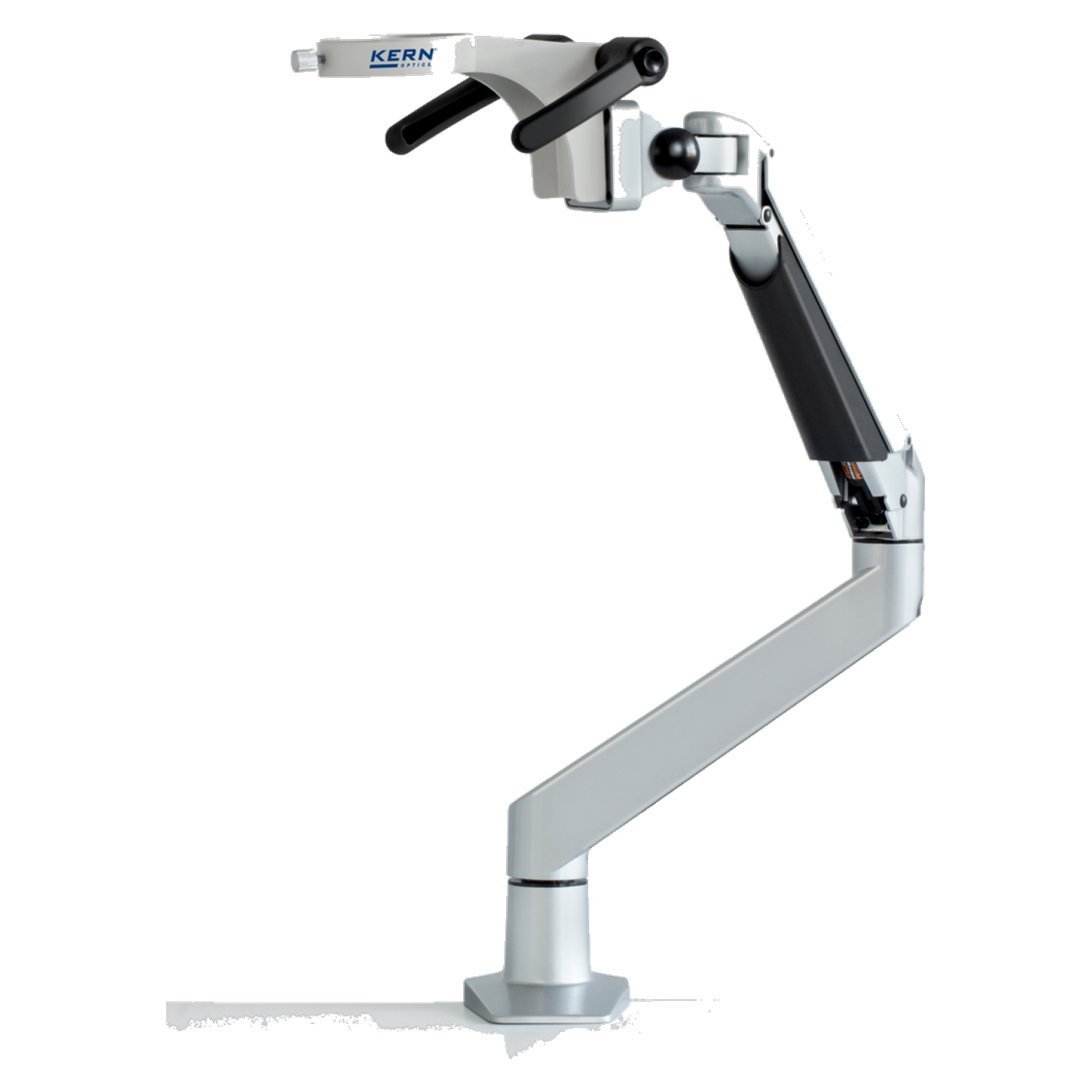

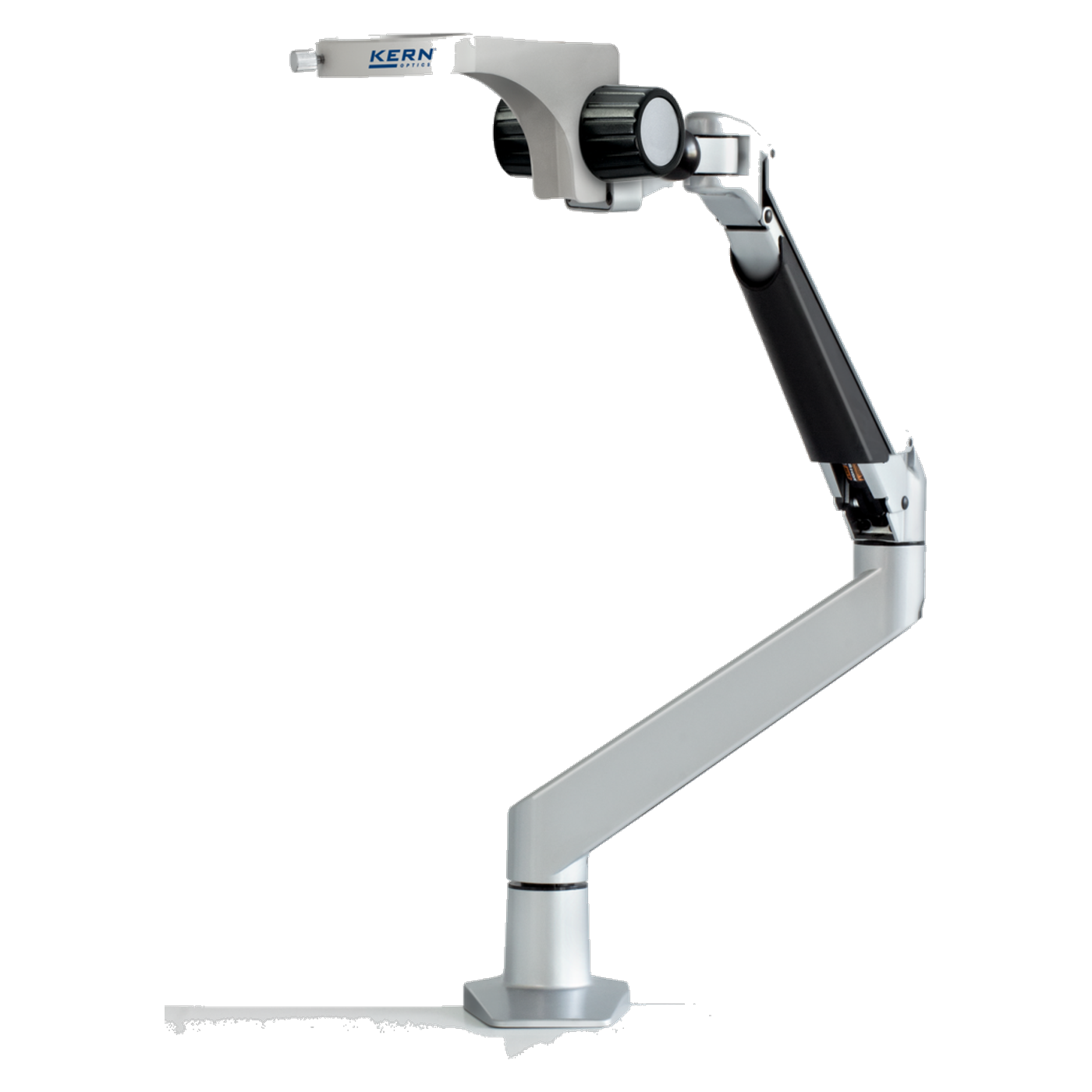

Kern OZB-A6302 stereo microscope stand, spring-loaded articulating arm, gas spring, column 525 mm, arm 620 mm
€774.00
% Manufacturer's RRP: €860.00 10% below manufacturer's RRP

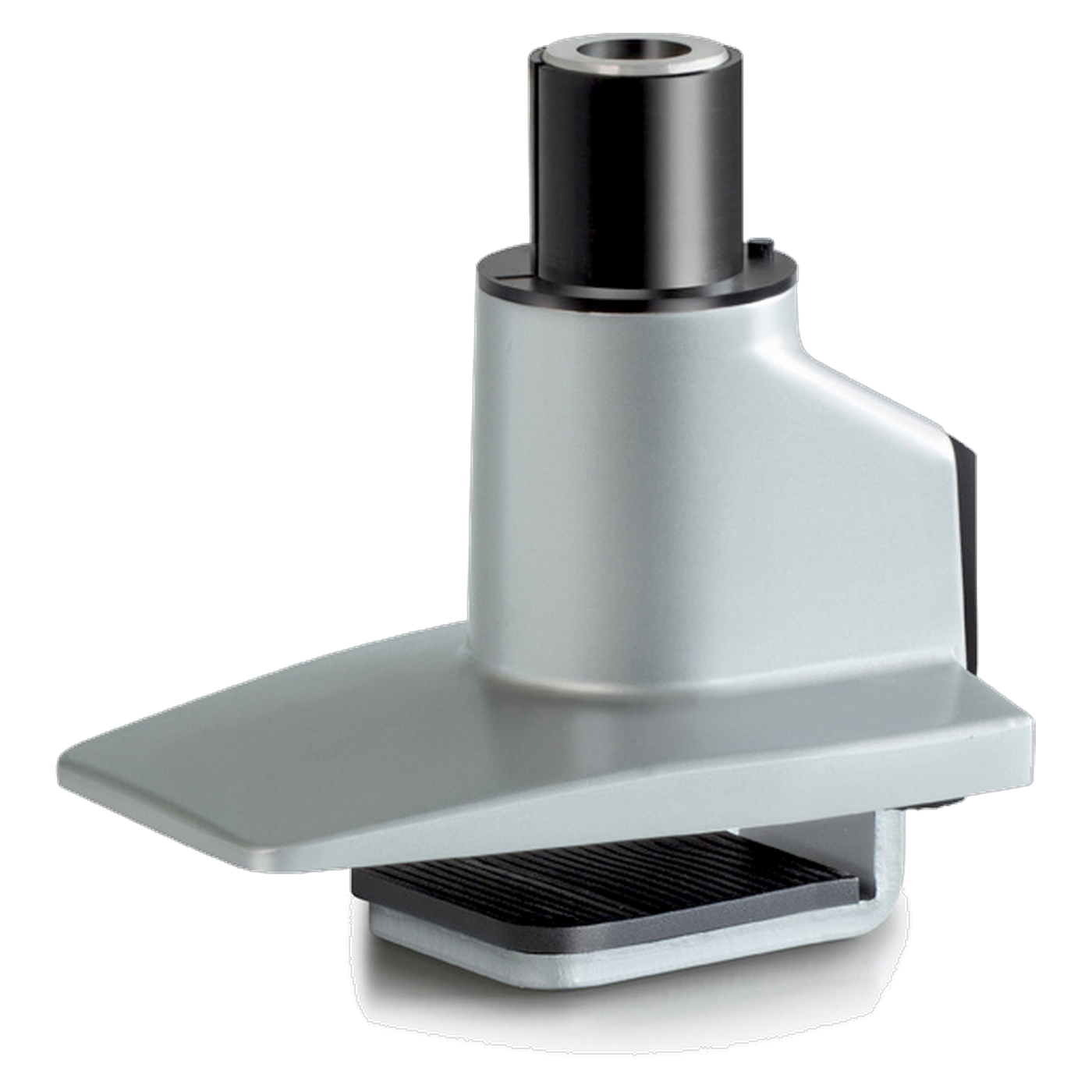

- Stereo microscope stand: spring-loaded articulating arm with gas spring, clamp (maximum clamping range 50 mm) and holder (coarse focus)
- Column height 525 mm, arm length 620 mm
- Dimensions 620 x 580 x 200 mm, net weight approx. 4.6 kg
- Supplied with holder (coarse focus)
- Mounting on the edge of the table
Product information "Kern OZB-A6302 stereo microscope stand, spring-loaded articulating arm, gas spring, column 525 mm, arm 620 mm"
The Kern OZB-UE range comprises six universal stands for stereo microscopes. Four of these are the small universal stands with a column height of 430 mm: telescopic arm or ball-bearing double arm, each mounted on a base plate or with a table clamp. Two are spring-loaded articulating arm stands with clamp and holder, including coarse focus. The stands are mechanical components with no electrical parts. The microscope head, illumination and, where applicable, the holder are selected separately; Kern refers to this concept as a modular system in which heads, stands and external illumination units can be combined according to the application.
Small universal stands with a column
The OZB-A1201, OZB-A1203, OZB-A1211 and OZB-A1213 stands have a column height of 430 mm and a mounting diameter of 32 mm for the universal stand. The head mount has a diameter of 76 mm. The telescopic arm is 385 mm long, while the ball-bearing double arm is 480 mm long. With the base plate, they stand freely on the table (12 kg and 19 kg); with the clamp, they are secured to the edge of the table (10 kg and 15 kg). The clamp on the OZB-A1211 can grip table thicknesses of up to 40 mm, while that on the OZB-A1213 can grip up to 62 mm. According to the brochure, all four are supplied without a holder.
Spring-loaded articulating stand with coarse focus
The two spring-jointed stands are designed for day-to-day work with the stereo microscope and, according to Kern, now feature a coarse focus mechanism for simple and flexible focusing. The arm of the OZB-A6302 operates using a gas spring, while that of the OZB-A6303 uses a helical compression spring. The OZB-A6302 is 525 mm high, has an arm length of 620 mm and weighs approximately 4.6 kg. The OZB-A6303 is 400 mm high, has an 850 mm-long arm and weighs approximately 7 kg. Both are supplied with a clamp for table tops up to 50 mm thick and a bolder. The head mount on the OZB-A6302 has a diameter of 76 mm.
Plate or clamp
The plate stabilises the stand without the need to modify the table surface. The table clamp saves space on the table; the clamping range determines the maximum thickness of the tabletop. The choice depends on the table edge, the weight of the head and the desired reach.
Typical applications
- Dedicated microscope set-up for workshops, electronics manufacturing and repairs
- Laboratory workstations with a stereo microscope head and external illumination
- Test stations for larger components with a telescopic arm or double arm
- Training stations where the microscope is frequently set up
Models at a glance
| Model | Design | Column height | Arm length | Dimensions (W x D x H) | Net weight | Holder |
|---|---|---|---|---|---|---|
| OZB-A1201 | Telescopic arm with plate | 430 mm | 385 mm | 410 x 230 x 420 mm | approx. 12 kg | without holder |
| OZB-A1203 | Double arm with plate | 430 mm | 480 mm | 526 x 210 x 420 mm | approx. 19 kg | without holder |
| OZB-A1211 | Telescopic arm with clamp | 430 mm | 385 mm | 410 x 230 x 380 mm | approx. 10 kg | without holder |
| OZB-A1213 | Double arm with clamp | 430 mm | 480 mm | 526 x 210 x 380 mm | approx. 15 kg | without holder |
| OZB-A6302 | Spring-loaded articulating arm, gas spring | 525 mm | 620 mm | 620 x 580 x 200 mm | approx. 4.6 kg | with holder |
| OZB-A6303 | Spring-loaded articulating arm, helical compression spring | 400 mm | 850 mm | 770 x 85 x 300 mm | approx. 7 kg | with holder |
Technical details
The specifications for the individual stands are listed in the model table.
| Stand type | Stereo microscope stand (universal stand) |
| Universal stand mounting | Ø 32 mm (OZB-A1201 to OZB-A1213) |
| Head mount | Ø 76 mm (OZB-A1201 to OZB-A6302) |
| Electrical | none |
| Storage temperature | -5 °C to 40 °C |
| Warranty (manufacturer) | 24 months according to Kern, excluding wear parts |
Scope of delivery
- Stereo microscope stand, depending on the model
- For OZB-A1211, OZB-A1213, OZB-A6302 and OZB-A6303: Table clamp
- For OZB-A6302 and OZB-A6303: Holder with coarse focus
- OZB-A1201, OZB-A1203, OZB-A1211 and OZB-A1213 without holder
Warranty
According to Kern & Sohn, these components come with a 2-year warranty. Kern grants 3 years on products with a list price of €500 or more and 2 years on products below that and on components; wear parts such as batteries and rechargeable batteries are excluded. Warranty repairs are carried out by Kern or by a Kern dealer.
Downloads
Operating instructions Kern OZB-A6302 (PDF)Individual requirements and procurement service
The OZB-A1201, OZB-A1203, OZB-A1211 and OZB-A1213 stands are supplied without bolders. For Kern’s large universal stands, the brochure lists the holders OZB-A5301 and OZB-A5306. We will check whether they are compatible with these stands before placing the order. Enquiries are handled via our procurement service.
| Design: | OZB-A6302 · Gas spring |
|---|
