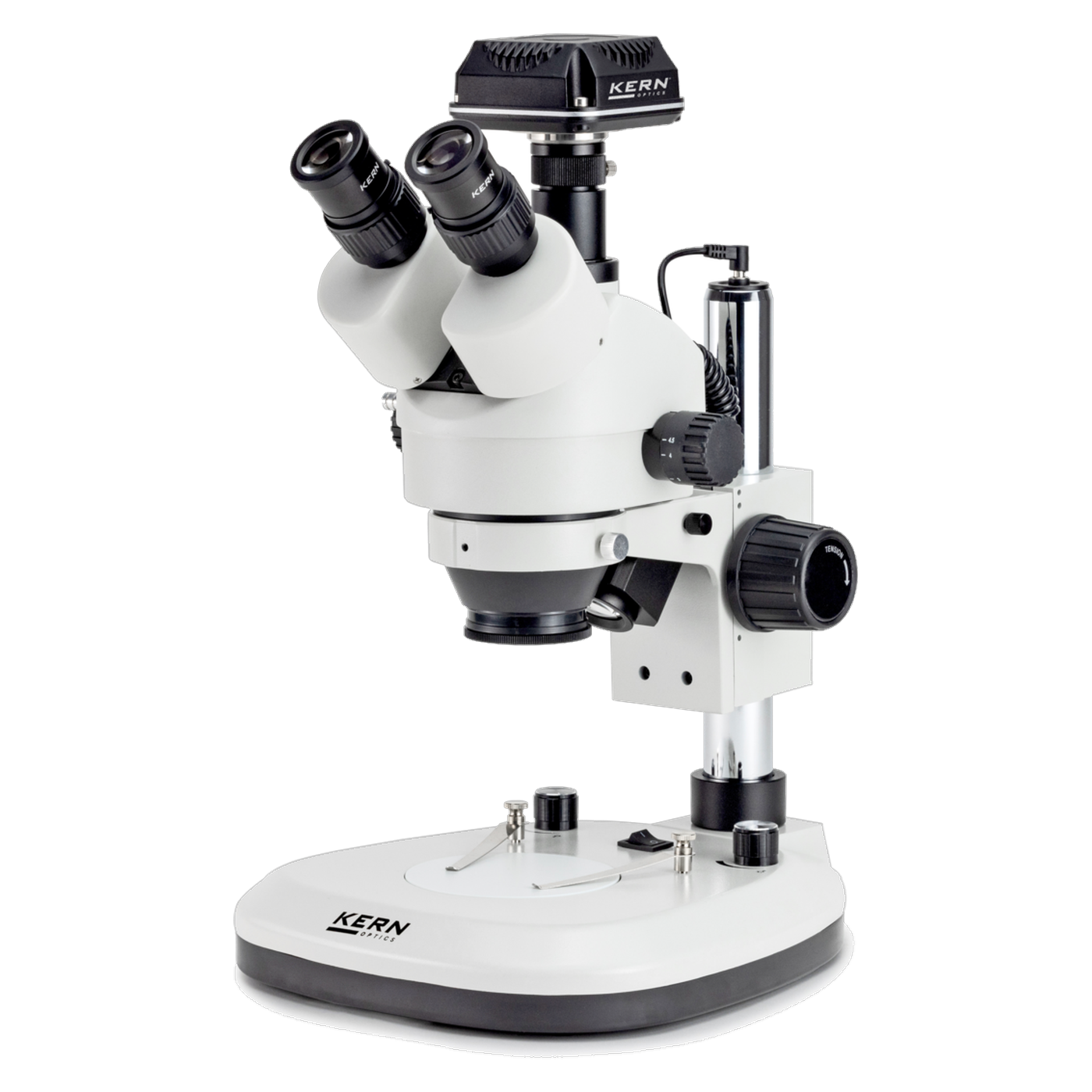

Kern OZL 464C825 digital microscope set, OZL 464 trinocular with ODC 825 camera, zoom 0.7x to 4.5x
€1,026.00
% Manufacturer's RRP: €1,140.00 10% below manufacturer's RRP
- Digital microscope set comprising the OZL 464 (trinocular, zoom 0.7x to 4.5x) and the ODC 825 camera
- ODC 825 camera: 5.1 MP, USB 2.0, 6.8 to 55 frames per second
- Column stand, working distance 105 mm, specimen height up to 140 mm
- LED incident and transmitted light, 3 W each, independently dimmable
- C-Mount adapter included in the scope of delivery
- Dimensions 300 x 240 x 490 mm, approx. 5.0 kg
Product information "Kern OZL 464C825 digital microscope set, OZL 464 trinocular with ODC 825 camera, zoom 0.7x to 4.5x"
The Kern OZL-S range comprises nine digital microscope sets, each consisting of a trinocular stereo zoom microscope from the OZL-46 series and a permanently mounted camera. According to Kern, the appropriate C-Mount adapter is included in the delivery. The model number indicates the combination: OZL 466C832 is the OZL 466 with the ODC 832 C-Mount camera, while OZL 468T241 is the OZL 468 with the ODC 241 tablet camera. All sets have a zoom range of 0.7x to 4.5x, HWF 10x eyepieces, and LED incident light and LED transmitted light.
Three microscopes
The OZL 464 and the OZL 466 are mounted on a column stand. According to the brochure, the OZL 466 also features an LED ring light in the objective housing and an LED transmitted light unit. The OZL 468 features a mechanical stand with an integrated handle and, according to Kern, has been developed for use in schools and workshops. The head is trinocular on all models, tilted at 45° and rotatable through 360°. The interpupillary distance ranges from 55 to 75 mm, and dioptre adjustment is available on both sides. The field of view measures 4.4 to 28.6 mm, the working distance is 105 mm, and the maximum specimen height is 140 mm. The incident and transmitted light sources are each 3 W LEDs.
Three cameras
The ODC 825 and ODC 832 are C-Mount cameras with 5.1 MP and a 1/2.5-inch CMOS sensor. The ODC 825 operates via USB 2.0 at 6.8 to 55 frames per second, while the ODC 832 operates via USB 3.0 at 14.2 to 101.2 frames per second. Power is supplied via the USB cable. Image output and analysis are carried out on a PC using the free VIS 2.0 PRO or VIS 2.0 LITE software for Windows. According to Kern, both cameras are also suitable for dark field, phase contrast and fluorescence microscopy.
The ODC 241 is a tablet camera with a 5 MP sensor (Sony CMOS, 1/2.8 inch) and a 9.7-inch touchscreen display with a resolution of 2,048 x 1,536 pixels. It runs on Android, has 128 GB of storage, and features Wi-Fi, USB 2.0, HDMI and a microSD card slot. Kern has developed it for the simple and direct examination of samples on screen and recommends it for school pupils and students in training, as well as for laboratory demonstrations. It saves images and videos to a USB stick or SD card, measures distances, areas and angles, counts manually and outputs the live image via HDMI.
Dimensions and current
The sets with a C-Mount camera measure 300 x 240 x 490 mm and have a net weight of approx. 5.0 kg. The sets with a tablet camera measure 300 x 240 x 640 mm and weigh approximately 6 kg. The microscope’s power supply is built-in and operates at 100 to 240 V; it is connected via a power cable with a Euro plug.
Typical applications
- Assembly and repair workstations, for example in the electronics industry
- Training organisations, schools and training workshops
- Quality control and testing centres with image documentation
- Zoology and botany, tissue preparation, dissection
- Detection of parasites and in vitro fertilisation
Models at a glance
| Model | Microscope | Stand | Camera | Dimensions (W x D x H) | Net weight |
|---|---|---|---|---|---|
| OZL 464C825 | OZL 464 | Column | ODC 825, 5.1 MP, USB 2.0 | 300 x 240 x 490 mm | approx. 5.0 kg |
| OZL 464C832 | OZL 464 | Column | ODC 832, 5.1 MP, USB 3.0 | 300 x 240 x 490 mm | approx. 5.0 kg |
| OZL 464T241 | OZL 464 | Column | ODC 241, tablet, 5 MP | 300 x 240 x 640 mm | approx. 6 kg |
| OZL 466C825 | OZL 466 | Column | ODC 825, 5.1 MP, USB 2.0 | 300 x 240 x 490 mm | approx. 5.0 kg |
| OZL 466C832 | OZL 466 | Column | ODC 832, 5.1 MP, USB 3.0 | 300 x 240 x 490 mm | approx. 5.0 kg |
| OZL 466T241 | OZL 466 | Column | ODC 241, tablet, 5 MP | 300 x 240 x 640 mm | approx. 6 kg |
| OZL 468C825 | OZL 468 | mechanical, with handle | ODC 825, 5.1 MP, USB 2.0 | 300 x 240 x 490 mm | approx. 5.0 kg |
| OZL 468C832 | OZL 468 | mechanical, with handle | ODC 832, 5.1 MP, USB 3.0 | 300 x 240 x 490 mm | approx. 5.0 kg |
| OZL 468T241 | OZL 468 | mechanical, with handle | ODC 241, tablet, 5 MP | 300 x 240 x 640 mm | approx. 6 kg |
Technical details
These values apply to all sets. Any differing values are listed in the model table.
| Optical system | Greenough, bright field |
| Tube | Trinocular, inclined at 45°, rotatable through 360°, interpupillary distance 55 to 75 mm, dioptre adjustment on both sides |
| Eyepiece | HWF 10x, field of view 20 mm |
| Zoom | 0.7x to 4.5x continuously variable, ratio 6.4:1 |
| Field of view | 4.4 mm to 28.6 mm |
| Working distance | 105 mm |
| Maximum sample height | 140 mm |
| Illumination | 3 W LED incident light and 3 W LED transmitted light, independently dimmable |
| Camera connection | C-Mount |
| Interfaces | C825: USB 2.0; C832: USB 3.0; T241: Wi-Fi, USB 2.0, HDMI, MicroSD card slot |
| Software | C-Mount cameras: VIS 2.0 PRO or VIS 2.0 LITE for Windows; ODC 241: Android with integrated camera software |
| Power supply | Built-in power supply, 100 to 240 V, power cable |
| Mains plug | Euro included in the scope of delivery; adapters for AUS, UK, US and CH optional |
| Storage temperature | -5 °C to 40 °C |
| Labelling | CE |
| Warranty (manufacturer) | 36 months according to Kern, excluding wear parts |
Scope of delivery
- OZL 464, OZL 466 or OZL 468 stereo zoom microscope with HWF 10x eyepieces
- ODC 825, ODC 832 or ODC 241 camera, depending on the set
- C-Mount adapter
- For the ODC 825 and ODC 832 as per the brochure: Microscope VIS Basic software (OXM 901), USB cable (2,000 mm), eyepiece adapter and stage micrometer
- IEC power cable with Euro plug
- Dust cover, eyecups and multilingual operating instructions
Warranty
According to Kern & Sohn, these sets come with a 3-year warranty. Kern grants 3 years on products with a list price of €500 or more and 2 years on products below that and on components; wear parts such as batteries and rechargeable batteries are excluded. Warranty repairs are carried out by Kern or by a Kern dealer.
Downloads
Operating instructions Kern OZL 464C825, 464C832, 466C825, 466C832, 468C825, 468C832 (PDF)- Operating instructions Kern OZL 464T241, 466T241, 468T241 (PDF)
Regulatory information
As electrical devices, the microscopes fall under the ElektroG. The manufacturer Kern & Sohn GmbH is registered under the WEEE registration number DE 80821200. How to return old appliances is described on the page Environment and disposal.
Individual requirements and procurement service
Eyepieces OZB-A4632 (HWF 15x), OZB-A4633 (HWF 20x), OZB-A4634 (HWF 25x) and OZB-A4635 (HWF 10x with 0.1 mm scale), the attachment lenses OZB-A4641 (0.5x), OZB-A4644 (0.75x), OZB-A4642 (1.5x) and OZB-A4643 (2x), the solder protection lens OZB-A4646, the stand insert OZB-A4670, the eyepiece adapters ODC-A8102, ODC-A8103 and ODC-A8105, the calibration slide ODC-A2404, the OXM 902 and OXM 903 software, the dust cover OBB-A1387, the cleaning spray OCS-A1101, the cleaning kit OCS 901 and the power cables 822-903 (UK), MLB-A07 (Euro) and YKK-01 (CH) are also available. Enquiries are handled via our procurement service.
