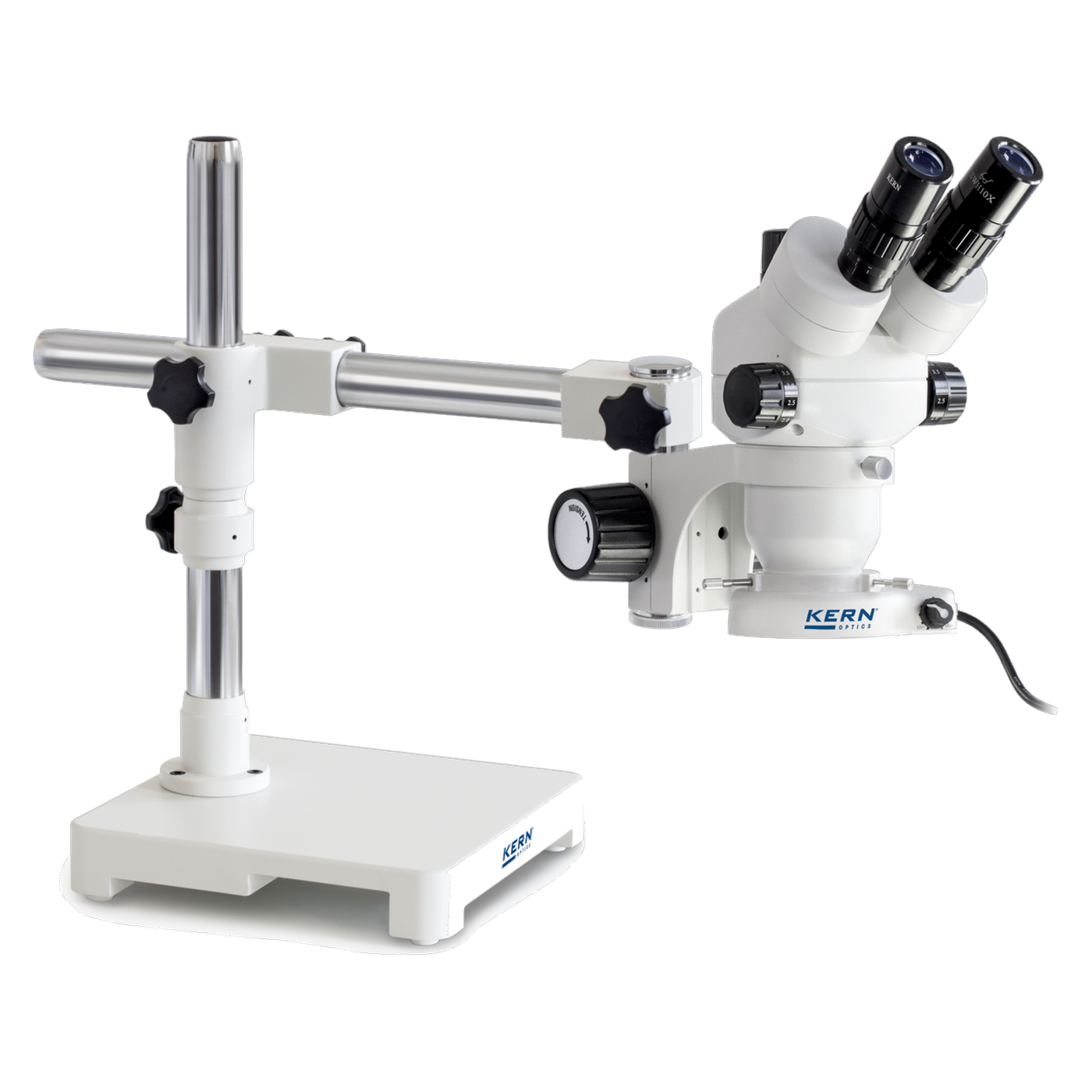

Kern OZM 902 stereo microscope set, binocular, telescopic arm with base plate, zoom 0.7x to 4.5x, LED ring light
€1,404.00
% Manufacturer's RRP: €1,560.00 10% below manufacturer's RRP
- Stereo microscope set: binocular, without camera output
- Stand: telescopic arm with base plate, net weight approx. 17 kg
- Zoom 0.7x to 4.5x, total magnification 7x to 45x, field of view 5.1 to 32.8 mm
- 4.5 W LED ring light in incident light, working distance 110 mm, sample height up to 130 mm
- HSWF 10x eyepieces with high eye point, built-in power supply 100 to 240 V
- Dust cover included in the scope of delivery
Product information "Kern OZM 902 stereo microscope set, binocular, telescopic arm with base plate, zoom 0.7x to 4.5x, LED ring light"
The Kern OZM-9 are pre-configured stereo microscope sets comprising the stereo zoom head from the OZM-5 series, a universal stand, a holder, an LED ring light and a dust cover. There are twelve basic models, each with an EU plug (no suffix) and a UK plug (suffix UK), making a total of 24 variants. All sets feature a zoom range of 0.7x to 4.5x, HSWF 10x eyepieces and a 4.5 W LED in incident light. They differ in three respects: the stand, the head (binocular or trinocular) and the mains plug (EU or UK). The model number reveals this: the first two digits after ‘OZM’ denote the stand (90, 91, 92, 93, 95, 98), the third digit denotes the head (2 for binocular, 3 for trinocular), and the suffix UK indicates that a UK adapter is included in the scope of delivery. According to Kern, the set eliminates the need to configure the individual components.
An overview of six stands
The 90 and 91 series have a telescopic arm with a base plate; at 26 kg, the 91 series is significantly heavier than the 90 series, which weighs 17 kg. The 92 and 93 series have a ball-bearing double arm with a base plate (22 kg and 28 kg). The 95 series has an articulating arm with a clamp and weighs 11 kg; the 98 series has a spring-loaded articulating arm with a clamp and weighs 6 kg. The clamps on the 95 and 98 series allow the microscope to be attached to the edge of a table, while the plate on the other series lets it stand without fixing. The weight depends on the stand. All dimensions and weights are listed in the model table.
Head and optics
The head features a Greenough system. The zoom range is continuously adjustable from 0.7x to 4.5x with a ratio of 6.4:1; when used with the eyepieces, this gives a range of 7x to 45x. The field of view ranges from 5.1 to 32.8 mm, the working distance is 110 mm, and the maximum specimen height is 130 mm. The HSWF 10x eyepieces have a 23 mm field of view, a high eye point and an anti-fungus coating. The tube is inclined at 45°, the interpupillary distance ranges from 52 to 76 mm, and the dioptre adjustment operates on both sides. The trinocular sets (third digit 3) feature a camera output; the beam splitter ratio is 0:100 according to the data sheet. A C-Mount adapter is required to connect a camera; Kern lists the microscope camera adapters OZB-A5701 (0.3x), OZB-A5702 (0.5x), OZB-A5703 and OZB-A5704 (1x each), as well as the cameras ODC 825, ODC 832, ODC 852 and ODC 854.
Ring light, power supply and mains plug
The incident light is a dimmable 4.5 W LED ring light. The set has no transmitted light. The power supply is built-in and operates at 100 to 240 V. According to Kern, the UK adapter is included in the scope of delivery for sets ending in UK. For sets with an EU plug (without UK), adapters for various countries are optional, according to the data sheet. All sets may be stored at temperatures between -5 °C and 40 °C.
Typical applications
- Electronics manufacturing: LCD and LED electronics, semiconductor technology, assembly and repair
- Quality control: large circuit boards and components under the microscope
- Zoology and botany, tissue preparation, dissection
- Detection of parasites, in vitro fertilisation
- Training centres and workshops
Models at a glance
| Model | Head | Stand | Net weight | Universal stand mounting (Ø) | Mains plug | Beam splitter ratio |
|---|---|---|---|---|---|---|
| OZM 902 | Binocular | Telescopic arm with plate | approx. 17 kg | 32 mm | EU (OZM 902) or UK (OZM 902UK) | not applicable |
| OZM 903 | Trinocular | Telescopic arm with plate | approx. 17 kg | 32 mm | EU (OZM 903) or UK (OZM 903UK) | 0:100 |
| OZM 912 | Binocular | Telescopic arm with plate | approx. 26 kg | 37 mm | EU (OZM 912) or UK (OZM 912UK) | not applicable |
| OZM 913 | Trinocular | Telescopic arm with plate | approx. 26 kg | 37 mm | EU (OZM 913) or UK (OZM 913UK) | 0:100 |
| OZM 922 | Binocular | Ball-bearing double arm with plate | approx. 22 kg | 32 mm | EU (OZM 922) or UK (OZM 922UK) | not applicable |
| OZM 923 | Trinocular | Ball-bearing double arm with plate | approx. 22 kg | 32 mm | EU (OZM 923) or UK (OZM 923UK) | 0:100 |
| OZM 932 | Binocular | Ball-bearing double arm with plate | approx. 28 kg | 37 mm | EU (OZM 932) or UK (OZM 932UK) | not applicable |
| OZM 933 | Trinocular | Ball-bearing double arm with plate | approx. 28 kg | 37 mm | EU (OZM 933) or UK (OZM 933UK) | 0:100 |
| OZM 952 | Binocular | Articulating arm with clamp | approx. 11 kg | 37 mm | EU (OZM 952) or UK (OZM 952UK) | not applicable |
| OZM 953 | Trinocular | Articulating arm with clamp | approx. 11 kg | 37 mm | EU (OZM 953) or UK (OZM 953UK) | 0:100 |
| OZM 982 | Binocular | Spring-loaded articulating arm with clamp | approx. 6 kg | not applicable | EU (OZM 982) or UK (OZM 982UK) | not applicable |
| OZM 983 | Trinocular | Spring-loaded articulating arm with clamp | approx. 6 kg | not applicable | EU (OZM 983) or UK (OZM 983UK) | 0:100 |
Technical details
These values apply to all sets. Any differing values are listed in the model table.
| Optical system | Greenough, bright field |
| Tube | Inclined at 45°, interpupillary distance 52 to 76 mm, dioptre adjustment on both sides |
| Eyepiece | HSWF 10x, field of view 23 mm, mounting diameter 30 mm, high eye point, anti-fungus coating |
| Zoom | 0.7x to 4.5x continuously variable, ratio 6.4:1 |
| Total magnification | 7x to 45x |
| Field of view | 5.1 mm to 32.8 mm |
| Working distance | 110 mm |
| Maximum sample height | 130 mm |
| Illumination | LED ring light in incident light, 4.5 W, dimmable |
| Mounting of microscope head (Ø) | 76 mm |
| Power supply | Built-in power supply, 100 to 240 V; for models ending in UK, a UK adapter is included in the scope of delivery |
| Storage temperature | -5 °C to 40 °C |
| Labelling | CE |
| Warranty (manufacturer) | 36 months according to Kern, excluding wear parts |
Scope of delivery
- Stereo zoom head (binocular or trinocular) with HSWF 10x eyepieces
- Universal stand with holder; depending on the model, a telescopic arm, double arm, articulating arm or spring-loaded articulating arm
- LED ring light
- Dust cover
- For models ending in UK: UK adapter
Warranty
According to Kern & Sohn, these sets come with a 3-year warranty. Kern grants 3 years on products with a list price of €500 or more and 2 years on products below that and on components; wear parts such as batteries and rechargeable batteries are excluded. Warranty repairs are carried out by Kern or by a Kern dealer.
Downloads
Operating instructions Kern OZM 902, 902UK, 903, 903UK, 922, 922UK, 923, 923UK (PDF)- Operating instructions Kern OZM 912, 912UK, 913, 913UK, 932, 932UK, 933, 933UK, 952, 952UK, 953, 953UK (PDF)
- Operating instructions Kern OZM 982, 982UK, 983, 983UK (PDF)
Regulatory information
As electrical devices, the stereo microscope sets fall under the ElektroG. The manufacturer Kern & Sohn GmbH is registered under the WEEE registration number DE 80821200. How to return old appliances is described on the page Environment and disposal.
Individual requirements and procurement service
Eyepieces OZB-A5504 (SWF 15x), OZB-A5505 (SWF 20x), OZB-A5506 (SWF 30x), OZB-A5512 (HSWF 10x with 0.1 mm scale), OZB-A5513 (SWF 15x with 0.05 mm scale) and OZB-A5514 (SWF 20x with 0.05 mm scale), the attachment lenses OZB-A5611 (0.37x), OZB-A5612 (0.5x), OZB-A5613 (0.7x), OZB-A5615 (1.5x) and OZB-A5616 (2x), the solder protection lens OZB-A5614, the stereo microscope stands OZB-A6301, OZB-A6302 and OZB-A6303, the OCS-A1101 cleaning spray, the OCS 901 cleaning kit and the YKA-02 travel adapter (according to the brochure, for models with an EU plug) are also available. Enquiries are handled via our procurement service.
