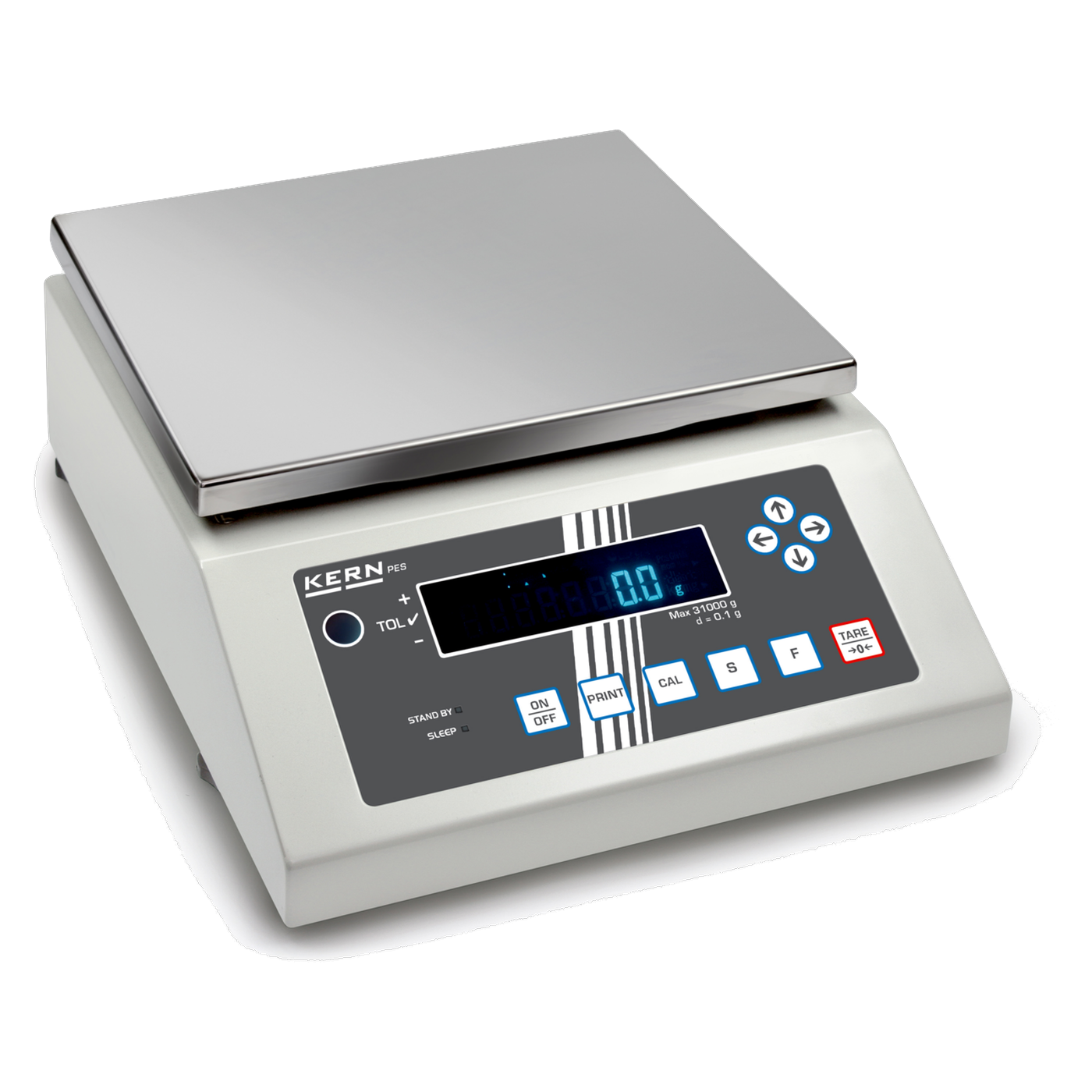

Kern PES 31000-1M precision balance 31,000 g / 0.1 g

The Kern PES is a range of precision balances featuring a tuning fork weighing system and a die-cast aluminium housing. Kern describes them as laboratory and industrial balances for heavy items. Six models cover weighing ranges from 620 g to 31,000 g. The PES 620-3M has a readability of 0.001 g (1 mg). The PES 2200-2M, 4200-2M and 6200-2M have a readability of 0.01 g, whilst the PES 15000-1M and 31000-1M have a readability of 0.1 g. All have the same stabilisation time of 3 s, a fluorescent display, an RS-232 interface and a stainless steel weighing plate.

Which model for which weighing application

The choice depends on the heaviest item to be weighed and on the resolution. The PES 620-3M weighs up to 620 g and reads to the milligram. For weighing up to 6,200 g to 0.01 g, there are three models available, each with a reproducibility of 0.01 g. The linearity for the PES 2200-2M and 4200-2M is ± 0.02 g, whilst for the PES 6200-2M it is ± 0.03 g. At 15,000 g and 31,000 g, the readability is 0.1 g. The PES 31000-1M, on the other hand, has a larger weighing pan (250 x 220 mm instead of 200 x 200 mm) and weighs around 10 kg; its linearity is ± 0.4 g, compared with ± 0.2 g for the PES 15000-1M.

Adjustment with an external weight

The PES is adjusted using an external weight. The CAL adjustment programme guides through the procedure; suitable test weights are available at extra cost. Kern does not specify an internal adjustment for this series. If you are looking for a balance with internal adjustment and optional conformity assessment, take a look at the Kern PEJ series. This does not replace a calibration certificate, which is available separately (see below).

Display, counting and weighing with tolerance range

The fluorescent display is self-illuminating and has 14 mm high digits; according to the data sheet, the user guidance is in English. A capacity display and a standby function are included. The balance counts pieces with the reference piece counts 5, 10, 30 and 100, determines percentages and adds up formulation components with the Net-Total function. The units can be switched between, including kg, g and ct. When weighing within a tolerance range, two upper and two lower limit values are entered using four arrow keys. Kern names portioning, dosing and sorting for this.

The minimum unit weight for piece counting is specified in the model table. It ranges from 1 mg under laboratory conditions for the PES 620-3M to 500 mg for the PES 31000-1M.

Design

The housing measures 220 x 333 x 93 mm for most models, and 260 x 330 x 113 mm for the PES 31000-1M. The PES 620-3M also features a plastic draught shield with a weighing chamber measuring 170 x 150 x 100 mm, giving it a height of 186 mm. The spirit level and adjustable feet are used for levelling. For the PES 620-3M and the PES 2200-2M, an eyelet for below-balance weighing is included in the scope of delivery. RS-232 is available as standard; a control output with optocoupler (digital I/O) is optionally available ex works. The plug-in mains adaptor operates at 100 V to 240 V AC at 50 / 60 Hz.

Typical applications

• Laboratory applications: weighing in chemicals and samples, down to 1 mg with the PES 620-3M
• Industrial applications: weighing of containers and components up to 31,000 g
• Research and development: formulations using Net-Total, percentage determination
• Quality assurance: piece counting and tolerance testing with limit values

Models at a glance

Technical details

These values apply to all models. Deviating values are given in the model table.

Scope of delivery

• Kern PES precision balance with stainless steel weighing plate
• Working protective cover (not for the PES 31000-1M)
• Plastic draught shield (PES 620-3M only)
• Eyelet for below-balance weighing (PES 620-3M and PES 2200-2M only)
• Plug-in mains adaptor with country adaptors for EU, AUS, UK, US and CH

Calibration

A DAkkS calibration certificate can be ordered separately: item no. 963-103 for PES 620-3M, item no. 963-127 for PES 2200-2M and PES 4200-2M, item no. 963-104 for PES 6200-2M, item no. 963-128 for PES 15000-1M and PES 31000-1M. The confirmation of manufacturer specification (969-517) is only available in conjunction with the DAkkS calibration certificate.

Warranty

According to Kern & Sohn, these devices come with a 3-year warranty. Kern grants 3 years on products with a list price of €500 or more and 2 years on products below that and on components; wear parts such as batteries and rechargeable batteries are excluded. Warranty repairs are carried out by Kern or by a Kern dealer.

Downloads

• Operating instructions Kern PES (PDF)

Regulatory information

As electrical devices, the balances fall under the ElektroG. The manufacturer Kern & Sohn GmbH is registered under the WEEE registration number DE 80821200. How to return old appliances is described on the page Environment and disposal.

Individual requirements and procurement service

Relay output (PES-A02), below-balance weighing device (PES-A03, not for PES 2200-2M and PES 31000-1M), working protective covers (PES-A04, PES-A04S05 with 5 pieces, not for PES 31000-1M), anti-vibration table (YPS-03), anti-vibration plates (YPS-04, YPS-05), thermal printers (YKC-01, YKH-01), dot-matrix printer (YKG-01), needle printer (YKT-01), RS232 Bluetooth adapter (YKI-02), RS232 Ethernet converters (YKI-10, YKI-11), RS232 WLAN converter (YKI-12) and RS-232 interface cables (474-926, MLB-A05) are also available. Kern also lists test weights made of polished stainless steel: 316-09 (500 g, OIML class E2) for PES 620-3M, 326-12 (2 kg, class F1) for PES 2200-2M and 316-13 (5 kg, class E2) for PES 6200-2M. Enquiries are handled via our procurement service.
