Liebherr HMFvh 4011 Medicines Refrigerator 279 L Glass Door DIN 13277 999338500

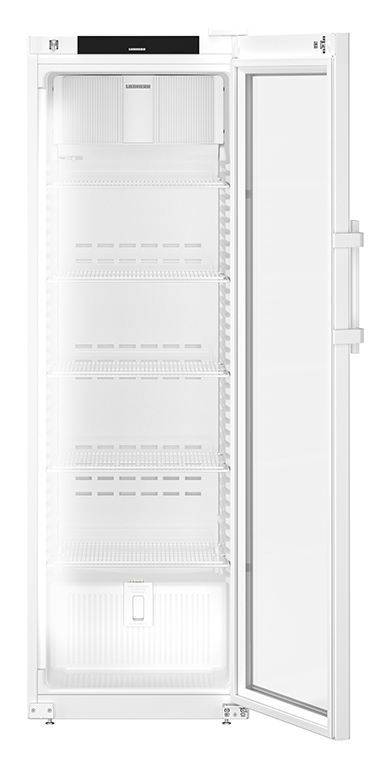

The Liebherr HMFvh 4011 is a professional pharmaceutical refrigerator that meets the stringent requirements of DIN 13277 (formerly DIN 58345) and has been specially developed for pharmacies, hospitals and laboratories. Unlike its sister model, the HMFvh 4001, this version features an insulated glass door, which allows for a quick visual check of the contents without having to open the door.

Maximum temperature stability in accordance with DIN 13277

This model meets all the criteria of the standard for the safe storage of medicines. The powerful dynamic cooling system (forced air circulation), in conjunction with the precise electronic control system, ensures maximum temperature stability and a highly uniform temperature distribution throughout the entire interior. The operating temperature range of +3 °C to +8 °C is reliably maintained.

Comprehensive alarm and safety system

To ensure continuous monitoring, the HMFvh 4011 is equipped with a comprehensive alarm system. It provides visual and audible warnings in the event of temperature deviations (either above or below the set point) as well as when the door is left open. An integrated data logger (min/max memory) records the minimum and maximum internal temperatures since the last reset, enabling easy temperature monitoring.

Integrated safety thermostat to prevent frost

A key feature of DIN 13277 is protection against sub-zero temperatures. The HMFvh 4011 features an additional safety thermostat that actively prevents the temperature from falling below +2 °C. Even in the unlikely event of a control system fault, this prevents vaccines or medicines from freezing.

Connectivity and transparent storage

For integration into central monitoring systems (BMS/GLP/GMP), the unit is fitted as standard with an RS 485 interface and a potential-free contact for alarm signalling. The 279-litre interior is fitted with five heavy-duty, plastic-coated shelves (up to 45 kg). The self-closing glass door features a robust lock to prevent unauthorised access.

Technical details

• Compliance with standards: DIN 13277 (medicines refrigerators)
• Net capacity: 279 l
• Door type: Insulated glass door
• Cooling system: Dynamic (forced air)
• Temperature range: +3 °C to +8 °C (adjustment accuracy 0.1 °C)
• Safety thermostat: Yes (prevents temperatures below +2 °C)
• Control: Electronic control
• Temperature display: External digital
• Min/Max memory: Yes (High/Low memory)
• Defrosting method: Automatic (hot gas)
• Shelving: 5 x plastic-coated shelves
• Shelf load capacity: 45 kg
• Interfaces: RS 485, dry contact (alarm)
• Lock: Mechanical lock fitted
• Warning signal (temperature/door/mains): Visual and audible
• Door: Insulated glass door, self-closing
• Door hinge: Right-hand (reversible)
• Housing material: Steel, white
• Climate class: 4 (SN-ST)
• Refrigerant: R 600a
• Noise level: 47 dB(A)
• Voltage: 220–240 V ~
• Current rating: 2.0 A
• Dimensions (H/W/D): 187.7 / 59.7 / 68.0 cm
• Net weight: 72.8 kg

Contents of delivery

• Liebherr HMFvh 4011 (basic unit with glass door)
• 5 x shelves (plastic-coated)
• 1 x mains lead (permanently fitted)
• 2 x keys
• User manual
• Declaration of Conformity (DIN 13277)

Customised requirements & procurement service

Do you require accessories such as additional shelves, external temperature data loggers for comprehensive documentation (GMP/GLP) or a calibration service for this DIN 13277 refrigerator? Our bespoke procurement service can assist you with sourcing specific accessories and services.
