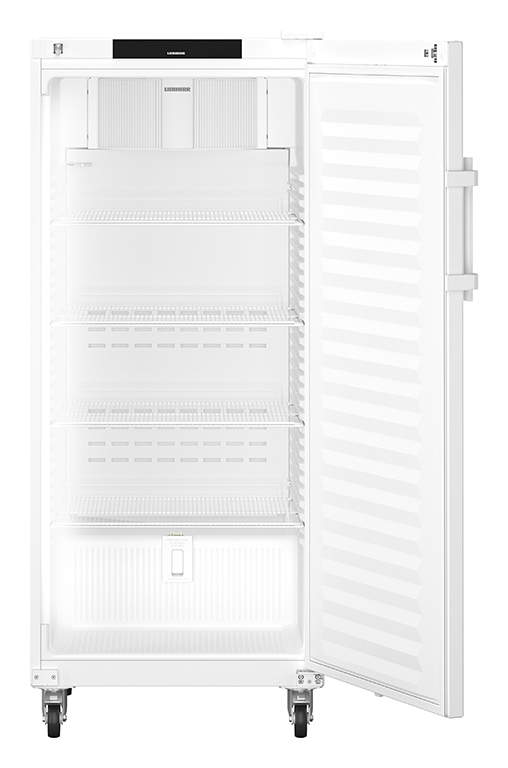

Liebherr HMFvh 5501 Medicines Refrigerator 588 L DIN 13277 999338700

The Liebherr HMFvh 5501 is a large-capacity pharmaceutical refrigerator which, with a net capacity of 588 litres, has been designed to meet the high storage requirements of hospital pharmacies, supply centres and large laboratories. It fully complies with the stringent requirements of DIN 13277 (formerly DIN 58345) and ensures the safe and stable storage of temperature-sensitive medicines and vaccines.

Maximum temperature stability in accordance with DIN 13277

This model meets all the criteria of the standard for safe medicine storage. The powerful dynamic cooling system (forced air circulation), in conjunction with the precise electronic control system, ensures maximum temperature stability and a highly uniform temperature distribution throughout the entire, spacious interior. The operating temperature range of +3 °C to +8 °C is reliably maintained.

Comprehensive alarm and safety system

To ensure seamless monitoring, the HMFvh 5501 is equipped with a comprehensive alarm system. It provides visual and audible warnings in the event of temperature deviations (either above or below the set point) as well as when the door is left open. An integrated data logger (min/max memory) records the minimum and maximum internal temperatures since the last reset, enabling easy temperature monitoring.

Integrated safety thermostat to prevent frost

A key feature of DIN 13277 is protection against sub-zero temperatures. The HMFvh 5501 features an additional safety thermostat that actively prevents the temperature from falling below +2 °C. Even in the unlikely event of a control system fault, this prevents vaccines or medicines from freezing.

Connectivity and Maximum Capacity

For integration into central monitoring systems (BMS/GLP/GMP), the unit is fitted as standard with an RS 485 interface and a potential-free contact for alarm signalling. The 588-litre interior is fitted with ten heavy-duty, plastic-coated shelves (up to 45 kg). The self-closing solid steel door features a robust lock to prevent unauthorised access.

Technical details

• Compliance with standards: DIN 13277 (medicines refrigerators)
• Net capacity: 588 l
• Cooling system: Dynamic (forced air)
• Temperature range: +3 °C to +8 °C (adjustment accuracy 0.1 °C)
• Safety thermostat: Yes (prevents temperatures below +2 °C)
• Control: Electronic control
• Temperature display: External digital
• Min/Max memory: Yes (High/Low memory)
• Defrosting method: Automatic (hot gas)
• Shelving: 10 x plastic-coated shelves
• Shelf load capacity: 45 kg
• Interfaces: RS 485, dry contact (alarm)
• Lock: Mechanical lock fitted
• Warning signal (temperature/door/mains): Visual and audible
• Door: Solid door (steel), self-closing
• Door hinge: Right-hand (reversible)
• Housing material: Steel, white
• Climate class: 4 (SN-ST)
• Refrigerant: R 600a
• Noise level: 47 dB(A)
• Voltage: 220–240 V ~
• Current rating: 2.0 A
• Dimensions (H/W/D): 187.7 / 74.7 / 76.9 cm
• Net weight: 76.5 kg

Contents of delivery

• Liebherr HMFvh 5501 (base unit)
• 10 x racks (plastic-coated)
• 1 x mains cable (permanently fitted)
• 2 x keys
• User manual
• Declaration of Conformity (DIN 13277)

Customised requirements & procurement service

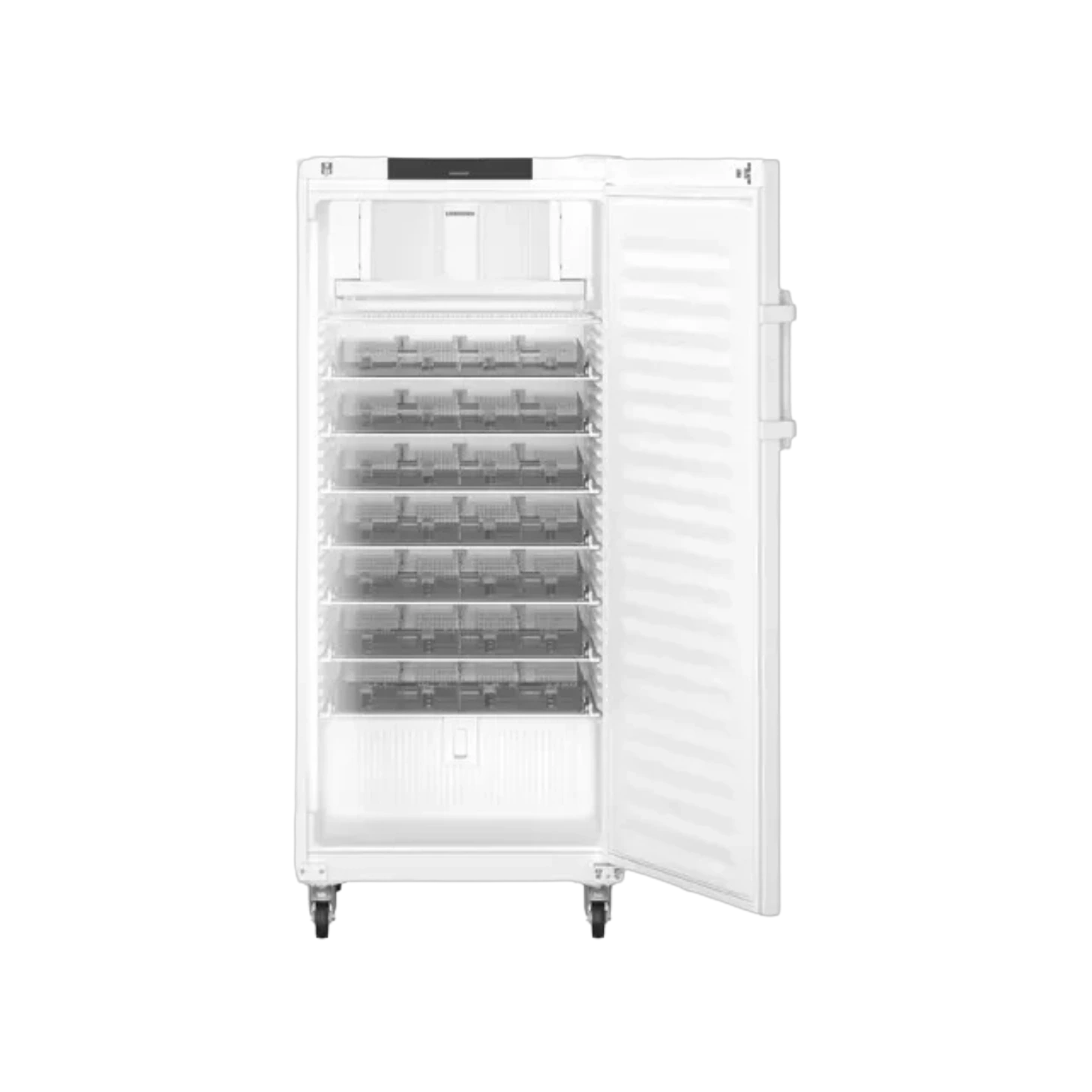

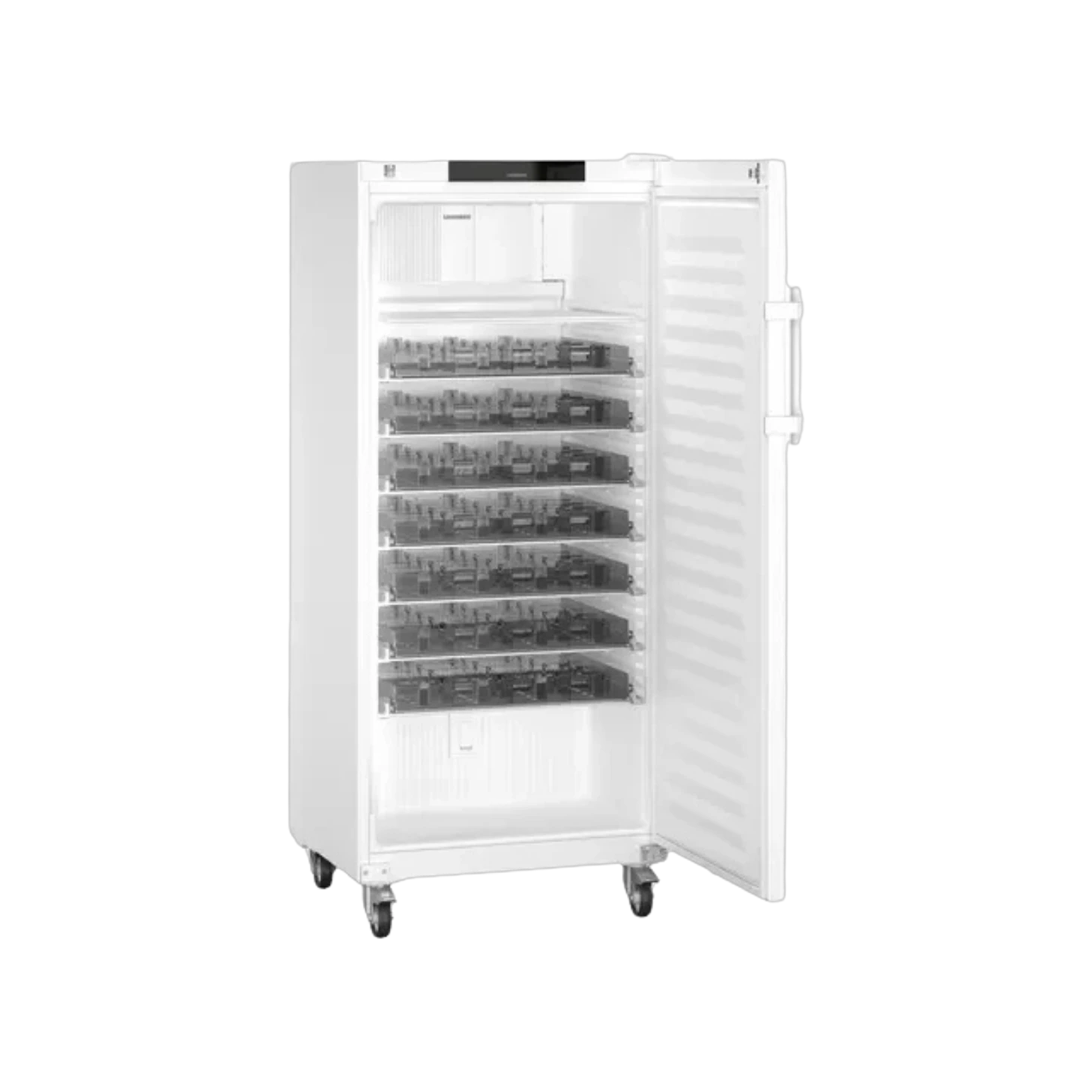

Do you require accessories such as additional shelves, a retrofittable aluminium drawer system (organisation system) or external temperature data loggers for comprehensive documentation (GMP/GLP)? Our bespoke procurement service will assist you in sourcing specific accessories and services.
