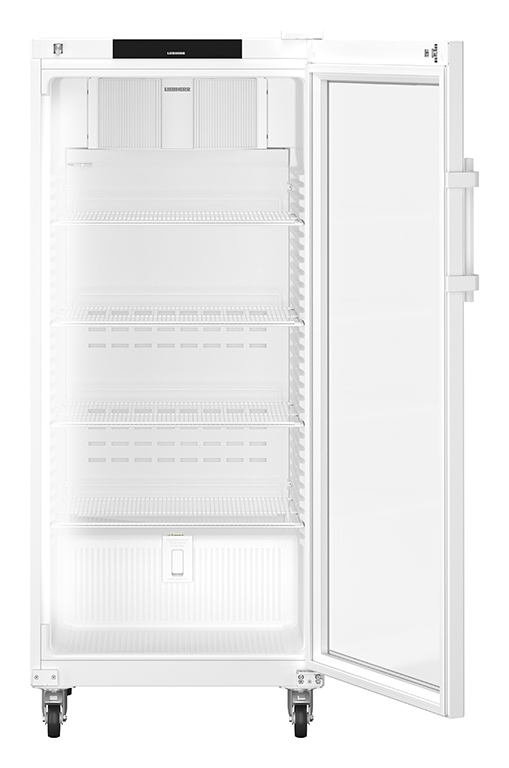

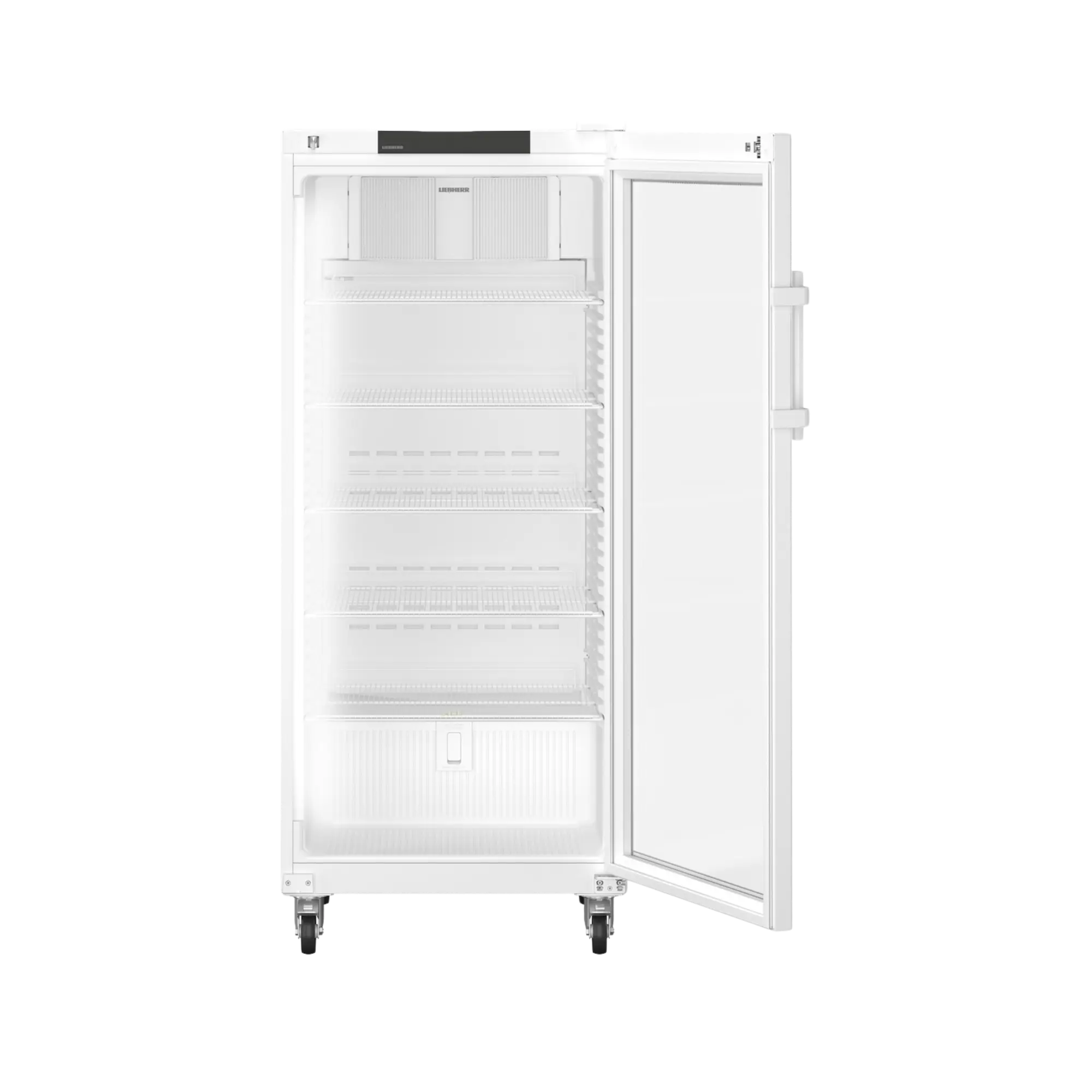

Liebherr HMFvh 5511 Medicines Refrigerator 588 L Glass Door DIN 13277 999338900

The Liebherr HMFvh 5511 is a large-capacity pharmaceutical refrigerator that meets the stringent requirements of DIN 13277 (formerly DIN 58345). It has been designed to meet the high storage demands of hospital pharmacies, supply centres and large laboratories, and combines a large storage capacity (588 litres) with the ability to carry out quick visual checks through an insulated glass door.

Maximum temperature stability in accordance with DIN 13277

This model meets all the criteria of the standard for safe medicine storage. The powerful dynamic cooling system (forced air circulation), in conjunction with the precise electronic control system, ensures maximum temperature stability and a highly uniform temperature distribution. The operating temperature range of +3 °C to +8 °C is reliably maintained.

Transparency, alarm and safety system

The double-glazed door allows for quick stock-taking or locating preparations without having to open the door, which minimises cold loss. To ensure continuous monitoring, the HMFvh 5511 is equipped with a comprehensive alarm system. It provides visual and audible warnings in the event of temperature deviations (either above or below the set point) as well as when the door is left open. An integrated data logger (min/max memory) records the minimum and maximum internal temperatures since the last reset.

Integrated safety thermostat to prevent freezing

A key feature of DIN 13277 is protection against sub-zero temperatures. The HMFvh 5511 features an additional safety thermostat that actively prevents the temperature from falling below +2 °C. Even in the unlikely event of a control system fault, this prevents vaccines or medicines from freezing.

Connectivity and Maximum Capacity

For integration into central monitoring systems (BMS/GLP/GMP), the unit is fitted as standard with an RS 485 interface and a dry contact for alarm signalling. The 588-litre interior is fitted with ten heavy-duty, plastic-coated shelves (up to 45 kg). The self-closing glass door features a robust lock.

Technical details

• Compliance with standard: DIN 13277 (medicines refrigerators)
• Net capacity: 588 l
• Door type: Insulated glass door
• Cooling system: Dynamic (forced air)
• Temperature range: +3 °C to +8 °C (adjustment accuracy 0.1 °C)
• Safety thermostat: Yes (prevents temperatures below +2 °C)
• Control: Electronic control
• Temperature display: External digital
• Min/Max memory: Yes (High/Low memory)
• Defrosting method: Automatic (hot gas)
• Shelving: 10 x plastic-coated shelves
• Shelf load capacity: 45 kg
• Interfaces: RS 485, dry contact (alarm)
• Lock: Mechanical lock fitted
• Warning signal (temperature/door/mains): Visual and audible
• Door: Insulated glass door, self-closing
• Door hinge: Right-hand (reversible)
• Housing material: Steel, white
• Climate class: 4 (SN-ST)
• Refrigerant: R 600a
• Noise level: 47 dB(A)
• Voltage: 220–240 V ~
• Current rating: 2.0 A

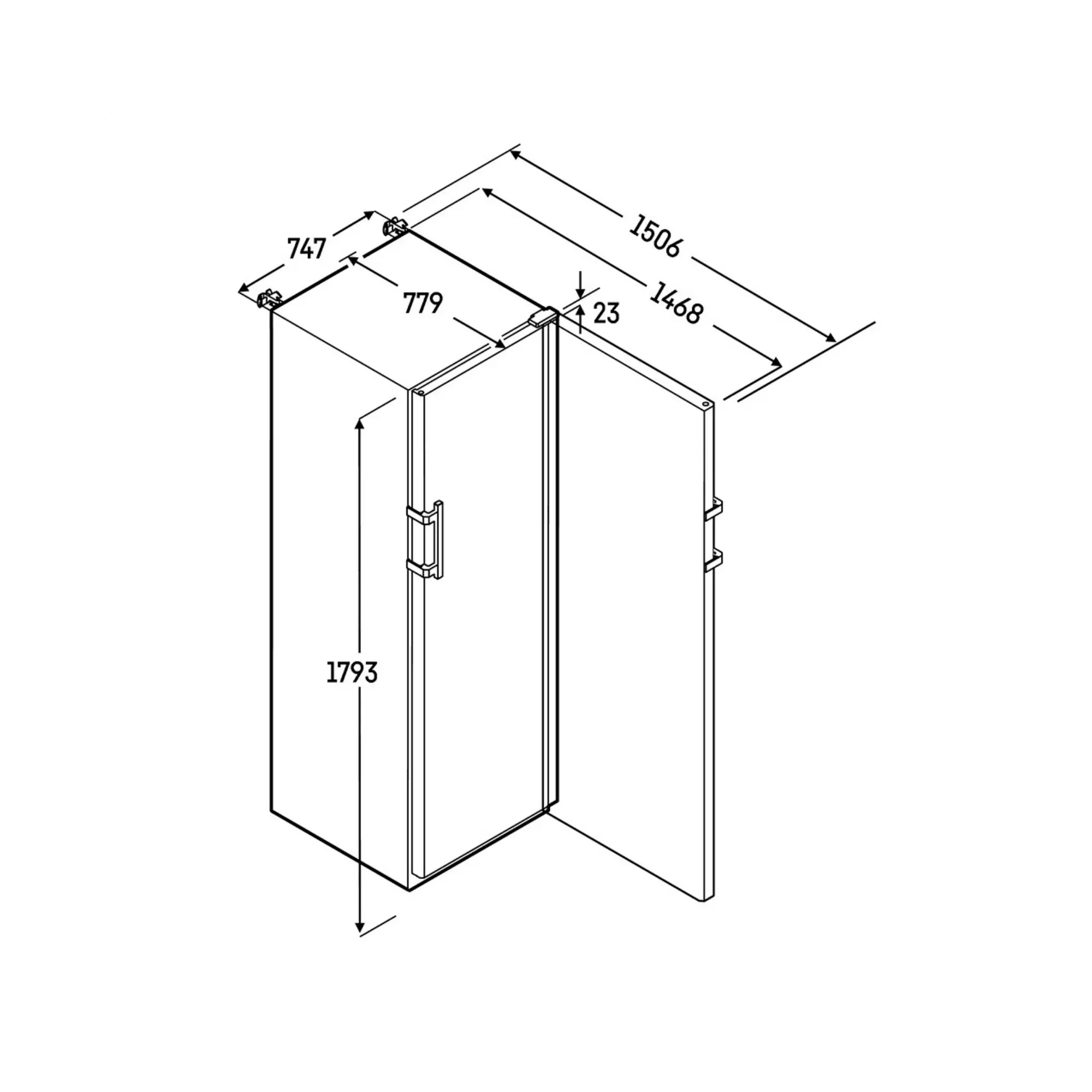

• Dimensions (H/W/D): 187.7 / 74.7 / 76.9 cm
• Net weight: 81.7 kg

Contents

• Liebherr HMFvh 5511 (basic unit with glass door)
• 10 x shelves (plastic-coated)
• 1 x mains lead (permanently fitted)
• 2 x keys
• User manual
• Declaration of Conformity (DIN 13277)

Customised requirements & procurement service

Do you require accessories such as additional shelves, a retrofittable aluminium drawer system (organisation system) or external temperature data loggers for comprehensive documentation (GMP/GLP)? Our bespoke procurement service will assist you in sourcing specific accessories and services.
