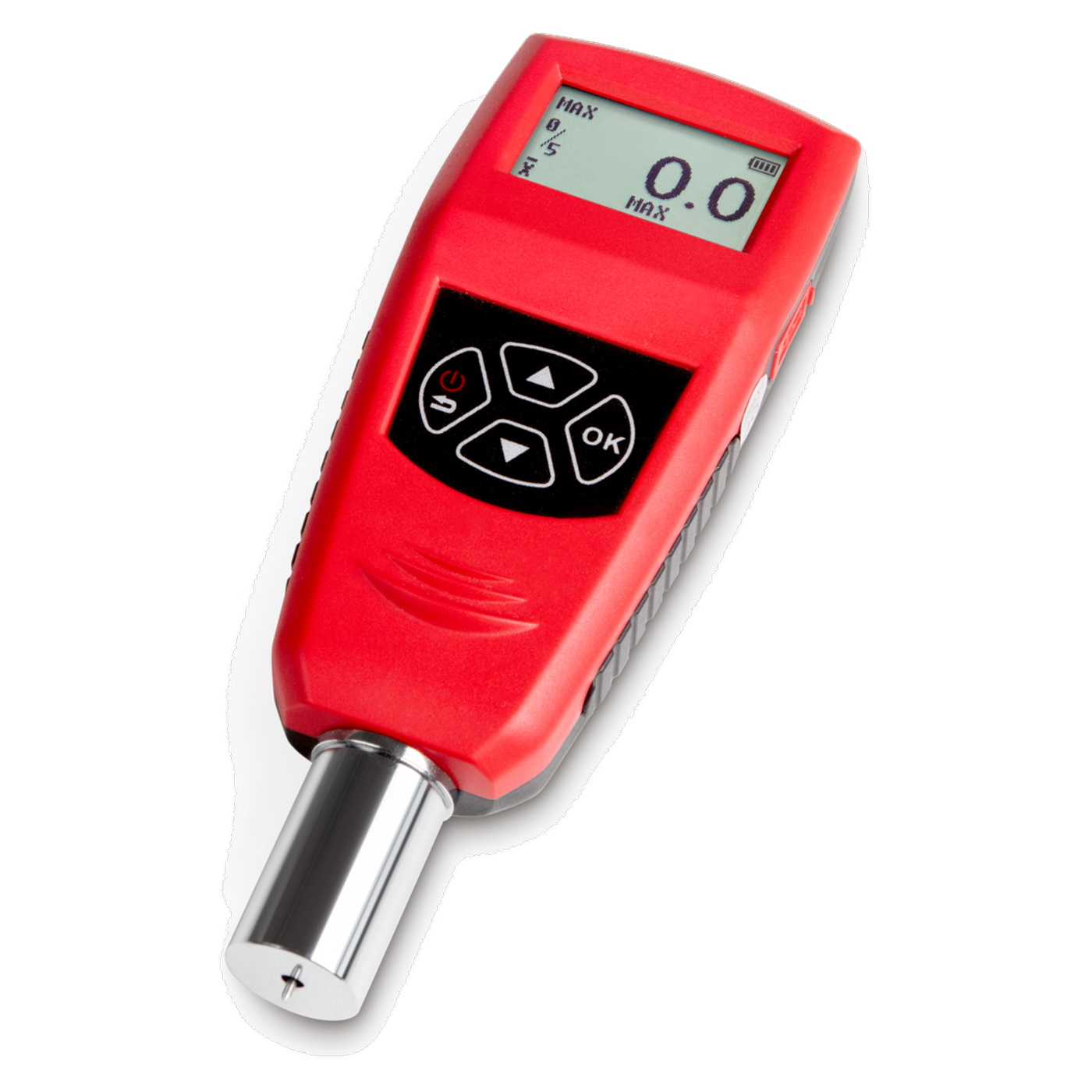

Sauter HEA 100 digital Shore hardness tester Shore A with memory, 100 HA / 0.1 HA
€558.00
% Manufacturer's RRP: €620.00 10% below manufacturer's RRP
- Digital Shore hardness tester, Shore A scale, measuring range 100 HA, readability 0.1 HA
- Measuring modes average, maximum and time curve, audible and visual limit value alarm
- Memory for 500 results, statistics function, USB interface
- Measurement accuracy 1 % of the final value, test object thickness from 6 mm
- NiMH rechargeable battery (up to 20 h without backlight, 8 h with backlight), plug-in mains adaptor with EU plug
- Can be mounted on the TI-HEA test stand (Shore A, 10 N); test block and carrying case included in the scope of delivery
Product information "Sauter HEA 100 digital Shore hardness tester Shore A with memory, 100 HA / 0.1 HA"
The Sauter HE series are digital Shore hardness testers with memory, statistical functions and limit value alarms. They are aimed at inspectors who have to document and evaluate measurement series. The HEA 100 measures on the Shore A scale, whilst the HED 100 measures on the Shore D scale. Both have a readability of 0.1, a measuring range of 100 and are powered by a built-in NiMH rechargeable battery. The scope of delivery includes a test block and a carrying case.
Measuring modes and limit value alarm
The device measures either the average value, the maximum value or the time curve. The measuring time can be set from 0 to 99 seconds, and a workpiece number can also be entered. The limit value function emits an audible and a visual signal as soon as a measured value falls below or exceeds the set limit values. In this way, series tests can be quickly sorted into pass and fail.
Memory, statistics and USB

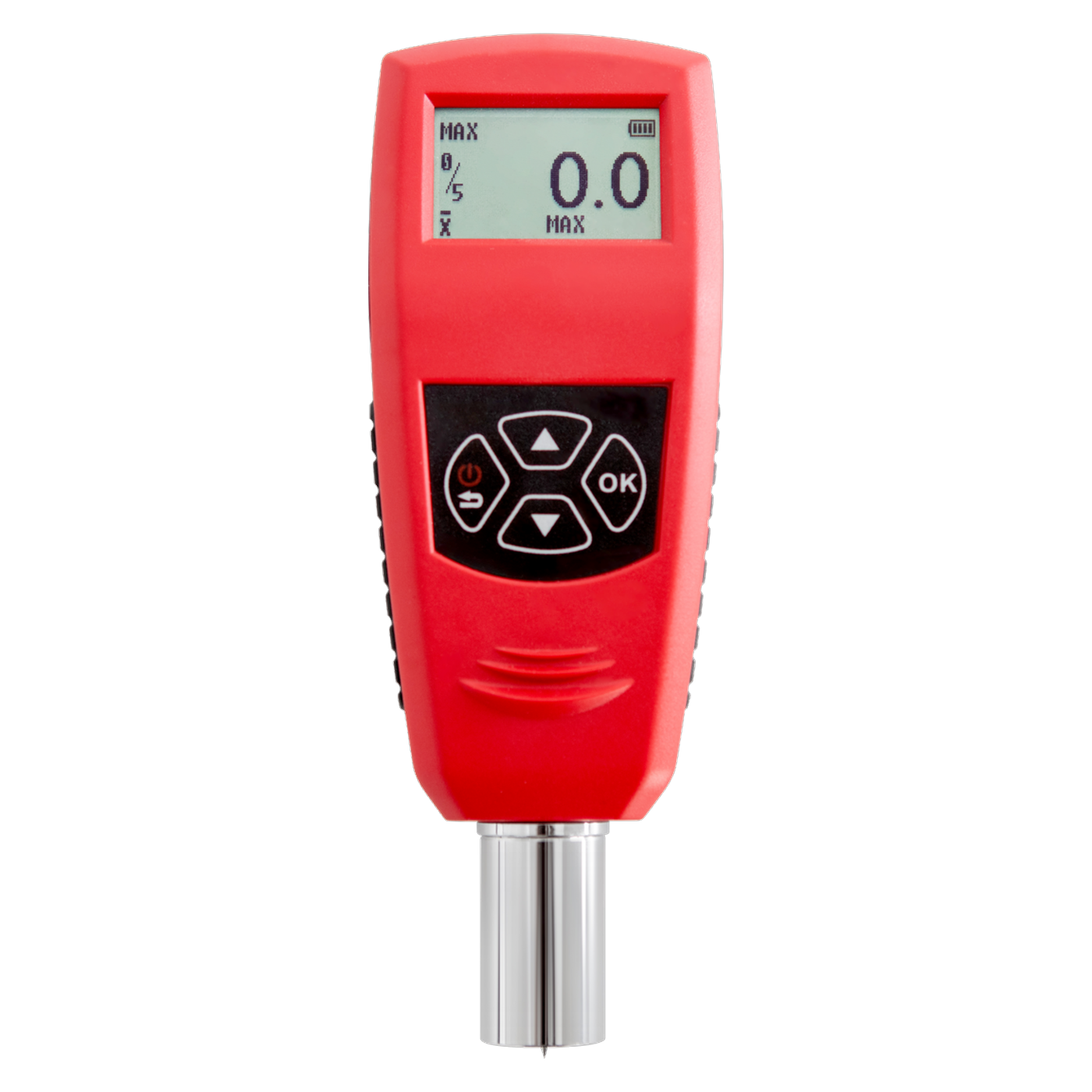

The internal memory can store up to 500 results. The statistics function analyses the stored measured values, for example as an average or standard deviation. Data is transferred to a PC via the standard USB interface (USB device). The large LCD (32 x 21 mm) is backlit and displays the rechargeable battery level.
Rechargeable battery and power supply
According to the data sheet, the rechargeable battery (NiMH, 3.6 V, 400 mAh) lasts up to 20 h without backlight and up to 8 h with backlight; the charging time is approximately 3 h. When running on rechargeable battery power, the device switches itself off after 2 min. The plug-in mains adaptor (100 V to 240 V, 50/60 Hz) is supplied with an EU plug; a UK plug is available as an option.
Test stand and comparison measurements
To improve measurement results, the instrument can be mounted on a test stand: the HEA 100 on the TI-HEA, and the HED 100 on the TI-HED. Both test stands are also available. Kern recommends the HE for internal comparison measurements.
Typical applications
- Plastics engineering: hardness determination of plastics by indentation measurement, with measurement series and statistics
- Medical technology: hardness testing of elastomer components with documentation of the results
- Automotive industry: series testing of seals and rubber parts with limit value alarm
- Packaging industry: recording the hardness of plastics and sealing materials over measurement series
- Food industry: hardness testing of seals and plastic components
According to Kern, Shore A is used for rubber, elastomers, neoprene, silicone, vinyl, soft plastics, felt, leather and similar materials, whilst Shore D is used for harder plastics. Those who only require the display and data transmission via RS-232 will find both in the more affordable HD series.
Models at a glance
| Model | Hardness scale | Test force | Measuring range | Readability | Suitable test stand |
|---|---|---|---|---|---|
| HEA 100 | Shore A | 10 N | 100 HA | 0.1 HA | TI-HEA |
| HED 100 | Shore D | 50 N | 100 HD | 0.1 HD | TI-HED |
Technical details
These values apply to both models. Deviating values are given in the model table.
| Display | 32 x 21 mm backlit LCD |
| Measurement accuracy | 1 % of the final value |

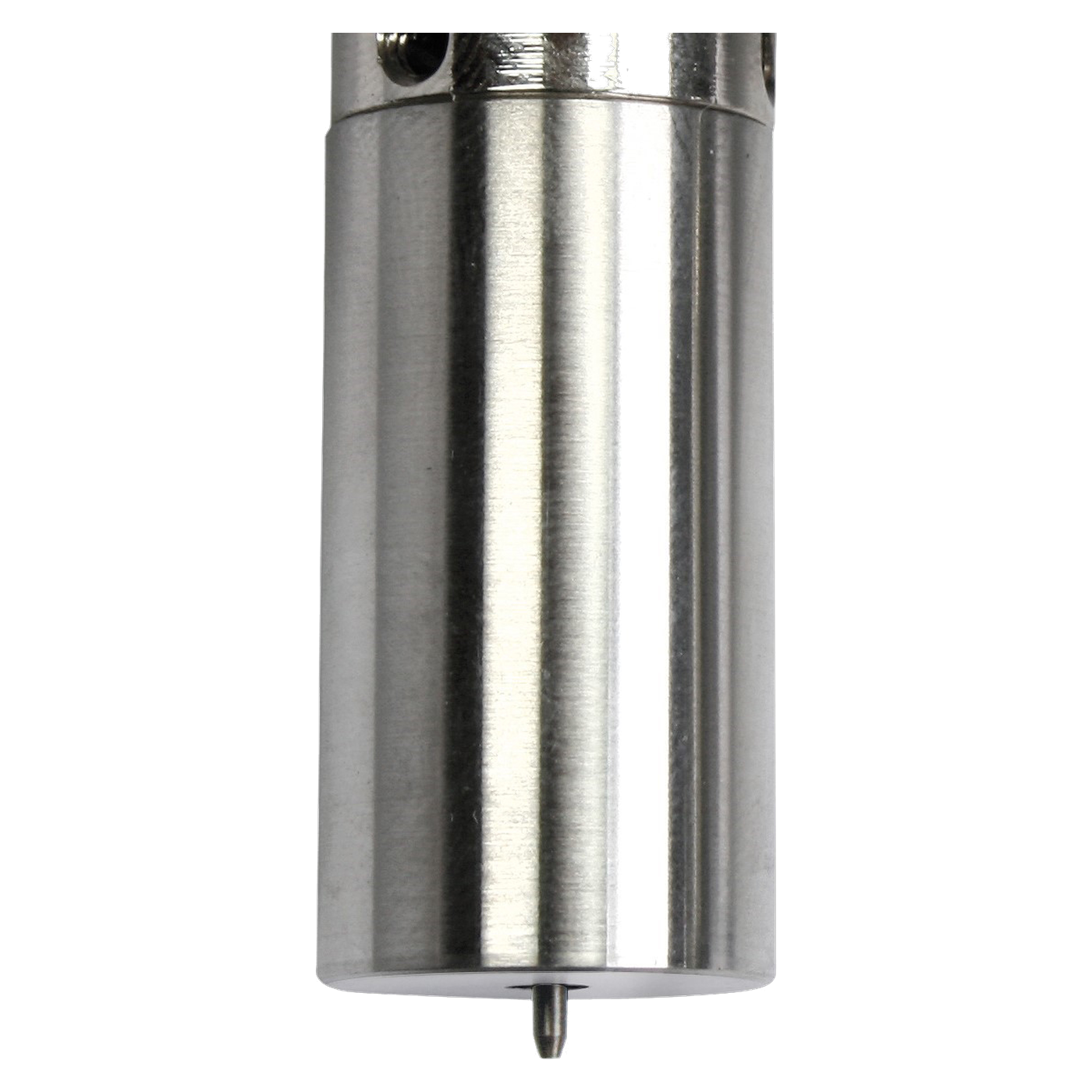

| Measuring probe | Ø 18 mm |
| Test object minimum thickness | 6 mm |
| Measuring modes | Average value, maximum value, time curve, measuring time 0 to 99 s |
| Functions | Limit value alarm (audible and visual), hold, peak, mean value, statistics, workpiece number |
| Memory | 500 results |
| Interface | USB device |
| Rechargeable battery | NiMH, 3.6 V, 400 mAh, charging time approx. 3 h, operating time up to 20 h without backlight and 8 h with backlight |
| Auto-Off in rechargeable battery mode | 2 min |
| Power supply | Plug-in mains adaptor, 100 V to 240 V, 50 / 60 Hz, EU plug, UK plug optional |
| Housing | Plastic, 153 x 50 x 29 mm (W x D x H) |
| Ambient temperature | 0 °C to 50 °C |
| Net weight | approx. 0.15 kg |
| Warranty (manufacturer) | 36 months according to Kern, excluding wear parts |

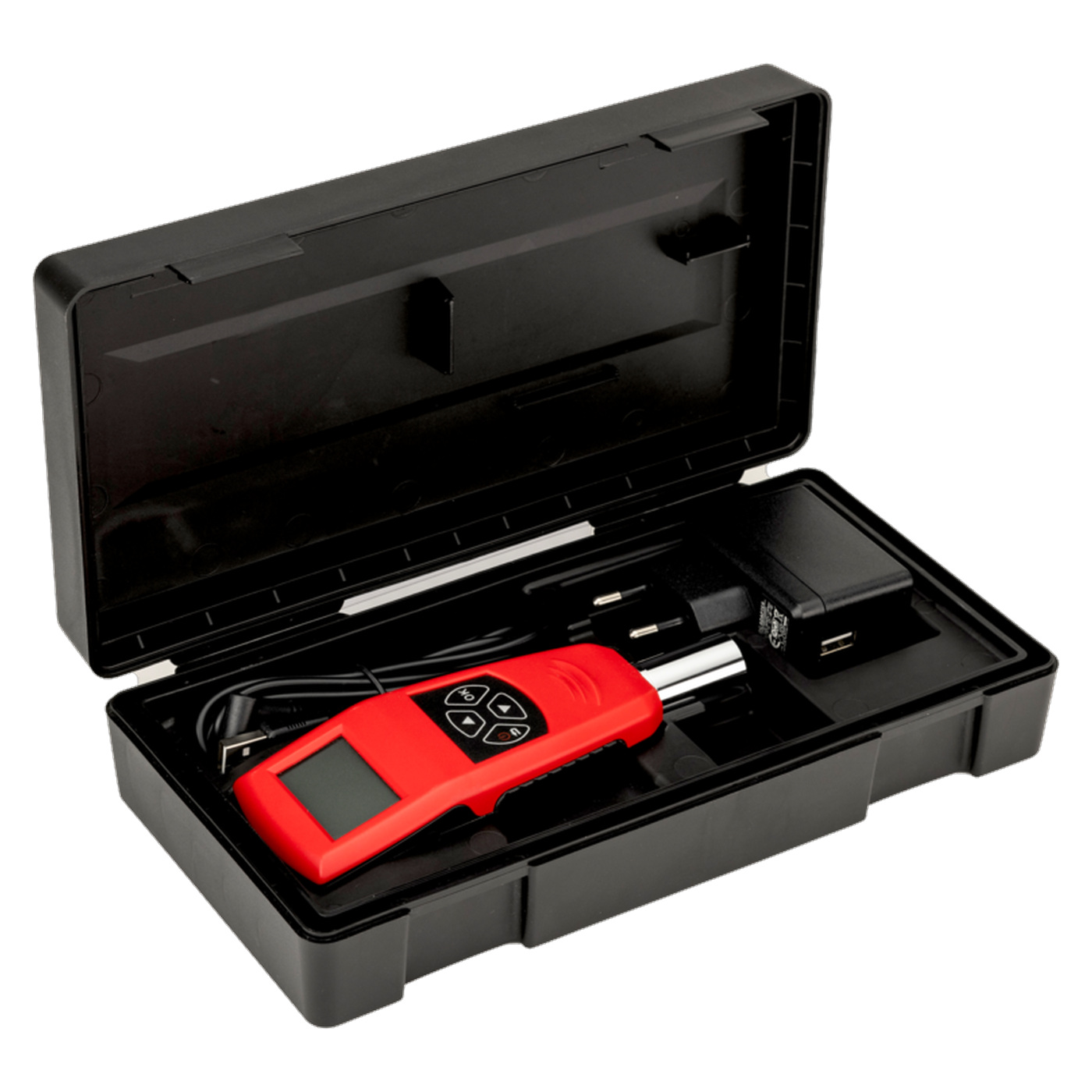

Scope of delivery
- Sauter HE Shore hardness tester (HEA 100 or HED 100, depending on the model) with built-in rechargeable battery
- Plug-in mains adaptor with EU plug
- Test block
- Software for transferring measurement data to a PC
- Carrying case
Warranty
According to Kern & Sohn, these devices come with a 3-year warranty. Kern grants 3 years on products with a list price of €500 or more and 2 years on products below that and on components; wear parts such as batteries and rechargeable batteries are excluded. Warranty repairs are carried out by Kern or by a Kern dealer.
Downloads
Operating instructions Sauter HE (PDF)Regulatory information
As electrical devices, the hardness testers fall under the ElektroG. The manufacturer Kern & Sohn GmbH is registered under the WEEE registration number DE 80821200. How to return old appliances is described on the page Environment and disposal.
Individual requirements and procurement service
The TI-HEA (Shore A) and TI-HED (Shore D) Shore test stands, the TI-HE additional weight for Shore D on the TI-HEA, the AHBA-01 (Shore A) and AHBD-01 (Shore D) hardness reference plates, and the UK mains plug are also available. Enquiries are handled via our procurement service.
| Design: | HEA 100 · Shore A |
|---|---|
| Power supply: | Battery operation, Mains operation |
