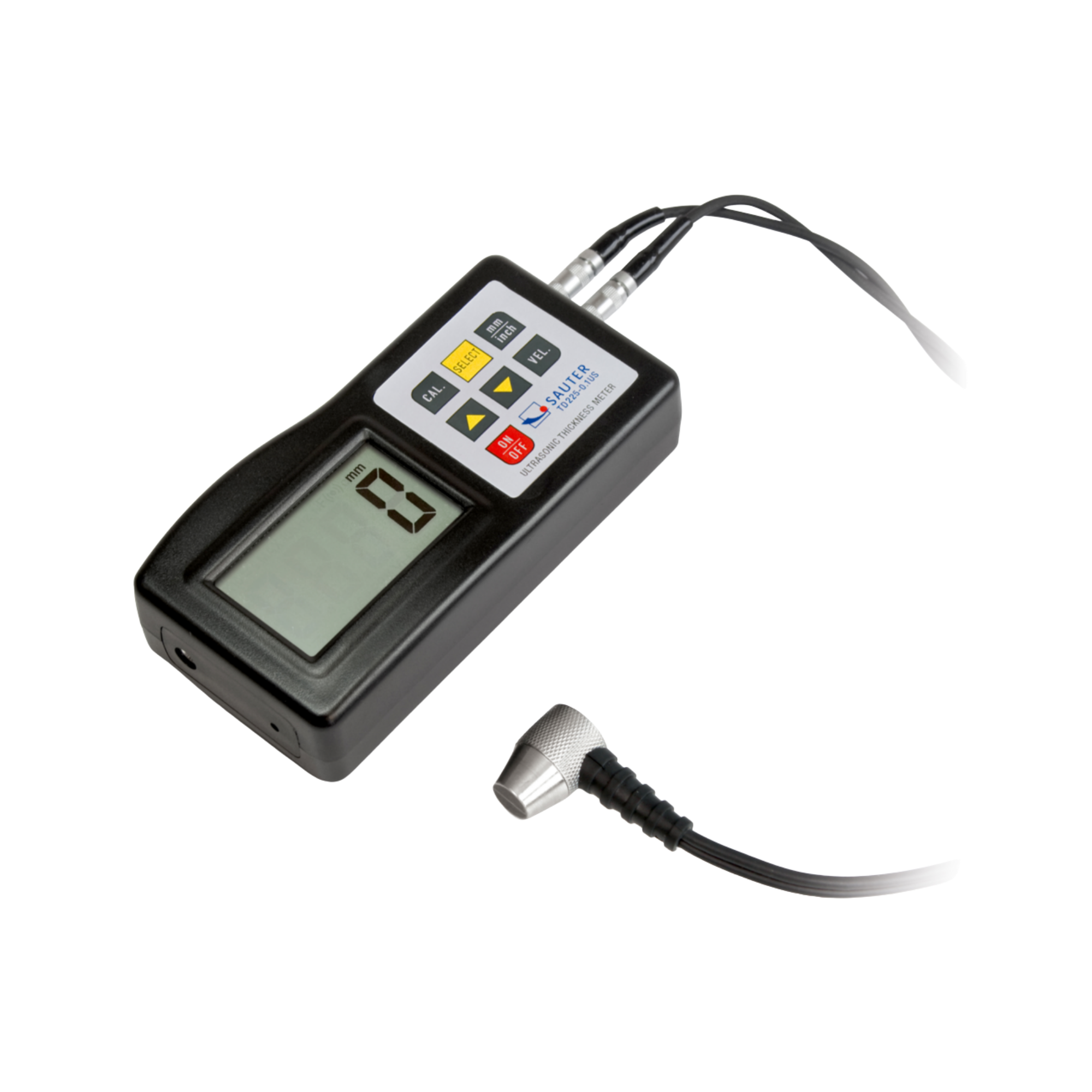

SAUTER TD 225-0.1US Ultrasonic Material Thickness Gauge, external sensor, 225 mm

Wave mechanics in non-destructive testing (NDT)

In industrial quality control, the monitoring of pressure vessels and the preventive maintenance of pipework systems, the precise determination of wall thicknesses is a safety-critical factor. The SAUTER TD 225-0.1US is a high-precision metrological instrument for non-destructive testing (NDT). The device is based on the physical pulse-echo method. A piezoelectric transducer in the external 5 MHz probe generates high-frequency mechanical longitudinal waves, which are coupled into the workpiece under test. As soon as these ultrasonic waves strike the material-specific back wall (the interface between the material and air), they are reflected almost entirely due to the massive impedance jump. The device’s integrated microelectronics measures the exact time-of-flight of the sound through the medium and uses this to calculate the absolute material thickness with a resolution of 0.1 mm. This process enables the comprehensive detection of internal corrosion or abrasion without compromising the structural integrity of the component.

Acoustic impedance and variable sound speeds

As mechanical waves propagate at different speeds in different molecular lattice structures, precise measurement requires the instrumental parameters to be precisely adapted to the material in question. The SAUTER TD 225-0.1US allows the material-specific speed of sound to be adjusted. This means the instrument can be calibrated not only for metallic isotropic materials such as steel, cast iron or aluminium, but also for homogeneous plastics, quartz glass or ceramics. This thermodynamic and acoustic flexibility makes the device a universal tool in the metalworking industry, shipbuilding and chemical plant engineering, where different alloys must be monitored for the slightest signs of material fatigue.

Metrological integrity and acoustic coupling

A fundamental physical problem in ultrasonic testing is the total reflection of high-frequency waves at microscopic air gaps between the sensor and the workpiece surface. To ensure perfect acoustic transmission (coupling) into the material, the system must be operated with a special ultrasonic coupling gel. The external, detached probe head enables the inspection of areas that are geometrically difficult to access or curved pipe walls. To metrologically compensate for thermal drifts in the electronics or mechanical wear of the piezo crystal, a solid zero-plate reference block (calibration block) is integrated directly onto the housing of the measuring device. This allows for immediate system calibration under real-world field conditions before the start of each critical measurement series.

Digital data acquisition and field use

The measuring system is specifically designed for harsh, mobile industrial field use. The robust, ergonomic housing protects the sensitive digital signal processing (DSP) hardware from mechanical shocks. For laboratories subject to strict ISO standards or GLP (Good Laboratory Practice) guidelines, the TD 225-0.1US features an RS-232 data interface. This enables the seamless export of measurement values to an external PC or printer for tamper-proof digital documentation of wall thickness trends and corrosion rates over extended maintenance intervals.

Technical details

• Non-destructive ultrasonic measurement method
• Measurement range in steel from 1.2 to 225 mm
• High readability to exactly 0.1 mm
• External piezoelectric sensor operating at 5 MHz
• Adjustable material-specific sound velocity
• Integrated reference plate for system calibration
• RS-232 digital data interface for PC
• High-contrast LCD display for direct reading of measured values
• Automatic power-off function to conserve battery life
• Battery operation for mobile field use
• Robust housing design for harsh industrial environments

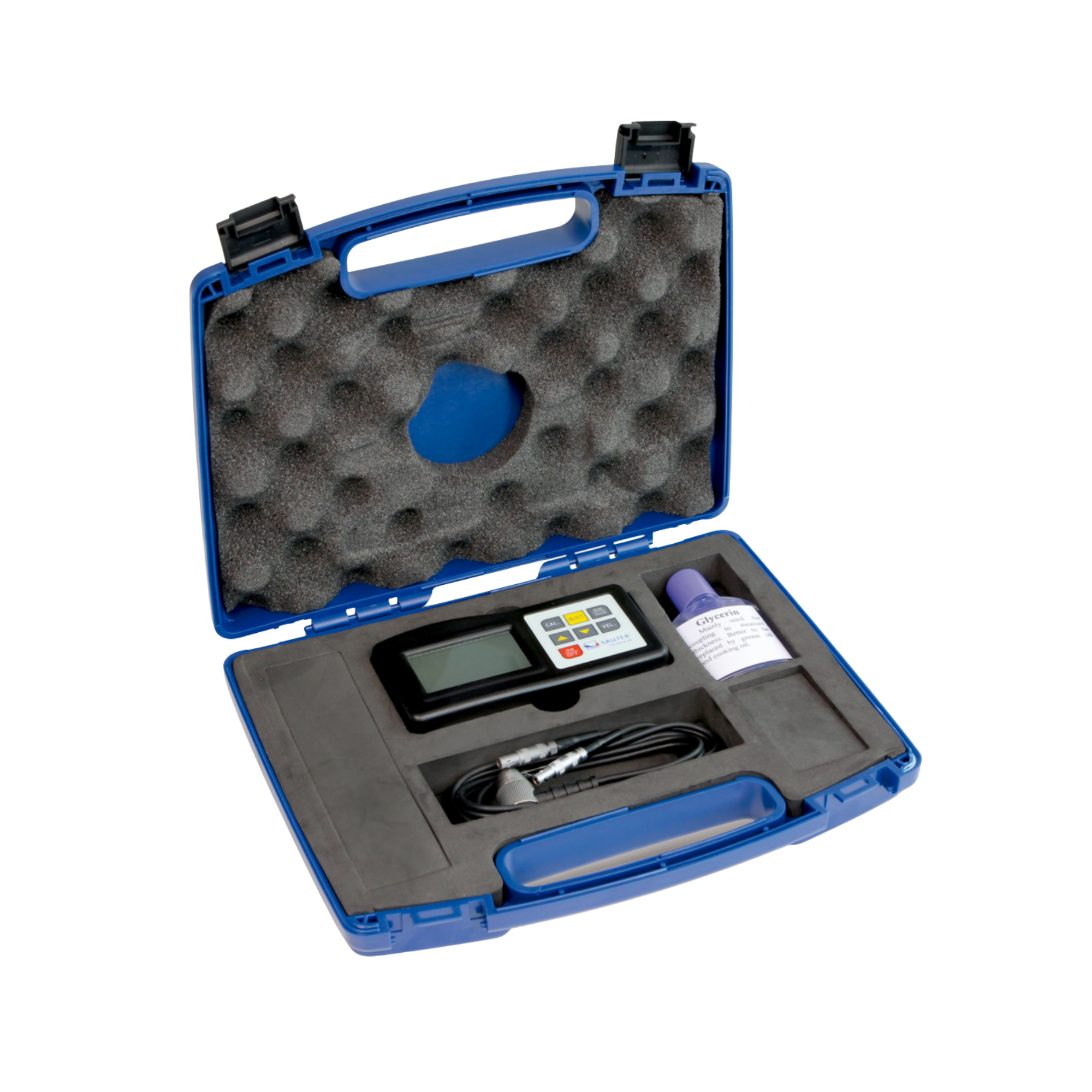

Contents of the pack

• 1 x SAUTER TD 225-0.1US material thickness gauge
• 1 x external ultrasonic sensor (5 MHz)
• 1 x bottle of ultrasonic coupling gel
• 1 x Robust carrying case
• 4 x 1.5 V AAA batteries
• 1 x Detailed operating instructions

Individual requirements & accessories

As the coupling gel is essential for acoustic contact and thus for the physical feasibility of the measurement, we recommend ordering larger stock quantities (e.g. SAUTER ATB-US03) for routine operation. For a measurement that is verifiably compliant with standards in certified facilities, an initial ISO calibration certificate is also advisable. Our procurement service, staffed by metrology-trained specialists, will be happy to organise the issuance of the necessary calibration certificates for you, as well as the procurement of specialised sensors for different material thicknesses.
