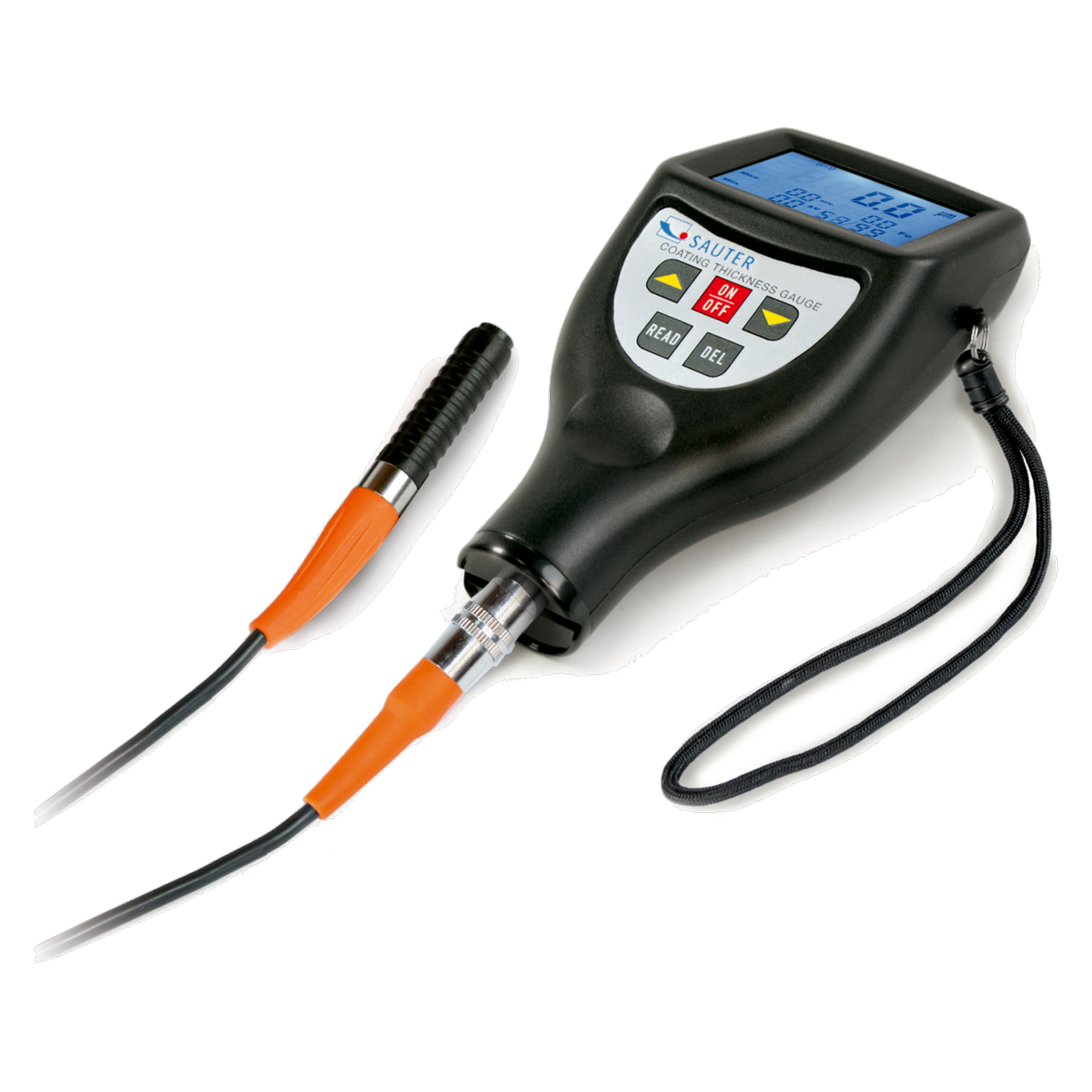

Sauter TG 1250-0.1FN digital coating thickness gauge, types F and N, with memory and scan mode, 1,250 µm
€540.00
% Manufacturer's RRP: €600.00 10% below manufacturer's RRP
- Digital coating thickness gauge for paint and varnish coatings, sensor for type F and type N
- Measuring ranges up to 100 µm (0.1 µm) and up to 1,250 µm (1 µm), single measurement and scan mode
- Measurement accuracy 3 % or ± 2.5 µm, with Offset-Accur 1 % or ± 1 µm
- Memory for 99 measured values, mini statistics including average, maximum and minimum
- Backlit graphic LCD, RS-232 interface as standard
- Zero plate, adjustment foils and carrying case included in the scope of delivery
Product information "Sauter TG 1250-0.1FN digital coating thickness gauge, types F and N, with memory and scan mode, 1,250 µm"
The Sauter TG 1250-0.1FN measures the thickness of paint and varnish coatings on iron, steel and non-magnetic metals. The external sensor covers both types of substrate (type F and type N). The device has two measuring ranges: up to 100 µm with a readability of 0.1 µm and up to 1,250 µm with a readability of 1 µm; it also features a backlit graphic LCD, a memory for 99 measured values and an RS-232 interface.
Single measurement and scan mode
The TG has two measuring modes. In single measurement mode, one value is recorded each time the sensor is placed on the surface. In scan mode, the device measures continuously and shows the values on the display as it goes. The mini statistics display shows the measured value, the average value, and the maximum and minimum values.
Memory and RS-232
The internal memory can store up to 99 measured values. The values are transmitted via the RS-232 interface to a printer, a PC or other devices. The ATC-01 software is available as an accessory for transmission to a PC. The display features 10 mm high digits and shows all information at a glance.
Accuracy and Offset-Accur
In standard mode, the measurement accuracy is, according to Kern, 3 % of the measured value or ± 2.5 µm. The Offset-Accur function sets the instrument to the specific measuring range via a two-point adjustment; thereafter, according to Kern, the accuracy is 1 % of the measured value or ± 1 µm. The zero plate and the adjustment foils are supplied; additional adjustment foils (ATB-US07) are available. The base material must be at least 300 µm thick; according to Kern, the smallest sample area has a radius of 1.5 mm (convex), 6 mm (flat) and 50 mm (concave).
Typical applications
- Automotive industry: paint film thickness on bodywork and supplier parts, including scan mode for larger surfaces
- Electroplating and metal finishing: checking coating thicknesses in the process and evaluating them with statistics
- Shipbuilding and aviation: measuring coatings on structural components
- Laboratories and quality control: saving measured values and outputting them via RS-232
- Construction and building sites: on-site measurement of coatings on steel and metal components
The TG is the model featuring memory, statistical functions and scan mode. Those who only need individual values and wish to output them via RS-232 can opt for the TE series, which is also available.
Technical details
| Measuring range | up to 100 µm and up to 1,250 µm |
| Readability | 0.1 µm and 1 µm |
| Measurement accuracy (Kern) | 3 % of the measured value or ± 2.5 µm; with Offset-Accur 1 % or ± 1 µm |
| Measurable layers | Type F: non-magnetic coatings on iron and steel; type N: coatings on non-magnetic metals |
| Minimum thickness of base material | 300 µm |
| Smallest sample surface (radius) | convex 1.5 mm, flat 6 mm, concave 50 mm |
| Sensor | external, 1 m cable |
| Measuring modes | Single measurement, scan mode |
| Memory | 99 measured values, mini statistics |
| Units | µm, inch (mil) |
| Display | Graphic LCD, backlit, digit height 10 mm |
| Interface | RS-232 as standard |
| Power supply | 2 AAA batteries (1.5 V), alkaline-manganese, operating time approx. 50 h |
| Housing | Plastic, 130 x 64 x 32 mm (W x D x H) |
| Ambient temperature | 0 °C to 50 °C |
| Net weight | approx. 0.10 kg |
| Factory calibration certificate | can be ordered separately, item no. 961-112 |
| Warranty (manufacturer) | 36 months according to Kern, excluding wear parts |
Scope of delivery
- Sauter TG 1250-0.1FN coating thickness gauge with external sensor
- Zero plate
- Adjustment foils
- 2 AAA batteries (1.5 V)
- Carrying case
Calibration
A factory calibration certificate (item no. 961-112) can be ordered separately.
Warranty
According to Kern & Sohn, this device comes with a 3-year warranty. Kern grants 3 years on products with a list price of €500 or more and 2 years on products below that and on components; wear parts such as batteries and rechargeable batteries are excluded. Warranty repairs are carried out by Kern or by a Kern dealer.
Downloads
Operating instructions Sauter TG (PDF)Regulatory information
As an electrical device, the coating thickness gauge falls under the ElektroG. The manufacturer Kern & Sohn GmbH is registered under the WEEE registration number DE 80821200. How to return old appliances is described on the page Environment and disposal.
Individual requirements and procurement service
The replacement sensor ATG 01, the adjustment foils ATB-US07, the software ATC-01 and the coating thickness gauges of the TB and TE series are also available. Enquiries are handled via our procurement service.
