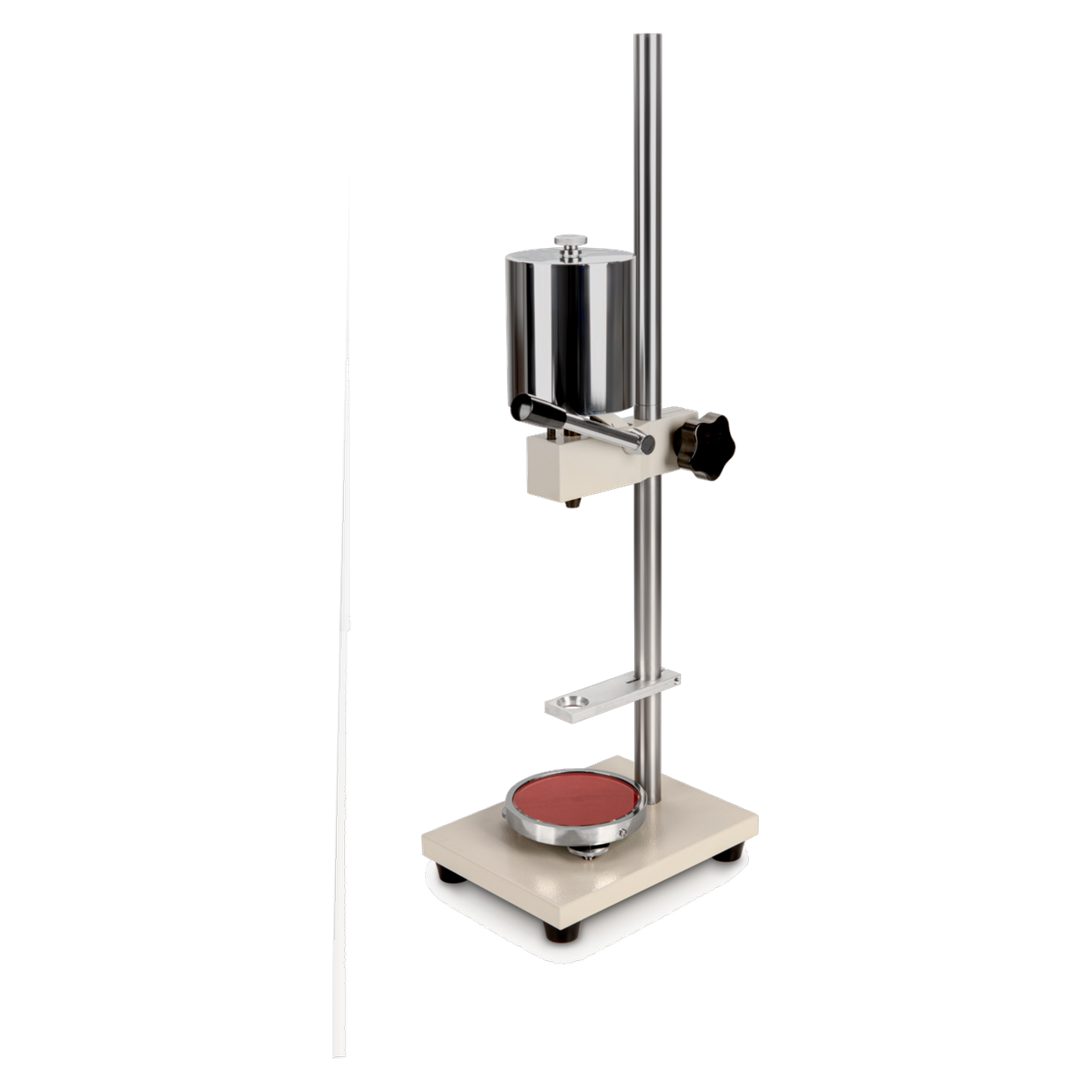

Sauter TI-DL manual Shore test stand for Shore D, 50 N, height 290 mm
€400.50
% Manufacturer's RRP: €445.00 10% below manufacturer's RRP
- Manual Shore test stand for Shore D, test force 50 N
- For the Sauter HDD 100-1 hardness tester: this unit is not included in the scope of delivery
- Test object up to 290 mm in height, test table Ø 75 mm, stroke 15 mm
- Glass base plate, with levelling device
- Dimensions when assembled: 150 x 200 x 580 mm, weight: 9 kg
- Interchangeable, longer guide column for the digital HDD 100-1
Product information "Sauter TI-DL manual Shore test stand for Shore D, 50 N, height 290 mm"
A handheld Shore hardness tester does not maintain the same angle and the same pressure every time. The Sauter TI manual test stands hold the hardness tester in a suspended position and press the measuring tip into the sample using a fixed test weight. According to Kern, the accuracy of the measurement result obtained with the TI-AC is approximately 25 % higher than that of a manual measurement. The series has six models for Shore A (10 N) and Shore D (50 N), with glass plate or steel plate, each with its own assignment to the Sauter hardness testers.
Operation
The hardness tester is mounted in a suspended position on the test stand. The test object rests on the round test table directly beneath the measuring tip. When the lever is pressed down, the test stand releases the test weight, which the measuring tip presses into the test object with the test force (10 N for Shore A, 50 N for Shore D). The hardness tester is not included in the scope of delivery.
Glass plate or steel plate
According to Kern, the TI-AC, TI-ACL, TI-D and TI-DL have a glass base plate that is harder than the test object and therefore contributes to high measurement accuracy. The TI-HEA and TI-HED feature a steel plate with levelling. Both designs can be aligned with a levelling device, which helps with inhomogeneous test objects. With the TI-HEA and TI-HED, the test table is aligned using two screw mechanisms beneath the hardness tester.
Which test stand for which hardness tester
The TI-AC is compatible with the analogue HB0 100-0 (Shore A0) and HBA 100-0 (Shore A), whilst the TI-D is compatible with the analogue HBD 100-0 (Shore D). The TI-ACL and TI-DL accommodate test objects up to 290 mm in height. The TI-ACL is the test stand for the digital HDA 100-1 (Shore A), whilst the TI-DL has a longer, interchangeable guide column for the digital HDD 100-1. The TI-HEA and TI-HED belong to the devices HEA 100 and HED 100. According to Kern, the TI-HE additional weight on the TI-HEA also allows Shore D testing; see Accessories.
Typical applications
- Plastics engineering: reproducible Shore hardness testing on plastics and leather
- Medical technology: hardness testing of elastomer components with a fixed contact pressure
- Automotive industry: testing of seals and rubber components under repeatable measurement conditions
- Packaging industry: hardness comparison of plastics and sealing materials
- Food industry: hardness testing of seals and plastic components
Those who compare Shore values in a series put the device on the test stand so that angle and contact force stay constant. The test force of the test stand (10 N or 50 N) must correspond to the Shore scale of the hardness tester.
Models at a glance
| Model | Hardness scale | Test force | Max. height of test object | Test table Ø | Stroke | Base plate | Dimensions when assembled (W x D x H) | Weight | Suitable hardness tester |
|---|---|---|---|---|---|---|---|---|---|
| TI-AC | Shore A | 10 N | 60 mm | 75 mm | 15 mm | Glass | 150 x 200 x 330 mm | 7 kg | HB0 100-0 and HBA 100-0 |
| TI-ACL | Shore A | 10 N | 290 mm | 75 mm | 15 mm | Glass | 150 x 200 x 580 mm | 8 kg | HDA 100-1 |
| TI-D | Shore D | 50 N | 60 mm | 75 mm | 15 mm | Glass | 150 x 200 x 400 mm | 8 kg | HBD 100-0 |
| TI-DL | Shore D | 50 N | 290 mm | 75 mm | 15 mm | Glass | 150 x 200 x 580 mm | 9 kg | HDD 100-1 |
| TI-HEA | Shore A | 10 N | 50 mm | 115 mm | 20 mm | Steel | 200 x 200 x 390 mm | 6 kg | HEA 100 |
| TI-HED | Shore D | 50 N | 50 mm | 115 mm | 20 mm | Steel | 200 x 200 x 470 mm | 10 kg | HED 100 |
Technical details
The model table contains the values for each model. This information applies to all models.
| Type | manual lever test stand, hardness tester in a suspended position |
| Levelling | Levelling device for the base plate |
| Hardness tester | not included in the scope of delivery |
| Warranty (manufacturer) | 36 months (TI-HEA, TI-HED), 24 months (TI-AC, TI-ACL, TI-D, TI-DL), according to Kern, excluding wear parts |
Scope of delivery
- Sauter TI test stand (model as selected) with test table and test weight
The hardness tester is not included in the scope of delivery.
Warranty
According to Kern & Sohn, the TI-HEA and TI-HED come with a 3-year warranty and the TI-AC, TI-ACL, TI-D and TI-DL come with a 2-year warranty. Kern grants 3 years on products with a list price of €500 or more and 2 years on products below that and on components; wear parts such as batteries and rechargeable batteries are excluded. Warranty repairs are carried out by Kern or by a Kern dealer.
Downloads
Operating instructions TI-AC, TI-D, TI-DL (PDF)Individual requirements and procurement service
The Sauter HB, HD and HE hardness testers, the AHBA-01 (Shore A) and AHBD-01 (Shore D) hardness reference plates and the TI-HE additional weight are also available. Enquiries are handled via our procurement service.
| Design: | TI-DL · Shore D, 50 N |
|---|
