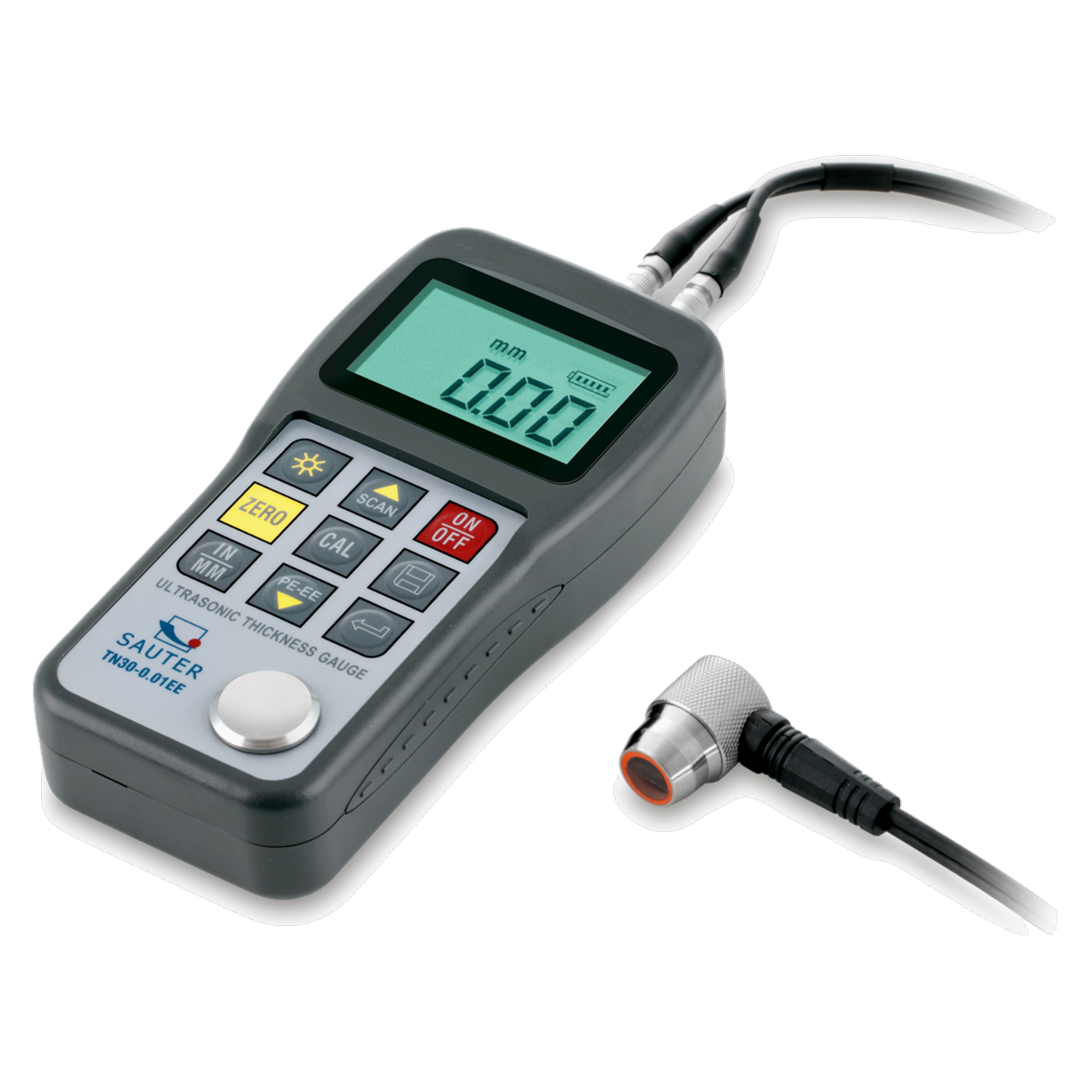

Sauter TN 30-0.01EE echo-echo ultrasonic material thickness gauge, 3 to 30 mm / 0.01 mm
€864.00
% Manufacturer's RRP: €960.00 10% below manufacturer's RRP
- Ultrasonic material thickness gauge, pulse-echo measuring range 0.65 to 600 mm
- Additionally, echo-echo mode from 3 to 30 mm: material thickness independent of the coating
- Readability 0.01 mm, 5 MHz probe with Ø 10 mm, measurement accuracy 0.5 % of Max ± 0.04 mm
- Scan mode with 10 measurements per second or single measurement point, sound velocity 1,000 to 9,999 m/s
- Memory for 20 files, each containing 100 individual values; USB interface
- Probe, coupling gel, batteries and carrying case in the scope of delivery
Product information "Sauter TN 30-0.01EE echo-echo ultrasonic material thickness gauge, 3 to 30 mm / 0.01 mm"
The Sauter TN series comprises handheld ultrasonic measuring devices for measuring the thickness of a workpiece from just one side. An external probe transmits ultrasound into the material; the device calculates the wall thickness based on the transit time. The series comprises eight models: five pulse-echo devices for metals and plastics (TN 80-0.01US, TN 80-0.1US, TN 230-0.01US, TN 230-0.1US, TN 300-0.01US), two devices with an additional echo-echo mode for coated parts (TN 30-0.01EE, TN 60-0.01EE) and the TN GOLD 80, a gold tester. All are battery-operated and, at 150 x 74 x 32 mm, fit in one hand.
Pulse-echo or echo-echo
In pulse-echo mode, the device measures the total thickness, including any coating. According to Kern, the echo-echo models TN 30-0.01EE and TN 60-0.01EE determine the actual material thickness independently of any existing coating. This allows, for example, the wall thickness of pipes to be measured non-destructively without removing the coating. The device can display the measured value already corrected for coating thickness. Echo-echo measurements only work with the supplied ATU-US12 probe. The echo-echo range is from 3 to 30 mm for the TN 30-0.01EE and from 3 to 60 mm for the TN 60-0.01EE. In pulse-echo mode, both measure from 0.65 to 600 mm.
Probe, frequency and range
Range and probe belong together. The probe of the TN 300-0.01US operates at 2.5 MHz, has a diameter of 14 mm and measures from 3 to 300 mm. Both TN 230 models have a 5 MHz probe with a diameter of 10 mm and measure from 1.2 to 230 mm. The two TN 80 models and the TN GOLD 80 have a 7 MHz probe with a diameter of 6 mm and measure from 0.75 to 80 mm. The two TN 80 models and the two TN 230 models each differ in readability (0.01 mm versus 0.1 mm) and in the interface: the models ending in 0.1US (TN 80-0.1US, TN 230-0.1US) do not have a USB port. The sound velocity ranges from 1,000 to 9,999 m/s; Kern specifies the measurement accuracy as 0.5 % of Max ± 0.04 mm.
Measuring modes, memory and data transfer
With the exception of the TN GOLD 80, the models can measure either in scan mode at 10 measurements per second or at a single measurement point. On all models, the internal memory can store up to 20 files, each containing up to 100 individual values. The unit is mm or inches. With the exception of the TN 80-0.1US and the TN 230-0.1US, all models have a USB interface. The LCD display features 14 mm high digits. According to the data sheet, two AA batteries last for approximately 100 h.
TN GOLD 80: authenticity testing of gold
The TN GOLD 80 is part of the series but serves a specific purpose. It tests gold bars and gold coins for counterfeit cores, such as those made of tungsten or lead. To do this, it measures the thickness using ultrasound and compares the result with the thickness traditionally determined using a calliper. According to Kern, counterfeit cores can be identified by the fact that the ultrasound behaves differently to that in pure gold. The supplied Sauter SSG software calculates the sound velocity in various precious metal alloys. It compensates for known admixtures such as copper or silver, and also determines the value of the gold item. According to Kern, the method performs a non-destructive test through the entire ingot or coin.
Typical applications
- Metalworking and mechanical engineering: wall thickness of sheet metal, tubes and castings
- Oil and gas industry: wall thickness inspection on pipework, including under coatings (echo-echo)
- Aerospace: thickness measurement on components from one side
- Plastics engineering: wall thickness of plastic components
- Shipbuilding industry: plate thickness and corrosion checking on hulls
- Jewellery industry and gold dealers: authenticity testing of bars and coins with the TN GOLD 80
For thin walls from 0.75 to 80 mm, one of the two TN 80 models is sufficient; for measuring ranges up to 230 mm with a readability of 0.01 mm, the TN 230-0.01US is sufficient. For measuring thicker workpieces up to 300 mm, use the TN 300-0.01US; for inspecting coated tubes, use one of the two EE models.
Models at a glance
| Model | Methods | Pulse-echo measuring range | Echo-echo measuring range | Readability | Probe | USB | Weight |
|---|---|---|---|---|---|---|---|
| TN 80-0.01US | Pulse-echo | 0.75 mm to 80 mm | not provided | 0.01 mm | 7 MHz, Ø 6 mm | USB | 0.30 kg |
| TN 80-0.1US | Pulse-echo | 0.75 mm to 80 mm | not provided | 0.1 mm | 7 MHz, Ø 6 mm | none | 0.25 kg |
| TN 230-0.01US | Pulse-echo | 1.2 mm to 230 mm | not provided | 0.01 mm | 5 MHz, Ø 10 mm | USB | 0.25 kg |
| TN 230-0.1US | Pulse-echo | 1.2 mm to 230 mm | not provided | 0.1 mm | 5 MHz, Ø 10 mm | none | 0.30 kg |
| TN 300-0.01US | Pulse-echo | 3 mm to 300 mm | not provided | 0.01 mm | 2.5 MHz, Ø 14 mm | USB | 0.30 kg |
| TN 30-0.01EE | Pulse-echo and echo-echo | 0.65 mm to 600 mm | 3 mm to 30 mm | 0.01 mm | 5 MHz, Ø 10 mm | USB | 0.25 kg |
| TN 60-0.01EE | Pulse-echo and echo-echo | 0.65 mm to 600 mm | 3 mm to 60 mm | 0.01 mm | 5 MHz, Ø 10 mm | USB | 0.30 kg |
| TN GOLD 80 | Pulse-echo (gold testing) | 0.75 mm to 80 mm | not provided | 0.01 mm | 7 MHz, Ø 6 mm | USB | 0.25 kg |
Technical details
These values apply to all models. Deviating values are given in the model table.
| Measurement principle | Ultrasound, external probe, 0.9 m cable |
| Sound velocity | 1,000 m/s to 9,999 m/s |
| Measurement accuracy (Kern) | 0.5 % of Max ± 0.04 mm |
| Measuring modes | Scan mode (10 measurements per second) or single measurement point; scan mode not available on the TN GOLD 80 |
| Memory | 20 files, each containing up to 100 individual values |
| Units | mm, inch |
| Display | LCD, digit height 14 mm |
| Power supply | 2 AA batteries (1.5 V), alkaline-manganese, operating time approx. 100 h |
| Housing | Plastic, 150 x 74 x 32 mm (W x D x H) |
| Ambient temperature | -10 °C to 40 °C |
| Factory calibration certificate | can be ordered separately, item no. 961-113 |
| Warranty (manufacturer) | 36 months according to Kern, excluding wear parts |
Scope of delivery

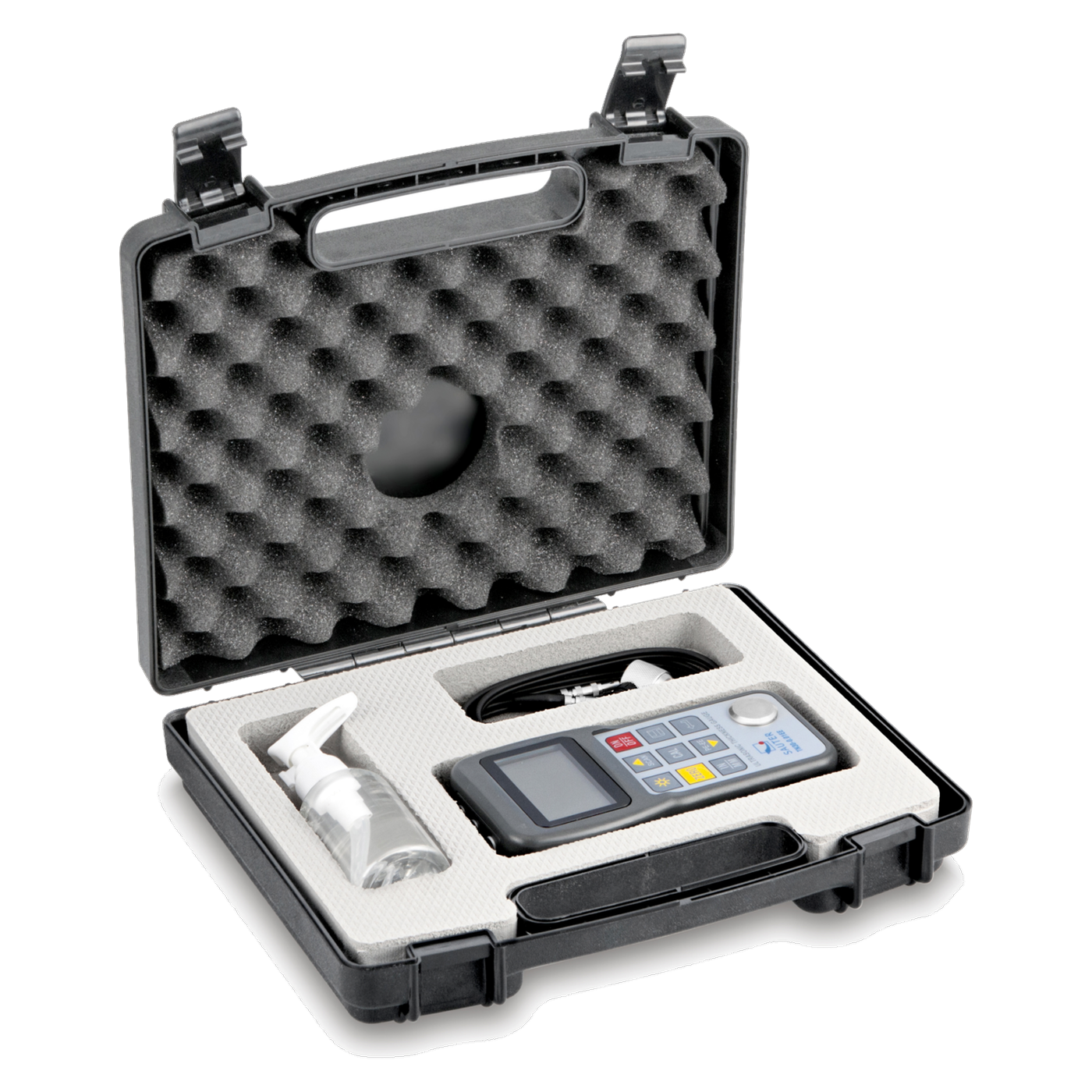

- Sauter TN material thickness gauge (TN 80-0.01US, TN 80-0.1US, TN 230-0.01US, TN 230-0.1US, TN 300-0.01US, TN 30-0.01EE or TN 60-0.01EE) with external probe, ultrasonic coupling gel, batteries, operating instructions and carrying case
- Sauter TN GOLD 80 gold tester with external probe (Ø 6 mm), ultrasonic coupling gel, batteries, operating instructions, zero plate for adjustment and Sauter SSG software
Calibration
A factory calibration certificate (item no. 961-113) can be ordered separately.
Warranty
According to Kern & Sohn, these devices come with a 3-year warranty. Kern grants 3 years on products with a list price of €500 or more and 2 years on products below that and on components; wear parts such as batteries and rechargeable batteries are excluded. Warranty repairs are carried out by Kern or by a Kern dealer.
Downloads
Operating instructions TN 30-0.01EE, TN 60-0.01EE (PDF)- Operating instructions TN GOLD 80 (PDF)
- Operating instructions TN 230-0.01US to TN 300-0.01US (PDF)
Regulatory information
As electrical devices, the material thickness gauges fall under the ElektroG. The manufacturer Kern & Sohn GmbH is registered under the WEEE registration number DE 80821200. How to return old appliances is described on the page Environment and disposal.
Individual requirements and procurement service
Additional probes (ATB-US02, ATB-US06, ATU-US01, ATU-US02, ATU-US09, ATU-US10 and, for the echo-echo models, ATU-US12), the coupling gel ATB-US03, the USB cable FL-A01 and the ATU-04 software are also available. Please enquire to find out which probes are compatible with which model. Enquiries are handled via our procurement service.
