Sauter
Sauter JCT 100 coating thickness gauge, Fe/NFe combination sensor, internal measuring cell
The Sauter JCT 100 measures the thickness of paint and coating layers on metallic substrates, with a measuring range of up to 2,000 µm and a readability of 0.1 µm. An internal sensor combines two measuring principles in a single device: magnetic induction for iron and steel (Fe), and eddy current for non-ferrous metals such as aluminium or copper (NFe). The JCT 100 automatically recognises the base material, eliminating the need to switch manually between measuring methods. This provides a handy coating thickness gauge for both material groups, suitable for corrosion protection testing, paint shops or incoming goods inspection. One sensor for ferrous and non-ferrous metals Automatic base material recognition saves time when working with different components, as there is no need to check whether the workpiece is magnetic before each measurement. The tolerance is 2 % of the full-scale range. To ensure reliable measurement, the base material beneath the coating must have a minimum thickness of 300 µm. The shape of the sample also plays a role: for flat surfaces, a very small sample of 10 mm is sufficient; for convex curves, a radius of curvature of at least 1.5 mm is required; and for concave shapes, a radius of at least 50 mm is needed. If you are testing very small or highly curved components, it is best to verify these values in advance using your own workpiece. Operation via traffic-light display and rotatable screen A three-colour LED indicates at a glance whether a measured value lies within the tolerance band (green), falls below a limit value (red) or exceeds it (yellow). For production testing, you can choose between single measurements and repeat measurements with a pass/fail assessment. The device can be adjusted using either one or two points; Sauter calls this single-point and two-point calibration. The display rotates automatically to match the hand’s position and can be locked manually if required. A dedicated automotive mode is provided for vehicle paint inspection, along with voice output. Memory and wireless data transfer The JCT 100 stores up to 55 measurement groups, each containing 60 individual values, internally; this is sufficient for extensive batch testing without the need for interim data retrieval. For further processing, the device transmits data wirelessly to a companion app, which, according to the manufacturer, is available for Android. Typical applications Coating thickness gauges such as the JCT 100 are used wherever an applied paint or anti-corrosion coating must meet a specific thickness requirement, for example after painting a vehicle body or following electroplating. According to Sauter, these include: Automotive industry Electroplating and surface finishing Shipbuilding and aircraft manufacturing Laboratories and quality control Construction and building sites Calibration and warranty According to Kern & Sohn, this device comes with a 2-year warranty. Kern grants 3 years on products with a list price of €500 or more and 2 years on products below that and on components; wear parts such as batteries and rechargeable batteries are excluded. Warranty repairs are carried out by Kern or by a Kern dealer. A warranty extension by a further 3 years to a total of 60 months is available separately (item no. 970-016). A factory calibration certificate is available as an option; according to the manufacturer, the processing time for this is 4 working days (item no. 961-112). According to the manufacturer, the device does not contain any substances prohibited under REACH. Technical details Measuring principleCombination of magnetic induction (Fe) and eddy current (NFe) methods, automatic base material detectionSensorInternal, for ferrous (Fe) and non-ferrous metals (NFe)Measurement rangeup to 2,000 µmReadability0.1 µmTolerance2 % of the full-scale valueMinimum thickness of base material300 µmSmallest sample, flat10 mmSmallest sample, convexRadius of curvature from 1.5 mmSmallest specimen, concaveRadius of curvature from 50 mmUnitsµm, inch (mil)Memory55 measurement groups, each with 60 individual valuesData transferwireless, app for Android (according to the manufacturer)Housing materialPlasticDimensions (W x D x H)152 x 65 x 35 mmWeight (net)0.20 kgWarranty (manufacturer)24 months according to Kern, excluding wear parts Scope of delivery Sauter JCT 100 coating thickness gauge Practical storage box Regulatory informationAs an electrical device, the device falls under the ElektroG. The manufacturer Kern & Sohn GmbH is registered under the WEEE registration number DE 80821200. How to return old appliances is described on the page Environment and disposal.Individual requirements and procurement service Suitable adjustment foils are available for the regular adjustment of the JCT 100 (item no. ATB-US07). Our procurement service provides support with factory calibration certificates, warranty extensions and bespoke enquiries relating to Sauter measurement technology.
Sauter TB 200-0.1US-RED ultrasonic material thickness gauge, external, reduced material catalogue
The Sauter TB 200-0.1US-RED measures the thickness of components using the ultrasonic pulse-echo method, with an external probe for hard-to-reach measurement points. The measuring range extends from 1.5 to 200 mm with a readability of 0.1 mm. According to Sauter, the suffix ‘RED’ stands for a reduced measuring range: the device measures only 11 pre-programmed materials, including steel, cast iron, aluminium, copper and PVC. Reduced material catalogue: what RED means According to Sauter, ‘RED’ stands for a reduced measurement range. According to the manufacturer, the device can analyse only the following materials: cast iron, aluminium, copper, brass, zinc, quartz glass, polyethylene, PVC, grey cast iron, ductile cast iron and steel. Anyone wishing to measure materials outside this list will need the sister model, the Sauter TB 200-0.1US, which does not have the RED restriction. According to the manufacturer, the measurement range, readability, probe frequency and probe diameter are identical for both variants. The list of materials is the difference named by the manufacturer. External probe for hard-to-reach areas The 8 mm measuring head, with a test frequency of 5 MHz, is connected to the unit via a 0.9-metre-long cable. This allows it to be positioned even in places where the unit itself cannot fit. The tolerance is 0.5 % of the full-scale value of the measuring range, which corresponds to ± 1 mm for a 200 mm measuring range; the display can be set to millimetres or inches. Battery operation The TB 200-0.1US-RED runs on 4 standard AA-size alkaline-manganese batteries, which are included in the scope of delivery. Designed for ambient temperatures of 0 to 50 °C, the device can also be operated in workshop conditions without air conditioning; it should be stored at temperatures between minus 10 and 40 °C. An auto-power-off function conserves battery life during measurement breaks. Base plate for on-site adjustment The base plate included in the scope of delivery is used to adjust the measuring head before a new series of measurements begins. Typical applications Wall thicknesses on pipework, tanks, sheet metal or castings can be tested with the TB 200-0.1US-RED without opening or damaging the component, for example to detect corrosion or material loss at an early stage. According to Sauter, these include: Metalworking and mechanical engineering Oil and gas industry Aerospace engineering Plastics engineering Shipping CE marking, calibration and warranty According to the manufacturer’s data sheet, the device bears the CE marking. According to Kern & Sohn, this device comes with a 2-year warranty. Kern grants 3 years on products with a list price of €500 or more and 2 years on products below that and on components; wear parts such as batteries and rechargeable batteries are excluded. Warranty repairs are carried out by Kern or by a Kern dealer. A warranty extension by a further 3 years to a total of 60 months is available separately (item no. 970-015). A factory calibration certificate is available as an option, with a processing time of 4 working days (item no. 961-113). Technical details Measuring principleUltrasonic pulse-echo method, external probeMeasurement range1.5 to 200 mmReadability0.1 mmTolerance0.5 % of the full-scale value (± 1 mm at 200 mm)Unitsmm, inchMaterials that can be analysed (RED)Cast iron, aluminium, copper, brass, zinc, quartz glass, polyethylene, PVC, grey cast iron, ductile cast iron, steel (11 pre-set materials)Probe frequency5 MHzProbe diameter8 mmProbe cable length0.9 mPower supply4 x 1.5 V alkaline-manganese batteries, size AA (included in the scope of delivery)Housing materialPlasticHousing dimensions (W x D x H)161 x 68 x 32 mmWeight (net)0.30 kgOperating temperature0 °C to 50 °CStorage temperature-10 °C to 40 °CCE markingYesWarranty (manufacturer)24 months according to Kern, excluding wear parts Scope of delivery Operating instructions Batteries, 4 x 1.5 V AA External probe, diameter 8 mm Ultrasonic contact gel Base plate for adjusting the probe Sturdy carrying case Regulatory informationAs an electrical device, the device falls under the ElektroG. The manufacturer Kern & Sohn GmbH is registered under the WEEE registration number DE 80821200. How to return old appliances is described on the page Environment and disposal.Individual requirements and procurement service A replacement is available for the device’s standard probe (item no. ATB-US06, 5 MHz, diameter 8 mm), as well as probes in other diameters (item no. ATB-US01, 6 mm, and item no. ATB-US02, 12 mm) and refills for the ultrasonic contact gel (item no. ATB-US03). Our procurement service provides support with factory calibration certificates, warranty extensions and bespoke enquiries relating to Sauter measurement technology.
Sauter Leeb hardness tester HK-DB for metals, portable hardness tester
The Sauter HK-DB is a portable hardness tester for metals based on the Leeb method. It measures directly on the workpiece, not in the laboratory, and covers a range from 170 to 960 HLD. The type D rebound sensor is connected to the evaluation unit via a cable and is included in the scope of delivery. If a large or heavy component cannot be transported for hardness testing, the tester is taken to the component.How the Leeb hardness test worksIn the Leeb method, a test body strikes the surface; the hardness is determined from the rebound velocity. The measurement result is initially given on the Leeb scale. The HK-DB uses the HLD scale, where the ‘D’ stands for the sensor type. The device automatically converts the result into other hardness units. According to the data sheet, these are HL, HV, HB, HRB and HRC.Measurement in any orientationThe device automatically compensates for the direction of the test. It measures in all directions (360°), including sideways and overhead. The connected rebound sensor is automatically detected. The sensor is 14.6 cm long and has a diameter of 2 cm. The test specimen must weigh at least 2 kg and have a thickness of at least 3 mm. The tolerance is 1 %, and the readability is 1 HL.Storage and analysisThe internal memory can store up to 600 measurement groups, each containing up to 32 individual readings. The device calculates the average from the values in each group. A mini-statistics display shows the measured value, average value, measurement direction, date and time. The limit value function allows an upper and a lower limit to be programmed; the device signals any exceedances with an audible and visual alert. The graphic LCD is backlit and features 11 mm high digits; the display brings together all key functions on a single screen. Data is transferred from the device via USB; the USB cable is also available.Housing, batteries, caseThe evaluation unit is housed in a cast aluminium casing measuring 132 x 82 x 31 mm and weighs approximately 0.45 kg net. Two AA batteries (1.5 V) provide power for around 200 hours; the batteries are included. The unit is supplied in a carrying case.Hardness reference blockThe scope of delivery includes a hardness reference block with a hardness of approximately 800 HLD. It serves as a reference value for checking the instrument before a series of tests. Additional hardness reference plates of 790, 630 and 530 HL are also available.Typical applicationsAutomotive industry: checking the hardness of shafts, gears and castingsMetalworking and steel construction: incoming goods testing of semi-finished products and componentsEnergy and power station industry: On-site testing of large componentsOil and gas industry: hardness testing of plant componentsAerospace: testing of components that cannot be transported to a laboratorySelection guide: Sensor type and test objectThe HK-DB is supplied with the type D sensor. Other rebound sensors, namely type C, type D+15, type DL and type G, are also available. The type best suited to the testing task depends on the component’s shape and material. We would be happy to advise you on your selection.Regulatory informationAs an electrical device, the device falls under the ElektroG. The manufacturer Kern & Sohn GmbH is registered under the WEEE registration number DE 80821200. How to return old appliances is described on the page Environment and disposal.Frequently asked questionsWhat materials is the device designed for?For metals, as the name suggests. The measuring range is 170 to 960 HLD.How heavy does the test specimen need to be?The minimum weight is 2 kg, and the minimum thickness is 3 mm.Is a USB cable included?No, the cable is also available separately. The device is fitted with a USB port.Can I take measurements in any direction?Yes, the device automatically compensates for the test direction and measures over 360°.How do I check the device?Using the supplied hardness reference block, with a hardness of approximately 800 HLD.How long is the warranty?According to Kern & Sohn, this device comes with a 3-year warranty. Kern grants 3 years on products with a list price of €500 or more and 2 years on products below that and on components; wear parts such as batteries and rechargeable batteries are excluded. Warranty repairs are carried out by Kern or by a Kern dealer.Technical detailsMeasuring range170 to 960 HLDHardness scaleHLD (Leeb)Readability1 HLTolerance1 %Units (conversion)HL, HV, HB, HRB, HRCSensorexternal, Type D rebound sensorSensor dimensionsLength 14.6 cm, Ø 2 cmMinimum weight of test specimen2 kgMinimum thickness of test specimen3 mmTest direction360°, automatic compensationMemory600 groups, each with up to 32 individual valuesInterfaceUSB deviceDisplayGraphic LCD, backlit, digit height 11 mmHousing (W x D x H)132 x 82 x 31 mm, cast aluminiumPower supply2 x 1.5 V AAOperating timeapprox. 200 hNet weightapprox. 0.45 kgScope of deliverySauter HK-DB evaluation unitExternal rebound sensor, type DHardness reference block (approx. 800 HLD)BatteriesCarrying caseIndividual requirements and procurement serviceAdditional rebound sensors, hardness reference plates, adapter rings and the USB cable are also available, as well as factory calibration certificates for the instrument and the reference block. Enquiries are handled via our procurement service.
Sauter HB analogue Shore hardness testers, Shore A, Shore A0 and Shore D, measuring range 100, drag pointer
With the analogue Shore hardness testers of the Sauter HB, you test the hardness of rubber, elastomers and plastics by indentation measurement, without power and without a battery. The series comprises three models in metal housings: the HBA 100-0 measures on the Shore A scale, the HB0 100-0 on the Shore A0 scale and the HBD 100-0 on the Shore D scale. All instruments have a measuring range of 100 with a readability of 1 and display the measured value on an analogue scale.Drag pointer and max modeAll instruments have a drag pointer. It holds the peak value reached by the measuring tip when pressed in, and the value stays on the scale after lifting off. Kern calls this max mode. A device without a display or electronics has no interface and no memory; the reading is taken directly from the scale.Shore A, Shore A0 or Shore DThe scale determines which materials a device is intended for. Kern intends the HBA 100-0 with Shore A for rubber, elastomers, neoprene, silicone, vinyl, soft plastics, felt and leather. The HB0 100-0 with Shore A0 is intended for soft materials such as foam and sponges. The HBD 100-0 measures on the Shore D scale, which is used for harder plastics. The scale applicable to a test object is usually specified by the material specification or internal test procedure. Anyone testing several material classes will need several instruments. The instruments differ in the scale and in the weight: the HBA 100-0 weighs approx. 0.15 kg, the other two approx. 0.20 kg. The housing, dimensions, measurement accuracy and minimum thickness of the test object are the same.Comparison measurements and test standKern recommends the HB series primarily for internal comparison measurements. According to Kern, calibrations according to standard are not possible because of very tight standard tolerances. The measurement accuracy is 3 % of the final value; the test object must be at least 6 mm thick. Without the test stand, the device is held against the sample by hand. All three devices can be screwed onto a Shore test stand using an M7 fine-pitch thread. The HBA 100-0 and the HB0 100-0 fit onto the TI-AC test stand, whilst the HBD 100-0 fits onto the TI-D. The test stand holds the device in a suspended position and presses the measuring tip into the test object using a fixed test weight. According to Kern, the accuracy of the measurement result on the test stand is around 25 % higher than with a manual measurement.Typical applicationsPlastics engineering: comparing the hardness of plastic components and elastomersMedical technology: hardness testing of elastomer componentsAutomotive industry: hardness testing of seals and rubber componentsPackaging industry: testing the hardness of film and foam materialsFood industry: hardness testing of seals and plastic componentsThe HBA 100-0 is suitable for rubber and soft plastics, the HB0 100-0 for foam and sponges, whilst the HBD 100-0 is suitable for harder plastics. Measurements taken with the same instrument can be compared across batches and deliveries, for example during goods receipt or in production control. For measurements with a display, memory or data transmission, the Sauter HD and HE digital hardness testers are available; these series are also available.Models at a glanceModelHardness scaleMeasuring rangeReadabilitySuitable test standWeightHBA 100-0Shore A100 HA1 HATI-ACapprox. 0.15 kgHB0 100-0Shore A0100 HA01 HA0TI-ACapprox. 0.20 kgHBD 100-0Shore D100 HD1 HDTI-Dapprox. 0.20 kgTechnical detailsThese values apply to all models. Deviating values are given in the model table.Displayanalogue, drag pointer (max mode)Measurement accuracy3 % of the final valueTest object minimum thickness6 mmHousingMetal, 115 x 60 x 25 mm (W x D x H)Mounting on the test standM7 fine threadAmbient temperature0 °C to 40 °CStorage temperature-10 °C to 40 °CNet weightapprox. 0.15 kg (HBA 100-0), approx. 0.20 kg (HB0 100-0, HBD 100-0)Warranty (manufacturer)24 months according to Kern, excluding wear partsScope of deliverySauter HB Shore hardness tester (HBA 100-0, HB0 100-0 or HBD 100-0, depending on the model)Plastic boxWarrantyAccording to Kern & Sohn, these devices come with a 2-year warranty. Kern grants 3 years on products with a list price of €500 or more and 2 years on products below that and on components; wear parts such as batteries and rechargeable batteries are excluded. Warranty repairs are carried out by Kern or by a Kern dealer.DownloadsOperating instructions HB0 100-0 (PDF)Operating instructions HBD 100-0 (PDF)Individual requirements and procurement serviceThe TI-AC (Shore A, 10 N) and TI-D (Shore D, 50 N) Shore test stands, the AHBD-01 hardness reference plates for Shore D, and the HD and HE series digital Shore hardness testers are also available. Enquiries are handled via our procurement service.

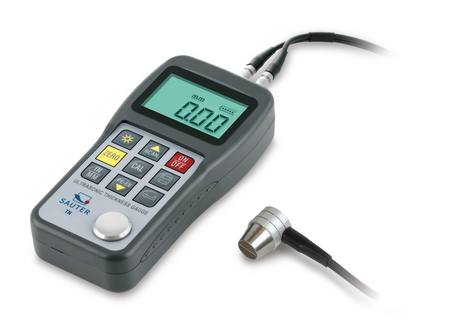

Sauter TN ultrasonic material thickness gauges, pulse-echo and echo-echo, up to 300 mm
The Sauter TN series comprises handheld ultrasonic measuring devices for measuring the thickness of a workpiece from just one side. An external probe transmits ultrasound into the material; the device calculates the wall thickness based on the transit time. The series comprises seven models: five pulse-echo devices for metals and plastics (TN 80-0.01US, TN 80-0.1US, TN 230-0.01US, TN 230-0.1US, TN 300-0.01US) and two devices with an additional echo-echo mode for coated parts (TN 30-0.01EE, TN 60-0.01EE). All are battery-operated and, at 150 x 74 x 32 mm, fit in one hand.Pulse-echo or echo-echoIn pulse-echo mode, the device measures the total thickness, including any coating. According to Kern, the echo-echo models TN 30-0.01EE and TN 60-0.01EE determine the actual material thickness independently of any existing coating. This allows, for example, the wall thickness of pipes to be measured non-destructively without removing the coating. The device can display the measured value already corrected for coating thickness. Echo-echo measurements only work with the supplied ATU-US12 probe. The echo-echo range is from 3 to 30 mm for the TN 30-0.01EE and from 3 to 60 mm for the TN 60-0.01EE. In pulse-echo mode, both measure from 0.65 to 600 mm.Probe, frequency and rangeRange and probe belong together. The probe of the TN 300-0.01US operates at 2.5 MHz, has a diameter of 14 mm and measures from 3 to 300 mm. Both TN 230 models have a 5 MHz probe with a diameter of 10 mm and measure from 1.2 to 230 mm. The two TN 80 models have a 7 MHz probe with a diameter of 6 mm and measure from 0.75 to 80 mm. The two TN 80 models and the two TN 230 models each differ in readability (0.01 mm versus 0.1 mm) and in the interface: the models ending in 0.1US (TN 80-0.1US, TN 230-0.1US) do not have a USB port. The sound velocity ranges from 1,000 to 9,999 m/s; Kern specifies the measurement accuracy as 0.5 % of Max ± 0.04 mm.Measuring modes, memory and data transferAll models can measure either in scan mode at 10 measurements per second or at a single measurement point. On all models, the internal memory can store up to 20 files, each containing up to 100 individual values. The unit is mm or inches. With the exception of the TN 80-0.1US and the TN 230-0.1US, all models have a USB interface. The LCD display features 14 mm high digits. According to the data sheet, two AA batteries last for approximately 100 h.Typical applicationsMetalworking and mechanical engineering: wall thickness of sheet metal, tubes and castingsOil and gas industry: wall thickness inspection on pipework, including under coatings (echo-echo)Aerospace: thickness measurement on components from one sidePlastics engineering: wall thickness of plastic componentsShipbuilding industry: plate thickness and corrosion checking on hullsFor thin walls from 0.75 to 80 mm, one of the two TN 80 models is sufficient; for measuring ranges up to 230 mm with a readability of 0.01 mm, the TN 230-0.01US is sufficient. For measuring thicker workpieces up to 300 mm, use the TN 300-0.01US; for inspecting coated tubes, use one of the two EE models.Models at a glanceModelMethodsPulse-echo measuring rangeEcho-echo measuring rangeReadabilityProbeUSBWeightTN 80-0.01USPulse-echo0.75 mm to 80 mmnot provided0.01 mm7 MHz, Ø 6 mmUSB0.30 kgTN 80-0.1USPulse-echo0.75 mm to 80 mmnot provided0.1 mm7 MHz, Ø 6 mmnone0.25 kgTN 230-0.01USPulse-echo1.2 mm to 230 mmnot provided0.01 mm5 MHz, Ø 10 mmUSB0.25 kgTN 230-0.1USPulse-echo1.2 mm to 230 mmnot provided0.1 mm5 MHz, Ø 10 mmnone0.30 kgTN 300-0.01USPulse-echo3 mm to 300 mmnot provided0.01 mm2.5 MHz, Ø 14 mmUSB0.30 kgTN 30-0.01EEPulse-echo and echo-echo0.65 mm to 600 mm3 mm to 30 mm0.01 mm5 MHz, Ø 10 mmUSB0.25 kgTN 60-0.01EEPulse-echo and echo-echo0.65 mm to 600 mm3 mm to 60 mm0.01 mm5 MHz, Ø 10 mmUSB0.30 kgTechnical detailsThese values apply to all models. Deviating values are given in the model table.Measurement principleUltrasound, external probe, 0.9 m cableSound velocity1,000 m/s to 9,999 m/sMeasurement accuracy (Kern)0.5 % of Max ± 0.04 mmMeasuring modesScan mode (10 measurements per second) or single measurement pointMemory20 files, each containing up to 100 individual valuesUnitsmm, inchDisplayLCD, digit height 14 mmPower supply2 AA batteries (1.5 V), alkaline-manganese, operating time approx. 100 hHousingPlastic, 150 x 74 x 32 mm (W x D x H)Ambient temperature-10 °C to 40 °CFactory calibration certificatecan be ordered separately, item no. 961-113Warranty (manufacturer)36 months according to Kern, excluding wear partsScope of deliverySauter TN material thickness gauge (TN 80-0.01US, TN 80-0.1US, TN 230-0.01US, TN 230-0.1US, TN 300-0.01US, TN 30-0.01EE or TN 60-0.01EE) with external probe, ultrasonic coupling gel, batteries, operating instructions and carrying caseCalibrationA factory calibration certificate (item no. 961-113) can be ordered separately.WarrantyAccording to Kern & Sohn, these devices come with a 3-year warranty. Kern grants 3 years on products with a list price of €500 or more and 2 years on products below that and on components; wear parts such as batteries and rechargeable batteries are excluded. Warranty repairs are carried out by Kern or by a Kern dealer.DownloadsOperating instructions TN 30-0.01EE, TN 60-0.01EE (PDF)Operating instructions TN 230-0.01US to TN 300-0.01US (PDF)Regulatory informationAs electrical devices, the material thickness gauges fall under the ElektroG. The manufacturer Kern & Sohn GmbH is registered under the WEEE registration number DE 80821200. How to return old appliances is described on the page Environment and disposal.Individual requirements and procurement serviceAdditional probes (ATB-US02, ATB-US06, ATU-US01, ATU-US02, ATU-US09, ATU-US10 and, for the echo-echo models, ATU-US12), the coupling gel ATB-US03, the USB cable FL-A01 and the ATU-04 software are also available. Please enquire to find out which probes are compatible with which model. Enquiries are handled via our procurement service.
SAUTER TD 225-0.1US Ultrasonic Material Thickness Gauge, external sensor, 225 mm
The Sauter TD 225-0.1US is a pocket-sized ultrasonic thickness gauge. It measures thicknesses from 1.2 mm to 225 mm, with a readability of 0.1 mm, and features an external probe attached to a 0.9 m cable. The gauge itself measures 30 x 65 x 120 mm and weighs approximately 0.2 kg.Measuring with the external probeThe device operates using the pulse-echo method and therefore requires access to only one side of the component. The probe has a diameter of 8 mm and operates at 5 MHz. The sound velocity range extends from 1,000 to 9,999 m/s, with a tolerance of 0.5 % of the maximum value. Ultrasonic couplant gel is applied between the probe and the workpiece. The supplied zero plate is used for adjustment.Data transferAccording to Kern, the TD 225-0.1US comes with an RS-232 data interface as standard. This allows measured values to be transferred to a PC or printer. The unit can be switched between mm and inch, whilst an auto-off function saves the batteries.Power and operationThe device runs on four AAA batteries (1.5 V), which are included in the scope of delivery. It may be operated at 0 °C to 50 °C and is also stored at 0 °C to 50 °C. The housing is made of plastic.Typical applicationsMetalworking and mechanical engineering: thickness of sheet metal, plates and castingsOil and gas industry: wall thickness of pipes and vesselsAerospace: thickness of components that are only accessible from one sideShipbuilding: wall thickness of sheet metal in the hull areaPlastics engineering: wall thickness of plastic pipes and housingsThe TD 225-0.1US has the widest measuring range of the three instruments (up to 225 mm; the TB 200-0.1US up to 200 mm; the TN 80-0.1US up to 80 mm) and, at 0.2 kg, is also the lightest. If you need to measure thicknesses greater than 80 mm and require the data on a PC, this model is suitable. If you only need to measure up to 80 mm and wish to store the readings in the device, choose the TN 80-0.1US.Practical tipsWith thick walls, the material attenuates the sound more strongly. The rear of the component should be as parallel as possible to the front so that the echo returns clearly. The probe is placed vertically with couplant gel. For reporting purposes, the values can be transferred via RS-232.Regulatory informationAs an electrical device, the device falls under the ElektroG. The manufacturer Kern & Sohn GmbH is registered under the WEEE registration number DE 80821200. How to return old appliances is described on the page Environment and disposal.Frequently asked questionsHow do I transfer measurement values?Via the standard RS-232 interface to a PC or printer.What batteries does the device require?Four 1.5 V AAA batteries. These are included in the scope of delivery.How thin can the material be?The measuring range starts at 1.2 mm thickness and extends to 225 mm.Does the device have a data memory?According to the data sheet, there is no internal data memory. The readings can be transferred via RS-232. If you wish to store them in the device, choose the TN 80-0.1US.How long is the warranty?According to Kern & Sohn, this device comes with a 2-year warranty. Kern grants 3 years on products with a list price of €500 or more and 2 years on products below that and on components; wear parts such as batteries and rechargeable batteries are excluded. Warranty repairs are carried out by Kern or by a Kern dealer.Technical detailsMeasuring range, thickness (pulse-echo)1.2 mm to 225 mmReadability (d)0.1 mmTolerance0.5 % of maximumSound velocity1,000 m/s to 9,999 m/sProbeexternal, 5 MHz, Ø 8 mm, cable 0.9 mAdjustmentZero plateInterfaceRS-232 as standardUnitsmm, inchHousing (W x D x H)30 x 65 x 120 mm, plasticPower supply4 x 1.5 V AAAOperating temperature0 °C to 50 °CStorage temperature0 °C to 50 °CNet weightapprox. 0.2 kgScope of deliverySauter TD 225-0.1US thickness gaugeExternal probe, Ø 8 mmZero plate for adjustmentUltrasonic couplant gelBatteriesOperating instructionsCarrying caseIndividual requirements and procurement serviceAdditional probes with a diameter of 6 mm, 8 mm or 12 mm and couplant gel are also available, as well as a factory calibration certificate. Enquiries are handled via our procurement service.

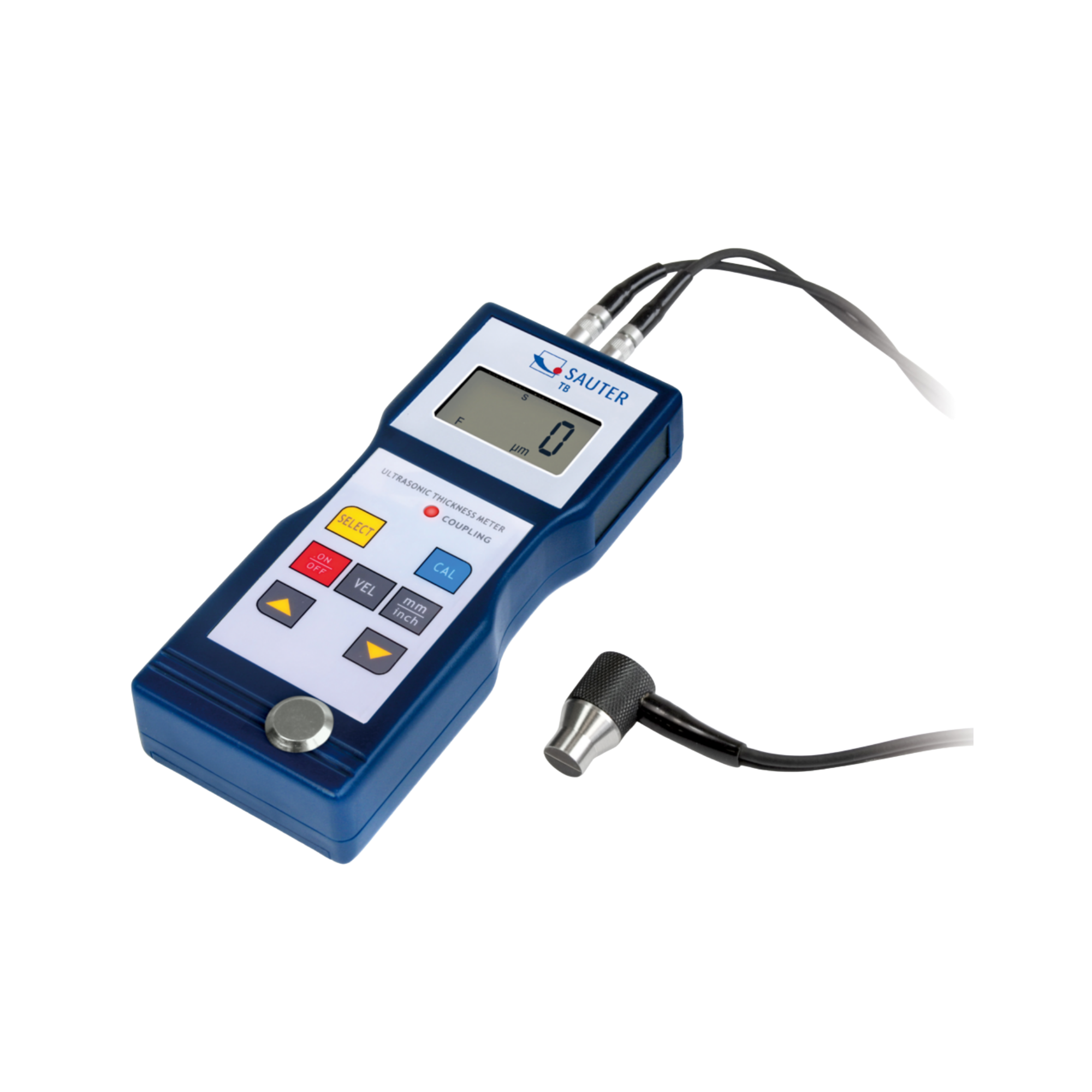

Sauter ultrasonic material thickness gauge TB 200-0.1US, external probe
The Sauter TB 200-0.1US measures the thickness of materials from 1.5 mm to 200 mm. It operates using ultrasound with the pulse-echo method, meaning it only requires access to one side of the component. The probe is connected to the handheld unit via a 0.9 m cable, allowing it to be positioned in places where the unit itself cannot be reached.Measuring range and sound velocityThe readability is 0.1 mm, with a tolerance of 0.5 % of the maximum value. The sound velocity range extends from 500 to 9,999 m/s. The lower limit of 500 m/s is lower than that of the TN 80-0.1US and the TD 225-0.1US, which start at 1,000 m/s. The probe has a diameter of 8 mm and operates at 5 MHz.Zero plate and couplant gelBefore taking a measurement, the probe is adjusted against the supplied zero plate. Ultrasonic couplant gel, which is also included in the scope of delivery, is applied between the probe and the workpiece. Additional probes with diameters of 6 mm, 8 mm and 12 mm are available.Power and housingThe plastic casing measures 161 x 69 x 32 mm; the unit weighs approximately 0.3 kg net. It runs on four AA batteries (1.5 V), which are included in the scope of delivery. The auto-power-off function switches the unit off when not in use. The unit can be switched between mm and inch. In operation, the temperature may be 0 °C to 50 °C; storage is at minus 10 °C to 40 °C.Typical applicationsMetalworking and mechanical engineering: checking the thickness of sheet metal, shafts and castingsOil and gas industry: wall thickness of pipes and vesselsShipbuilding: wall thickness of hull plates and tanksAerospace: thickness of components that are difficult to accessPlastics engineering: wall thickness of plastic pipes and containersThe TB 200-0.1US covers thicker components up to 200 mm. Anyone who stays below 80 mm and needs data storage is better served by the TN 80-0.1US. Anyone who wants to reach 225 mm and transfer data via RS-232 should choose the TD 225-0.1US.Practical guidanceThe zero plate should be used at the start of every measurement series. Then place the probe vertically with couplant gel and hold it steady until the value is stable. Rough or rusty surfaces scatter the sound and should be cleaned or smoothed beforehand. The couplant gel can be wiped off the component after the measurement.Regulatory informationAs an electrical device, the device falls under the ElektroG. The manufacturer Kern & Sohn GmbH is registered under the WEEE registration number DE 80821200. How to return old appliances is described on the page Environment and disposal.Frequently asked questionsHow thick can the material be?The measuring range is 1.5 mm to 200 mm in thickness.What is the zero plate for?It is used to adjust the probe and is supplied with the device.What batteries does the device require?Four 1.5 V AA batteries. These are included in the scope of delivery.Does the TB 200-0.1US have a data memory?According to the data sheet, it does not have an internal data memory. If you wish to save readings in the device, choose the TN 80-0.1US.How long is the warranty?According to Kern & Sohn, this device comes with a 2-year warranty. Kern grants 3 years on products with a list price of €500 or more and 2 years on products below that and on components; wear parts such as batteries and rechargeable batteries are excluded. Warranty repairs are carried out by Kern or by a Kern dealer.Technical detailsMeasuring range, thickness (pulse-echo)1.5 mm to 200 mmReadability (d)0.1 mmTolerance0.5 % of maximumSound velocity500 m/s to 9,999 m/sProbeexternal, 5 MHz, Ø 8 mm, cable 0.9 mAdjustmentZero plateUnitsmm, inchHousing (W x D x H)161 x 69 x 32 mm, plasticPower supply4 x 1.5 V AAOperating temperature0 °C to 50 °CStorage temperature-10 °C to 40 °CNet weightapprox. 0.3 kgScope of deliverySauter TB 200-0.1US thickness gaugeExternal probe, Ø 8 mmZero plate for adjustmentUltrasonic couplant gelBatteriesOperating instructionsCarrying caseIndividual requirements and procurement serviceAdditional probes and couplant gel are also available, as well as a factory calibration certificate. Enquiries are handled via our procurement service.

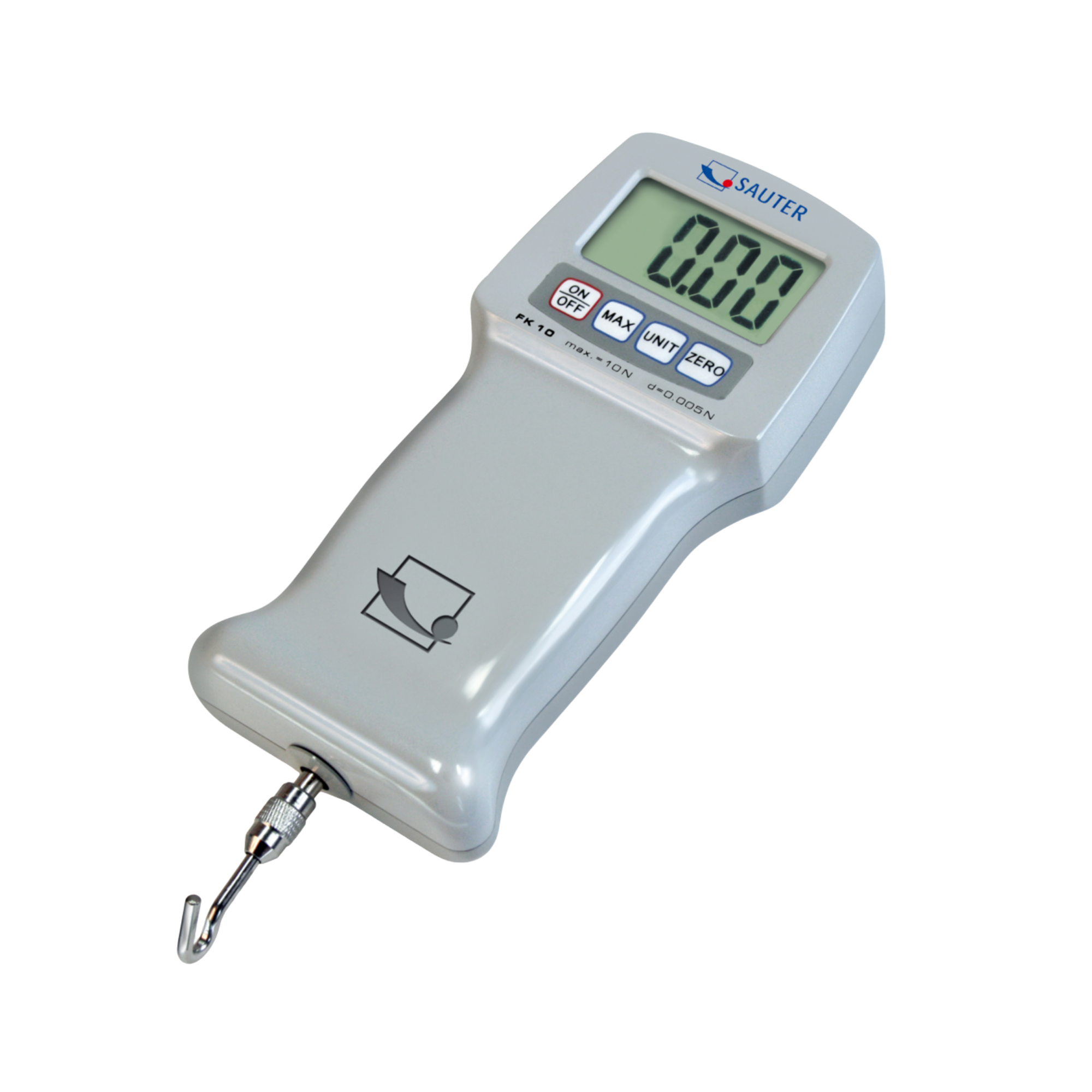

SAUTER FK 500 Digital Force Gauge (500 N / 0.2 N)
The Sauter FK 500 measures tensile and compressive forces up to 500 N and has a readability of 0.2 N. It is a handheld measuring device with an internal sensor that can also be bolted onto a test stand. Those who only need to measure force occasionally can simply hold it in their hand. Those carrying out series testing can mount it on a Sauter test stand rated up to 5 kN to achieve reproducible measurement conditions.Measuring tensile and compressive forcesThe instrument measures forces in both directions. The tolerance is 0.5 % of maximum, whilst the overload protection is set at 200 % of maximum. Measurements are taken at 1,000 Hz, allowing even brief force peaks to be recorded. In Peak-Hold mode, the display freezes the maximum value for around 10 seconds; in Track mode, the display follows the applied force. Selectable units are N, lbf, kg and ozf. The automatic switch-off (Auto-Power-Off) conserves battery power.In practice, Peak-Hold is useful for tests where the maximum value is important, such as when disconnecting a connection or pressing a component until it fails. Track is suitable when a force needs to be monitored over the course of a movement, for example when pressing a switch.Display and housingThe LCD has 18 mm high digits and, according to Kern, rotates automatically depending on how the device is held or installed. The plastic housing measures 195 x 84 x 35 mm and weighs approximately 0.65 kg net. Force is applied via an M8 external thread. Clamps with an M6 internal thread are compatible with the AFM 22 thread adapter (M8 internal thread, M6 external thread), which is also available.Power supplyThe scope of delivery includes a mains adaptor and six AA batteries (1.5 V). According to the data sheet, the device operates for approximately 25 hours on batteries, after which it can be switched to mains power. Country-specific adaptors for the EU, UK, US and Switzerland are included with the mains adaptor. The ambient temperature should be between 10 °C and 30 °C.Typical applicationsTest laboratories and research and development: tensile force of joints, compressive force of springs and componentsAutomotive industry: actuation forces of switches, levers and fastenersMaintenance and servicing: testing of springs, latches and adjustment forcesPlastics engineering: pull-off and tear forces on small partsThe FK 500 covers the range up to 500 N. For testing higher forces, use the FK 1K with a capacity of 1,000 N and a readability of 0.5 N. If you require finer readability at 500 N, the FC 500 offers a readability of 0.1 N and a tolerance of 0.3 %.Practical adviceThe force should be applied in the axial direction of the device. Lateral forces place a strain on the sensor and distort the reading. On a test stand, the axis can be kept aligned easily; by hand this is more difficult.Regulatory informationAs an electrical device, the device falls under the ElektroG. The manufacturer Kern & Sohn GmbH is registered under the WEEE registration number DE 80821200. How to return old appliances is described on the page Environment and disposal.Frequently asked questionsIs the FK 500 compatible with a test stand?Yes, according to Kern, it is compatible with all Sauter test stands up to 5 kN. The force application point is an M8 external thread.Can I connect clamps with an M6 thread?Yes, using the AFM 22 thread adapter (M8 internal thread, M6 external thread).Are the batteries included in the scope of delivery?Yes, six 1.5 V AA batteries are included, as well as the mains adaptor.Are calibration certificates available?Factory and DAkkS calibration certificates are also available, separately for tension, compression and both directions.How long is the warranty?According to Kern & Sohn, this device comes with a 2-year warranty. Kern grants 3 years on products with a list price of €500 or more and 2 years on products below that and on components; wear parts such as batteries and rechargeable batteries are excluded. Warranty repairs are carried out by Kern or by a Kern dealer.Technical detailsMeasuring range (max)500 NReadability (d)0.2 NForce directionTension and compressionTolerance0.5 % of maximumOverload protection200 % of maximumMeasurement frequency1,000 HzFunctionsHold, Peak, Track, Auto-Power-OffUnitsN, lbf, kg, ozfDisplayLCD, digit height 18 mm, rotatableForce applicationM8 external threadHousing (W x D x H)195 x 84 x 35 mm, plasticPower supplyMains adaptor or 6 x 1.5 V AABattery lifeapprox. 25 hAmbient temperature10 °C to 30 °CNet weightapprox. 0.65 kgScope of deliverySauter FK 500 force gaugeStandard attachments, as shown in the product image90 mm extension rodMains adaptor with plug adaptors for the EU, UK, US and Switzerland6 AA batteries (1.5 V)Individual requirements and procurement serviceClamps, a handle, threaded adaptors, a tensiometer attachment and a carrying case are also available. Factory and DAkkS calibration certificates are available for tension, compression and combined tension and compression. Enquiries are handled via our procurement service.

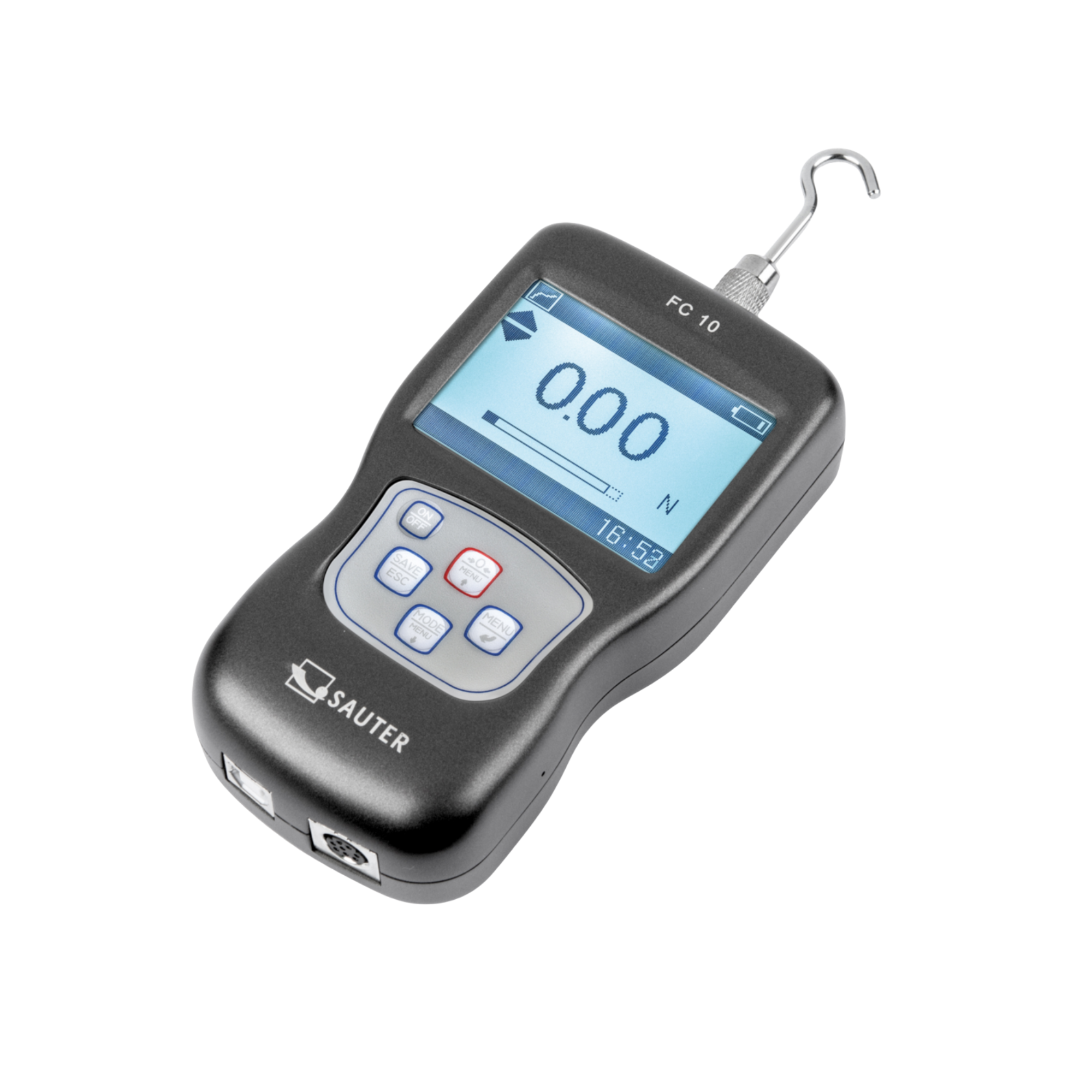

Sauter digital force gauge FC 500, internal load cell
The Sauter FC 500 is a compact force gauge for tension and compression up to 500 N. It has a readability of 0.1 N, with a tolerance of 0.3 % of maximum. The housing is made of metal; the display is backlit and rotates to match the mounting orientation. Anyone requiring a handheld measuring instrument with high readability and a memory for their own measurement series will find both here in a housing measuring 135 x 73 x 34 mm.Measurement functionsThe device measures at 1,000 Hz, with overload protection set at 150 % of maximum. In peak-hold mode, it holds the peak value; in track mode, it continuously displays the force curve. For batch testing, there is a limit value function: an upper and a lower limit value can be set between 10 and 100 % of maximum, separately for tension and compression. If a value is exceeded, the device signals this both audibly and visually. A rising illuminated bar indicates how much of the measuring range has already been used. According to Kern, clear warning signals are issued for loads exceeding 110 % of the measuring range. Selectable units are N, kgf, ozf and lbf.Memory and interfacesThe device stores up to 500 measured values. It features USB and RS-232 for data transfer; a USB cable is included in the scope of delivery. Compatible software is also available. The automatic switch-off function can be set to between 1 and 60 minutes or disabled altogether, allowing the device to operate continuously.Battery and designThe device contains a 3.6 V, 400 mAh NiMH battery. According to the data sheet, it lasts for around 20 hours, with a charging time of 4 hours. The mains adaptor with EU and CH adaptors is included. The housing weighs approximately 0.45 kg net. Force is applied via an M6 external thread. According to Kern, the device can be mounted on all Sauter test stands up to 5 kN, so that the measurement conditions are the same for series. The ambient temperature may be between minus 10 °C and 40 °C.Typical applicationsTest laboratories and research and development: measurement series with stored valuesAutomotive industry: monitoring of actuation and detent forces against limit valuesMaintenance and servicing: force testing in the field; the metal housing is designed for harsh environmentsPlastics engineering: testing of joints and snap-fit fastenersCompared with the FK models (FK 500 with 0.2 N and FK 1K with 0.5 N readability), the FC 500 offers finer readability, a memory function and a limit value function. However, its overload protection of 150 % is lower than that of the FK models, which is 200 %. Anyone who tests series against limit values and transfers the data to a PC should choose the FC 500.Regulatory informationAs an electrical device, the device falls under the ElektroG. The manufacturer Kern & Sohn GmbH is registered under the WEEE registration number DE 80821200. How to return old appliances is described on the page Environment and disposal.Frequently asked questionsHow long does the battery last?Around 20 hours; the charging time is 4 hours. The device can also be powered via the mains adaptor.How do I transfer measured values?Via USB or RS-232. The USB interface cable is included in the scope of delivery.How does the limit value function work?An upper and a lower limit value are set between 10 and 100 % of maximum, separately for tension and compression. The device signals deviations with an audible and visual alarm.Is the FC 500 compatible with a test stand?Yes, with all Sauter test stands up to 5 kN. Force is applied via an M6 external thread.How long is the warranty?According to Kern & Sohn, this device comes with a 2-year warranty. Kern grants 3 years on products with a list price of €500 or more and 2 years on products below that and on components; wear parts such as batteries and rechargeable batteries are excluded. Warranty repairs are carried out by Kern or by a Kern dealer.Technical detailsMeasuring range (max)500 NReadability (d)0.1 NForce directionTension and compressionTolerance0.3 % of maximumOverload protection150 % of maximumMeasurement frequency1,000 HzFunctionsHold, Peak, Track, limit values, capacity indicatorUnitsN, kgf, ozf, lbfMemory500 readingsInterfacesRS-232 as standard, USB deviceDisplayLCD 160 x 128, digit height 10 mm, rotatable, backlitForce applicationM6 external threadHousing (W x D x H)135 x 73 x 34 mm, metalPower supply3.6 V NiMH rechargeable battery, mains adaptorOperating timeapprox. 20 hCharging time4 hoursAmbient temperature-10 °C to 40 °CNet weightapprox. 0.45 kgScope of deliverySauter FC 500 force gaugeStandard attachments with hooks, as shown in the product image90 mm extension rodMains adaptor with adaptors for the EU and CHUSB interface cableCarrying caseIndividual requirements and procurement serviceScrew clamps, roller clamps, ball heads, sensors, handles and other attachments are also available, as well as software, factory calibration certificates and DAkkS calibration certificates. Enquiries are handled via our procurement service.
Sauter SU sound level meters, 30 dB to 130 dB, SU 130 with RS-232, SU 150 class II
With the Sauter SU, you measure sound levels from 30 dB to 130 dB with 0.1 dB readability. The devices differ in terms of features and accuracy. The SU 130 is the model with basic functions and an RS-232 interface. It offers the measuring modes Lp, Leq and Ln, and has a measurement accuracy of 3 % of Max. According to the data sheet, the SU 150 has 1.5 % of Max measurement accuracy, states class II in the manufacturer data and has an analogue output, a memory for 63 measurements and switchable response times.SU 130: basic device for the workplaceThe SU 130 measures sound intensity in the workplace and helps to distinguish between normal sound levels and excessive noise exposure, for example in a production hall. It measures in the frequency range from 20 Hz to 12.5 kHz; the microphone has a sensitivity of 30 mV/Pa. There are three measurement functions to choose from: Lp is the standard sound level measurement, Leq is the energy-equivalent continuous sound level (type A) and Ln shows the deviation from a specified limit as a percentage. As acquisition modes, Kern specifies A (like the human ear), C (for loud environments such as machines and engines) and F (for constant sound levels).There is also a programmable limit value function for the maximum level, the track function for changing conditions and the peak hold function. The memory stores 30 measurements, which can be transferred to a PC using the Sauter ATC-01 software. The RS-232 interface is included in the scope of delivery. The device comes with four AAA batteries in a carrying case.SU 150: more accurate, with analogue outputThe SU 150 measures in the frequency range from 31.5 Hz to 8 kHz and provides Leq and Lcpeak as measuring modes; the weightings are A and C. You can select the range manually or automatically and switch between a fast (125 ms) and slow (1 s) response. A simulated analogue bar shows the measured values quickly. The data hold function holds the current value, the limit value function with visual signal reports exceeding and falling below. The AC/DC analogue signal output transmits the signal for further processing. The memory can store 63 measurements. The device runs on four AA batteries; the auto-off function switches it off after 1 min and can be deactivated. A tripod (SW-A05) is available. The SU 150 is supplied in a pouch.Device class and calibrationKern does not specify a device class for the SU 130; for the SU 150, the data sheet states class II. For measurements where documentation is required, such as in occupational health and safety, the required class should be clarified in advance. For the SU 150, a DAkkS calibration certificate is available in addition to the factory calibration certificate.Typical applicationsWorkplace and noise assessment: measuring sound levels on machinery and in production hallsIndustry and assembly halls: checking sound levels at machinery and assembly stationsEnvironmental monitoring and construction sites: recording and documenting noise levels (SU 150)Schools and traffic: measuring noise levels in classrooms and on roads (SU 130)Automotive industry: noise testing on components and test stands (SU 130)Events and public facilities: monitoring sound levels (SU 150)Anyone carrying out simple sound level measurements in the workplace will find the SU 130 sufficient. The SU 150 is intended for higher accuracy, class II and the analogue output.Models at a glanceModelMeasuring rangeReadabilityMeasurement accuracyMeasuring modesWeightingFrequency rangeMemory (measurements)OutputSU 13030 dB to 130 dB0.1 dB3 % of MaxLp, Leq, LnA, C, F20 Hz to 12.5 kHz30RS-232SU 15030 dB to 130 dB0.1 dB1.5 % of MaxLeq, LcpeakA, C31.5 Hz to 8 kHz63Analogue output AC/DCTechnical detailsThe model table contains the values for each model. This information applies to both models.Measured quantitySound levelUnitdBDisplayLCDHousingPlasticPower supply4 batteries (alkaline-manganese): SU 130 AAA, SU 150 AA, included in the scope of deliveryDimensions (W x D x H)SU 130: 236 x 63 x 40 mm; SU 150: 273 x 69 x 39 mmNet weightSU 130: approx. 0.20 kg; SU 150: approx. 0.40 kgDevice class according to the data sheetSU 130: not specified; SU 150: class IIFactory calibration certificatecan be ordered separately, item no. 961-281 (both models)DAkkS calibration certificatecan be ordered separately, item no. 963-281 (SU 150)Warranty (manufacturer)24 months according to Kern, excluding wear partsScope of deliverySU 130: sound level meter with 4 AAA batteries and carrying caseSU 150: sound level meter with 4 AA batteries and pouchCalibrationA factory calibration certificate (item no. 961-281) can be ordered separately for both models. A DAkkS calibration certificate (item no. 963-281) is also available for the SU 150.WarrantyAccording to Kern & Sohn, these devices come with a 2-year warranty. Kern grants 3 years on products with a list price of €500 or more and 2 years on products below that and on components; wear parts such as batteries and rechargeable batteries are excluded. Warranty repairs are carried out by Kern or by a Kern dealer.DownloadsOperating instructions SU 130 (PDF)Operating instructions SU 150 (PDF)Regulatory informationAs electrical devices, the sound level meters fall under the ElektroG. The manufacturer Kern & Sohn GmbH is registered under the WEEE registration number DE 80821200. How to return old appliances is described on the page Environment and disposal.Individual requirements and procurement serviceThe ATC-01 software (for the SU 130), the SW-A05 tripod (for the SU 150) and the calibration certificates 961-281 and 963-281 are also available. Enquiries are handled via our procurement service.
Sauter FM digital force gauges for tension and compression, 5 N to 20 kN, internal and external load cells
The Sauter FM are digital force gauges for tensile and compressive forces with a graphic-assisted display. There are 13 models ranging from 5 N to 20 kN. Eight models (FM 5 to FM 1K) have the load cell integrated into the unit, whilst five models (FM 1K EXT, FM 3K, FM 5K, FM 10K, FM 20K) use an external load cell for high forces. All models feature a data memory for 500 measured values, a limit value function and a sampling rate of 1,000 Hz.Internal or external load cellIn the models FM 5 to FM 1K, the load cell is located in the housing. A hook takes up the load, whilst an M6 external thread is provided for mounting attachments. These devices can be mounted on all Sauter test stands up to 5 kN. The models FM 1K EXT to FM 20K have a separate load cell with an M12 threaded hole for force introduction and force output. In these models, the force measurement is not integrated into the display unit; the cell can be used separately. Both the FM 1K and the FM 1K EXT measure up to 1 kN with a readability of 0.5 N and differ in their design.Accuracy and protectionAccording to Kern, the measurement accuracy is 0.2 % of Max and the overload protection 120 % of Max. This is a tighter accuracy than with the FE series (0.3 %), but the overload protection is lower (FE: 150 %). The largest expected force should therefore be chosen with some margin to the measuring range. The readability ranges from 0.002 N for the FM 5 to 10 N for the FM 20K.Display, capacity bar and memoryThe backlit LCD can be rotated. A capacity bar shows, as a rising band of light, how much of the measuring range is still free. The device displays either the peak value (peak hold) or the current value continuously (track). The internal memory stores up to 500 measured values. The available units are N, kN, kgf and lbf.Limit values and data transmissionFor pass/fail tests, an upper and a lower limit value are set, separately for tension and compression. A visual signal reports that the limit value is exceeded or undershot. The data is transmitted to a PC via USB-C, at a rate of approximately 25 measurements per second, according to Kern. There is also a PS/2 port for device coupling. The AFH FAST software is available for force-time measurements, the AFH LD software for force-displacement measurements, and the Sauter Readout software for models with an external load cell.Rechargeable batteryAccording to the data sheet, the NiMH rechargeable battery runs for up to 10 h without and up to 8 h with backlight, the charging time is approx. 8 h. Charging is carried out via the USB-C port using the supplied mains adaptor (100 V to 240 V). The rechargeable battery is permanently fitted.Typical applicationsTest laboratories: tensile and compression tests, test series with data storage and data transferResearch and development: force measurement on test objects, force-time and force-displacement curves using softwareAutomotive industry: testing of insertion, extraction and actuation forcesMaintenance and servicing: checking clamping, spring and holding forcesPlastics engineering: force testing on plastic parts using models with an internal load cellA model with an internal load cell is sufficient for forces up to 1 kN. If you need to measure forces from 3 kN to 20 kN or wish to use the load cell separately from the display, choose one of the external models.Models at a glanceModelLoad cellMeasuring range (Max)Readability (d)Dimensions of load cell (W x D x H)Factory calibration certificate for tension / compression / tension and compressionDAkkS calibration certificate tension / compression / tension and compressionFM 5internal5 N0.002 Nin the device961-161 / 961-261 / 961-361963-161 / 963-261 / 963-361FM 10internal10 N0.005 Nin the device961-161 / 961-261 / 961-361963-161 / 963-261 / 963-361FM 20internal20 N0.01 Nin the device961-161 / 961-261 / 961-361963-161 / 963-261 / 963-361FM 50internal50 N0.02 Nin the device961-161 / 961-261 / 961-361963-161 / 963-261 / 963-361FM 100internal100 N0.05 Nin the device961-161 / 961-261 / 961-361963-161 / 963-261 / 963-361FM 200internal200 N0.1 Nin the device961-161 / 961-261 / 961-361963-161 / 963-261 / 963-361FM 500internal500 N0.2 Nin the device961-161 / 961-261 / 961-361963-161 / 963-261 / 963-361FM 1Kinternal1 kN0.5 Nin the device961-162 / 961-262 / 961-362963-162 / 963-262 / 963-362FM 1K EXTexternal1 kN0.5 N72 x 64 x 20 mm961-162 / 961-262 / 961-362963-162 / 963-262 / 963-362FM 3Kexternal3 kN1 N70 x 60 x 24 mm961-163 / 961-263 / 961-363963-163 / 963-263 / 963-363FM 5Kexternal5 kN2 N70 x 60 x 24 mm961-163 / 961-263 / 961-363963-163 / 963-263 / 963-363FM 10Kexternal10 kN5 N70 x 60 x 24 mm961-164 / 961-264 / 961-364963-164 / 963-264 / 963-364FM 20Kexternal20 kN10 N70 x 64 x 25 mm961-164 / 961-264 / 961-364963-164 / 963-264 / 963-364Technical detailsThese values apply to all models. Deviating values are given in the model table.Directions of forceTension and compressionMeasurement accuracy (Kern)0.2 % of MaxOverload protection120 % of MaxSampling rate1,000 HzUnitsN, kN, kgf, lbfFunctionsLimit value function in tensile and compressive directions with visual signal, peak hold, track, capacity displayMemory500 measured valuesInterfacesUSB-C, PS/2; data transfer rate approx. 25 measured values per secondForce introductioninternal load cell: hook, M6 external thread; external load cell: M12 threaded holeDisplayLCD, rotatable, backlitDisplay unit housingABS plastic, 71 x 31 x 180 mm (W x D x H)Rechargeable batteryNiMH, 750 mAh, charging time approx. 8 h, operating time 10 h without and 8 h with backlightChargingUSB-C, mains adaptor 100 V to 240 VAmbient temperature15 °C to 35 °CStorage temperature-10 °C to 40 °CWarranty (manufacturer)36 months according to Kern, excluding wear partsScope of deliverySauter FM force gauge with built-in rechargeable batteryMains adaptor (USB-C)Models with internal load cell: standard attachments and carrying caseModels with external load cell: external load cellCalibrationFor the FM series, there are factory calibration certificates and DAkkS calibration certificates, each for tension, compression or both tension and compression. The item numbers for each model are listed in the model table. The calibration procedure for the DAkkS certificates is DKD-R 3-3 (procedure A). For the FM 10K and FM 20K, the certificates are valid, according to Kern, for the range from 5 kN to 20 kN.WarrantyAccording to Kern & Sohn, these devices come with a 3-year warranty. Kern grants 3 years on products with a list price of €500 or more and 2 years on products below that and on components; wear parts such as batteries and rechargeable batteries are excluded. Warranty repairs are carried out by Kern or by a Kern dealer.DownloadsOperating instructions Sauter FM (PDF)Regulatory informationAs electrical devices, the force gauges fall under the ElektroG. The manufacturer Kern & Sohn GmbH is registered under the WEEE registration number DE 80821200. How to return old appliances is described on the page Environment and disposal.Individual requirements and procurement serviceThe following accessories are also available:Ball heads: AC 02Screw clamps: AC 14, AC 17, AC 22, AD 9001, AD 9005, AD 9016Clamps from the AE series: AE 01 to AE 07, AE 500Adaptors: AFM 05, AFM 06, AFM 07, AFM 12, AFM 15Replacement parts: battery FL-A03, screen RFL-3001, display film RFL-4001Further accessories: handle AFK 02, cable FL-A04, plug-in mains adaptor FS-E07, needle printer YKT-01Please enquire to find out which parts are compatible with which model. Enquiries are handled via our procurement service.

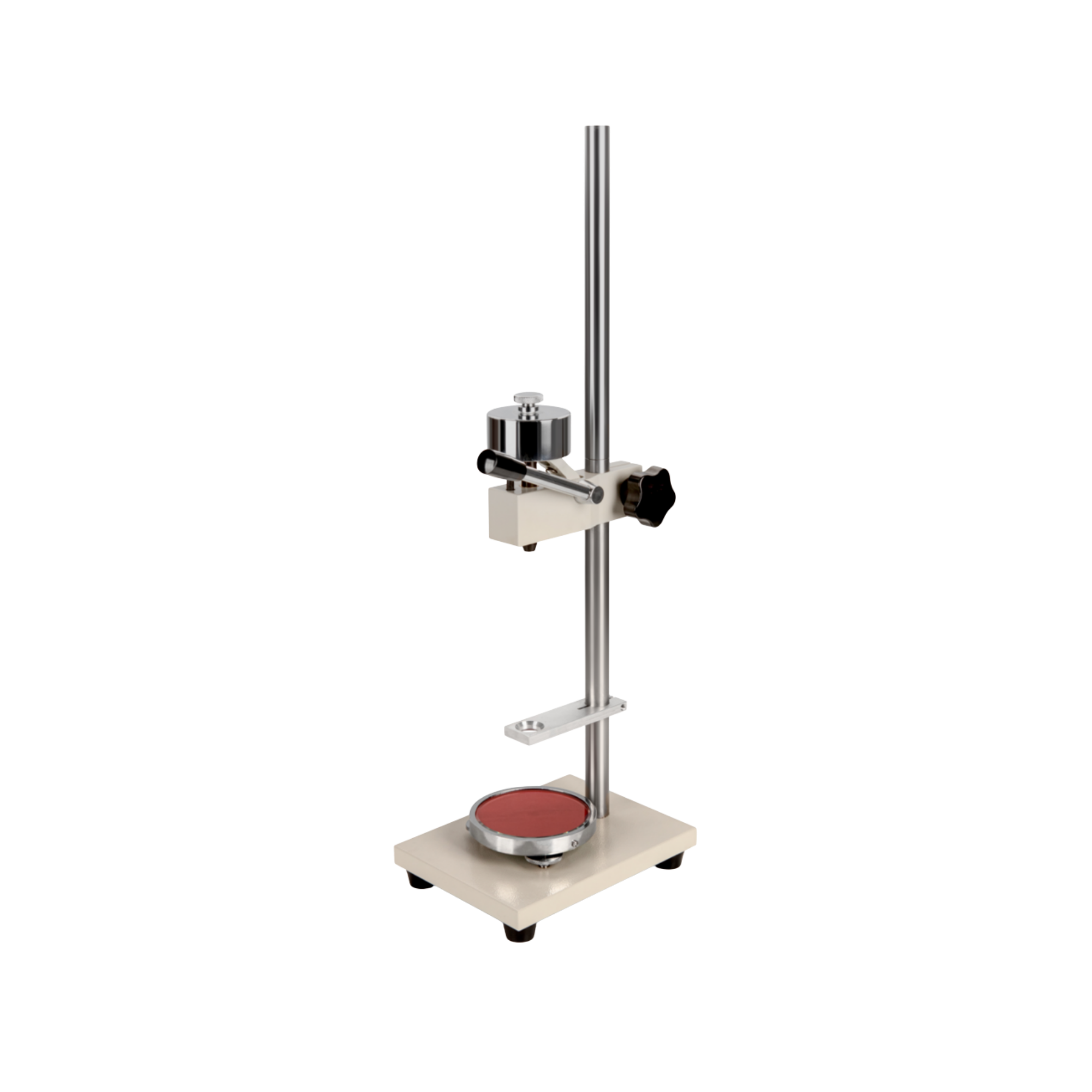

Sauter TI manual Shore test stands for Shore A and Shore D, test force 10 N and 50 N
A handheld Shore hardness tester does not maintain the same angle and the same pressure every time. The Sauter TI manual test stands hold the hardness tester in a suspended position and press the measuring tip into the sample using a fixed test weight. According to Kern, the accuracy of the measurement result obtained with the TI-AC is approximately 25 % higher than that of a manual measurement. The series has six models for Shore A (10 N) and Shore D (50 N), with glass plate or steel plate, each with its own assignment to the Sauter hardness testers.OperationThe hardness tester is mounted in a suspended position on the test stand. The test object rests on the round test table directly beneath the measuring tip. When the lever is pressed down, the test stand releases the test weight, which the measuring tip presses into the test object with the test force (10 N for Shore A, 50 N for Shore D). The hardness tester is not included in the scope of delivery.Glass plate or steel plateAccording to Kern, the TI-AC, TI-ACL, TI-D and TI-DL have a glass base plate that is harder than the test object and therefore contributes to high measurement accuracy. The TI-HEA and TI-HED feature a steel plate with levelling. Both designs can be aligned with a levelling device, which helps with inhomogeneous test objects. With the TI-HEA and TI-HED, the test table is aligned using two screw mechanisms beneath the hardness tester.Which test stand for which hardness testerThe TI-AC is compatible with the analogue HB0 100-0 (Shore A0) and HBA 100-0 (Shore A), whilst the TI-D is compatible with the analogue HBD 100-0 (Shore D). The TI-ACL and TI-DL accommodate test objects up to 290 mm in height. The TI-ACL is the test stand for the digital HDA 100-1 (Shore A), whilst the TI-DL has a longer, interchangeable guide column for the digital HDD 100-1. The TI-HEA and TI-HED belong to the devices HEA 100 and HED 100. According to Kern, the TI-HE additional weight on the TI-HEA also allows Shore D testing; see Accessories.Typical applicationsPlastics engineering: reproducible Shore hardness testing on plastics and leatherMedical technology: hardness testing of elastomer components with a fixed contact pressureAutomotive industry: testing of seals and rubber components under repeatable measurement conditionsPackaging industry: hardness comparison of plastics and sealing materialsFood industry: hardness testing of seals and plastic componentsThose who compare Shore values in a series put the device on the test stand so that angle and contact force stay constant. The test force of the test stand (10 N or 50 N) must correspond to the Shore scale of the hardness tester.Models at a glanceModelHardness scaleTest forceMax. height of test objectTest table ØStrokeBase plateDimensions when assembled (W x D x H)WeightSuitable hardness testerTI-ACShore A10 N60 mm75 mm15 mmGlass150 x 200 x 330 mm7 kgHB0 100-0 and HBA 100-0TI-ACLShore A10 N290 mm75 mm15 mmGlass150 x 200 x 580 mm8 kgHDA 100-1TI-DShore D50 N60 mm75 mm15 mmGlass150 x 200 x 400 mm8 kgHBD 100-0TI-DLShore D50 N290 mm75 mm15 mmGlass150 x 200 x 580 mm9 kgHDD 100-1TI-HEAShore A10 N50 mm115 mm20 mmSteel200 x 200 x 390 mm6 kgHEA 100TI-HEDShore D50 N50 mm115 mm20 mmSteel200 x 200 x 470 mm10 kgHED 100Technical detailsThe model table contains the values for each model. This information applies to all models.Typemanual lever test stand, hardness tester in a suspended positionLevellingLevelling device for the base plateHardness testernot included in the scope of deliveryWarranty (manufacturer)36 months (TI-HEA, TI-HED), 24 months (TI-AC, TI-ACL, TI-D, TI-DL), according to Kern, excluding wear partsScope of deliverySauter TI test stand (model as selected) with test table and test weightThe hardness tester is not included in the scope of delivery.WarrantyAccording to Kern & Sohn, the TI-HEA and TI-HED come with a 3-year warranty and the TI-AC, TI-ACL, TI-D and TI-DL come with a 2-year warranty. Kern grants 3 years on products with a list price of €500 or more and 2 years on products below that and on components; wear parts such as batteries and rechargeable batteries are excluded. Warranty repairs are carried out by Kern or by a Kern dealer.DownloadsOperating instructions TI-AC, TI-D, TI-DL (PDF)Operating instructions TI-HEA, TI-HED (PDF)Individual requirements and procurement serviceThe Sauter HB, HD and HE hardness testers, the AHBA-01 (Shore A) and AHBD-01 (Shore D) hardness reference plates and the TI-HE additional weight are also available. Enquiries are handled via our procurement service.
Sauter HN-D Leeb hardness tester in pen format, 170 to 960 HLD, sensor D built in
The Sauter HN-D is a pen-type Leeb hardness tester for the portable hardness testing of metals. The sensor and evaluation unit are housed in a single unit measuring 22 x 35 x 147 mm, which weighs approx. 0.20 kg. The measuring range extends from 170 to 960 HLD with a readability of 1 HL. The measured values are displayed as HL, HV, HB, HRB or HRC. A Li-ion rechargeable battery with mains adaptor, a memory for 500 measurement data points and a USB cable are included with the device.One hand is enoughKern has designed the HN-D for one-handed operation. This is intended to enable faster and more flexible working than with conventional devices. The rebound sensor type D is built into the device. The LCD is backlit and, according to Kern, readable from all directions; the digits are 5 mm high. An automatic compensation function compensates for the test direction, enabling measurements to be taken in all directions (360°).Memory, statistics and data transmissionThe device stores up to 500 measurement data points with date and time. It calculates averages and produces statistics from the stored values. The data is transferred to a PC via the USB interface; the USB cable is included in the scope of delivery.Rechargeable battery and mains adaptorThe Li-ion rechargeable battery is built in. According to Kern, the device runs for up to 16 h without backlight; charging takes approximately 3 h. The mains adaptor (100 V to 240 V) is supplied with an EU plug; plugs for Australia, UK and US are optionally available.Test object and reference blockAccording to Kern, the test object must be at least 3 mm thick. With firm coupling on a solid base, a weight of 2 kg is sufficient. A hardness reference block is not included in the scope of delivery. The hardness reference plates AHMO D02 (790 ± 40 HL) and AHMO D03 (630 ± 40 HL) are available for checking the device.Typical applicationsAutomotive industry: rapid hardness checks on componentsMetalworking and steel construction: on-site hardness testing of structural componentsEnergy and power plant industry: testing plant components in hard-to-reach areasOil and gas industry: hardness checks on fittings and pipeworkAerospace: testing of metal componentsThe HN-D is aimed at inspectors who want to measure without additional devices and with just one hand. Those who want to set limit values will find the limit value function in the HK-D and HMO models, and the conversion to MPa in the HMO.Technical detailsMeasuring methodLeeb, built-in rebound sensor, type DMeasuring range170 to 960 HLDReadability (d)1 HLHardness unitsHL, HV, HB, HRB, HRCTest object minimum thickness3 mm, firmly coupled on a solid baseTest object minimum weight2 kg with firm couplingMeasuring probeLength 14.6 cm, Ø 2 cmMemory500 measurement data points with date and time, mean value, statisticsDisplayLCD, backlit, digit height 5 mmInterfaceUSB device, USB cable included in the scope of deliveryRechargeable batteryLi-Ion, charging time approx. 3 h, operating time up to 16 h without backlightPower supplyPlug-in mains adaptor, 100 V to 240 V, EU plug, plugs for Australia, UK and US optionalHousingDie-cast aluminium and plastic, 22 x 35 x 147 mm (W x D x H)Net weightapprox. 0.20 kgStorage temperature-10 °C to 40 °CFactory calibration certificatecan be ordered separately, item no. 961-131Warranty (manufacturer)36 months according to Kern, excluding wear partsScope of deliverySauter HN-D Leeb hardness tester with built-in sensor type D and Li-ion rechargeable batteryMains adaptor (EU plug)USB cableCarrying caseA hardness reference block is not included in the scope of delivery.CalibrationA factory calibration certificate (item no. 961-131) can be ordered separately.WarrantyAccording to Kern & Sohn, this device comes with a 3-year warranty. Kern grants 3 years on products with a list price of €500 or more and 2 years on products below that and on components; wear parts such as batteries and rechargeable batteries are excluded. Warranty repairs are carried out by Kern or by a Kern dealer.DownloadsOperating instructions Sauter HN-D (PDF)Regulatory informationAs an electrical device, the hardness tester falls under the ElektroG. The manufacturer Kern & Sohn GmbH is registered under the WEEE registration number DE 80821200. How to return old appliances is described on the page Environment and disposal.Individual requirements and procurement serviceThe hardness reference plates AHMO D02 (790 ± 40 HL) and AHMO D03 (630 ± 40 HL), as well as mains plugs for Australia, UK and US, are also available. Enquiries are handled via our procurement service.
Sauter JIT infrared thermometer, -32 °C to 1,100 °C, distance-to-spot ratio 12:1 and 20:1, laser
The Sauter JIT models are infrared thermometers designed for non-contact measurement of surface temperature. The JIT 100 covers a range from -32 °C to 420 °C with a distance-to-spot ratio of 12:1, whilst the JIT 200 covers a range from -32 °C to 1,100 °C with a ratio of 20:1. Both feature an EBTN colour display, a laser for marking the measurement point and a limit value alarm function. The JIT 200 also has a data memory with date and time and a dual laser.Distance-to-spot ratio and measurement spotThe distance-to-spot ratio (D:S) indicates the size of the measurement spot at a given distance. At a ratio of 12:1, the JIT 100 detects a 1 cm spot from a distance of 12 cm; at a ratio of 20:1, the JIT 200 detects a 1 cm spot from a distance of 20 cm. The higher the ratio, the further away from a small object you can take a measurement. The response time is 250 ms; the data sheet specifies a range of 0.1 to 1.0 for the emissivity.JIT 100: up to 420 °C, with locked measurementThe JIT 100 measures from -32 °C to 420 °C. According to Kern, the tolerance range is ± 1.5 °C or ± 1.5 %. A Class 2 laser (less than 1 mW) marks the measurement point. The locked measurement protects processes that require temperature monitoring: the measured values are locked and protected against external influences. The device has a mounting hole for a tripod.JIT 200: up to 1,100 °C, with memory and hold functionThe JIT 200 measures from -32 °C to 1,100 °C and is suitable for high temperatures on furnaces, melts and heat treatment plants. The dual laser makes positioning easier. Timed measurements are possible, and the memory stores up to 99 measurement data points with date and time. It also features hold, peak hold and statistics functions, and the unit can be switched between °C and °F. A mounting thread accommodates a tripod.Common functionsBoth devices store MAX, MIN, AVG and DIF, that is, the highest, lowest and average values over a period of time, as well as the difference between the highest and lowest values. The limit value alarm function signals with an audible signal and a three-colour LED when the measured temperature falls below or exceeds the set limit value. Five presets are available for the alarm limit value and the emissivity. The device runs on a 9 V block battery for up to 9 h and switches off after 15 s of inactivity.Typical applicationsMetalworking and mechanical engineering: surface temperature on machines, bearings and workpiecesEnvironmental technology: temperature checking of systems and pipeworkAgriculture: temperature measurements on storage facilities, equipment and livestock housingLaboratories and quality control: non-contact temperature measurement on samples and componentsMaintenance and service: inspection of electrical and mechanical systems, including wind turbinesThe JIT 100 is suitable for most maintenance tasks up to 420 °C. Those who measure above 420 °C or want to store time-stamped measured values need the JIT 200.Models at a glanceModelMeasuring rangeDistance-to-spot ratioSpecial featureMemoryDimensions (W x D x H)WeightJIT 100-32 °C to 420 °C12:11 laser, locked measurementValue memory MAX / MIN / AVG / DIF162 x 90 x 48 mmapprox. 0.25 kgJIT 200-32 °C to 1,100 °C20:1Dual laser, hold, timed measurementsValue memory and 99 measurement data points with date and time179 x 127 x 53 mmapprox. 0.35 kgTechnical detailsThese values apply to both models. Deviating values are given in the model table.Measurement principleInfrared, non-contactResponse time250 msEmissivity0.1 to 1.0Units°C, °FDisplayEBTN colour displayLaserClass 2, power output below 1 mWFunctionsMAX / MIN / AVG / DIF, limit value alarm (audible and three-colour LED)Power supply9 V block battery (alkaline-manganese), included in the scope of delivery, operating time up to 9 hAuto-Off15 sWarranty (manufacturer)24 months according to Kern, excluding wear partsScope of deliverySauter JIT infrared thermometer (JIT 100 or JIT 200, depending on the model)9 V block batteryCalibrationFactory and DAkkS calibration certificates are available separately for each model. The item number is clarified on enquiry.WarrantyAccording to Kern & Sohn, these devices come with a 2-year warranty. Kern grants 3 years on products with a list price of €500 or more and 2 years on products below that and on components; wear parts such as batteries and rechargeable batteries are excluded. Warranty repairs are carried out by Kern or by a Kern dealer.DownloadsOperating instructions JIT 100 (PDF)Operating instructions JIT 200 (PDF)Regulatory informationAs electrical devices, the infrared thermometers fall under the ElektroG. The manufacturer Kern & Sohn GmbH is registered under the WEEE registration number DE 80821200. How to return old appliances is described on the page Environment and disposal.Individual requirements and procurement serviceFactory and DAkkS calibration certificates, as well as tripod mounts, are also available. Enquiries are handled via our procurement service.
Sauter TE digital coating thickness gauges, up to 1,250 µm, type F and type F/N, RS-232
The Sauter TE is a digital coating thickness gauge in a flat plastic housing (131 x 65 x 28 mm, approx. 0.10 kg) with an external sensor and an RS-232 interface. It measures up to 1,250 µm. Up to 100 µm, it reads to 0.1 µm; above that, to 1 µm. There are two models: the TE 1250-0.1F measures non-magnetic coatings on iron and steel (type F), whilst the TE 1250-0.1FN also measures coatings on non-magnetic metals (type N).Measured values transmitted via RS-232The RS-232 interface is standard on both models. It transmits the measured values to a printer, a PC or other devices. The ATC-01 software is available as an accessory for transmission to a PC. This is the main difference compared to the simpler TB series, which operates without an interface.Accuracy and Offset-AccurIn standard mode, the measurement accuracy is, according to Kern, 3 % of the measured value or ± 2.5 µm. The Offset-Accur function adjusts the instrument to the specific measuring range using a two-point adjustment. According to Kern, the accuracy is then 1 % of the measured value or ± 1 µm. A zero plate and adjustment foils are supplied; additional adjustment foils (ATB-US07) are available.Base material and sample shapeThe base material must be at least 300 µm thick. Kern specifies a minimum sample area with a radius of 1.5 mm (convex), 6 mm (flat) and 50 mm (concave). The external sensor can reach hard-to-access measurement points. The display features 10 mm high digits, and the unit of measurement can be switched between µm and inch (mil). According to the data sheet, the four AAA batteries last for around 50 h, and the auto-power-off function switches the device off automatically.Typical applicationsAutomotive industry: documenting paint film thickness on supplier partsElectroplating and metal finishing: checking and recording coating thicknesses during the processShipbuilding and aviation: measuring coatings on structural componentsLaboratories and quality control: outputting measured values to a PC or printerThe TE is suitable for measurement tasks where documentation is required. Those who want to store measured values in the device, evaluate them and measure continuously will find this in the TG, which is also available.Models at a glanceModelMeasurable layersSensor typeFactory calibration certificateWarranty (manufacturer)TE 1250-0.1Fnon-magnetic coatings on iron and steel (type F)FE961-11024 monthsTE 1250-0.1FNType F and coatings on non-magnetic metals (type N)NFE961-11236 monthsTechnical detailsThese values apply to both models. Deviating values are given in the model table.Measuring rangeup to 100 µm and up to 1,250 µmReadability0.1 µm and 1 µmMeasurement accuracy3 % of the measured value or ± 2.5 µm; with Offset-Accur 1 % or ± 1 µmMinimum thickness of base material300 µmSmallest sample surface (radius)convex 1.5 mm, flat 6 mm, concave 50 mmSensorexternal, type by model (model table)Unitsµm, inch (mil)FunctionsZERO, Offset-Accur, Auto-Power-OffDisplayLCD, digit height 10 mmInterfaceRS-232 as standardPower supply4 AAA batteries (1.5 V), alkaline-manganese, operating time approx. 50 hHousingPlastic, 131 x 65 x 28 mm (W x D x H)Ambient temperature0 °C to 50 °CNet weightapprox. 0.10 kgFactory calibration certificatecan be ordered separately, item no. 961-110 (TE 1250-0.1F) or 961-112 (TE 1250-0.1FN)Warranty (manufacturer)36 months (TE 1250-0.1FN), 24 months (TE 1250-0.1F), according to Kern, excluding wear partsScope of deliverySauter TE coating thickness gauge (TE 1250-0.1F or TE 1250-0.1FN, depending on the model) with external sensorZero plateAdjustment foils4 AAA batteries (1.5 V)Carrying caseCalibrationA factory calibration certificate can be ordered separately: item no. 961-110 for the TE 1250-0.1F, item no. 961-112 for the TE 1250-0.1FN.WarrantyAccording to Kern & Sohn, the TE 1250-0.1FN comes with a 3-year warranty and the TE 1250-0.1F comes with a 2-year warranty. Kern grants 3 years on products with a list price of €500 or more and 2 years on products below that and on components; wear parts such as batteries and rechargeable batteries are excluded. Warranty repairs are carried out by Kern or by a Kern dealer.DownloadsOperating instructions Sauter TE (PDF)Regulatory informationAs electrical devices, the coating thickness gauges fall under the ElektroG. The manufacturer Kern & Sohn GmbH is registered under the WEEE registration number DE 80821200. How to return old appliances is described on the page Environment and disposal.Individual requirements and procurement serviceThe ATE 01 (type F) and ATE 02 (type N, for the TE 1250-0.1FN) sensors, the ATB-US07 adjustment foils, the ATC-01 software and the TB and TG series coating thickness gauges are also available. Enquiries are handled via our procurement service.
Sauter HO UCI hardness testers, portable, test force 10 N to 100 N, probe Ø 18 mm
With the Sauter HO, you measure the hardness of metal directly on the component, even if it is permanently installed. The portable UCI hardness tester consists of a display unit and a UCI sensor unit with an 18 mm probe diameter. The four models differ in test force: HO 1K works with 10 N (HV 1), HO 2K with 20 N (HV 2), HO 5K with 50 N (HV 5) and HO 10K with 100 N (HV 10).Measuring principle and differences from other methodsIn the UCI method, a rod vibrates at ultrasonic frequency and is pressed onto the sample with a defined test force. A Vickers indenter sits at its lower end. As soon as it touches the sample, the resonance frequency rises. From the shift, the device assigns the corresponding Vickers hardness. Compared with Rockwell and Brinell, the test force is smaller and the indentation is microscopically small; Kern describes this as a nearly non-destructive test. Compared with Vickers, the optical evaluation of the indentation is not needed, which is why measurement is also possible on a permanently installed workpiece. Compared with the Leeb method, the weight of the test object plays hardly any role.According to Kern, the test object should weigh at least 300 g (100 g with the optional support ring), be at least 2 mm thick and have a test surface of approx. 5 x 5 mm.Measuring ranges and settingAll models measure 80 to 1,599 HV, 20.3 to 68 HRC, 41 to 100 HRB, 79 to 618 HB and 255 to 2,180 MPa tensile strength. For Rockwell A, 61 to 85.6 HRA applies, for the HO 1K 37 to 85 HRA. Kern states the measurement accuracy as ± 3 % for HV, ± 1.5 HR and ± 3 % for HB. The device can be set to standardised hardness reference plates or to up to 20 reference values. Different materials can then be measured without having to adjust the device each time. A hardness reference block (approx. 61 HRC) is included.Memory, statistics and rechargeable batteryThe memory holds up to 1,000 measurement groups with 20 individual values each. The mini statistics show the result, number of measurements, maximum, minimum, mean and standard deviation. The data go to a PC via USB; the software for this is part of the scope of delivery. A Li-ion rechargeable battery is built in. According to Kern, it runs for up to 6 h with and up to 12 h without backlight, and charging takes about 8 h. In battery mode, the device switches itself off after 30 min.Typical applicationsMechanical engineering and precision mechanics: hardness of spot welds, stamped parts and forged partsAutomotive industry: testing of gear flanks and ball bearingsTool and mould making: casting tools and moulded parts after heat treatmentAerospace and medical technology: hardness testing of small componentsResearch and development: hardness testing on samples and castingsThe size of the indentation changes with the test force: the smaller the test force, the smaller the indentation. If a value is to be compared with existing Vickers tests, the test force should match the previous test.Models at a glanceModelHardness scaleTest forceProbe ØMeasuring range Rockwell ATest object minimum weightTest object minimum thicknessHO 1KHV 110 N18 mm37 to 85 HRA300 g2 mmHO 2KHV 220 N18 mm61 to 85.6 HRA300 g2 mmHO 5KHV 550 N18 mm61 to 85.6 HRA300 g2 mmHO 10KHV 10100 N18 mm61 to 85.6 HRA300 g2 mmTechnical detailsThese values apply to all models. Deviating values are given in the model table.Measuring methodUCI (ultrasonic), manualMeasuring range Vickers80 to 1,599 HVMeasuring range Rockwell C and B20.3 to 68 HRC, 41 to 100 HRBMeasuring range Brinell79 to 618 HBMeasuring range tensile strength255 to 2,180 MPaMeasurement accuracy (Kern)± 3 % HV, ± 1.5 HR, ± 3 % HBStandards (according to Kern)DIN 50159-1, ASTM A1038-2005, JB/T 9377-2013Memory1,000 measurement groups of 20 individual values eachDisplayGraphic LCDInterfaceUSB devicePower supplyLi-ion rechargeable battery (built in) and plug-in mains adaptor, 110 V to 240 VRechargeable batteryCharging time approx. 8 h, operating time 6 h (backlight on), 12 h (off)HousingMetal, paintedHousing dimensions (W x D x H)28 x 83 x 160 mmWarranty (manufacturer)36 months according to Kern, excluding wear partsScope of deliverySauter HO display unit and UCI sensor unitHardness reference block (approx. 61 HRC)USB cablePlug-in mains adaptor with EU plugSoftware for transferring the stored data to the PCCarrying caseProtective cover (turquoise)Factory calibration certificateA factory calibration certificate (item no. 961-270) can be ordered separately.WarrantyAccording to Kern & Sohn, this device comes with a 3-year warranty. Kern grants 3 years on products with a list price of €500 or more and 2 years on products below that and on components; wear parts such as batteries and rechargeable batteries are excluded. Warranty repairs are carried out by Kern or by a Kern dealer.DownloadsOperating instructions Sauter HO (PDF)Regulatory informationAs electrical devices, the test devices fall under the ElektroG. The manufacturer Kern & Sohn GmbH is registered under the WEEE registration number DE 80821200. How to return old appliances is described on the page Environment and disposal.Individual requirements and procurement serviceThe following accessories are also available:Further UCI probes: HO-A01 (HV 1), HO-A02 (HV 2), HO-A14 (HV 10), motorised probes HO-A15 (HV 0.3), HO-A16 (HV 0.5), HO-A17 (HV 0.8)Support rings: HO-A04, HO-A05, HO-A06Test stand: HO-A08Hardness reference plates: HO-A09 for 28 to 35 HRC, HO-A10 for 38 to 43 HRC, HO-A11 for 48 to 53 HRC, HO-A12 for 58 to 63 HRCEnquiries are handled via our procurement service.
Sauter FE digital force gauges for tension and compression, 5 N to 1,000 N, pass/fail function
The Sauter FE series are digital force gauges for tensile and compressive forces across eight measuring ranges from 5 N to 1,000 N. The force is measured by an internal load cell, a hook takes up the load, and an M6 external thread is used to mount attachments. The devices have a pass/fail function with adjustable limit values, a rotatable LCD with backlight and a rechargeable battery that is charged via USB-C. The model number does not always indicate the measuring range: the FE 20 measures up to 25 N, the FE 200 up to 250 N, and the FE 1K up to 1 kN.Limit values for pass and failFor series testing, an upper and a lower limit value are set, separately for the tensile and compressive directions. The device reports when a limit value is exceeded with an audible and a visual signal. With this, an employee can inspect parts without having to read off every value. The devices can display either the peak value (peak hold) or the current value continuously (track).Measuring range and accuracyAccording to Kern, the measurement accuracy is 0.3 % of Max and the overload protection 150 % of Max. The sampling rate is 1,000 Hz, so short force peaks are captured. At small forces, a device reads out very finely: the FE 5 shows 0.002 N, the FE 1K 0.5 N. The measuring range is chosen to match the largest expected force, which should be below Max. The available units are N, kN, kgf, ozf and lbf.Operation and displayThe LCD can be rotated and is backlit, so the device can be read in both directions, for example when mounted upside down on a test stand. The ABS housing measures 71 x 31 x 180 mm and weighs approx. 0.35 kg. Kern describes the housing as ergonomic for safe operation.Rechargeable battery and chargingAccording to the data sheet, the NiMH rechargeable battery runs for up to 10 h without and up to 8 h with backlight, the charging time is approx. 8 h. Charging is via the USB-C port with the supplied USB plug-in mains adaptor (100 V to 240 V). The rechargeable battery is permanently fitted.Test stand and attachmentsAll FE units can be mounted on Sauter test stands up to 1 kN. Clamps and clamping fixtures are available for tensile tests, whilst ball heads are available for compression tests. Attachments and adaptors are also available; the selection is listed in the section on the procurement service.Typical applicationsTest laboratories: tensile and compression testing of components and jointsResearch and development: force measurements on prototypes and samplesAutomotive industry: testing of insertion, extraction and actuation forcesMaintenance and servicing: checking spring forces and clamping forcesPlastics engineering: force testing on plastic components and closuresThe FE 5 and FE 10 are designed for small forces below 10 N; the FE 50 to FE 200 for actuation forces in the range from 50 N to 250 N; and the FE 1K for forces up to 1 kN.Models at a glanceModelMeasuring range (Max)Readability (d)Overload protectionFE 55 N0.002 N150 % of MaxFE 1010 N0.005 N150 % of MaxFE 2025 N0.01 N150 % of MaxFE 5050 N0.02 N150 % of MaxFE 100100 N0.05 N150 % of MaxFE 200250 N0.1 N150 % of MaxFE 500500 N0.2 N150 % of MaxFE 1K1,000 N0.5 N150 % of MaxTechnical detailsThese values apply to all models. Deviating values are given in the model table.Directions of forceTension and compressionMeasurement accuracy (Kern)0.3 % of MaxSampling rate1,000 HzUnitsN, kN, kgf, ozf, lbfFunctionsLimit value function in tensile and compressive directions with signal, peak hold, trackLoad attachmentHook, M6 external threadDisplayLCD, rotatable, backlitHousingABS plastic, 71 x 31 x 180 mm (W x D x H)Rechargeable batteryNiMH, 750 mAh, charging time approx. 8 h, operating time 10 h without and 8 h with backlightChargingUSB-C, USB plug-in mains adaptor 100 V to 240 VAmbient temperature15 °C to 35 °CStorage temperature-10 °C to 40 °CNet weightapprox. 0.35 kgWarranty (manufacturer)24 months according to Kern, excluding wear partsScope of deliverySauter FE force gauge with built-in rechargeable batteryUSB plug-in mains adaptorStandard attachmentsCarrying caseCalibrationFor the FE, there are factory calibration certificates and DAkkS calibration certificates, each for tension, for compression or for both tension and compression. The calibration procedure according to DKD-R 3-3 (procedure A) is stated with the DAkkS certificates. The item numbers for the FE 5, 10, 20, 50, 100, 200 and 500 are: factory calibration certificate 961-161O (tension), 961-261O (compression), 961-361O (tension and compression); DAkkS calibration certificate 963-161O (tension), 963-261O (compression), 963-361O (tension and compression). For the FE 1K, the following apply: 961-162O, 961-262O and 961-362O, as well as 963-162O, 963-262O and 963-362O.WarrantyAccording to Kern & Sohn, these devices come with a 2-year warranty. Kern grants 3 years on products with a list price of €500 or more and 2 years on products below that and on components; wear parts such as batteries and rechargeable batteries are excluded. Warranty repairs are carried out by Kern or by a Kern dealer.DownloadsOperating instructions Sauter FE (PDF)Regulatory informationAs electrical devices, the force gauges fall under the ElektroG. The manufacturer Kern & Sohn GmbH is registered under the WEEE registration number DE 80821200. How to return old appliances is described on the page Environment and disposal.Individual requirements and procurement serviceThe following accessories are also available:Ball heads: AC 02Screw clamps: AC 17 and AC 17R (up to 500 N, width 8 mm, clamping range 2.5 mm)Clamps: standard clamp AE 01, cord and thread clamp AE 05 (up to 500 N)Adaptors: AFM 22 (threaded hole M8, external thread M6), AFM 23 (external thread M10, threaded hole M8)Further accessories: AFK 02 stainless steel handle, FK-A01 tensiometer attachment, FS-E07 plug-in mains adaptorEnquiries are handled via our procurement service.
Sauter FS SP1 force measuring sets with S-type load cells for tension and compression, 1 kN to 100 kN
The Sauter FS SP1 combine the FS 2 force gauge with an S-type load cell of the CS series (type 3P1) made of nickel-plated steel. The S-shape is the classic design for tensile measurements, but the load cell also measures compressive forces. Seven sets cover the range from 1 kN to 100 kN, each fully assembled. The readability ranges from 0.2 N for the FS 2-1KSP1 to 20 N for the FS 2-100KSP1.S-type load cell: design and accuracy classThe S-type load cell is a 4-wire load cell for force and mass measurement. It is protected against dust and water according to IP67 (EN 60529), and the rated output is 2 mV/V. Kern specifies the accuracy class according to OIML C3. During a tensile test, the cell is suspended between the suspension point and the test object and can also be subjected to compressive loads.Models: designation and measuring rangeThe model numbers deserve a closer look: the FS 2-2KSP1 has the cell CS 250-3P1 and measures up to 2.5 kN. The FS 2-1KSP1 (CS 100-3P1) measures up to 1 kN, whilst the FS 2-5KSP1 (CS 500-3P1) measures up to 5 kN. From 10 kN upwards, the cells are larger: The FS 2-10KSP1 measures 50.8 x 76.2 x 25.4 mm, the FS 2-20KSP1 and FS 2-50KSP1 measure 76.2 x 101.6 x 25.4 mm, and the FS 2-100KSP1 measures 125 x 175 x 50 mm.FS 2: measuring channels, display, functionsThe force gauge has a 3.5-inch touchscreen with a touch pen and two measuring channels. A further two channels can be retrofitted. Because the data of the cell is in the connector, the device puts the cell into operation without manual input. It shows current values (track), captures the peak value and checks against a tolerance. The sampling rate and transmission rate are up to 1,000 Hz per channel. The Kern Communication Protocol (KCP) connects the FS 2 to computers and control systems.Memory, USB and adjustment16 GB of device memory stores the measurement series. The values go to a PC via USB, and the device is powered via the same connection. To adjust, you need known weights (two-point adjustment) or enter the values numerically. A Li-ion rechargeable battery powers the FS 2 for up to 8 h without backlight and 5 h with backlight; the charging time is approx. 8 h. The set comes in a Systainer T-LOC with a plug-in mains adaptor and a USB Type-C cable.Typical applicationsTest laboratories: tensile tests on samples, ropes, springs and jointsResearch and development: force measurement in tension and compression fixturesAutomotive industry: testing holding forces and component loadsMaintenance and servicing: load testing of slings and fasteningsPlastics engineering: tensile and compression testing of plastic componentsThe S-cell is suitable for measuring tensile forces in the range from 1 kN to 100 kN. For pure compressive forces, the RQ1 and OY1 series are available.Models at a glanceModelS-type load cellMeasuring range (Max)Readability (d)Dimensions of load cellFactory calibration certificateDAkkS calibration certificateFS 2-1KSP1CS 100-3P11 kN0.2 N50.8 x 76.2 x 19 mm961-162 (tension), 961-262 (compression), 961-362 (tension and compression)963-162 (tension), 963-262 (compression), 963-362 (tension and compression)FS 2-2KSP1CS 250-3P12.5 kN0.5 N50.8 x 76.2 x 19 mm961-163 (tension), 961-263 (compression), 961-363 (tension and compression)963-163 (tension), 963-263 (compression), 963-363 (tension and compression)FS 2-5KSP1CS 500-3P15 kN1 N50.8 x 76.2 x 19 mm961-163 (tension), 961-263 (compression), 961-363 (tension and compression)963-163 (tension), 963-263 (compression), 963-363 (tension and compression)FS 2-10KSP1CS 1000-3P110 kN2 N50.8 x 76.2 x 25.4 mm961-164 (tension), 961-264 (compression), 961-364 (tension and compression)963-164 (tension), 963-264 (compression), 963-364 (tension and compression)FS 2-20KSP1CS 2000-3P120 kN4 N76.2 x 101.6 x 25.4 mm961-164 (tension), 961-264 (compression), 961-364 (tension and compression)963-164 (tension), 963-264 (compression), 963-364 (tension and compression)FS 2-50KSP1CS 5000-3P150 kN10 N76.2 x 101.6 x 25.4 mm961-165 (tension), 961-265 (compression), 961-365 (tension and compression)963-165 (tension), 963-265 (compression), 963-365 (tension and compression)FS 2-100KSP1CS 10000-3P1100 kN20 N125 x 175 x 50 mm961-166 (tension), 961-266 (compression), 961-366 (tension and compression)963-166 (tension), 963-266 (compression), 963-366 (tension and compression)Technical detailsThese values apply to all models. Deviating values are given in the model table.Directions of forceTension and compressionLoad cell4-wire S-type load cell, nickel-plated steel, rated output 2 mV/V, IP67 (EN 60529)Accuracy class of the load cellOIML C3Measuring channels2, expandable to 4Sampling rateup to 1,000 Hz per channelDisplay3.5-inch, TFT, colour, touchscreen with touch penMenu languagesGerman, English, French, Spanish, ItalianFunctionsTrack, peak value, tolerance functionMemory16 GBInterfaceUSB device (USB-C), KCPRechargeable batteryLi-ion, charging time approx. 8 h, operating time 8 h without and 5 h with backlightPower supplyPlug-in mains adaptor 100 V to 240 V, 50 / 60 Hz, EU plug, UK plug optionalWarranty (manufacturer)36 months according to Kern, excluding wear partsScope of deliverySauter FS 2 force gauge with touch penS-type load cell CS (type 3P1) (model varies per set, see table), fully assembledPlug-in mains adaptor with EU plugUSB Type-C cableSystem case (Systainer T-LOC)CalibrationFactory calibration certificates and DAkkS calibration certificates are available as separate items for the force directions tension, compression, and tension and compression. The item numbers are listed in the model table. The calibration procedure for the DAkkS certificates is DKD-R 3-3 (procedure A).WarrantyAccording to Kern & Sohn, these devices come with a 3-year warranty. Kern grants 3 years on products with a list price of €500 or more and 2 years on products below that and on components; wear parts such as batteries and rechargeable batteries are excluded. Warranty repairs are carried out by Kern or by a Kern dealer.DownloadsOperating instructions Sauter FS SP1 (PDF)Regulatory informationAs electrical devices, the force measuring sets fall under the ElektroG. The manufacturer Kern & Sohn GmbH is registered under the WEEE registration number DE 80821200. How to return old appliances is described on the page Environment and disposal.Individual requirements and procurement serviceFurther load cells of types CO, CR and CS, torque sensors of the DC series, the A/D converter module FS 34, the transport case FS TKZ, screw clamps (AC 14), clamps of the AE series (AE 01 to AE 07) and the power supply adaptor YKA-01 for UK are also available. The software AFH LD (force-displacement) and Sauter Readout are used for data transfer. Which parts fit the set will be clarified on enquiry. Enquiries are handled via our procurement service.
Sauter DA torque testers for screw caps, 1 Nm to 10 Nm, test objects 15 mm to 160 mm
How tight is the lid? The Sauter DA measure the torque with which screw caps sit on bottles, jars and packaging, in both opening and closing directions. The benchtop unit takes test objects with a diameter of 15 mm to 160 mm. Three models cover three ranges: DA 1-4 up to 1 Nm (readability 0.2 mNm), DA 5-3 up to 5 Nm (0.001 Nm) and DA 10-3 up to 10 Nm (0.002 Nm).Quick-Pin system for changing containersThe four holders for the test object have a rubber sleeve and are plugged in, not screwed. The Quick-Pin system makes switching to a different bottle size quicker, saving time when packaging materials change. Rubber feet with an anti-slip function hold the device on the table. The painted metal housing is designed for continuous operation in harsh environments.Measuring range, accuracy and usable rangeAccording to Kern, the measurement accuracy is ± 0.5 % of Max and the overload protection 120 % of Max. Kern states a usable measuring range of 5 % to 100 % of Max. For the DA 10-3 this is 0.5 Nm to 10 Nm, for the DA 5-3 0.25 Nm to 5 Nm and for the DA 1-4 0.05 Nm to 1 Nm. The internal sampling rate is 1,000 Hz. A capacity bar shows, as a growing band of light, how much of the measuring range is still free.Functions, memory and data transmissionThe graphic LCD (128 x 64) is backlit. The device displays either the peak value (peak hold) or the current value continuously (track). For series testing, an upper and a lower limit value are set; an audible and a visual signal report deviations. The memory can store up to 500 measurement data points. USB and RS-232 are standard features; the AFH FAST and Sauter Readout software is available as an option. The unit can be switched between Nm, kgf/cm, kgf/m, in/lbs or ft/lbs.Rechargeable battery and power supplyAccording to Kern, the NiMH rechargeable battery (750 mAh) lasts up to 18 h without backlight; the charging time is approximately 14 h. The plug-in mains adaptor (100 V to 240 V) is supplied with EU and CH plugs; plugs for AUS, UK and US are available as an option. The auto-off function switches the device off after 1 to 60 min.Typical applicationsFood industry: opening torque of bottles, jars and screw capsCosmetics industry: torque of closures and tubes, for example on lipsticksPharmaceutical applications: closure testing on containers and packagingTest laboratories: torque testing on samples and packaging variantsChemical industry: closure testing on containers with screw capsThe suitable model depends on the torque with which the closure sits. It should lie within the usable measuring range of the model, 5 % to 100 % of Max. The diameter of the test object (15 mm to 160 mm) is the same for all three models.Models at a glanceModelMeasuring range (Max)Readability (d)Usable rangeHousing (W x D x H)DA 1-41 Nm0.2 mNm0.05 Nm to 1 Nm260 x 160 x 60 mmDA 5-35 Nm0.001 Nm0.25 Nm to 5 Nm250 x 160 x 60 mmDA 10-310 Nm0.002 Nm0.5 Nm to 10 Nm250 x 160 x 100 mmTechnical detailsThese values apply to all models. Deviating values are given in the model table.Measured quantityTorque, both directions of rotationTest objectScrew cap, diameter 15 mm to 160 mmMeasurement accuracy (Kern)± 0.5 % of Max, usable range 5 % to 100 % of MaxOverload protection120 % of MaxSampling rate1,000 HzUnitsNm, kgf/cm, kgf/m, in/lbs, ft/lbsFunctionsPeak hold, track, limit value function with signal, capacity display, auto-offMemory500 measurement data pointsInterfacesUSB device, RS-232Display128 x 64 graphic LCD, backlitHousingMetal, painted, rubber feetRechargeable batteryNiMH, 750 mAh, charging time approx. 14 h, operating time up to 18 h without backlightPower supplyPlug-in mains adaptor 100 V to 240 V, EU and CH plugs, others optionalAmbient temperature15 °C to 35 °CStorage temperature-10 °C to 40 °CNet weightapprox. 3.0 kgFactory calibration certificatecan be ordered separately, item no. 961-120Warranty (manufacturer)36 months according to Kern, excluding wear partsScope of deliverySauter DA torque tester with built-in rechargeable battery4 bottle holders with rubber sleevesPlug-in mains adaptor (EU and CH plugs)Carrying caseCalibrationA factory calibration certificate (item no. 961-120) can be ordered separately.WarrantyAccording to Kern & Sohn, these devices come with a 3-year warranty. Kern grants 3 years on products with a list price of €500 or more and 2 years on products below that and on components; wear parts such as batteries and rechargeable batteries are excluded. Warranty repairs are carried out by Kern or by a Kern dealer.DownloadsOperating instructions Sauter DA (PDF)Regulatory informationAs electrical devices, the torque testers fall under the ElektroG. The manufacturer Kern & Sohn GmbH is registered under the WEEE registration number DE 80821200. How to return old appliances is described on the page Environment and disposal.Individual requirements and procurement serviceThe FL-A01 USB cable and the AFH FAST (force-time) and Sauter Readout software for data transfer are also available. Enquiries are handled via our procurement service.
Sauter SP 200K LED light meter, up to 200,000 lx, rotatable sensor unit
The Sauter SP 200K measures the illuminance of workstations and, according to Kern, can also handle LED lighting, as the photo sensor (silicon diode) is filtered. The handheld unit has the sensor unit mounted on the housing, which can be rotated by +90° and -180° to align the sensor with the light source. Four measuring ranges extend up to 200,000 lx, with a readability of 0.1 lx to 100 lx. The display switches between lx and fc at the touch of a button.Filtered sensor and cosine correctionThe photo sensor is a filtered silicon diode; Kern specifically states that the device is also suitable for LED lighting. Cosine correction compensates for obliquely incident light. The sensor unit can be rotated by +90° and -180° and thus aligned with the light source.Accuracy according to KernUp to 20,000 lx, the measurement accuracy is ± 4 % of the result plus 10 digits, from 20,000 lx ± 5 % of the result plus 10 digits. Kern specifies the repeatability as ± 2 % of Max and the temperature error as ± 0.1 % of Max per °C. The sampling rate is 2 Hz. The addition "+ 10 digits" means that ten steps of the smallest display increment are added to the percentage deviation.Data hold, track and tripodWith the data hold function, pressing a button freezes the current measured value until the button is pressed again. The track function continuously records changing conditions. There is a ¼-inch thread on the back for a tripod, so you have both hands free during longer measurements. The LCD has 16 mm high digits; according to Kern, the 9 V block battery lasts up to 200 h. A sturdy protective cover protects the sensor.Measuring rangesThe device measures in four ranges. The readability becomes coarser with the range.Measuring range (Max)Readability (d)200 lx0.1 lx2,000 lx1 lx20,000 lx10 lx200,000 lx100 lxTypical applicationsBuilding services: measuring illuminance in offices and corridorsIndustry and manufacturing: checking the illumination of production workstationsAgriculture and plant breeding: measuring light conditions in greenhousesRoad construction and traffic engineering: checking street lightingLighting technology and luminaire manufacturers: compare LED luminaires and systemsThose who need a device with a remote sensor will find it in the SO 200K. The SV 100 covers up to 400,000 lx and transmits data via Bluetooth.Technical detailsMeasured quantityIlluminanceMeasuring ranges200 lx / 2,000 lx / 20,000 lx / 200,000 lxReadability (d)0.1 lx / 1 lx / 10 lx / 100 lxMeasurement accuracy± 4 % of the result + 10 digits up to 20,000 lx, ± 5 % + 10 digits aboveRepeatability± 2 % of MaxTemperature error± 0.1 % of Max per °CSensorSilicon diode, filtered, cosine correction, rotatable (+90° / -180°)Unitslx, fcSampling rate2 HzFunctionsData hold, track, peak holdDisplayLCD, digit height 16 mmPower supply9 V block battery (alkaline-manganese), included in the scope of delivery, operating time up to 200 hTripod thread¼ inchHousingPlastic, 185 x 68 x 38 mm (W x D x H)Storage temperature-10 °C to 50 °CNet weightapprox. 0.15 kgFactory calibration certificatecan be ordered separately, item no. 961-190Warranty (manufacturer)24 months according to Kern, excluding wear partsScope of deliverySauter SP 200K light meter with rotatable sensor unit and protective cover9 V block batteryCalibrationA factory calibration certificate (item no. 961-190) can be ordered separately.WarrantyAccording to Kern & Sohn, this device comes with a 2-year warranty. Kern grants 3 years on products with a list price of €500 or more and 2 years on products below that and on components; wear parts such as batteries and rechargeable batteries are excluded. Warranty repairs are carried out by Kern or by a Kern dealer.DownloadsOperating instructions Sauter SP (PDF)Regulatory informationAs an electrical device, the light meter falls under the ElektroG. The manufacturer Kern & Sohn GmbH is registered under the WEEE registration number DE 80821200. How to return old appliances is described on the page Environment and disposal.Individual requirements and procurement serviceThe factory calibration certificate 961-190 and the light meters SO 200K and SV 100 are also available. Enquiries are handled via our procurement service.
Sauter FS OY1 force measuring sets with miniature button load cells for compressive force, 500 N to 20 kN
The Sauter FS OY1 are force measuring sets for compressive forces from 500 N to 20 kN in a confined space. They consist of the FS 2 force gauge and a miniature button load cell from the CO series (type Y1) made of stainless steel. There are four models to choose from: FS 2-500OY1 (500 N, 0.1 N readability), FS 2-2KOY1 (2 kN, 0.4 N), FS 2-5KOY1 (5 kN, 1 N) and FS 2-20KOY1 (20 kN, 4 N). The load cells measure compression only and have compact dimensions ranging from 20 x 12 mm to 30 x 18 mm.Compact load cellThe button load cells are small: the FS 2-500OY1 and FS 2-2KOY1 measure 20 x 12 mm, the FS 2-5KOY1 26 x 15 mm and the FS 2-20KOY1 30 x 18 mm (round). This means they fit into gaps, under springs or in fixtures where there is no room for larger load cells. The IP65 rating means dust-tight and protected against water jets. Kern specifies accuracy class OIML G5 with a combined error of 0.5 % F.S.The FS 2 as a display unitThe FS 2 is operated via a 3.5-inch touchscreen using a touch pen and has two measuring channels, which can be expanded to four. The cell data is stored in the connector. The device therefore recognises the measuring range and characteristic values as soon as the cell is inserted. It shows current values (track), captures peak values and checks against a tolerance. The sampling rate is up to 1,000 Hz per channel.Data, adjustment, rechargeable batteryThe device memory holds 16 GB. Data is transferred to a PC via USB-C; this connection also powers the device. Adjustment can be carried out using two weights or numerically. According to Kern, the Li-ion rechargeable battery lasts up to 8 h without backlight and 5 h with backlight; charging takes approx. 8 h. The power supply, USB cable type C and device are in the Systainer T-LOC.Typical applicationsTest laboratories: compressive force measurement on small samples and in test fixturesResearch and development: force measurement where installation space is limitedAutomotive industry: testing contact pressure and closing forces on componentsMaintenance and servicing: checking small contact pressure and spring forcesPlastics engineering: compression testing of plastic parts and sealsThis series measures compression only. For tensile and compressive testing with small load cells, the OY2 series is available up to 1 kN; for higher capacities, the RY1 and SP1 series are available.Models at a glanceModelButton load cellMeasuring range (Max)Readability (d)Dimensions of load cell (round)Factory calibration certificate (compression)DAkkS calibration certificate (compression)FS 2-500OY1CO 50-Y1500 N0.1 N20 x 12 mm961-261 (Compression)963-261 (Compression)FS 2-2KOY1CO 200-Y12 kN0.4 N20 x 12 mm961-262 (compression)963-262 (compression)FS 2-5KOY1CO 500-Y15 kN1 N26 x 15 mm961-263 (compression)963-263 (compression)FS 2-20KOY1CO 2000-Y120 kN4 N30 x 18 mm961-264 (compression)963-264 (compression)Technical detailsThese values apply to all models. Deviating values are given in the model table.Force directionCompressionLoad cellMiniature button load cell, stainless steel, IP65Accuracy of the load cell (Kern)Class OIML G5, combined error 0.5 % F.S.Measuring channels2, expandable to 4Sampling rateup to 1,000 Hz per channelDisplay3.5-inch, TFT, colour, touchscreen with touch penMenu languagesGerman, English, French, Spanish, ItalianFunctionsTrack, peak value, tolerance functionMemory16 GBInterfaceUSB device (USB-C), KCPRechargeable batteryLi-ion, charging time approx. 8 h, operating time 8 h without and 5 h with backlightPower supplyPlug-in mains adaptor 100 V to 240 V, 50 / 60 Hz, EU plug, UK plug optionalWarranty (manufacturer)36 months according to Kern, excluding wear partsScope of deliverySauter FS 2 force gauge with touch penMiniature button load cell (model varies per set, see table), pre-configuredPlug-in mains adaptor with EU plugUSB Type-C cableSystem case (Systainer T-LOC)CalibrationFactory calibration certificates and DAkkS calibration certificates for compressive force are available as separate items for each measuring range. The item numbers are listed in the model table. The calibration procedure for the DAkkS certificates is DKD-R 3-3 (procedure A). According to Kern, the factory calibration certificate for the FS 2-20KOY1 is valid for 5 kN to 20 kN.WarrantyAccording to Kern & Sohn, these devices come with a 3-year warranty. Kern grants 3 years on products with a list price of €500 or more and 2 years on products below that and on components; wear parts such as batteries and rechargeable batteries are excluded. Warranty repairs are carried out by Kern or by a Kern dealer.DownloadsOperating instructions Sauter FS OY1 (PDF)Regulatory informationAs electrical devices, the force measuring sets fall under the ElektroG. The manufacturer Kern & Sohn GmbH is registered under the WEEE registration number DE 80821200. How to return old appliances is described on the page Environment and disposal.Individual requirements and procurement serviceFurther load cells of types CO, CR and CS, torque sensors of the DC series, the A/D converter module FS 34, the transport case FS TKZ, screw clamps (AC 14), clamps of the AE series (AE 01 to AE 07) and the power supply adaptor YKA-01 for UK are also available. The software AFH LD (force-displacement) and Sauter Readout are used for data transfer. Which parts fit the set will be clarified on enquiry. Enquiries are handled via our procurement service.
Sauter JTL 100 temperature/humidity data logger, -30 to 70 °C, 64,000 measurement groups
The Sauter JTL 100 is a temperature and humidity data logger measuring 105 x 38 x 15 mm. It records temperatures from -30 °C to 70 °C and relative humidity from 0 % to 99 %, and stores up to 64,000 measurement groups. Data analysis is carried out via the USB-C interface on a PC or laptop, and data is exported as a PDF or XLS file. The logger is protected against dust and splashing water to IP65 and weighs approximately 0.05 kg.Recording and alarmsThe recording interval can be set automatically or manually. Alarm thresholds can be set for temperature and humidity, and the alarm configuration can be adapted to various monitoring scenarios. The unit can be switched between °C and °F. Kern specifies the tolerance as ± 0.4 °C or ± 2.5 % RH.Battery and mountingA CR2032 button cell battery (3 V) is included in the scope of delivery. With a test interval of 15 min, the logger runs for 140 days according to Kern. An auto-off function conserves battery power, and a battery level indicator is provided. A wall mount is included and can be attached using adhesive strips or screws. This allows the logger to be mounted in a fixed position in the cold store or warehouse, and data can be downloaded via USB-C as required.Software and data transmissionAccording to Kern, the software can be downloaded at no extra cost. The data is transferred to the computer via USB-C and is available there as a PDF or XLS file, for example for documentation relating to storage or transport.Typical applicationsFood industry and transport: temperature and humidity during the storage and transport of perishable goods, cold chain monitoringCatering: monitoring of storage temperaturesFood retail: temperature monitoring in refrigerated display counters and storage roomsPharmacies: storage of sensitive medicinesKern identifies medicines and foodstuffs as the target goods during transport and storage. For checks on individual products there is the JFT 100 thermometer, for surfaces the JIT series infrared thermometers, both also available.Technical detailsMeasured quantitiesTemperature and relative humidityTemperature measuring range-30 °C to 70 °C, readability 0.1 °CMeasuring range humidity0 % to 99 %Tolerance± 0.4 °C or ± 2.5 % RHMemory64,000 measurement groupsRecording intervaladjustable automatically or manuallyAlarm thresholdsadjustable for temperature and humidityUnits°C, °FInterfaceUSB-C, export as PDF or XLSDegree of protectionIP65 (EN 60529)Power supplyCR2032 button cell (3 V), included in the scope of delivery, approx. 140 days at 15-minute intervalsFasteningWall mount with adhesive strips or screwsHousingPlastic, 105 x 38 x 15 mm (W x D x H)Net weightapprox. 0.05 kgFactory calibration certificatecan be ordered separately, item no. 961-623DAkkS calibration certificatecan be ordered separately, item no. 963-623 (temperature) or 963-641 (temperature and humidity)Warranty (manufacturer)24 months according to Kern, excluding wear partsScope of deliverySauter JTL 100 temperature/humidity data loggerCR2032 button cell (3 V)Wall mount (adhesive strips or screws)CalibrationA factory calibration certificate (item no. 961-623) can be ordered separately. Kern specifies the following for DAkkS calibration: 963-623 (temperature, 3 points) and 963-641 (temperature and humidity sensor, 1 temperature and 3 humidity points).WarrantyAccording to Kern & Sohn, this device comes with a 2-year warranty. Kern grants 3 years on products with a list price of €500 or more and 2 years on products below that and on components; wear parts such as batteries and rechargeable batteries are excluded. Warranty repairs are carried out by Kern or by a Kern dealer.DownloadsOperating instructions Sauter JTL (PDF)Regulatory informationAs an electrical device, the data logger falls under the ElektroG. The manufacturer Kern & Sohn GmbH is registered under the WEEE registration number DE 80821200. How to return old appliances is described on the page Environment and disposal.Individual requirements and procurement serviceCalibration certificates 961-623, 963-623 and 963-641, as well as the JFT 100 thermometer and the JIT series infrared thermometers, are also available. Enquiries are handled via our procurement service.
Sauter FS RQ1 force measuring sets for compressive force, 25 kN to 100 kN, round stainless steel load cell
The Sauter FS RQ1 are force measuring sets for large compressive forces from 25 kN to 100 kN. Each set comprises the FS 2 load cell and a round stainless steel load cell from the CR series (type 1Q1), which Kern supplies fully assembled. The load cell measures only compressive forces, the accuracy is a combined error of 0.05 % F.S. There are three models: FS 2-25KRQ1 with 25 kN and 5 N readability, FS 2-50KRQ1 with 50 kN and 10 N, and FS 2-100KRQ1 with 100 kN and 20 N.Round stainless steel load cellThe load cell is round and measures 82 x 44 mm. It is made of stainless steel and is protected against dust and splashing water according to IP68. The rated output is 2 mV/V, Kern states the accuracy class as OIML C1. As the load cell is round and flat, it fits under presses, test punches or load plates where a compressive force acts vertically from above. This series is not intended for tensile forces; the RY1 and SP1 series are available for this purpose.The FS 2 device: touchscreen, memory, interfaceThe FS 2 features a 3.5-inch touchscreen with a touch pen and a colour TFT display in five menu languages (German, English, French, Spanish, Italian). Two measuring channels for external force sensors are built in; the system can be upgraded to four channels at a later date. The data from the connected sensor is contained within the connector, so the device recognises which load cell is connected. It measures, stores and transmits at up to 1,000 Hz per channel and has a resolution of up to 10,000 data points per channel.Measuring functions and data transmissionThe track function for the current display, peak value measurement and a tolerance function with limit values are available. The internal device memory has a capacity of 16 GB. Data is transferred to a PC via the USB interface (USB-C), which also supplies power to the device. The Kern Communication Protocol (KCP) enables connection to computers and control systems. Adjustment is carried out as a two-point adjustment using weights or numerically.Rechargeable battery and caseAccording to Kern, the Li-ion rechargeable battery lasts up to 8 h without backlight and up to 5 h with backlight; the charging time is approx. 8 h. The set comes in a Systainer T-LOC with a plug-in mains adaptor (100 V to 240 V, EU plug) and a USB Type-C cable. A UK power supply adaptor is available as an option.Typical applicationsTest laboratories: compression tests on samples and components up to 100 kNResearch and development: force measurement under test punches and pressesAutomotive industry: testing of pressing forces on components and jointsMaintenance and servicing: checking clamping and pressing forcesPlastics engineering: compression testing of plastic parts and packagingThe measuring range should be selected to suit the maximum expected force: 25 kN for smaller presses, 50 kN and 100 kN for larger loads.Models at a glanceModelLoad cellMeasuring range (Max)Readability (d)Dimensions of load cell (round)Factory calibration certificateDAkkS calibration certificateFS 2-25KRQ1CR 2500-1Q125 kN5 N82 x 44 mm961-265 (Compression)963-265 (Compression)FS 2-50KRQ1CR 5000-1Q150 kN10 N82 x 44 mm961-265 (Compression)963-265 (Compression)FS 2-100KRQ1CR 10000-1Q1100 kN20 N82 x 44 mm961-266 (Compression)963-266 (compression)Technical detailsThese values apply to all models. Deviating values are given in the model table.Force directionCompressionLoad cellStainless steel, round, rated output 2 mV/V, IP68Accuracy of the load cell (Kern)Class OIML C1, combined error 0.05 % F.S.Measuring channels2, expandable to 4Sampling rateup to 1,000 Hz per channelResolutionup to 10,000 data points per measuring channelDisplay3.5-inch, TFT, colour, touchscreen with touch pen, 320 x 480Menu languagesGerman, English, French, Spanish, ItalianFunctionsTrack, peak value, tolerance functionMemory16 GBInterfaceUSB device (USB-C), KCPRechargeable batteryLi-Ion, 2,400 mAh, charging time approx. 8 h, operating time 8 h without and 5 h with backlightPower supplyPlug-in mains adaptor 100 V to 240 V, 50 / 60 Hz, EU plug, UK plug optionalNet weightapprox. 1.4 kgWarranty (manufacturer)36 months according to Kern, excluding wear partsScope of deliverySauter FS 2 force gauge with touch penLoad cell (model varies per set, see table), fully assembledPlug-in mains adaptor with EU plugUSB Type-C cableSystem case (Systainer T-LOC)CalibrationFactory calibration certificates and DAkkS calibration certificates are available as separate items for each calibration range, not for each model. The item numbers are listed in the model table. The calibration procedure for the DAkkS certificates is DKD-R 3-3 (procedure A). The certificates apply to compressive force: 961-265 and 963-265 for 21 kN to 50 kN, 961-266 and 963-266 for 51 kN to 120 kN.WarrantyAccording to Kern & Sohn, these devices come with a 3-year warranty. Kern grants 3 years on products with a list price of €500 or more and 2 years on products below that and on components; wear parts such as batteries and rechargeable batteries are excluded. Warranty repairs are carried out by Kern or by a Kern dealer.DownloadsOperating instructions Sauter FS RQ1 (PDF)Regulatory informationAs electrical devices, the force measuring sets fall under the ElektroG. The manufacturer Kern & Sohn GmbH is registered under the WEEE registration number DE 80821200. How to return old appliances is described on the page Environment and disposal.Individual requirements and procurement serviceFurther load cells of types CO, CR and CS, torque sensors of the DC series, the A/D converter module FS 34, the transport case FS TKZ, screw clamps (AC 14), clamps of the AE series (AE 01 to AE 07) and the power supply adaptor YKA-01 for UK are also available. The software AFH LD (force-displacement) and Sauter Readout are used for data transfer. Which parts fit the set will be clarified on enquiry. Enquiries are handled via our procurement service.

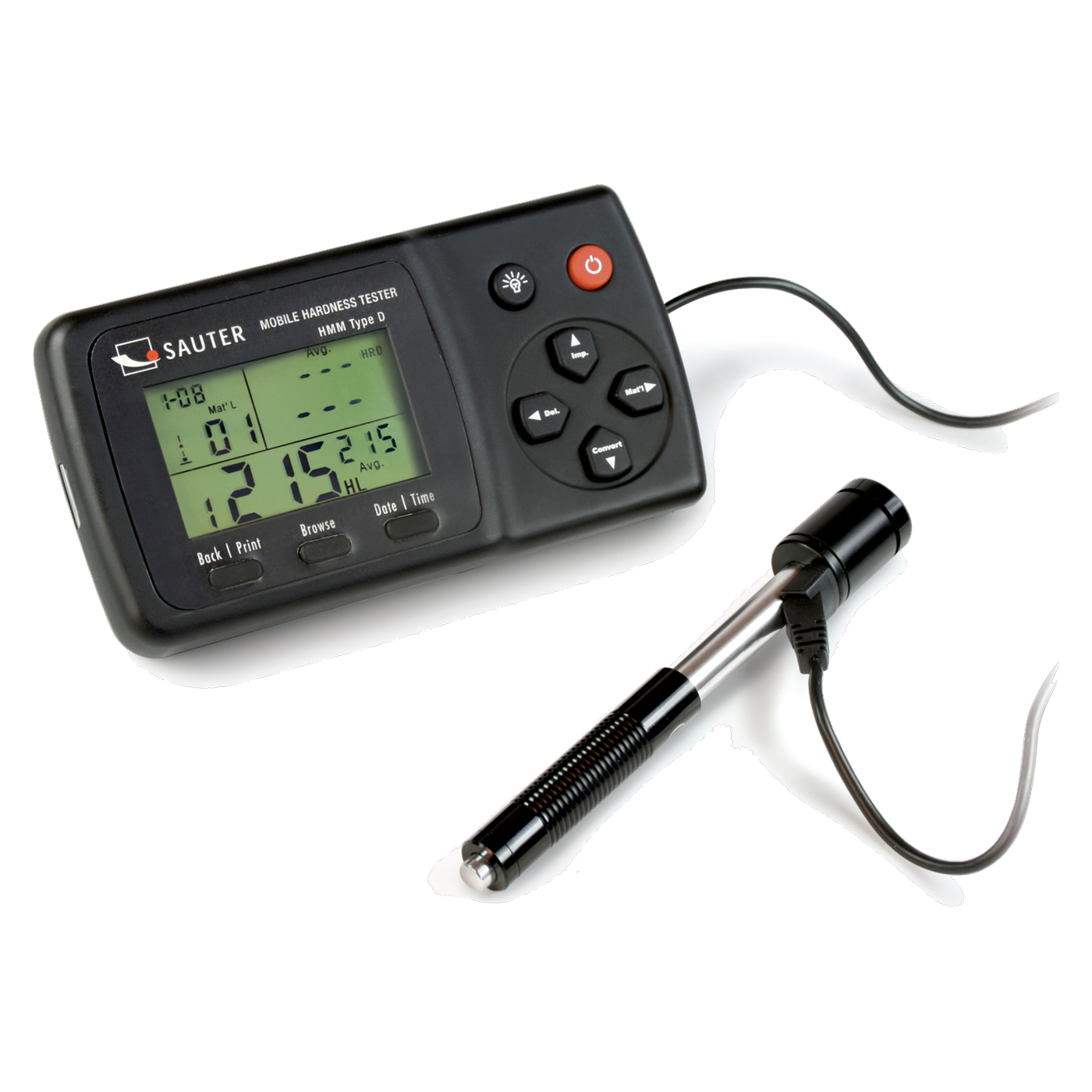

Sauter HMM-NP portable Leeb hardness tester, 170 to 960 HLD, sensor D, with hardness reference block
The Sauter HMM-NP measures the hardness of metals using the Leeb method in a compact plastic unit with an external rebound sensor type D. It covers 170 to 960 HLD and reads to 1 HL. The device automatically converts measured values to HV, HB, HRB, HRC and tensile strength in MPa. A hardness reference block (790 ± 40 HL) and a carrying case are included in the scope of delivery. According to Kern, the designation ‘NP’ refers to the version without a printer; the other features correspond to the HMM model.How the Leeb measurement worksIn the rebound sensor, a test body is propelled by a spring against the test object. Depending on its hardness, the object absorbs some of the kinetic energy. The device measures the reduction in velocity and converts it into a Leeb hardness value. An automatic compensation function compensates for the test direction, which is why measurements can be taken in all directions (360°). According to Kern, the measurement accuracy is ± 1 % at 800 HLD (± 6 HLD).Requirements for the test objectAccording to Kern, the test object must be at least 3 mm thick; with firm coupling on a solid base, a weight of 2 kg is sufficient. The minimum radius of curvature (concave or convex) is 50 mm; with a stabilising ring, it is 10 mm. The device specifies the tensile strength for steel in the range from 375 to 2,639 MPa. The hardness reference block serves as a standard for adjusting the instrument.Memory and displayThe internal memory stores up to 9 measured values. The mini statistics display shows the measured value, average value, measurement direction, date and time. The LCD displays the values in the selected unit. The device runs on three AAA batteries (1.5 V), which are included in the scope of delivery, and switches itself off after 3 min.Typical applicationsAutomotive industry: hardness checks on shafts and castingsMetalworking and steel construction: hardness testing of sheet metal and structural componentsEnergy and power plant industry: on-site testing of plant componentsOil and gas industry: hardness testing of fittings and pipeworkAerospace: testing of metal componentsThe HMM-NP is suitable for inspectors who need a light device (0.25 kg) with tensile strength conversion and do not print out the measured values. Anyone wishing to transfer values to a PC via USB should consider the HK-D or HN-D models.Technical detailsMeasuring methodLeeb, external rebound sensor, type DMeasuring range170 to 960 HLDReadability (d)1 HLMeasurement accuracy± 1 % at 800 HLD (± 6 HLD)Hardness unitsHL, HV, HB, HRB, HRC, MPaTensile strength375 to 2,639 MPa (steel)Test object minimum thickness3 mm, firmly coupled on a solid baseTest object minimum weight2 kg with firm couplingMinimum radius of curvature50 mm (10 mm with stabilising ring)Measuring probeLength 14.6 cm, Ø 2 cmMemory9 measured values, mini statisticsDisplayLCDPower supply3 AAA batteries (1.5 V), alkaline-manganese, included in the scope of deliveryAuto-Off3 minHousingPlastic, 30 x 80 x 150 mm (W x D x H)Net weightapprox. 0.25 kgFactory calibration certificatecan be ordered separately, item no. 961-131Warranty (manufacturer)36 months according to Kern, excluding wear partsScope of deliverySauter HMM-NP Leeb hardness tester (without printer)External rebound sensor type DHardness reference block (790 ± 40 HL)3 AAA batteries (1.5 V)Carrying caseCalibrationA factory calibration certificate (item no. 961-131) can be ordered separately. A separate factory calibration certificate (item no. 961-132) is available for the hardness reference block.WarrantyAccording to Kern & Sohn, this device comes with a 3-year warranty. Kern grants 3 years on products with a list price of €500 or more and 2 years on products below that and on components; wear parts such as batteries and rechargeable batteries are excluded. Warranty repairs are carried out by Kern or by a Kern dealer.DownloadsOperating instructions Sauter HMM (PDF)Regulatory informationAs an electrical device, the hardness tester falls under the ElektroG. The manufacturer Kern & Sohn GmbH is registered under the WEEE registration number DE 80821200. How to return old appliances is described on the page Environment and disposal.Individual requirements and procurement serviceThe hardness reference plates AHMO D02 (790 ± 40 HL), AHMO D03 (630 ± 40 HL) and AHMO D04 (530 ± 40 HL), as well as the AHMR 01 support rings, are also available. Enquiries are handled via our procurement service.
