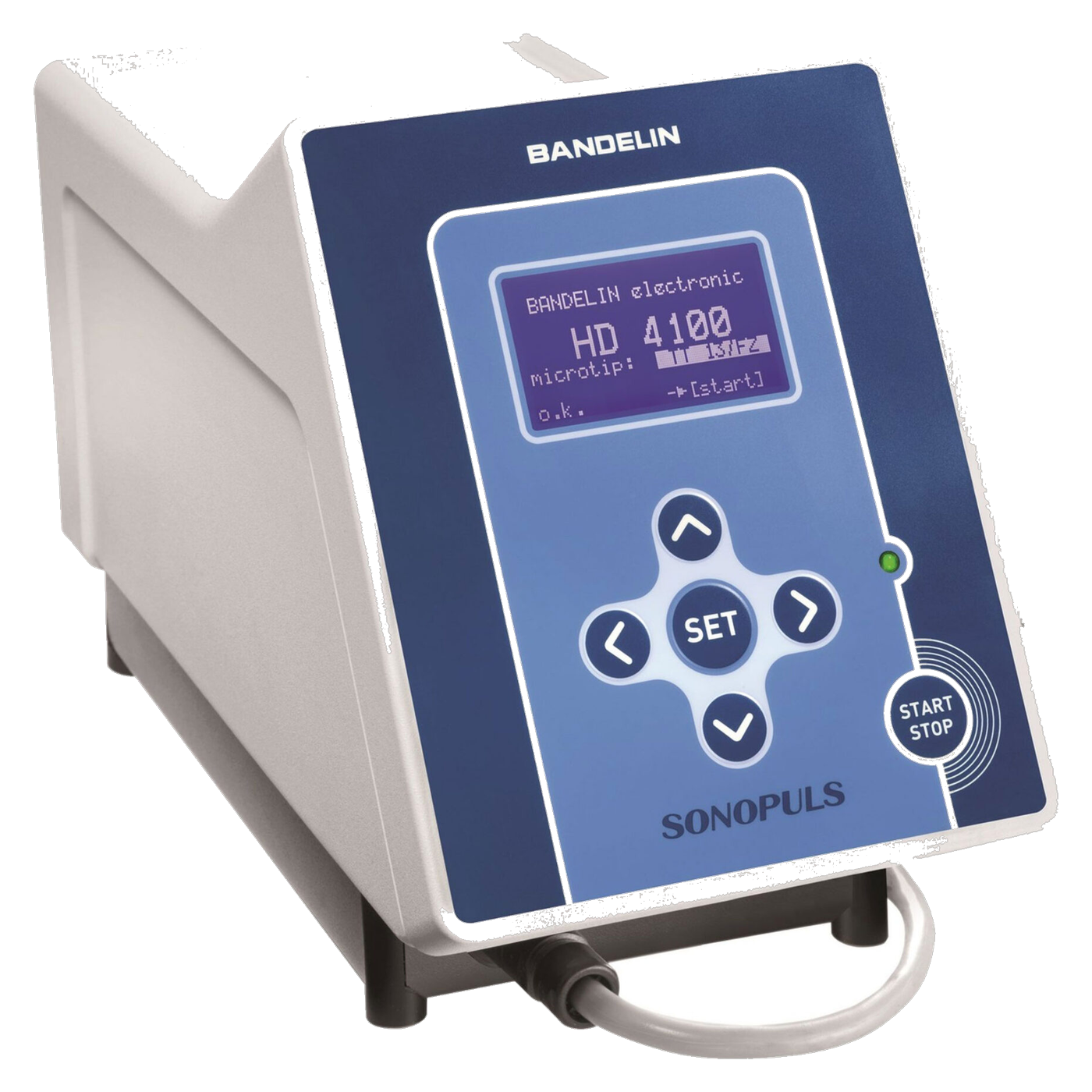

Bandelin SONOPULS GM 4400 Ultrasonic Generator for HD-4000 Homogenisers, 20 kHz, 400 W Nominal Power, 3715

The Bandelin SONOPULS GM 4400 is the generator in the HD 4000 series for the UW 200 and UW 400 transducers: Peak ultrasonic power 1,600 W, nominal ultrasonic power 400 W, operating frequency 20 kHz with automatic resonance frequency search. It is the generator included in the SONOPULS HD 4400 set and is also available as a standalone item.

Power and transducer selection

Depending on the transducer connected, the GM 4400 delivers a maximum of 200 or 400 W; the power adjustment range is 60 to 300 W. It is suitable for use with the HD 4200 and HD 4400 homogenisers. For those working with transducers from 50 W upwards, the SONOPULS GM 4200 is the generator for the lower power class. Both generators are the same size and have the same range of functions; they differ in terms of power output and the transducers they are compatible with.

Operation via the graphic display

A backlit LCD graphic display shows settings and measured values. The amplitude can be selected in 1 % increments between 10 and 100 %; the current value remains visible. Ultrasonic treatment can be carried out for up to 9 hours, 59 minutes and 59 seconds or in continuous operation. In pulse mode, working intervals of 0.2 to 600 seconds and rest intervals of 0.3 to 600 seconds can be set. The generator displays the energy input in kilojoules and stores nine programmes. It can be connected to other devices via the RS-232 interface.

Temperature at a glance

With the optional TM 50 or TM 100 temperature sensor, the GM 4400 displays temperatures ranging from -10 to +120 °C directly on the screen. Sensors, transducers, sonotrodes and the TS 8 foot switch are part of the SONOPULS range of accessories and are not included with this product.

Dimensions, connections and standards

The GM 4400 measures 335 x 150 x 230 mm and weighs approximately 3.6 kg. The housing has degree of protection IP 30 according to DIN EN 60529 and protection class I. It is connected to 230 V~ (± 10 %), 50/60 Hz, or alternatively to 115 V~ (± 10 %). Bandelin specifies the following standards for the device: EN 61010-1 (safety) and EN 61326-1 (EMC), as well as the Low Voltage Directive 2014/35/EU, the EMC Directive 2014/30/EU and the RoHS Directive 2011/65/EU.

Typical applications

• Operation of SONOPULS-HD-4000 homogenisers with 200 and 400 W transducers
• Cell lysis of cells, bacteria, viruses and tissue
• Production of ultra-fine emulsions; homogenisation of substances
• Degassing of liquids and sample preparation for particle size analysis
• Acceleration of chemical reactions

Frequently asked questions

Which transducers are compatible with the GM 4400?
The UW 200 and the UW 400.

Which homogenisers is the generator designed for?
The HD 4200 and the HD 4400.

Is a transducer included in the scope of delivery? No, this item is the generator only.

What is the power adjustment range?
60 to 300 W. The maximum power is 200 or 400 W, depending on the transducer.

Technical details

Scope of delivery

• 1x Bandelin SONOPULS GM 4400 ultrasonic generator

Ultrasonic transducers, sonotrodes, temperature sensors and foot switches are not included and are available separately.

Individual requirements and procurement service

There is an individual procurement requirement for the appropriate UW 200 or UW 400 ultrasonic transducers, sonotrodes, temperature sensors and foot switches. You can request a quote for the appropriate configuration, without obligation, via our procurement service.
