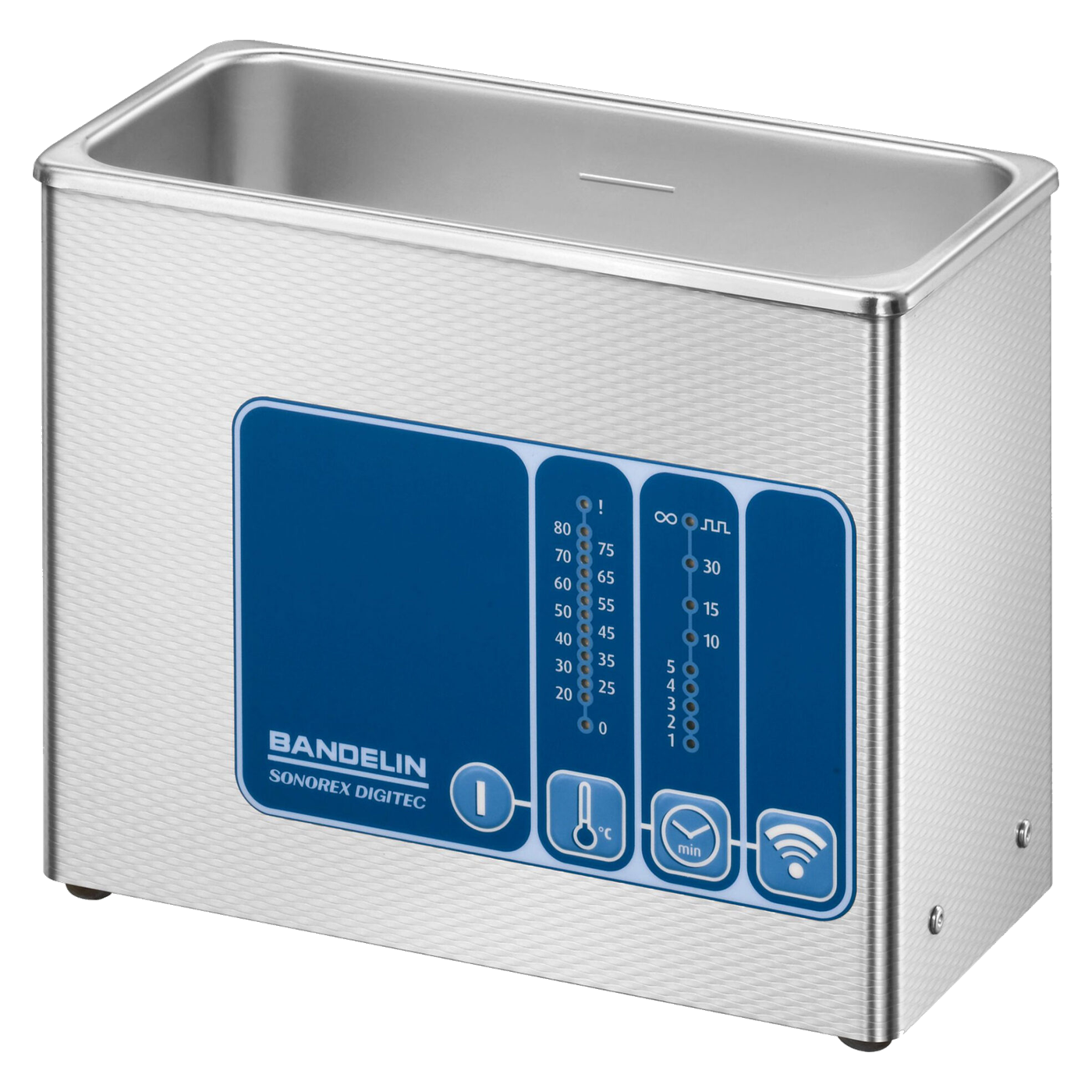

Bandelin SONOREX DIGITEC DT 31 H Ultrasonic Bath with Heater, 0.9 L, 65 °C, 3220

The heating element in the Bandelin SONOREX DIGITEC DT 31 H operates at a fixed temperature of 65 °C. This model does not have an adjustable temperature range. The inner dimensions of the tank are 190 x 85 x 60 mm and it has a capacity of 0.9 l.

70-watt heating element with fixed temperature

The heating power is 70 watts, and the bath temperature is set at 65 °C. A dry-run protection feature safeguards the heating element. If you wish to select the bath temperature yourself between 20 and 80 °C, the DT 52 H is a better choice; however, its tank is larger at 1.8 l. The DT 31 is available without a heater, but with otherwise identical dimensions.

Ultrasonic and timer

A vibration system delivers a peak power of 160 watts at 35 kHz (rated power 40 watts). SweepTec automatically distributes the sound field, and there is also a pulse function. This model does not feature DEGAS degassing. The cleaning duration can be set to 1, 2, 3, 4, 5, 10, 15 or 30 minutes (± 5 %), or the bath can run continuously. The unit switches off automatically after 12 hours without any button presses.

Dimensions and materials

The unit measures 205 x 100 x 180 mm externally and weighs 2.4 kg. The tank (0.8 mm) and housing are made of 1.4301 stainless steel; the tank has a fill-level mark for a working capacity of 0.6 l. There are no handles or drain; the mains cable is 2 m long and permanently fitted. The current consumption is 0.5 A at 230 V; the protection rating is IP 33.

Accessories

Compatible accessories include the K 08 insert basket (170 x 65 x 50 mm, up to 1 kg), the lid D 08, the perforated lid DE 08 for two insert beakers, and insert beakers with a rubber ring made of glass (0.4 l SD 04, 0.6 l SD 05) or polypropylene (0.4 l KB 04). The PD 04 sieve basket with sieve mesh (mesh size 0.63 x 0.63 mm) complements the beakers.

Typical applications

• Cleaning small items in laboratories, medical practices and workshops at a bath temperature of 65 °C
• Homogenisation and emulsification
• Sample preparation for analysis
• Sonochemical applications
• Cleaning of instruments classified as Class I medical devices; the suitability of the instruments is determined by the instrument manufacturer’s specifications

Frequently asked questions

Can the temperature be adjusted?
No. The heater is fixed at 65 °C. The DT 52 H is designed for freely selectable temperatures ranging from 20 to 80 °C.

Does the DT 31 H have a drain?
No, the unit does not have a drain.

Is there a degassing function?
No, it features SweepTec and a pulse function, but not DEGAS.

What plug types are available?
The model 3220 with a CEE 7/7 EU plug for 230 V is offered here. Variants with UK, Swiss and US plugs are available from Bandelin under their own order numbers, such as 3220-GB.

Technical details

Scope of delivery

• 1x Bandelin SONOREX DIGITEC DT 31 H ultrasonic bath with heater
• Mains lead (2 m, permanently attached to the unit)

The scope of delivery does not include baskets, lids, insert beakers and cleaning concentrates, and they are available separately.

Individual requirements and procurement service

For accessories such as the K 08 basket or the D 08 lid, a model with adjustable temperature or a larger tank, individual procurement is required. You can request a quote via our procurement service.
