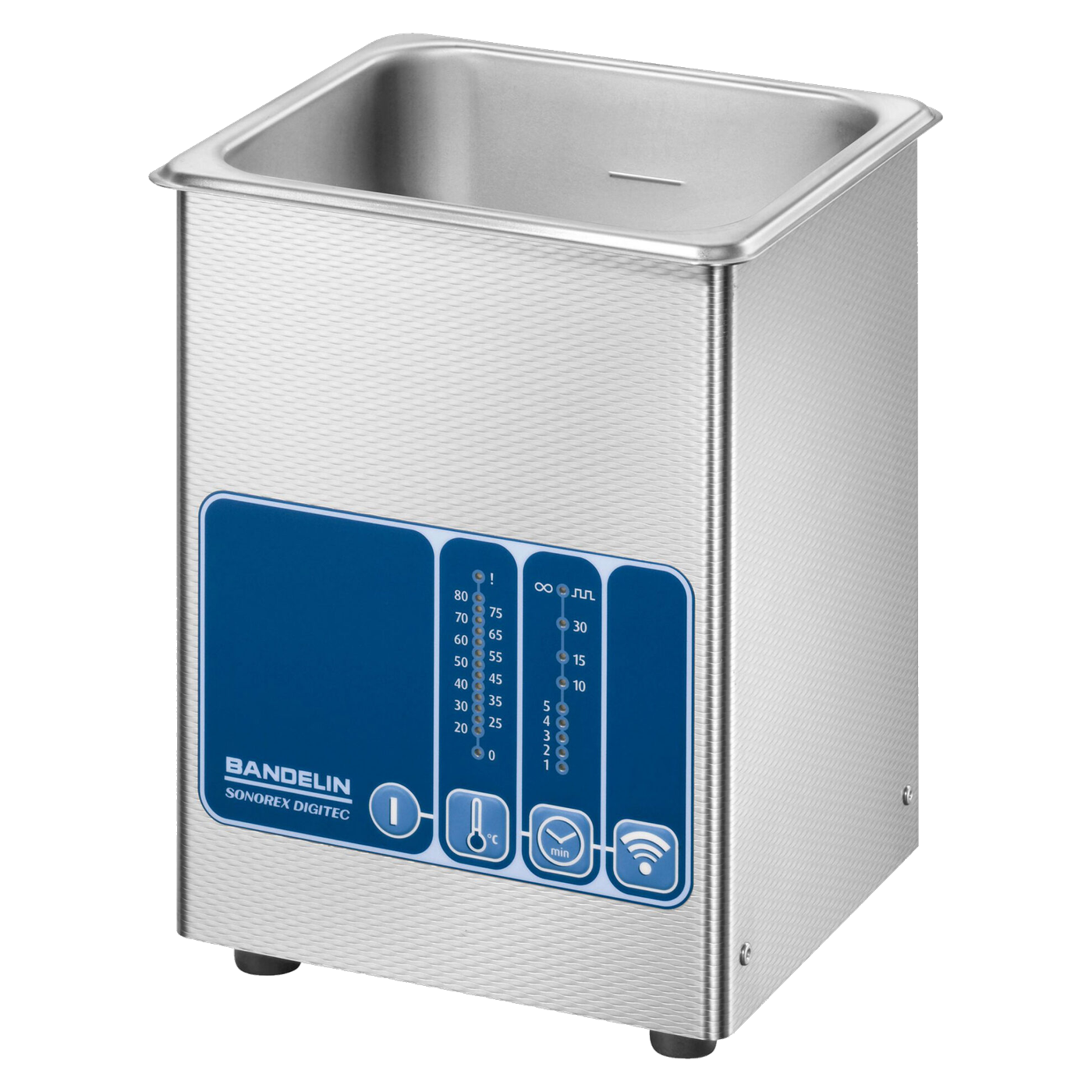

Bandelin SONOREX DIGITEC DT 52 H Ultrasonic Bath with Heating, 1.8 L, 20 to 80 °C, 3225
€659.00
% Manufacturer's RRP: €867.00 23% below manufacturer's RRP
- Ultrasonic bath with heating, 140 W, adjustable from 20 to 80 °C
- 1.8-litre total capacity, 1.2-litre working capacity
- Protection against delayed boiling and dry-run protection for the heater
- 240 W peak power at 35 kHz, SweepTec, pulse function and DEGAS
- Button controls, timer from 1 to 30 minutes or continuous operation
- Tank 150 x 140 x 100 mm made of 1.4301 stainless steel
- Class I medical device in accordance with Regulation (EU) 2017/745
Product information "Bandelin SONOREX DIGITEC DT 52 H Ultrasonic Bath with Heating, 1.8 L, 20 to 80 °C, 3225"
The bath temperature of the Bandelin SONOREX DIGITEC DT 52 H can be set between 20 and 80 °C. A 140-watt heating element maintains the temperature of the stainless steel tank, which has internal dimensions of 150 x 140 x 100 mm and a total capacity of 1.8 l; the display shows the setpoint and actual bath temperature.
Heater and safety features
Two safety features are built in: protection against delayed boiling and dry-run protection for the heating element. In addition, the unit switches off automatically twelve hours after the last button press. If a fixed temperature is sufficient, the DT 31 H with 65 °C is also adequate, although its tank is smaller at 0.9 l.
Ultrasonic unit
A vibration system generates a peak power of 240 watts at 35 kHz (rated power 60 watts). SweepTec operates fully automatically to prevent standing waves from forming in the sound field; it also features a pulse function and DEGAS rapid degassing. Degassing is activated at the start of the cleaning process. The unheated sister model, the DT 52, has the same ultrasonic specifications.
Operation
The buttons can be wiped clean. The cleaning duration can be set to 1, 2, 3, 4, 5, 10, 15 or 30 minutes (tolerance ± 5 %); continuous operation is also possible. The current consumption is 0.9 A at 230 V; the mains cable is 2 m long and is permanently attached.
Housing and dimensions
The appliance weighs 2.5 kg and measures 175 x 165 x 225 mm. The tank (0.8 mm) and housing are made of 1.4301 stainless steel; there are no handles or drain. The working capacity of 1.2 l can be read from the fill level mark; the protection rating is IP 33.
Accessories
Test tube holders RG 2 and RG 2.2, the GH 1 apparatus holder for glass flasks up to 105 mm, the K 1 C insert basket, lid D 52 and the perforated lid DE 52 are designed for use with the DT 52 H bath. 0.6-litre insert beakers are available in glass, plastic and stainless steel.
Typical applications
- Cleaning of small parts in laboratories, medical practices and workshops at a set bath temperature between 20 and 80 °C
- Rapid degassing of liquids
- Homogenisation and emulsification
- Sonochemical applications
- Sample preparation for analysis
- Cleaning of instruments using a Class I medical device; the suitability of the instruments depends on the instrument manufacturer’s specifications
Frequently asked questions
What temperatures can be set?
20 to 80 °C; the heating power is 140 watts.
What safety features are there?
There is protection against delayed boiling, dry-run protection for the heating element and automatic switch-off after twelve hours without any button presses.
Does the unit have a drain?
No.
Are there other plug types available?
Bandelin offers UK, Swiss and US versions under their own order numbers, such as 3225-GB. The 3225 model is available with a CEE 7/7 EU plug for 230 V.
Technical details
| Total capacity / Working capacity | 1.8 l / 1.2 l |
| Internal dimensions of tank (L x W x D) | 150 x 140 x 100 mm |
| External dimensions (L x W x H) | 175 x 165 x 225 mm (excluding handles and ball valve, including feet) |
| Weight (net / gross) | 2.5 kg / 3.1 kg |
| Ultrasonic frequency | 35 kHz |
| Ultrasonic power | Peak power 240 W, rated power 60 W, 1 vibration system |
| Heating | 140 W, adjustable temperature range 20 to 80 °C, protection against delayed boiling, dry-run protection |
| Timer | 1, 2, 3, 4, 5, 10, 15, 30 min (± 5 %) or continuous operation |
| Operation | Buttons, display |
| Functions | SweepTec, pulse function, DEGAS rapid degassing, protection against delayed boiling, dry-run protection for the heater, automatic safety shut-off 12 hours after the last button press |
| Tank material | Stainless steel 1.4301, thickness 0.8 mm |
| Housing material | Stainless steel 1.4301 |
| Drain | No drain |
| Handles | None |
| Mains connection | 230 V~ (± 10 %), 50/60 Hz, alternatively 115 V~ (± 10 %), 2 m fixed mains lead, protection class I |
| Current consumption | 230 V 0.9 A / 115 V 1.8 A |
| Leakage current | less than 3.5 mA |
| Degree of protection | IP 33 |
| Permissible ambient temperature | 5 to 40 °C |
| Medical device class | Class I (Regulation (EU) 2017/745) |
| Conformity | Low Voltage Directive 2014/35/EU, EMC Directive 2014/30/EU, RoHS Directive 2011/65/EU |
| Packaging dimensions | 275 x 265 x 295 mm |
Scope of delivery
- 1x Bandelin SONOREX DIGITEC DT 52 H ultrasonic bath with heater
- Mains lead (2 m, permanently attached to the unit)
The scope of delivery does not include holders, baskets, lids and insert beakers, and they are available separately.
Individual requirements and procurement service
For test tube holders, apparatus holders, lids or a larger heated model, individual procurement is required. You can request a quote via our procurement service.
| Volume: | 1.8 l |
|---|
