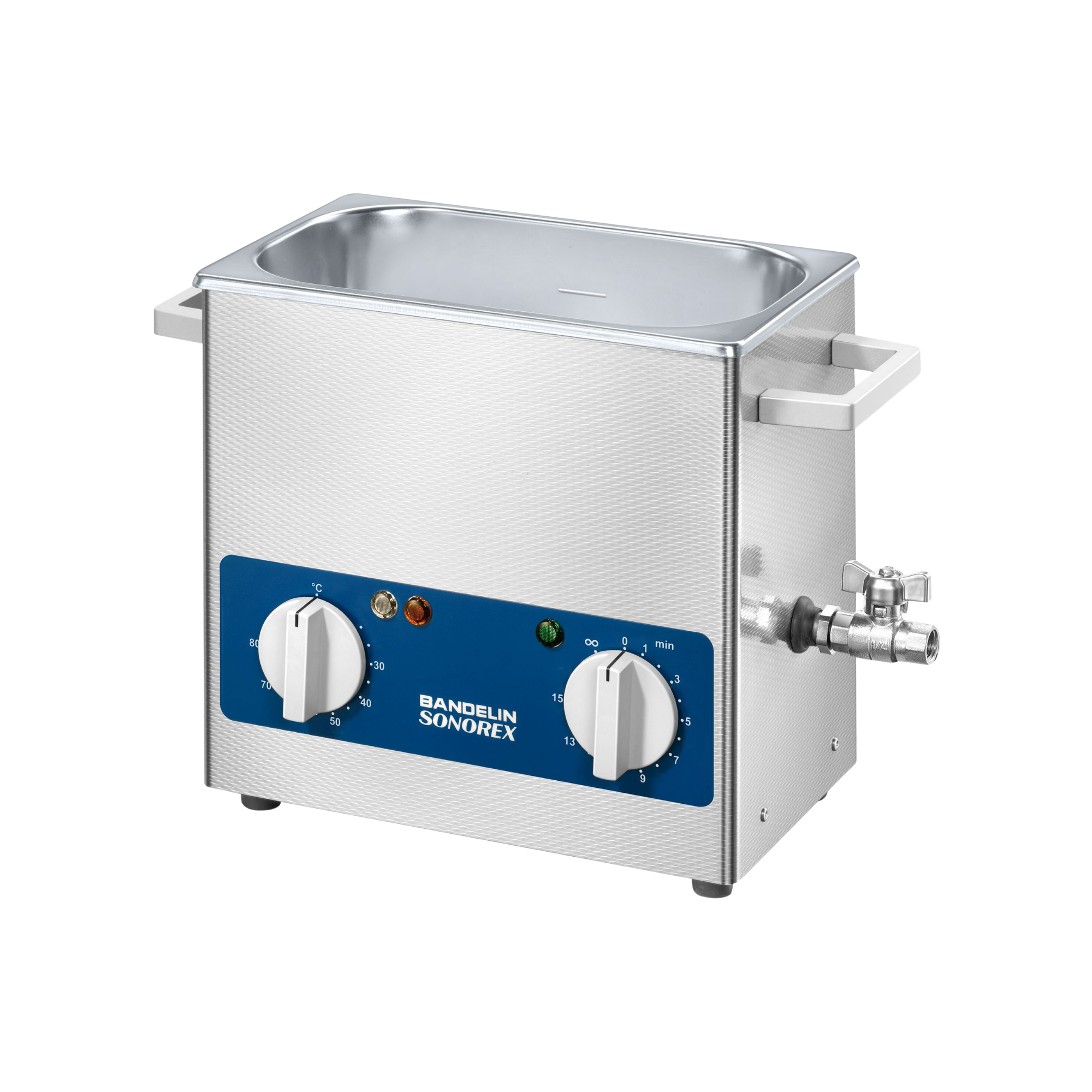

Bandelin SONOREX SUPER RK 102 H ultrasonic bath with heating, 3 litres, 303
€983.00
% Manufacturer's RRP: €1,293.00 23% below manufacturer's RRP
- Class I medical device (EU 2017/745)
- SweepTec function for even cleaning
- Temperature range 30–80 °C, adjustable
- Stainless steel 1.4301, hard chrome-plated
- Timer: 1–15 minutes or continuous operation
- Ball valve drain with hose
- Matching lid D 100 and basket K 3 C available
ⓘ This product description has been translated from German using AI. Despite careful review, we do not guarantee that the translation is error-free; in case of doubt, the German version shall prevail.
Product information "Bandelin SONOREX SUPER RK 102 H ultrasonic bath with heating, 3 litres, 303"
Thorough ultrasonic cleaning for medical practices, laboratories and workshops
The Bandelin SONOREX SUPER RK 102 H is a robust, high-performance ultrasonic cleaner with a heating element for medical practices, laboratories and workshops. Intense cavitation bubbles clean thoroughly and gently, even in hard-to-reach areas of the items being cleaned. The housing, made from 1.4301 stainless steel with a hard chrome plating, is designed for long-term reliability.
Uniform cleaning thanks to SweepTec
The fully automatic SweepTec function prevents standing waves in the ultrasonic field, thus ensuring a particularly uniform cleaning effect throughout the tank. The rotary knob control allows for simple, intuitive adjustment of cleaning duration and bath temperature, suitable even for daily use without the need for training.
Suitable accessories for optimum results
For optimally tailored ultrasonic cleaning, suitable baskets, lids and cleaning and disinfection concentrates are available as accessories, tailored to different items to be cleaned and areas of application.
Technical details
| Total volume | 3.0 litres |
| Working volume | 2.0 litres |
| Internal dimensions (L×W×D) | 240 × 140 × 100 mm |
| External dimensions (L×W×H) | 260 × 160 × 250 mm |
| Material | Stainless steel 1.4301, hard chrome-plated, wall thickness 1.0 mm |
| Ultrasonic frequency | 35 kHz |
| Ultrasonic power | 120 W (rated), 480 W (peak) |
| Heating power | 140 W |
| Temperature range | 30–80 °C, adjustable |
| Timer | 1–15 minutes (±5 %) or continuous operation |
| Voltage | 230 V~ (±10 %), 50/60 Hz |
| Mains lead | 2 m, permanently attached to the unit |
| Weight | 5.4 kg |
| Drain | G ¼ ball valve with 25 cm hose (right-hand side) |
| Level indicator | Fitted |
| Degree of protection | IP 32 |
| Classification | Class I medical device (EU 2017/745) |
Scope of delivery
- 1x Bandelin SONOREX SUPER RK 102 H ultrasonic bath with heating
Baskets, lids and cleaning/disinfection concentrates are not included and are available separately as accessories.
Individual requirements & procurement service
Do you need suitable baskets, inserts, lids or cleaning concentrates for your SONOREX ultrasonic bath? Our procurement service will be happy to support you with the suitable selection.
| Volume: | 3 l |
|---|
Matching accessories
The D 100 stainless steel lid is intended for ten ultrasonic baths of the SONOREX SUPER RK, DIGITEC DT and smart ST series. It protects the bath fluid from external contamination. When cleaning or disinfecting agents have been added, it prevents odour nuisance, according to Bandelin. During operation, it reduces noise emission. Condensation runs back into the tank.Suitable forModelVersionBandelin device no.SONOREX SUPER RK 1003 litres301SONOREX SUPER RK 100 H3 litres, with heater312SONOREX SUPER RK 102 H3 litres, with heater303SONOREX SUPER RK 103 H4 litres, with heater326SONOREX DIGITEC DT 1003 litres3210SONOREX DIGITEC DT 100 H3 litres, with heater3230SONOREX DIGITEC DT 102 H3 litres, with heater3235SONOREX DIGITEC DT 103 H4 litres, with heater3201SONOREX smart ST 102 H3 litres, with heater7100SONOREX smart ST 103 H4 litres, with heater7101Scope of delivery1 SONOREX D 100 stainless steel lid
The K 3 C insert basket holds the items to be sonicated in 7 ultrasonic baths of the SONOREX SUPER RK, DIGITEC DT and smart ST series. Nothing may lie on the tank bottom during operation, as abrasion can occur between the items and the oscillating tank. According to Bandelin, the basket keeps the items in the optimum area of the cavitation field, 1 to 2 cm above the bottom. For rinsing, it can be lifted out without the user coming into contact with the sonication liquid. The inner dimensions (L x W x D) are 200 x 110 x 40 mm.Suitable forModelBandelin device no.SONOREX SUPER RK 100301SONOREX SUPER RK 102 H303SONOREX SUPER RK 100 H312SONOREX DIGITEC DT 1003210SONOREX DIGITEC DT 100 H3230SONOREX DIGITEC DT 102 H3235SONOREX smart ST 102 H7100Scope of delivery1 SONOREX K 3 C insert basket
The KD 0 sieve basket is made of stainless steel with sieve mesh. The inner diameter is 75 mm and the mesh size is 1 x 1 mm according to Bandelin. It is placed in insert vessels, or fine parts are cleaned with it directly in the ultrasonic bath. The dimensions are 75 x 75 x 40 mm.Scope of delivery1 SONOREX KD 0 stainless steel sieve basket
Insert beakers have a fixed place in the ultrasonic bath in the DE 100 perforated lid. It is made of stainless steel and holds several beakers at the same time, including with different liquids. According to Bandelin, chemically aggressive liquids and sample liquids are sonicated indirectly with it. For this, the surface tension of the water must fall, so the ultrasonic bath needs a cleaning solution as contact fluid. The perforated lid fits 11 models of the SONOREX SUPER RK, DIGITEC DT and smart ST series.Suitable forModelBandelin device no.SONOREX SUPER RK 100301SONOREX SUPER RK 102 H303SONOREX SUPER RK 106306SONOREX smart ST 103 H7101SONOREX SUPER RK 100 H312SONOREX DIGITEC DT 103 H3201SONOREX DIGITEC DT 1003210SONOREX DIGITEC DT 100 H3230SONOREX DIGITEC DT 102 H3235SONOREX SUPER RK 103 H326SONOREX smart ST 102 H7100Scope of delivery1 SONOREX DE 100 stainless steel perforated lid
The PD 04 sieve basket is made of plastic and has a very fine mesh. It is placed in insert vessels or used to clean very fine parts directly in the ultrasonic bath. The dimensions are 60 x 60 x 45 mm. It is intended for ultrasonic baths of the SONOREX SUPER RK, DIGITEC DT, DIGIPLUS DL and smart ST series.Scope of delivery1 SONOREX PD 04 plastic sieve basket
The SD 09 insert beaker is made of glass, with a GR ring and a DD lid. Its inner dimensions are 91 x 91 x 180 mm. It is hung in a DE perforated lid or an insert strip. According to Bandelin, insert beakers are used for chemically aggressive liquids, abrasive contamination and sample liquids. The beaker is also intended for cleaning agents or solvents that are aggressive to stainless steel. The ultrasound acts indirectly; a cleaning solution serves as contact fluid.Scope of delivery1 SONOREX SD 09 glass insert beaker with GR ring and DD lid
The SD 06 glass insert beaker holds 600 ml. The GR ring and DD lid are included in the scope of delivery. The beaker hangs in a DE perforated lid or an insert strip. Bandelin cites insert beakers for chemically aggressive liquids, for abrasive contamination and for sonicating sample liquids; the ultrasound then acts indirectly. It is also intended for cleaning agents or solvents that are aggressive to stainless steel.Scope of delivery1 SONOREX SD 06 glass insert beaker with GR ring and DD lid
The RG 2 test tube holder positions samples securely in the ultrasonic bath. It holds up to 6 test tubes with a diameter of 25 mm at most, alternatively 8 test tubes with a diameter of 16 mm. It fits 14 models of the SONOREX SUPER RK, DIGITEC DT and smart ST series.Suitable forModelBandelin device no.SONOREX SUPER RK 52 H164SONOREX SUPER RK 100301SONOREX SUPER RK 102 H303SONOREX smart ST 103 H7101SONOREX SUPER RK 52311SONOREX SUPER RK 100 H312SONOREX DIGITEC DT 103 H3201SONOREX DIGITEC DT 523205SONOREX DIGITEC DT 1003210SONOREX DIGITEC DT 52 H3225SONOREX DIGITEC DT 100 H3230SONOREX DIGITEC DT 102 H3235SONOREX SUPER RK 103 H326SONOREX smart ST 102 H7100Scope of delivery1 SONOREX RG 2 test tube holder
The GH 1 instrument holder is used to clean particularly large individual parts in the SONOREX ultrasonic bath. Compared with the basket, a larger cleaning volume is available. The holder is made of stainless steel; the basket brackets are partly covered with polyolefin heat-shrink tubing. According to Bandelin, the tubing protects the tank rim from damage and dampens noise. It fits 16 models of the SONOREX SUPER RK, DIGITEC DT and smart ST series.Suitable forModelBandelin device no.SONOREX SUPER RK 52 H164SONOREX SUPER RK 100301SONOREX SUPER RK 102 H303SONOREX SUPER RK 156305SONOREX smart ST 103 H7101SONOREX SUPER RK 52311SONOREX SUPER RK 100 H312SONOREX DIGITEC DT 103 H3201SONOREX DIGITEC DT 523205SONOREX DIGITEC DT 1003210SONOREX DIGITEC DT 52 H3225SONOREX DIGITEC DT 100 H3230SONOREX DIGITEC DT 102 H3235SONOREX SUPER RK 103 H326SONOREX DIGITEC DT 1563275SONOREX smart ST 102 H7100Scope of delivery1 SONOREX GH 1 stainless steel instrument holder
The EG 1 insert grid protects delicate parts in the stainless steel basket. According to Bandelin, it prevents the parts from lying on the bottom of the basket, touching each other or being damaged. The grid is made of polypropylene (PP) and is cut to size. 10 fastening buttons are included in the scope of delivery.Scope of delivery1 SONOREX EG 1 insert grid made of polypropylene (PP), to be cut to size, 10 fastening buttons
The EB 05 stainless steel beaker holds 600 ml and has a lid and a rubber ring. As an insert beaker, it is hung in a DE perforated lid or an insert strip. According to Bandelin, insert beakers are used for chemically aggressive liquids and when sonicating sample liquids; the ultrasound then acts indirectly. The inner dimensions are 88 x 88 x 110 mm. For this, the ultrasonic bath needs a cleaning solution as contact fluid.Scope of delivery1 SONOREX EB 05 stainless steel beaker with lid and rubber ring
The PD 06 plastic beaker holds 600 ml and is supplied with a lid and a rubber ring. It is hung in a DE perforated lid or an insert strip. According to Bandelin, insert beakers are used when liquids are chemically aggressive, when contamination is abrasive or when sample liquids are sonicated. The ultrasound then acts indirectly. The inner dimensions are 86 x 86 x 125 mm. A cleaning solution is used as contact fluid in the ultrasonic bath.Scope of delivery1 SONOREX PD 06 plastic beaker with lid and rubber ring
The KW 3 hanging tray is made of polyethylene and is supplied with a lid. Its inner dimensions are 195 x 115 x 88 mm. Because nothing may lie on the tank bottom during operation, Bandelin offers suitable plastic hanging trays with lids. According to Bandelin, it is temperature-resistant up to 80 °C with water and up to 60 °C with acids. A cleaning solution serves as contact fluid. It is suitable for 10 models of the SONOREX SUPER RK, DIGITEC DT and smart ST series.Suitable forModelBandelin device no.SONOREX SUPER RK 100301SONOREX SUPER RK 102 H303SONOREX smart ST 103 H7101SONOREX SUPER RK 100 H312SONOREX DIGITEC DT 103 H3201SONOREX DIGITEC DT 1003210SONOREX DIGITEC DT 100 H3230SONOREX DIGITEC DT 102 H3235SONOREX SUPER RK 103 H326SONOREX smart ST 102 H7100Scope of delivery1 SONOREX KW 3 polyethylene hanging tray with lid
