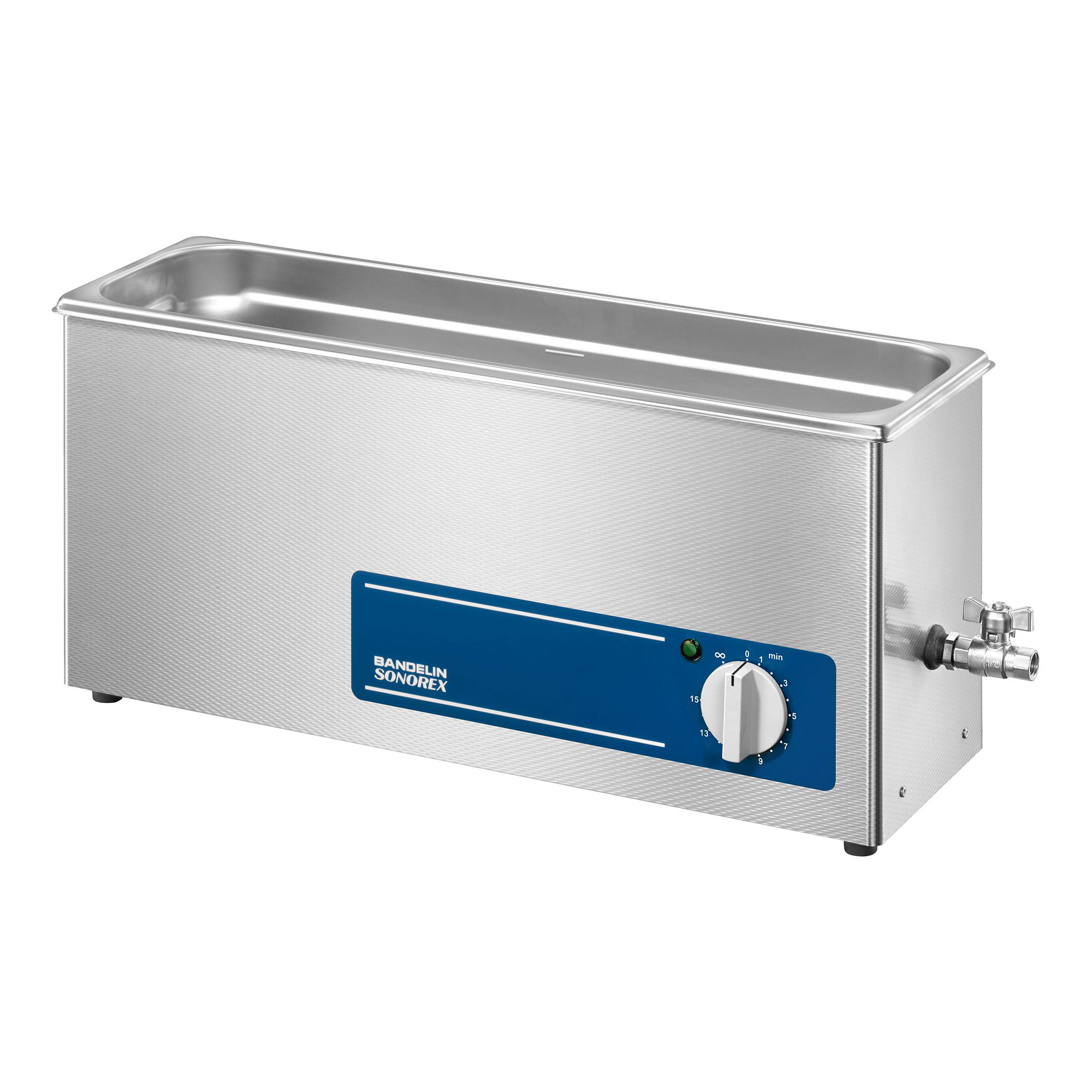

Bandelin SONOREX SUPER RK 156 ultrasonic bath, 6 litres, 305
€1,027.00
% Manufacturer's RRP: €1,351.00 23% below manufacturer's RRP
- 35 kHz ultrasonic frequency for effective cavitation cleaning
- Peak power 640 W, rated power 160 W
- Tank and housing made from 1.4301 stainless steel
- Timer 1–15 minutes (±5 %) and continuous operation
- Capacity 6.0 litres, working volume 4.0 litres
- Drain via G 1/4 ball valve with 25 cm hose
- Compact weight of 7.7 kg
- Matching lid D 156 and basket K 6 L available
ⓘ This product description has been translated from German using AI. Despite careful review, we do not guarantee that the translation is error-free; in case of doubt, the German version shall prevail.
Product information "Bandelin SONOREX SUPER RK 156 ultrasonic bath, 6 litres, 305"
SONOREX SUPER RK 156: Ultrasonic bath for daily laboratory cleaning
The Bandelin SONOREX SUPER RK 156 is an ultrasonic bath with a total capacity of 6.0 litres (4.0 litres working capacity), operating at an ultrasonic frequency of 35 kHz. It generates a peak power of 640 W at a rated power of 160 W, making it suitable for the gentle yet effective cleaning of laboratory glassware, instruments and small parts using cavitation. The ultrasonic treatment time can be continuously adjusted between 1 and 15 minutes (±5 %) using the rotary knob; alternatively, continuous operation is available. This model from the RK 156 series is not fitted with a heater and is therefore designed for applications where a temperature-controlled cleaning fluid is not required.
Robust construction and simple operation
The tank and housing of the SONOREX SUPER RK 156 are made of 1.4301 stainless steel; the tank wall thickness is 1.0 mm. A fill-level mark facilitates correct filling of the tank; draining is carried out via a G 1/4 ball valve with a 25 cm long hose on the right-hand side of the unit. The unit is powered by 230 V~ (±10 %), 50/60 Hz; the 2-metre power cable is permanently attached to the unit. With an IP 32 protection rating and a weight of 7.7 kg, the ultrasonic bath is compact and designed for use on a laboratory bench.
Laboratory applications
Typical applications for an ultrasonic bath of this design include the cleaning of laboratory glassware and small parts, the pre-cleaning and preparation of instruments, and the degassing of solvents prior to analytical applications. Thanks to its compact size, the SONOREX SUPER RK 156 is suitable both for regular use in routine laboratory work and as a supplementary cleaning unit alongside larger ultrasonic baths.
Technical details
| Ultrasonic frequency | 35 kHz |
| Ultrasonic power | Peak power 640 W, rated power 160 W |
| Timer | 1–15 minutes (±5 %), plus continuous operation |
| Tank material | Stainless steel 1.4301, tank thickness 1.0 mm |
| Housing material | Stainless steel 1.4301 |
| External dimensions (L x W x H) | 530 x 165 x 245 mm |
| Internal dimensions (L x W x D) | 500 x 140 x 100 mm |
| Capacity | 6.0 litres (working capacity 4.0 litres) |
| Weight | 7.7 kg |
| Degree of protection (housing) | IP 32 |
| Operating voltage | 230 V~ (±10 %), 50/60 Hz |
| Mains cable | 2 m, permanently fitted to the unit |
| Drain | G 1/4 ball valve with 25 cm hose |
| Conformity | Class I medical device (Regulation (EU) 2017/745), Low Voltage Directive 2014/35/EU, EMC Directive 2014/30/EU, RoHS Directive 2011/65/EU |
Scope of delivery
- 1x Bandelin SONOREX SUPER RK 156 ultrasonic bath
- Operating instructions
Individual requirements & procurement service
Do you require suitable accessories such as hanging baskets, lids or cleaning concentrates, or perhaps larger capacities or different configurations for your laboratory? We can assist you with the bespoke procurement of laboratory equipment and accessories. You can find information at our procurement service. Simply get in touch with us to discuss your requirements.
| Volume: | 6 l |
|---|
Matching accessories
The D 156 stainless steel lid is intended for 3 ultrasonic baths of the SONOREX SUPER RK and DIGITEC DT series. It protects the bath fluid from external contamination. When cleaning or disinfecting agents have been added, it prevents odour nuisance, according to Bandelin. During operation, it reduces noise emission. Condensation runs back into the tank.Suitable forModelBandelin device no.SONOREX SUPER RK 156305SONOREX DIGITEC DT 1563275SONOREX SUPER RK 156 BH646Scope of delivery1 SONOREX D 156 stainless steel lid
The K 6 L insert basket holds the items to be sonicated in 2 ultrasonic baths of the SONOREX SUPER RK and DIGITEC DT series. Nothing may lie on the tank bottom during operation, as abrasion can occur between the items and the oscillating tank. According to Bandelin, the basket keeps the items in the optimum area of the cavitation field, 1 to 2 cm above the bottom. For rinsing, it can be lifted out without the user coming into contact with the sonication liquid. The inner dimensions (L x W x D) are 460 x 100 x 50 mm.Suitable forModelBandelin device no.SONOREX SUPER RK 156305SONOREX DIGITEC DT 1563275Scope of delivery1 SONOREX K 6 L insert basket
The KD 0 sieve basket is made of stainless steel with sieve mesh. The inner diameter is 75 mm and the mesh size is 1 x 1 mm according to Bandelin. It is placed in insert vessels, or fine parts are cleaned with it directly in the ultrasonic bath. The dimensions are 75 x 75 x 40 mm.Scope of delivery1 SONOREX KD 0 stainless steel sieve basket
The PD 04 sieve basket is made of plastic and has a very fine mesh. It is placed in insert vessels or used to clean very fine parts directly in the ultrasonic bath. The dimensions are 60 x 60 x 45 mm. It is intended for ultrasonic baths of the SONOREX SUPER RK, DIGITEC DT, DIGIPLUS DL and smart ST series.Scope of delivery1 SONOREX PD 04 plastic sieve basket
The SD 09 insert beaker is made of glass, with a GR ring and a DD lid. Its inner dimensions are 91 x 91 x 180 mm. It is hung in a DE perforated lid or an insert strip. According to Bandelin, insert beakers are used for chemically aggressive liquids, abrasive contamination and sample liquids. The beaker is also intended for cleaning agents or solvents that are aggressive to stainless steel. The ultrasound acts indirectly; a cleaning solution serves as contact fluid.Scope of delivery1 SONOREX SD 09 glass insert beaker with GR ring and DD lid
The SD 06 glass insert beaker holds 600 ml. The GR ring and DD lid are included in the scope of delivery. The beaker hangs in a DE perforated lid or an insert strip. Bandelin cites insert beakers for chemically aggressive liquids, for abrasive contamination and for sonicating sample liquids; the ultrasound then acts indirectly. It is also intended for cleaning agents or solvents that are aggressive to stainless steel.Scope of delivery1 SONOREX SD 06 glass insert beaker with GR ring and DD lid
The GH 1 instrument holder is used to clean particularly large individual parts in the SONOREX ultrasonic bath. Compared with the basket, a larger cleaning volume is available. The holder is made of stainless steel; the basket brackets are partly covered with polyolefin heat-shrink tubing. According to Bandelin, the tubing protects the tank rim from damage and dampens noise. It fits 16 models of the SONOREX SUPER RK, DIGITEC DT and smart ST series.Suitable forModelBandelin device no.SONOREX SUPER RK 52 H164SONOREX SUPER RK 100301SONOREX SUPER RK 102 H303SONOREX SUPER RK 156305SONOREX smart ST 103 H7101SONOREX SUPER RK 52311SONOREX SUPER RK 100 H312SONOREX DIGITEC DT 103 H3201SONOREX DIGITEC DT 523205SONOREX DIGITEC DT 1003210SONOREX DIGITEC DT 52 H3225SONOREX DIGITEC DT 100 H3230SONOREX DIGITEC DT 102 H3235SONOREX SUPER RK 103 H326SONOREX DIGITEC DT 1563275SONOREX smart ST 102 H7100Scope of delivery1 SONOREX GH 1 stainless steel instrument holder
The DE 156 stainless steel perforated lid is used to hold insert beakers. Nothing may lie on the tank bottom during operation, so the beakers hang in the lid. Several beakers with different liquids can stand in the ultrasonic bath at the same time. It is intended for 4 models of the SONOREX SUPER RK and DIGITEC DT series.Suitable forModelBandelin device no.SONOREX SUPER RK 156305SONOREX DIGITEC DT 156 BH3221SONOREX DIGITEC DT 1563275SONOREX SUPER RK 156 BH646Scope of delivery1 SONOREX DE 156 stainless steel perforated lid
The EG 1 insert grid protects delicate parts in the stainless steel basket. According to Bandelin, it prevents the parts from lying on the bottom of the basket, touching each other or being damaged. The grid is made of polypropylene (PP) and is cut to size. 10 fastening buttons are included in the scope of delivery.Scope of delivery1 SONOREX EG 1 insert grid made of polypropylene (PP), to be cut to size, 10 fastening buttons
The EB 05 stainless steel beaker holds 600 ml and has a lid and a rubber ring. As an insert beaker, it is hung in a DE perforated lid or an insert strip. According to Bandelin, insert beakers are used for chemically aggressive liquids and when sonicating sample liquids; the ultrasound then acts indirectly. The inner dimensions are 88 x 88 x 110 mm. For this, the ultrasonic bath needs a cleaning solution as contact fluid.Scope of delivery1 SONOREX EB 05 stainless steel beaker with lid and rubber ring
The PD 06 plastic beaker holds 600 ml and is supplied with a lid and a rubber ring. It is hung in a DE perforated lid or an insert strip. According to Bandelin, insert beakers are used when liquids are chemically aggressive, when contamination is abrasive or when sample liquids are sonicated. The ultrasound then acts indirectly. The inner dimensions are 86 x 86 x 125 mm. A cleaning solution is used as contact fluid in the ultrasonic bath.Scope of delivery1 SONOREX PD 06 plastic beaker with lid and rubber ring
