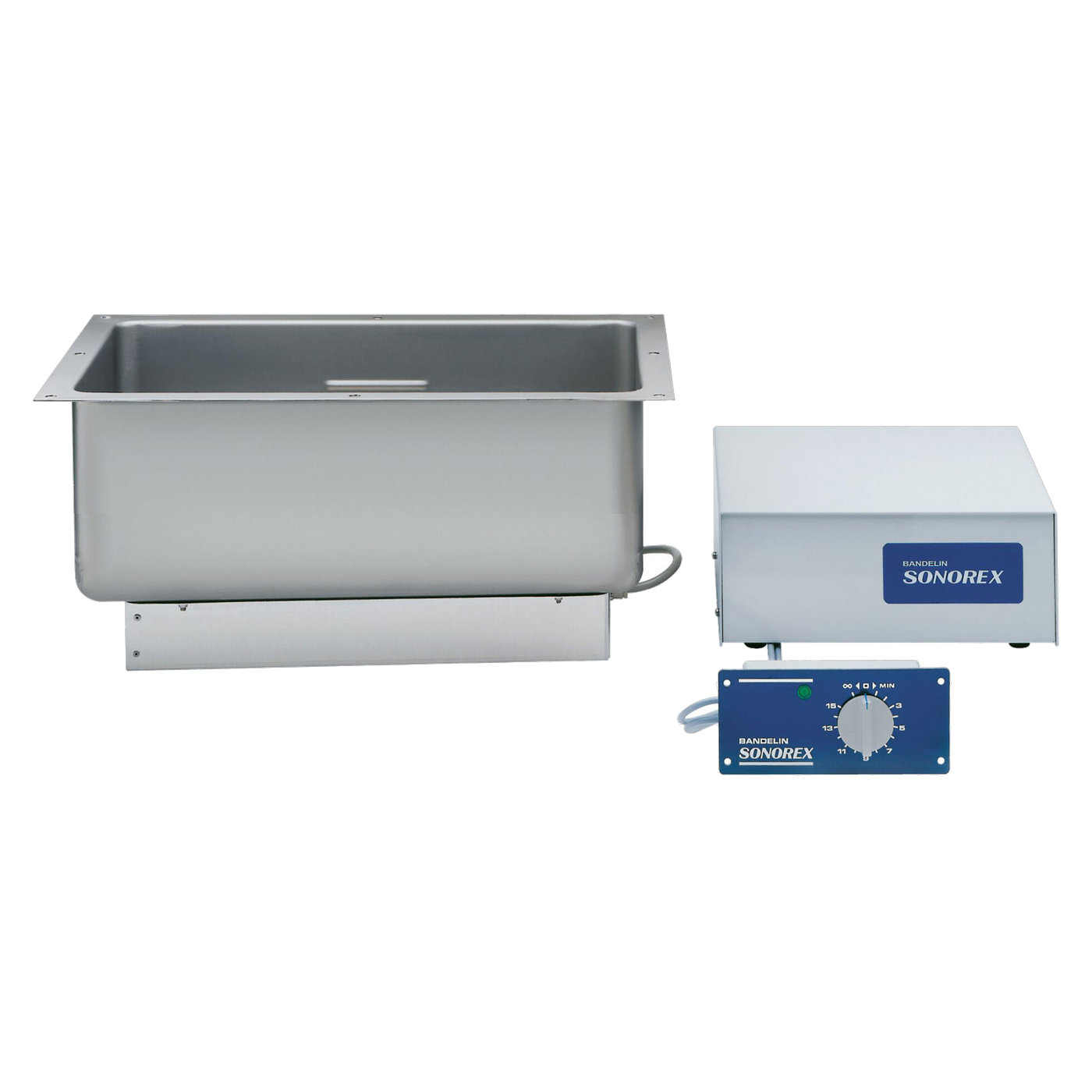

Bandelin SONOREX ZE 1058 built-in ultrasonic bath with rotary knob, 46 litres, 35 kHz, 3050

46.0-litre capacity on a 600 x 400 mm tank surface: where the 29-litre tanks of the ZE series prove too small, the Bandelin SONOREX ZE 1058 is the next-size-up built-in ultrasonic bath. Under-bench installation, a rotary knob control and a separate generator are in line with the design of the smaller models; the generator used here is the GT 1003 M-C.

Space requirements and tank

The internal dimensions of the TE 1058.2 tank are 600 x 400 mm with a depth of 200/220+ mm. The base is sloped, the corners are rounded, and the drain is situated in a 1½-inch groove. The 1.4404 stainless steel has a thickness of 2.0 mm. Of the 46.0-litre capacity, 32.0 l is the working capacity; a fill level mark is provided. Externally, the vibrating tank measures 660 x 460 x 270/290 mm; the degree of protection is IP 30. The net weight is 23.3 kg; the gross weight is 47.4 kg in a carton measuring 1,200 x 800 x 740 mm.

2,400 watts from 16 vibration systems

Sixteen vibration systems are mounted on the base of the tank. They are powered by the GT 1003 M-C ultrasonic generator, which delivers 600 watts of rated power and 2,400 watts of peak power at 35 kHz. The generator housing, made of painted aluminium, measures 360 x 310 x 142 mm and has an IP 20 protection rating. It is mounted vertically using the mounting bracket. A 2-metre-long connection cable with an AMP-CPC plug leads to the tank. The mains connection is 230 V~ (± 10 %), and the current consumption is 2.7 A.

Settings for the ST 15.1

The rotary knob is used to set times from 1 to 15 minutes (± 5 %); continuous operation is also available. The generator features a pulse function and a sweep function. The version with push-button control, temperature display and DEGAS is the SONOREX ZE 1058 DT, which features the same tank and generator as this model.

ZE 1058 or ZE 1059

Both models have a capacity of 46.0 l and a peak power output of 2,400 watts. The SONOREX ZE 1059 is slightly wider, with an external width of 504 mm; it has eleven vibration systems on the base and five on the side, and operates using TwinSonic technology. The ZE 1058 has only bottom vibrators and is supplied in a carton measuring 1,200 x 800 x 740 mm, whilst the ZE 1059 is supplied on a pallet of the same dimensions.

Accessories for the 600 x 400 mm tank

The K 29 EM is listed as the insert basket. There are dedicated basket supports for this tank size: the KT 57 and the KT 57 Z with handles. The tank can be covered with the D 57 lid or the D 1058 G hinged lid. The SM 29 silicone studded mat is supplied in a set of two, and the G 1 ½ Type V drain fitting is suitable for the groove in the base. The FT 37 film test frame is included in the kit; a built-in rinsing tank can be ordered as the SONOREX SW 58 Z. The permitted ambient temperature is 5 to 40 °C.

Typical applications

• Cleaning of medical instruments
• Cleaning of particularly sensitive micro-instruments using the automatic sweep frequency function

Frequently asked questions

What is the working capacity of the bath?
32.0 l out of a total capacity of 46.0 l.

Is the bath available with a temperature display?
Yes, as the ZE 1058 DT with the ST 30.1 DT control unit.

What is the current consumption?
2.7 A at 230 V.

Technical details

Scope of delivery

• Vibrating tank TE 1058.2
• Ultrasonic generator GT 1003 M-C
• Control unit ST 15.1
• Film test frame FT 37
• 2 m connection cable (AMP-CPC plug) for the generator

The insert basket, basket support, lid, studded mat and drain fitting are not included in the Scope of delivery.

Individual requirements and procurement service

For accessories, the built-in rinsing basin or another model from the SONOREX ZE range, there is an individual procurement need. You can request a quote via our procurement service.
