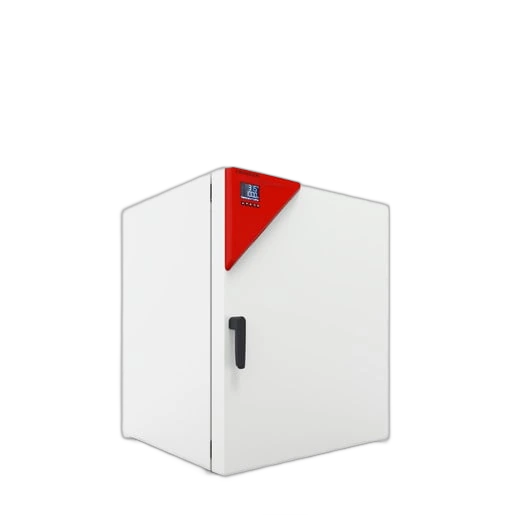

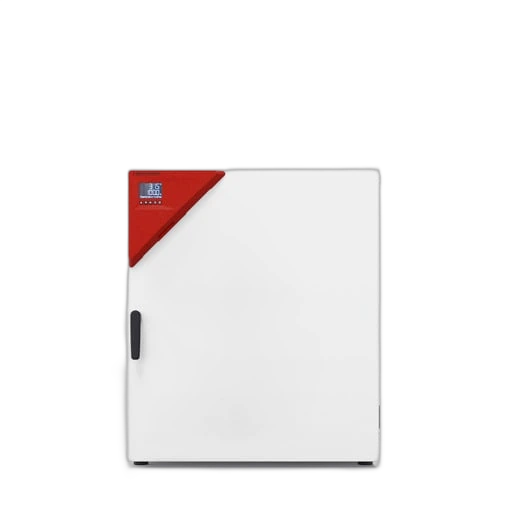

Binder FP 260 drying and heating cabinet with forced air circulation and programme functions, 259 l, 9010-0365
€4,564.00
- Material testing chamber with forced air circulation and programmable functions
- Temperature range: 10 °C above ambient temperature to 300 °C
- 259 litres net capacity
- Time-interval and real-time programming for temperature ramps
- Ethernet interface for laboratory networking
- Optional 230 V (1~) or 240 V (3~)
Product information "Binder FP 260 drying and heating cabinet with forced air circulation and programme functions, 259 l, 9010-0365"
The Binder FP 260 drying oven is the largest model in the FP series of materials testing ovens, featuring forced convection and programmable functions. With a usable volume of 259 litres and a temperature range from 10 °C above ambient temperature up to 300 °C, the unit is suitable for test tasks involving larger batches or multiple test specimens to be processed simultaneously, where temperature and air circulation must be maintained precisely over extended periods.
Programmable test sequences with Ethernet connection
The additional programme functions and the adjustable fan allow temperature and air circulation conditions to be precisely tailored to complex, lengthy test tasks. The freely programmable controller, featuring time-segment and real-time programming, allows for temperature ramps or jumps, whilst an Ethernet interface integrates the unit into the laboratory infrastructure. The electromechanically controlled exhaust air flap adjusts the air exchange to suit the respective process.
Stable temperature control even with larger volumes
At 150 °C, the FP 260 achieves a spatial temperature deviation of 1.7 ± K and a temporal deviation of 0.4 ± K. The heat-up time to 150 °C is 19 minutes; after the door has been open for 30 seconds, the setpoint temperature is reached again after 6 minutes. The air change rate at 100 °C is 9 times per hour. The unit is available with a choice of 230 V (1-phase, 2.5 kW, 16 A unit fuse) or 240 V (3-phase) power supply.
Typical applications
- Material testing and long-term testing of larger components or batches
- Heat treatment of material samples in quality assurance and development
- Test programmes with defined temperature ramps over several hours
- Drying of larger quantities of laboratory glassware or test specimens
Where the FP 115 reaches its capacity limits – for example, when several test specimens need to follow an identical temperature profile simultaneously – the FP 260, with a 259-litre capacity, offers sufficient internal space without compromising on programming accuracy.
Selection guide: choosing the right model size in the FP series
With a capacity of 259 litres, the FP 260 is the largest model in the FP series, significantly larger than the FP 115 and the compact FP 56. You can find the complete range of this series in the LT Laborhandel range of climate chambers and incubators.
| Model | Useful volume, external dimensions (W x D x H), weight |
| FP 56 | 60 l, 560 x 596 x 622 mm, 41 kg |
| FP 115 | 116 l, 714 x 636 x 732 mm, 55 kg |
| FP 260 | 259 l, 810 x 786 x 962 mm, 82 kg |
For test programmes involving larger components or multiple batches to be processed simultaneously, where the smaller FP models reach their volume limits, the FP 260 is the ideal choice within the range.
Distinguishing feature: FP or M – depending on how many programme functions are required
The same applies to the larger model: with programmable temperature ramps and an Ethernet connection, the FP 260 meets standard test requirements. Those who also require an internal data logger and a failsafe function with a backup sensor for greater process reliability will find the appropriately equipped alternative in the Binder M 260 drying and heating cabinet, which is identical in design.
Technical details
| Temperature range | 10 °C above ambient temperature up to 300 °C |
| Usable volume | 259 l |
| Spatial temperature variation (at 150 °C) | 1.7 ± K |
| Temporal temperature deviation (at 150 °C) | 0.4 ± K |
| Heating time to 150 °C | 19 min |
| Recovery time after opening the door | 6 min |
| Air change rate (at 100 °C) | 9 times per hour |
| Energy consumption at 100 °C | 275 Wh/h |
| Energy consumption at 150 °C | 465 Wh/h |
| Sound pressure level | 43 dB(A) |
| Rated voltage | 230 V, 1-phase (alternatively 240 V, 3-phase) |
| Rated power | 2.5 kW |
| Unit fuse | 16 A |
| External dimensions (W x H x D) | 810 x 962 x 786 mm |
Contents
- 1x Binder FP 260 drying and heating cabinet, 230 V (9010-0365)
- Standard insert racks
- User manual
Frequently asked questions before purchase
What mains connection options are available for the FP 260?
The FP 260 is available either with 230 V (1-phase, 2.5 kW, 16 A unit fuse) or with 240 V (3-phase).
How long does it take for the FP 260 to heat up to 150 °C?
The heating time to 150 °C is 19 minutes; after the door has been open for 30 seconds, the set temperature is reached again after 6 minutes.
What is the energy consumption of the FP 260?
At 100 °C, energy consumption is 275 Wh/h; at 150 °C, it is 465 Wh/h.
What is included with the FP 260?
Included are the Binder FP 260 in the 230 V version (9010-0365), the standard insert racks and the operating instructions.
Customised requirements & procurement service
Further accessories are available for the FP 260, such as additional insertion grids, calibration certificates and maintenance contracts of varying scope. Do you require customised configurations, spare parts or advice on selecting the right materials testing chamber for your application? LT Laborhandel will be happy to assist you via our procurement service.
| Volume: | 259 l |
|---|
