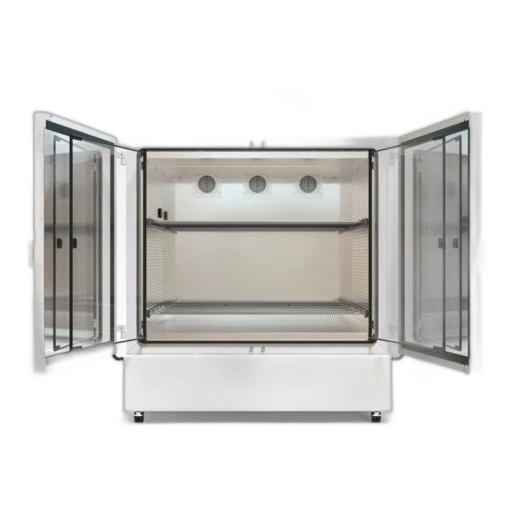

Binder KBF PRO 1600 Constant Climate Chamber, −20 °C to +100 °C, 10 % to 98 % RH, 1,610 l, 9020-0444

A Binder constant-climate cabinet or refrigerated incubator can be converted into a plant growth cabinet using the 8012-2439 LED plant light module, without the need to purchase a separate unit. The module produces lighting conditions that closely resemble natural sunlight and fits into cabinets from the KB, KB PRO, KBF and KBF PRO series with development stage E7. Installation is carried out on site by the customer or a service partner. Design and lighting control The Binder LED plant lighting module consists of 16 LED light strips, which can be positioned individually within the cabinet, and a lighting control box with its own programme controller. Each light strip has three separately controllable colour channels: daylight-like cool white (SunLike, 6,500 K), daylight-like warm white (SunLike, 2,700 K) and dark red phytochrome-controlled light (730 nm), which specifically activates the plant’s phytochrome system. All three channels can be dimmed independently of one another from 0% to 100%. Real-time programming is available for daily routines, either as a cyclical daily programme or individually for each day of the week, supplemented by a twilight function that gently fades the light on and off over a one-hour ramp rather than switching it on or off abruptly. An integrated ventilation function feeds 0 to 500 litres of ambient air per hour into the chamber, thereby maintaining the CO₂ level close to the ambient value required by plants for photosynthesis. The light module is powered by 120 V to 240 V at 50 or 60 Hz, regardless of the mains voltage of the climate cabinet itself. Light output by cabinet size The light intensity depends on the cabinet size and the distance from the light source. With 100 per cent white light and all 16 light strips evenly distributed on a single plane, size 260 achieves a photosynthetically active radiation (PAR) of 1,660 µmol/m²/s at a distance of 25 cm. Size 470 achieves 1,540 µmol/m²/s at a distance of 25 cm, 990 µmol/m²/s at 50 cm and 730 µmol/m²/s at 75 cm. For the 720 size, the figures are 1,080, 740 and 560 µmol/m²/s at the three distances; for the 1060 size, they are 880, 610 and 480 µmol/m²/s respectively. In the largest available size, 1600 – which is only available for the KB PRO and KBF PRO models – the values are 640, 470 and 380 µmol/m²/s. Distributing the 16 light strips across several levels reduces the light output accordingly: to around 50 per cent of the initial value with two levels, and to around 25 per cent with four levels. The maximum temperature during lighting operation is 60 °C for all sizes. Order mounting grids separately The LED plant light module does not include any grids for mounting the light strips. However, LT Laborhandel supplies insert grid sets with telescopic rails (size 260/470: 8012-2384, size 720: 8012-2385, size 1060: 8012-2386, size 1600: 8012-2387) as well as insert grille sets with U-rails, which Binder expressly recommends for mounting the light strips (size 260/470: 8012-2390, size 720: 8012-2391, size 1060: 8012-2392, size 1600: 8012-2393). The number of additional grilles required depends on the desired lighting configuration. For the basic configuration without an additional level, the two standard grids supplied with the cabinet are sufficient; for one or two light levels, at least one additional set is recommended; for full distribution across several levels, up to six sets are required. An additional grid between the light bars and the sample material also creates a gap of around 10 cm, thereby reducing thermal effects on the samples. Typical applications Plant growth experiments with day-night simulation via real-time programming Germination and seedling experiments with reduced light intensity on a single light bar level Photoperiodism and phytochrome studies via the separately dimmable dark red channel Retrofitting existing Binder E7-generation climate chambers and refrigerated incubators to create plant growth chambers, without the need for additional equipment If a higher CO₂ concentration is also required, for example to accelerate plant growth, the LED plant light module can be combined with a CO₂ injection module. According to the operating instructions, both accessories can operate simultaneously within the same cabinet, unlike the ICH light module, which occupies the CO₂ connection. Technical details Configuration16 LED light strips, individually positionable Colour channels per light stripCool white 6,500 K, warm white 2,700 K, dark red 730 nm Dimming range per channel0% to 100% Ventilation function0 to 500 litres of ambient air per hour PFR PAR, size 260 (25 cm)1,660 µmol/m²/s PFR PAR, size 470 (25/50/75 cm)1,540 / 990 / 730 µmol/m²/s PFR PAR, size 720 (25/50/75 cm)1,080 / 740 / 560 µmol/m²/s PFR PAR, size 1060 (25/50/75 cm)880 / 610 / 480 µmol/m²/s PFR PAR, size 1600 (25/50/75 cm)640 / 470 / 380 µmol/m²/s Maximum temperature during operation60 °C Compatible series (development stage E7)KB, KB PRO, KBF, KBF PRO Power supply for light module120 V to 240 V, 50/60 Hz Contents of delivery 16 LED light strips with retaining clips for clipping into standard slotted grilles Lighting control box with programme controller Mains cable Power distribution cable for the LED light strips PU tubing for the air supply Operating instructions Insert grilles for mounting the light strips are not included. These must be ordered as separate accessories; see the section above. Customised requirements & procurement service LT Laborhandel can assist in putting together the right combination of climate chamber, lighting module and insert grilles, for example if the existing size or series is unclear or if multiple lighting levels are planned. The procurement service is also available for other Binder accessories such as CO₂ gas injection modules, water supply systems or sample temperature control sensors. Details can be found on our Services page.

In a closed climate chamber, plants consume CO₂ during photosynthesis, which can cause the concentration to fall below the natural ambient level of around 0.04 vol.%. The Binder CO₂ gas supply module 8012-2140, on the other hand, maintains the concentration precisely between 0 and 1 vol.% and is therefore designed for plant growth applications where precise, low CO₂ control is required. It is an accessory for Binder KB PRO series refrigerated incubators and KBF and KBF PRO series constant-climate chambers, all of which are at development stage E7. Measurement and control CO₂ measurement is carried out by an infrared measuring cell with an NDIR sensor (non-dispersive infrared sensor) and continuous control to a reference value. According to the manufacturer, this measurement method offers fast response times and high selectivity for CO₂; interference and ageing effects in the measurement system are largely ruled out, meaning that the system remains virtually drift-free between calibrations. The control process itself is managed entirely via the MB2 controller of the climate chamber; the gas injection module cannot be operated without being connected to the climate chamber. To ensure the CO₂ concentration is displayed correctly in vol.%, the altitude of the installation site must also be entered into the controller. As this control range uses a separate CO₂ sensor to that of the 0–20 vol.% variant, the controller function ‘CO₂ measurement range 0…1 vol.%’ must also be activated to ensure the measured value is converted correctly. Connections and interfaces The CO₂ gas injection unit has a 4 to 20 mA analogue output for the CO₂ concentration, via which the measured value can be transmitted to external data acquisition systems or recording devices. The gas connection is made via a quick-release coupling on the gas cylinder, whilst the data connection to the climate chamber is via a patch cable. A CO₂ gas cylinder is not included in the scope of delivery and must be procured separately. Combination with other accessory modules According to the operating instructions, the CO₂ gas module can be operated simultaneously with the LED plant light module; both accessories complement each other for comprehensive plant growth applications with controlled lighting and CO₂ concentration within the same cabinet. However, simultaneous operation with the ICH light module or the ICH-LQC light module is not possible, as both accessories occupy the same interface on the climate chamber. Anyone requiring both configurations – for example, CO₂ gasation and the ICH photostability test – should plan for two separate climate chambers. For pure plant growth experiments with LED lighting and CO₂ enrichment, however, a single, suitably equipped climate chamber is sufficient. Operation and maintenance A fine gas filter in the gas injection box can be replaced as required to ensure that measurement accuracy is maintained throughout the operational life of the unit. Two CO₂ warning stickers are included in the scope of delivery and must be affixed to a clearly visible position on the climate chamber, as special safety instructions must be observed when handling CO₂ in enclosed spaces. Before initial commissioning, the correct CO₂ outlet pressure of the gas supply and the tightness of the connections must be checked. A connection panel on the rear of the incubator or climate chamber houses the data connection to the gas supply unit, ensuring that the cabling remains neatly organised. Typical applications CO₂ enrichment for accelerated plant growth in combination with the LED plant light module Photosynthesis and growth studies with a defined, low CO₂ concentration Offsetting CO₂ consumption in densely planted, enclosed climate chambers Botanical and agricultural research series with reproducible climatic conditions The CO₂ injection box is installed on the prepared side panel of the climate chamber and connected to the main unit via a data cable, gas hose and sensor cable. Technical details CO₂ control range0 vol.% to 1 vol.% Minimum concentrationAmbient value (approx. 0.04 vol.%) Measuring principleNDIR sensor (non-dispersive infrared sensor) Analogue output4 to 20 mA DC Compatible series (development stage E7)KB PRO, KBF, KBF PRO Compatible sizes260, 470, 720, 1060, 1600 Controlvia MB2 unit controller; operation not possible without a climate cabinet Power supply for fumigation box24 V, via the supplied mains adaptor Scope of supply CO₂ fumigation box CO₂ sensor with cable 2 CO₂ warning stickers 24 V mains adaptor with adaptors Operating instructions 2 mounting rails with screws (4 × M8, 2 × M5) 2 silicone foam plugs for the slotted hole feed-through Patch cable for the data connection between the gas supply box and the device Hose set for the gas connection The CO₂ gas cylinder and pressure regulator are not included; these must be purchased separately. Customised requirements & procurement service LT Laborhandel provides procurement support when choosing between the CO₂ control ranges of 0 to 1 vol.% and 0 to 20 vol.%, as well as when combining the system with an LED plant lighting module or water supply systems. Details can be found on our services page.

Some applications require significantly higher CO₂ concentrations than those found in natural plant growth, such as cell culture work, which traditionally requires a CO₂ incubator. With its control range of 0 to 20 vol.%, the Binder CO₂ gas supply module 8012-2138 covers precisely this broader spectrum and additionally equips a Binder KB PRO series refrigerated incubator or a KBF and KBF PRO series constant-climate chamber (development stage E7) with CO₂ control. Measuring principle and operation Like the version with the narrower control range, this module also measures the CO₂ concentration using an infrared measuring cell with an NDIR sensor and provides continuous control to a reference value. The method has fast response times and, according to the manufacturer, remains virtually drift-free between calibrations, as interference and ageing effects in the measuring system are largely ruled out. The CO₂ control is managed entirely via the MB2 controller of the climate chamber; standalone operation without a connected climate chamber is not intended. To ensure the concentration is displayed correctly in vol.%, the sea-level altitude of the installation site must be entered into the controller so that differences in air pressure do not distort the measurement. Connections and gas supply The CO₂ gas supply box has an analogue output of 4 to 20 mA for the CO₂ concentration, via which the measured value can be transmitted to an external data acquisition system or a recording device. The gas connection is made via a quick-release coupling, connected to a CO₂ gas cylinder, which is not included in the scope of delivery and must be procured separately. The data connection between the gas injection box and the climate chamber is established via a patch cable supplied with the unit; a fine gas filter in the gas injection box can be replaced if necessary. Cannot be combined with the light modules According to the operating instructions, the CO₂ gas injection module, with a control range of 0 to 20 vol.%, cannot be operated simultaneously with the ICH light module or the ICH-LQC light module, as both occupy the same interface on the climate chamber. Simultaneous operation with the LED plant light module, however, is possible, even though the wide control range up to 20 vol.% is rarely utilised in practice for pure plant growth applications and is intended more for other gas injection tasks. Those who require only low, plant-specific concentrations of up to 1 vol.% are generally better served by the more precise control range of the 8012-2140 variant. Operation and maintenance The fine gas filter in the gas supply box can be replaced as required to ensure that measurement accuracy is maintained throughout the operational life of the unit. Two CO₂ warning stickers are included in the scope of delivery and should be affixed to a clearly visible position on the climate chamber, as special safety precautions must be observed when handling CO₂ in enclosed spaces. Before initial commissioning, the correct CO₂ outlet pressure of the gas supply and the tightness of all connections must be checked, particularly given the significantly wider control range of up to 20 vol.% in this case. A connection panel on the rear of the incubator or climate chamber houses the data connection to the gas supply unit, ensuring that the cabling remains neatly organised. Typical applications Upgrading a climate chamber to function as a CO₂ incubator, for example for cell culture work Gassing experiments with higher CO₂ concentrations beyond purely botanical applications Processes that require a documented, constant CO₂ atmosphere to be recorded via an analogue output Research applications with varying CO₂ setpoints across the entire control range Installation takes place on the prepared side panel of the climate chamber, connected via a data cable, gas hose and sensor lead. Technical details CO₂ control range0 vol.% to 20 vol.% (factory setting) Minimum concentrationAmbient value (approx. 0.04 vol.%) Measurement principleNDIR sensor (non-dispersive infrared sensor) Analogue output4 to 20 mA DC Compatible series (development stage E7)KB PRO, KBF, KBF PRO Compatible sizes260, 470, 720, 1060, 1600 Controlvia MB2 unit controller; operation not possible without a climate cabinet Power supply for fumigation box24 V, via the supplied mains adaptor Scope of supply CO₂ fumigation box CO₂ sensor with cable 2 CO₂ warning stickers 24 V mains adaptor with adaptors Operating instructions 2 mounting rails with screws (4 × M8, 2 × M5) 2 silicone foam plugs for the slotted hole feed-through Patch cable for the data connection between the gas supply box and the device Hose set for the gas connection The CO₂ gas cylinder and pressure regulator are not included; these must be purchased separately. Customised requirements & procurement service LT Laborhandel’s procurement service can assist you in choosing between the CO₂ control ranges of 0 to 20 vol.% and 0 to 1 vol.%, as well as with other accessories for constant-climate cabinets and refrigerated incubators. Details can be found on our services page.
