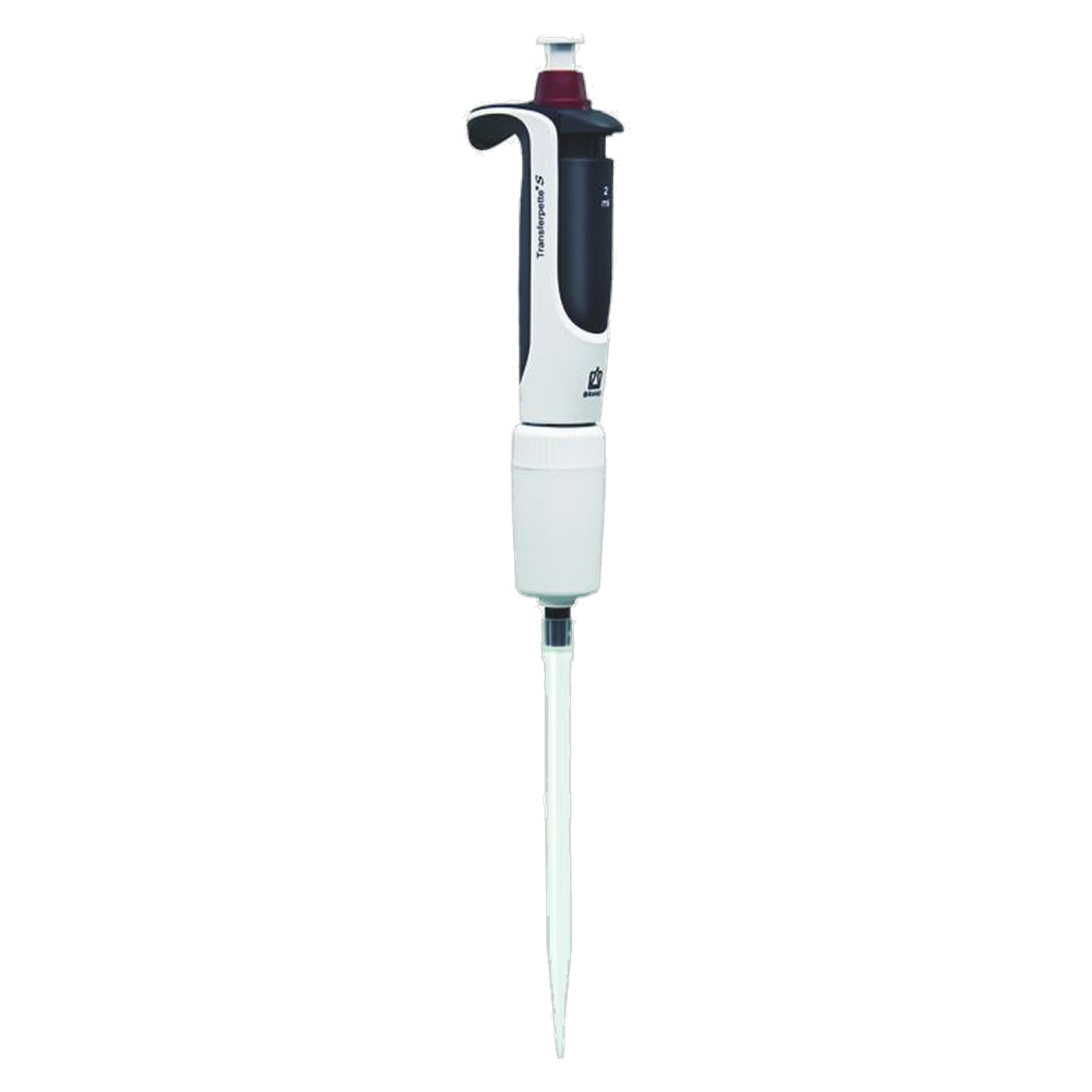

Brand Transferpette S Fix F-2000 single-channel microlitre pipette, 2,000 µl, DE-M, 705864
€173.55
- Single-channel air cushion pipette with a fixed volume of 2,000 µl
- Accuracy ≤ ±0.8 % (≤ ±16 µl), coefficient of variation ≤ 0.3 % (≤ 6 µl)
- Final test according to DIN EN ISO 8655, marked DE-M
- For tips ranging from 500 to 5,000 µl; PE filter recommended
- Fully autoclavable at 121 °C, 2 bar, 15-minute holding time
- Adjustment without tools using Easy Calibration technology
Product information "Brand Transferpette S Fix F-2000 single-channel microlitre pipette, 2,000 µl, DE-M, 705864"
The Brand Transferpette S Fix F-2000 dispenses a fixed volume of 2,000 µl (2 ml), the same for every sample. It is a single-channel air cushion pipette designed for tasks that always require the same volume. The accuracy is ≤ ±0.8 % (≤ ±16 µl) and the coefficient of variation is ≤ 0.3 % (≤ 6 µl), in each case relative to the nominal volume. The instrument is marked DE-M according to the German Measures and Verification Act.
Error limits and marking
The final test values are determined according to DIN EN ISO 8655 at 20 °C, with the instrument, the ambient environment and the distilled water all at the same temperature. The instrument bears the DE-M marking with the year of marking, the serial number and a QR or Data Matrix code for BRAND MyProduct. The certificates for the individual instrument can be accessed online via this code. A quality certificate is supplied with the pipette.
Compatible pipette tips and PE filters
Pipette tips ranging from 500 to 5,000 µl are intended for use with the F-2000. For devices with 2, 5 and 10 ml, BRAND recommends working only with a built-in PE filter. The pipette can also be operated without a filter. The PE filter is removed before autoclaving.
Operating limits
The pipette operates at temperatures ranging from +15 to +40 °C; other temperatures are available on request. The vapour pressure of the sample may be up to 500 mbar, and the viscosity up to 260 mPa s. For viscous media, the pipetting speed should be adjusted. The pipette is intended for use with liquids of low to medium viscosity.
Tool-free adjustment
The Easy Calibration technology allows for tool-free adjustment. With the Fix model, the volume is adjusted by turning in the plus or minus direction; the fixed nominal volume cannot be altered.
Autoclaving and UV sterilisation
The entire pipette can be autoclaved at 121 °C and 2 bar with a holding time of 15 minutes; the procedure according to DIN EN 285 is recommended. Before autoclaving, the tip is discarded and the PE filter is removed; in the autoclave, the pipette lies in a sterilisation pouch. You must check for yourself whether the sterilisation has been effective. The pipette is resistant to standard UV disinfection lamps, although a change in colour is possible.
Fixed or variable
The F-2000 has a fixed volume and is designed for batches requiring a constant volume. If you wish to adjust the volume, use a variable Transferpette S, such as the Transferpette S D-1000 or the Transferpette S D-5000.
Typical applications
- Repetitive tasks involving a constant volume of 2 ml
- Pipetting and dispensing liquids of low to medium viscosity
- Large nominal volumes, such as those required in water and environmental analysis
- Tasks where the pipette is to be autoclaved or sterilised using UV light
Technical details
| Nominal volume (fixed) | 2,000 µl (2 ml) |
| Design | Single-channel, fixed volume (Fix), short designation F-2000 |
| Recommended tip type | 500 to 5,000 µl |
| Accuracy (systematic) | ≤ ±0.8 % (≤ ±16 µl) |
| Coefficient of variation (random) | ≤ 0.3 % (≤ 6 µl) |
| Test | according to DIN EN ISO 8655, at 20 °C, distilled water |
| Operating temperature | +15 to +40 °C |
| Vapour pressure | up to 500 mbar |
| Viscosity | up to 260 mPa s |
| Autoclaving | Complete pipette, 121 °C, 2 bar, 15-minute holding time |
| UV sterilisation | resistant, colour change possible |
| Adjustment | Easy Calibration technology, no tools required |
| Markings | DE-M according to the Measures and Verification Act, year, serial number, QR or Data Matrix code for BRAND MyProduct |
Scope of delivery
- Transferpette S Fix F-2000
- Quality certificate
- Silicone grease
Pipette tips and PE filters are not included.
Frequently asked questions
Can the volume be adjusted? No. The Fix has a fixed nominal volume of 2,000 µl. The volume is adjusted by turning the knob in the plus or minus direction.
Which tips are compatible? BRAND pipette tips from 500 to 5,000 µl.
Is the pipette autoclavable? Yes, the entire pipette can be autoclaved at 121 °C and 2 bar with a hold time of 15 minutes. Discard the tip and remove the PE filter beforehand; you must check for yourself whether the sterilisation has been effective.
Where can I find the certificate for the individual unit? Via the QR or Data Matrix code on the unit via BRAND MyProduct.
Individual requirements and procurement service
Compatible with the F-2000, pipette tips are available from 500 to 5,000 µl, along with PE filters, a stand for the Transferpette S, a holder, an ejector set comprising an upper and lower part (from 2 ml), as well as spare parts for the piston unit, seal, shaft and grease. We source these parts and other BRAND pipettes via our procurement service.
