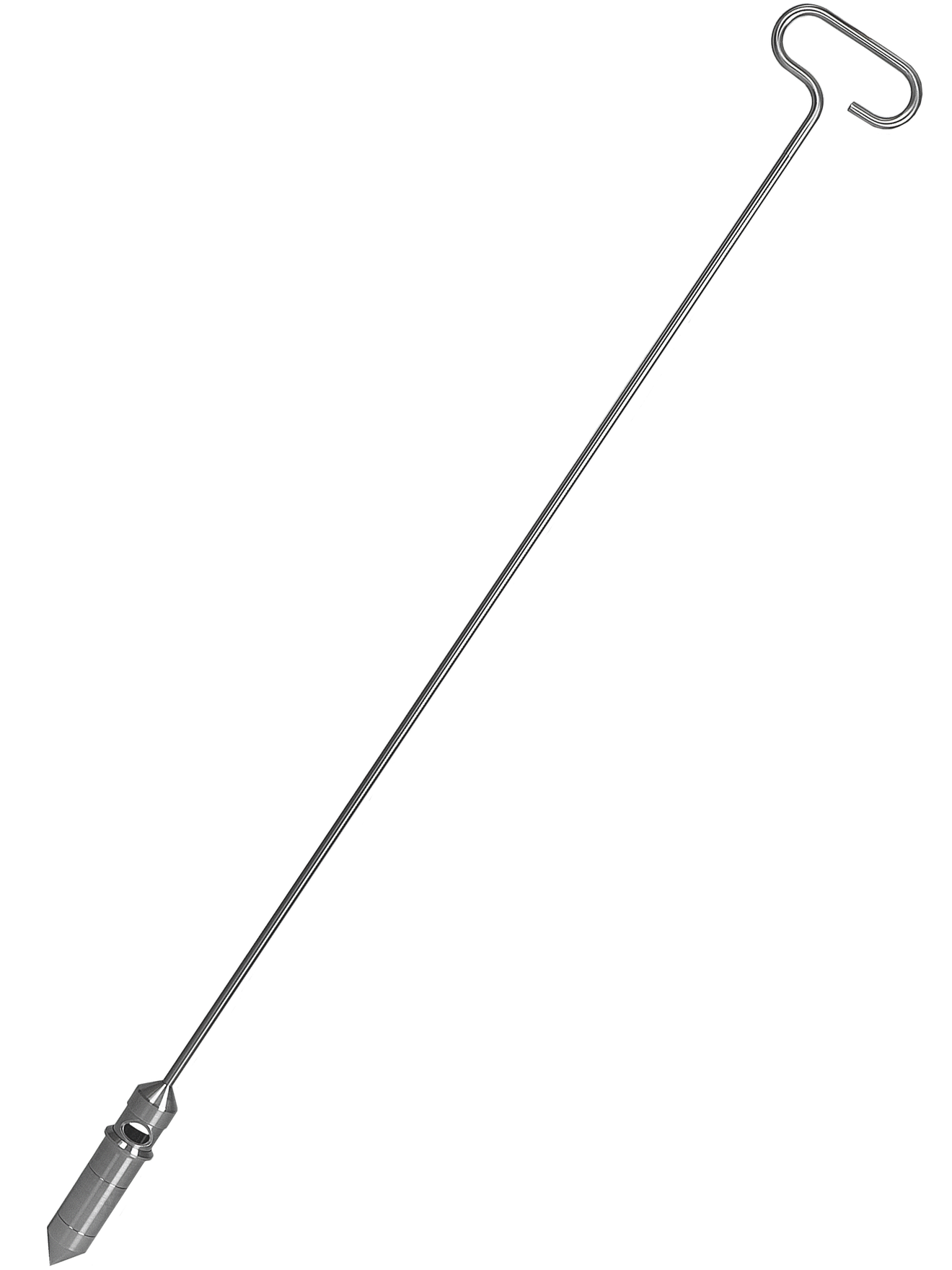

Bürkle SiloPicker silo sampler, V4A stainless steel, 1,200 mm penetration depth, 5340-1100
€390.00
- 1,200 mm penetration depth, 1,300 mm overall length
- 2 collection ports, 100 ml collection volume
- V4A stainless steel (1.4404, AISI 316L)
- Material tested in accordance with EU Regulation 1935/2004 for food contact
- For free-flowing bulk materials from silos and storage tanks
- Target-point sampler for precise deep sampling
Product information "Bürkle SiloPicker silo sampler, V4A stainless steel, 1,200 mm penetration depth, 5340-1100"
Grain, animal feed or chemical powders stored in a silo for months change to varying degrees depending on their depth. Moisture sinks to the bottom, heat builds up in the centre, and pest infestation often starts in one spot and only spreads later. The SiloPicker from Bürkle penetrates up to 1,200 millimetres deep into a silo or other storage container and extracts the material specifically from this depth, rather than merely taking samples from the surface. A surface sample alone would not reveal these differences between the layers at all.
1,200 millimetres penetration depth, two collection ports

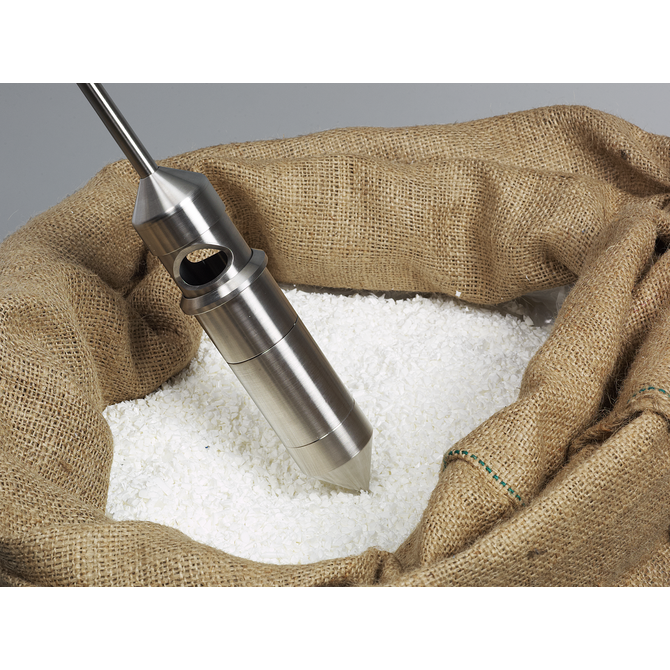

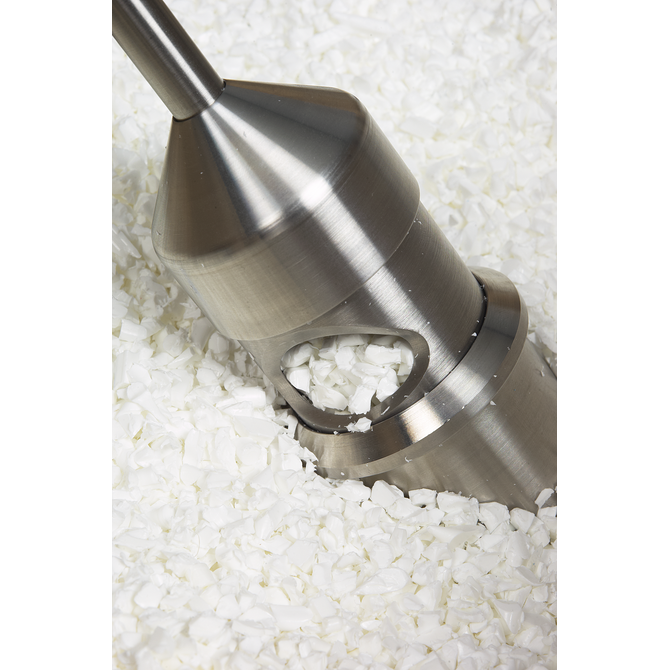

With a total length of 1,300 millimetres and an external diameter of 50 millimetres, the SiloPicker reaches significantly deeper into a container than the shorter Bürkle samplers designed for drums and cartons. Two collection ports together hold 100 millilitres of sample material; the collection chamber begins at a penetration depth of 143 millimetres. This design makes the device a targeted sampler that collects specifically from a particular layer rather than across the entire penetration depth, which distinguishes it from a continuous lance.
For free-flowing bulk materials
The SiloPicker is designed for free-flowing materials that flow freely around the device, such as cereal grains, pellets or fine-grained chemical powders. With materials that cake or clump together – and which tend to compact rather than be displaced during penetration – this design reaches its limits; in such cases, a device with an actively scraping opening is the better choice. It is therefore worth taking a quick look at the flow properties of the stored material before first use.
Representative sampling across multiple target points
As with any single-point sampler, a single penetration captures data from just one position in the silo. To obtain a reliable picture of the entire stock, multiple penetrations are required at different locations and depths; taken together, the results provide a comprehensive view of the material’s distribution. The 100-millilitre sample volume per penetration is sufficient for most routine analyses, without the need for a separate device for each position.
Material for continuous use
The device is manufactured from V4A stainless steel (1.4404, AISI 316L), which withstands the frequent mechanical stress of sampling and cleaning between batches without corrosion. The material is certified for food contact in accordance with EU Regulation 1935/2004, making it suitable for use in grain and feed silos. With a total length of 1.3 metres and the corresponding lever required for sampling, the stability of V4A offers additional benefits compared to lighter materials.
Typical applications
- Stock monitoring of grain and animal feed for the early detection of spoilage or pest infestation
- Quality testing of chemical powders and granules during ongoing storage
- Monitoring of moisture distribution in silos throughout the storage period
- Release testing prior to onward transport from the silo storage facility
- Sampling of powders and granulates in the chemical industry
For deeper silos or other zones
If the penetration depth of 1,200 millimetres is insufficient for particularly large silos, or if the entire height profile is to be sampled in separate layers rather than at a single target point, the PowderProof sampling lance with a horizontal screw conveyor is an alternative for sampling from silos and big bags. For vertical sampling from above, LT Laborhandel also stocks the PowderProof vertical sampling probe. If, on the other hand, only very small quantities are required from a single target point – for example, from a single bag rather than an entire silo – the shorter StickProof powder sampler is the more compact alternative for bags and cartons.
Technical details
| Material | V4A stainless steel (1.4404, AISI 316L) |
| Penetration depth | 1,200 mm |
| Total length | 1,300 mm |
| Outer diameter | 50 mm |
| Number of collection openings | 2 |
| Total sample volume | 100 ml |
| Start of the collection chamber | 143 mm |
| Compliance with standards | EU 1935/2004 (food contact, material tested) |
Contents
- Silo sampler SiloPicker
Service and procurement
For businesses that take samples from both shallow and deep silos, LT Laborhandel will put together an order comprising the SiloPicker and suitable probes from the Bürkle range, for example where several different silo sizes are in use simultaneously at a single site. If you have any questions regarding the correct penetration depth or suitability for a particular bulk material, please contact LT Laborhandel directly for assistance.
