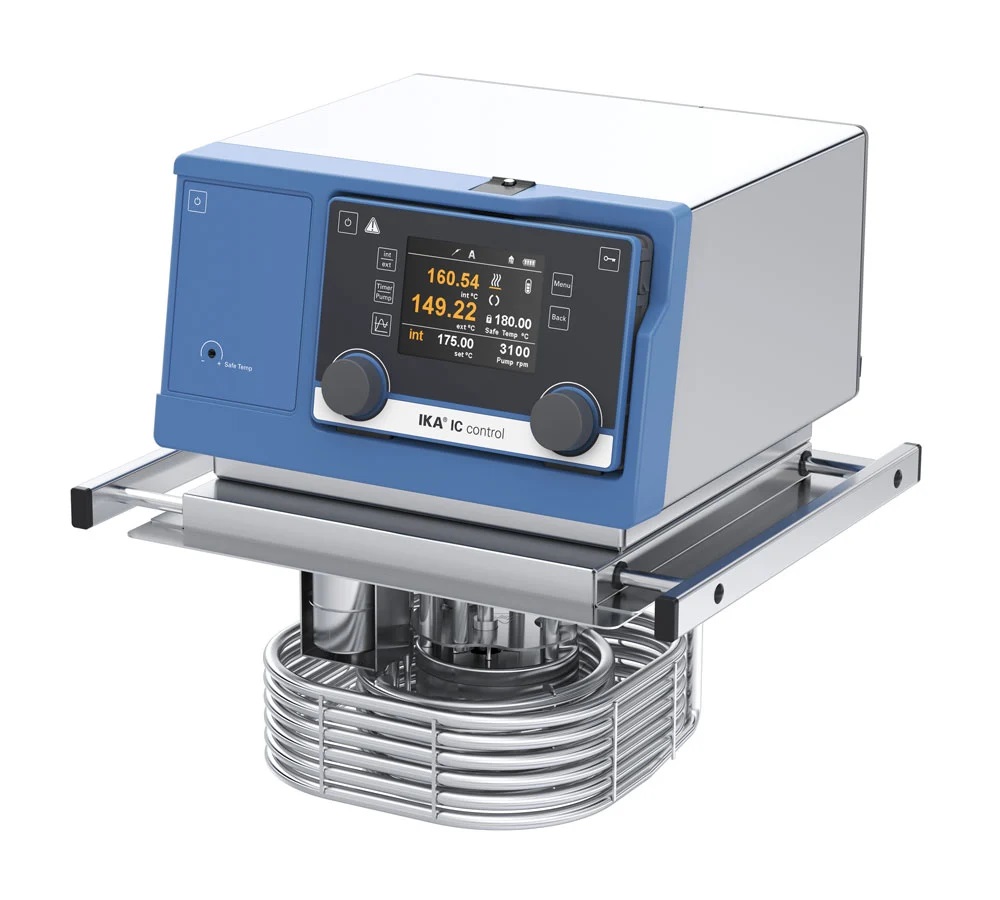

IKA Bridge Thermostat, IC control, 0003863000

IC control
The IC control immersion thermostat has an extended temperature range for heating liquids in open and semi-open bath vessels up to 250 °C.
The control unit features a colour TFT graphic display which shows all relevant process parameters. The user can switch from internal to external control at the touch of a button.
The multilingual, image-based menu navigation via push and rotary buttons ensures simple and safe operation. Thanks to the innovative detachable remote control, the unit can be operated from a distance of up to 10 metres. All IKA thermostats comply with the highest safety classification III (FL) for use with flammable liquids in accordance with DIN 12876. The IC control immersion thermostats enable fast heating times and stable temperature conditions. With the integrated M16x1 connections, the unit can be used for external applications.
Temperature range: RT – 250 °C
Temperature stability: ± 0.01 K
Extendable stainless steel bath bridge, allowing
the thermostat to be suspended in bath vessels of various sizes The wireless, detachable display enables safe operation, e.g. in front of a closed fume cupboard
High-performance pressure and suction pump with a temperature- and chemical-resistant plastic housing.
Adjustable safety circuit
. Integrated cooling coil
. Temperature setting, pump speed, liquid level and safety temperature are displayed
on a large, easy-to-read TFT display. Electronic timer function: 0–99h 59min
Visual and audible warning functions
Connection of a solenoid valve possible
USB/RS-232 interface for controlling and monitoring the units via labworldsoft® and for online updating of the unit software

Technical data
Device type Immersion
thermostat Class designation according to DIN 12876 III
Marking according to DIN 12876 FL
Heating power 2500 W
Operating temperature Room temperature +10K @1000rpm – 250 °C
Minimum operating temperature (with external cooling) –20 °C
Temperature display: yes
Temperature control: PID
Operating temperature sensor: PT 100
Safety temperature sensor: PT 1000
Operating temperature display: TFT
Safety temperature display: TFT
Temperature stability: DIN 12876 ±0.01 K
Connection for external temperature sensor PT 100
Display resolution 0.01 K
Display of operation with external sensor: yes
Setpoint accuracy: ±0.1 K
Visual warning function: yes
Audible warning function: yes
Overtemperature warning function: yes
Safety circuit: adjustable 0–260 °C
Low-level protection: yes
High-level protection: yes
Pump type: Pressure/suction pump
Adjustable pump output: yes
Maximum pump pressure: (0 litres flow rate) 0.61 bar
Pump pressure (suction side) max. (0 litres flow rate) 0.45 bar
Flow rate max. (0 bar back pressure) 31 l/min
Pump connections M16x1
Cooling coil connection NW 8
Bath depth min. 150 mm
Calibration option yes
Unit mounting: bridge
; clamping range of universal clamp 280–375 mm
Technical data in accordance with DIN 12876
Standard; permissible duty cycle 100%
Multi-interface yes
Alarm output (voltage-free contact) max. 30 V AC/DC
Alarm output (voltage-free contact) max. 1 A
Switching output for solenoid valve 24 VDC
Switching output for solenoid valve max. 0.8 A
Standby input 5 VDC
Dimensions (W x H x D) 285 x 313 x 291 mm
Weight 5 kg
Permissible ambient temperature range 5 – 40 °C
Permissible relative humidity 80 %
Protection class according to DIN EN 60529 IP 21
RS-232 interface yes
USB interface yes
Voltage 230 V
Frequency 50/60 Hz
Power consumption 2650 W

Accessories and spare parts available on request
