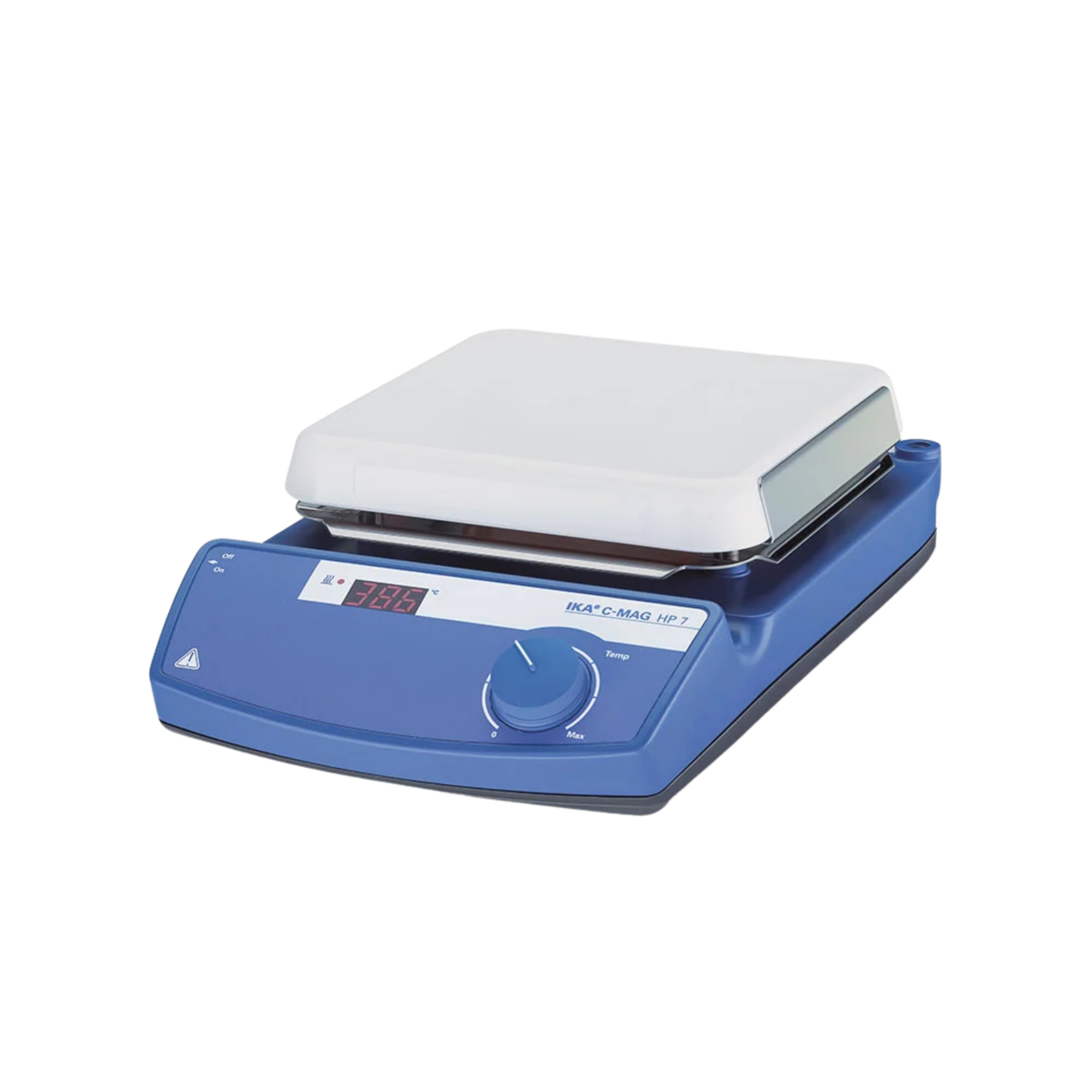

IKA C-MAG HP 7, hotplate, with glass-ceramic worktop, 0003581800

Thermal Process Technology and Material Resistance

The IKA C-MAG HP 7 hotplate is designed for thermal digestion and heating processes in demanding laboratory environments. At the heart of the system is the monolithic glass-ceramic work surface (vitroceramic), which is characterised by excellent chemical resistance to aggressive acids, bases and solvents. From a thermodynamic perspective, the vitreous ceramic offers a specific thermal conductivity that enables efficient energy transfer whilst maintaining a high mechanical surface finish. The housing is designed to protect the electronics from potential leaks, which significantly extends the service life of the unit in corrosive atmospheres.

Precise metrology and thermodynamic safety

The system is controlled via a digital display, which shows the setpoint temperature and allows precise adjustment of the thermal parameters. An integral part of the safety architecture is the fixed safety limit of 550 °C, which prevents thermal runaway. To minimise the risk of accidents after the heating process has been switched off, the device features a ‘Hot Top’ warning indicator, which remains active until the surface temperature has fallen below a safe range. The integrated interface in accordance with DIN 12878 allows the connection of an external contact thermometer (e.g. ETS-D5), enabling highly precise control of the medium temperature directly within the sample.

Technical details

Thermodynamics & Heating Technology

• Heating power: 1000 W
• Heating temperature range: 50 to 500 °C
• Heating temperature setting accuracy: ± 10 K
• Fixed safety cut-off: 550 °C
• Heating rate (1 l H₂O in H15): 5 K/min

Metrology & Control Engineering

• Display: Digital LCD (setpoint)
• Connection for external temperature sensor: DIN 12878 (e.g. PT 1000)
• Control accuracy with sensor (PT 1000): ± 3 K
• Safety indicator: Visual warning for hot surface (Hot Top indicator)

Kinematics & Material Properties

• Base material: Glass-ceramic
• Base dimensions: 200 x 200 mm
• Housing material: Cast aluminium / thermoplastic polymer

Chamber structure & dimensions

• Dimensions (W x H x D): 220 x 105 x 330 mm
• Weight: 4 kg
• Permissible ambient temperature range: 5 to 40 °C
• Permissible relative humidity: 80 %
• Protection class according to DIN EN 60529: IP 21
• Voltage: 230 V (50/60 Hz)
• Power consumption: 1005 W

Contents of delivery

• 1 x IKA C-MAG HP 7 hotplate
• 1 x mains cable
• 1 x user manual

Important note: An external temperature sensor (e.g. PT 1000) for direct monitoring of the medium temperature is not included as standard and must be purchased separately.

Customised requirements & accessories

For precise cybernetic control of the sample temperature, the use of an external resistance thermometer (PT 1000) or an electronic contact thermometer is essential to compensate for the thermal inertia of the glass-ceramic plate. We also recommend stainless steel stand components and appropriate mountings for chemically aggressive test set-ups. Please use our procurement service to configure your bespoke measurement setup.
