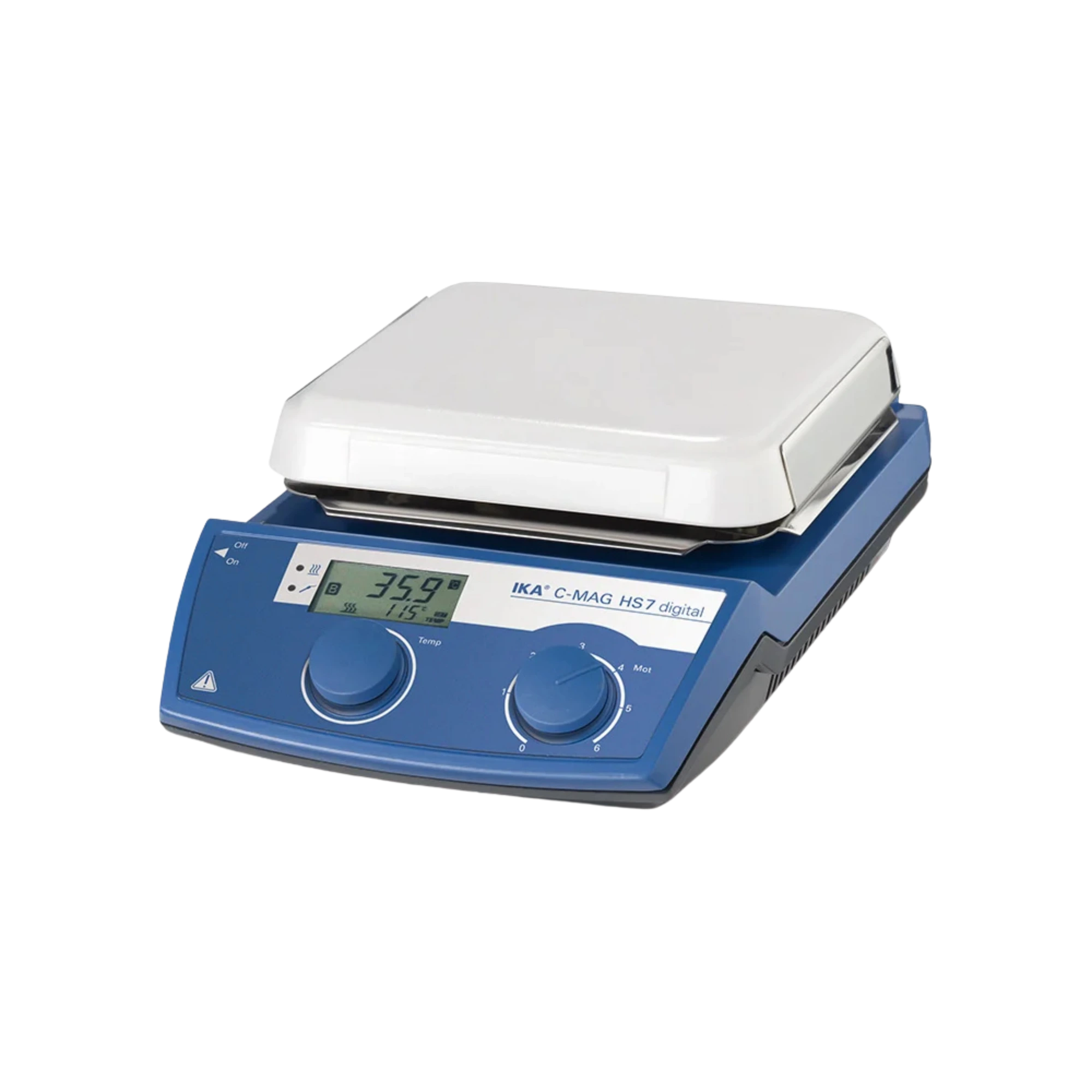

IKA C-MAG HS 7 digital magnetic stirrer with heating, chemical-resistant ceramic base, 0003487000

ⓘ  This product description has been translated from German using AI. Despite careful review, we do not guarantee that the translation is error-free; in case of doubt, the German version shall prevail.

Product information "IKA C-MAG HS 7 digital magnetic stirrer with heating, chemical-resistant ceramic base, 0003487000"

The IKA C-MAG HS 7 digital magnetic stirrer with heating (MPN 0003487000) is a magnetic stirrer with heating for stirring and temperature control of liquid media. Designed for a stirring volume of up to 10 litres of water, this instrument combines proven durability with a modern digital control system. In professional laboratories specialising in chemical synthesis, pharmaceuticals and biotechnology, as well as in industrial test facilities, this safety magnetic stirrer with heating provides a reliable foundation for carrying out demanding routine processes and reproducible analytical runs with process reliability.

Chemical-resistant, seamless glass-ceramic work surface

The material-science foundation of the stirring drive is the square, 180 x 180 mm work surface, which is manufactured from a single block of high-quality white glass-ceramic. Compared to conventional metal or plastic coatings, this ceramic matrix is, according to the manufacturer, chemical-resistant. The smooth surface allows for easy cleaning and wipe disinfection. The material allows operating temperatures of up to 500 °C.

Precise digital temperature control and microprocessor-controlled kinetics

From a process engineering perspective, the digital version of the C-MAG HS 7 has a digital display for control and operation. The integrated, high-contrast digital LCD display enables laboratory staff to monitor and set the target temperature. For high-precision temperature control directly within the liquid core of the sample, the instrument features a dedicated connection socket for the PT1000 temperature sensor included in the scope of delivery. The powerful motor covers a continuously variable speed range from 100 to 1,500 revolutions per minute and supports homogeneous mixing even in the event of transient changes in the viscosity of the medium.

Multi-stage safety concept

The operational reliability of the C-MAG HS 7 digital is underpinned by a sophisticated, multi-stage safety concept. A fixed safety circuit switches off the 1,000-watt heater in the event of a temperature rise above 550 °C. Should a system fault occur, the microprocessor control system displays the relevant error codes directly on the screen. To protect laboratory staff from painful burns, a highly visible, optical residual heat indicator (Hot Top Indicator) warns of a hot surface until the ceramic plate has cooled to a safe temperature of below 50 °C, even when the unit is completely switched off.

Technical details

Drive & Stirring Data

  • Number of stirring points: 1
  • Max. stirring volume (based on water): 10 litres
  • Motor power input / output: 15 watts / 1.5 watts
  • Speed range: 100 to 1,500 revolutions per minute (rpm)
  • Speed control: Continuously variable via analogue rotary control with scale
  • Kinetic drive: Powerful DC motor with high speed stability

Thermodynamics & heating power

  • Heating power: 1,000 watts (for fast, highly efficient heating cycles)
  • Heating plate temperature: 50 to 500 °C
  • Setting & display accuracy: Digital via LCD display (heating plate control accuracy: +/- 1 K)
  • Connection for external sensor: PT1000 (direct connection via integrated socket)
  • Control accuracy in the medium with PT1000: ±0.5 K
  • Heating plate dimensions: 180 x 180 mm (7-inch geometry)
  • Top surface material: Seamless, highly chemically resistant glass-ceramic
  • Fixed safety circuit: 550 °C (self-contained overheating protection)

Design, geometry & degree of protection

  • Housing design: Robust, chemically resistant coated laboratory housing with raised control panel
  • IP rating according to DIN EN 60529: IP 21 (protected against vertically falling dripping water)
  • Dimensions (width x depth x height): 215 x 330 x 105 mm
  • Net weight: 5.0 kg
  • Mains connection / voltage: 230 V / 50/60 Hz

Scope of delivery

  • 1 x IKA C-MAG HS 7 digital magnetic stirrer with heating
  • 1 x IKA PT1000.60 stainless steel temperature probe
  • 1 x mains lead
  • 1 x Detailed operating instructions / safety guide

Warranty

Manufacturer’s warranty from IKA: 2 years, extended to 3 years upon registration at ika.com/register within 90 days of purchase.

Regulatory information

This device is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, IKA, is DE 66784213. Information on the return of old appliances can be found on our page Environment and disposal.

Individual requirements & accessories

Compatible accessories are also available for the IKA C-MAG HS 7 digital:

  • Stand & mounting components: Sturdy IKA support rods (e.g. H 16 V) and robust boss heads (e.g. H 44) for secure, vibration-free mounting of the PT1000 temperature probe above the sample vessel.
  • Housing protection: Precisely fitting, transparent silicone protective covers to reliably protect the housing and control knobs from aggressive liquid splashes.
  • Consumables: PTFE-coated magnetic stirring bars (stirring rods) in cylindrical, oval or triangular shapes for adaptation to your beakers or Erlenmeyer flasks. Make use of our technical procurement service to design your laboratory workstations to suit your requirements.
Certification marks: NRTL (TÜV SÜD, USA/Canada)
