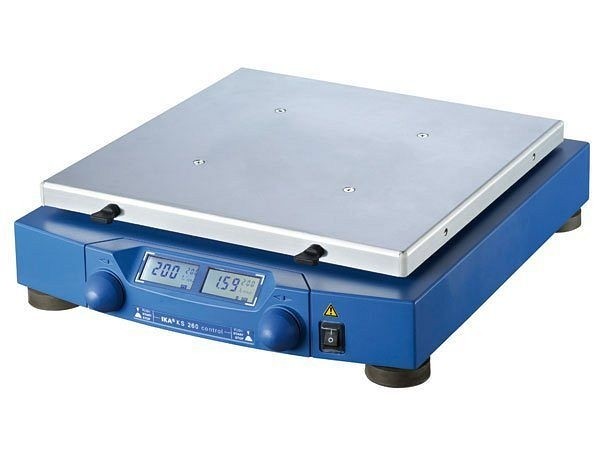

IKA circular shaker with end-point positioning, KS 260 control, 0002980300

KS 260 control
The KS 260 control circular shaker is the ideal solution for laboratory applications requiring gentle mixing of samples. Thanks to its compact and low-profile design, it fits easily onto any laboratory bench. With a maximum shaking load of 7.5 kg, it is suitable for a wide range of sample vessel sizes and shapes. The shaker’s integrated end-point positioning enables automated, robot-controlled sampling.
The digital LED display makes it easy to read the speed and timer function
; speed and timer can be
set electronically for precise control. The 10.0 mm shaking stroke ensures uniform mixing
. Thanks to the variable speed range of 10–500 rpm, it is suitable
for a wide range of applications. Timer function (from 1 min to 99 h 59 min) and continuous operation possible
. RS-232 interface for external control and documentation via labworldsoft®
. A wide range of attachment combinations is available for almost all vessel shapes and sizes; accessories are not included and must be
ordered separately. A special version with clockwise and anti-clockwise rotation is available on request

Technical data
Movement type: circular
Shaking stroke: 10 mm
Permissible shaking weight (incl. attachment): 7.5 kg
Motor power input: 45 W
Motor power output: 10 W
Permissible duty cycle: 100 %
Speed (min.) (adjustable) 10 rpm
Speed range 0 – 500 rpm
Speed display LED
Timer Yes
Timer display LED
Timer setting range 1 – 5999 min
Operating modes Timer and continuous operation
Shaking table lock Yes
Dimensions (W x H x D) 360 x 98 x 420 mm
Weight 8.8 kg
Permissible ambient temperature range 5 – 50 °C
Permissible relative humidity 80 %
Protection class according to DIN EN 60529 IP 21
RS 232 interface yes
Analogue output yes
Voltage 220 – 240 V
Frequency 50/60 Hz
Power consumption 45 W
Fuse 2x T1A 250V

Accessories and spare parts available on request
