IKA Compact Thermostat Package ICC control IB R RO 15 eco, polycarbonate bath, 0010002474
€4,234.50
% Manufacturer's RRP: €5,646.00 25% below manufacturer's RRP
- Thermostat package including an ICC control immersion thermostat, a special plastic bath and an RO 15 magnetic stirrer
- Temperature stability of ±0.01 K for sensitive thermodynamic applications
- Transparent polycarbonate bath (15 L) allows visual monitoring of the samples
- Geometrically optimised bath base for synchronous heating and stirring on an RO 15 magnetic stirrer
- High-resolution TFT colour display with integrated programming function for complex temperature profiles
- Integrated USB and RS232 interfaces for PC data transfer and documentation
ⓘ This product description has been translated from German using AI. Despite careful review, we do not guarantee that the translation is error-free; in case of doubt, the German version shall prevail.
Product information "IKA Compact Thermostat Package ICC control IB R RO 15 eco, polycarbonate bath, 0010002474"
The IKA ICC control IB R RO 15 eco compact thermostat package represents a highly advanced, mechatronic system solution for the precise temperature control and simultaneous mixing of sample media in clinical, biological and chemical laboratory environments. This ready-to-connect complete system combines the immersion thermostat of the ICC control series with a specialised, transparent plastic bath and the RO 15 magnetic stirrer. For demanding analytical test series, enzymatic reactions or sample preparation in multi-user operation, temperature stability and visual monitoring of the samples are the primary criteria for reproducible results.
Intelligent thermoregulation and high-performance kinetics
The process engineering heart of this package is the ICC control immersion thermostat. Equipped with a sophisticated microprocessor control system, the unit achieves a temperature stability of ±0.01 K. A high-resolution, high-contrast TFT colour display guides the user intuitively through all process parameters and allows the visual representation of temperature curves as well as integrated program sequences (up to 10 programs, each with 10 segments). The integrated, powerful pressure and suction pump, with a flow rate of up to 18 litres per minute, ensures mixing and temperature distribution throughout the bath volume.
Geometric optimisation for synchronous magnetic stirring processes
The material-scientific and design-related distinctive feature of the supplied IB R RO 15 eco plastic bath lies in its specialised geometry. This transparent bath made of impact-resistant polycarbonate (PC) is dimensioned and modified at the base so that it can be mounted onto a multi-position magnetic stirrer (such as the IKA RO 15 series). This structural synergy enables laboratory staff to heat sample vessels precisely in the water bath whilst simultaneously stirring them synchronously through the bath base via magnetic coupling. The transparent bath allows a view of the samples.
Connectivity, documentation and safety features
The electronic system architecture of the ICC control is consistently geared towards the requirements of modern, digitised laboratories. Via integrated USB and RS232 interfaces, the thermostat package can be integrated into higher-level laboratory software, which supports data acquisition and documentation. Safety features include an adjustable safety circuit against thermal overload, a mechanical float switch as dry-run protection, and visual and audible alarm signals.
Technical details
Thermoregulation & pump specifications
- Thermostat type: Compact immersion thermostat (ICC control)
- Working temperature range: Room temperature +10 °C to 80 °C (in the polycarbonate bath, water only)
- Temperature stability according to DIN 12876: ±0.01 K
- Pump type: Adjustable pressure and suction pump
- Max. flow rate (free flow): 18 l/min
- Max. delivery pressure: 0.3 bar
- Max. suction pressure: 0.2 bar
Bath geometry & materials
- Bath designation: IB R RO 15 eco
- Bath material: High-quality polycarbonate (PC), transparent and dimensionally stable
- Functional geometry: Optimised for use with multi-position magnetic stirrers (specifically the IKA RO 15)
- Max. bath volume: approx. 15 litres
- Cleaning: Resistant to mild laboratory cleaning agents; can be wiped clean without damaging the material
Electronics, interfaces & safety
- Display: High-resolution TFT colour display for showing all transient parameters
- Program functions: Integrated programmer for 10 programs, each with 10 segments
- External sensor connection: for direct connection of a PT100 sensor
- Interfaces: USB-B and RS232 for reliable PC connectivity
- Safety systems: Adjustable safety circuit (overheating protection), visual/audible fault alarm, liquid level float switch (dry-run protection)
- Mains supply: 230 V / 50/60 Hz
Scope of delivery
- 1 x IKA ICC control immersion thermostat base unit
- 1 x IKA plastic bath IB R RO 15 eco (System MPN: 0010002474)

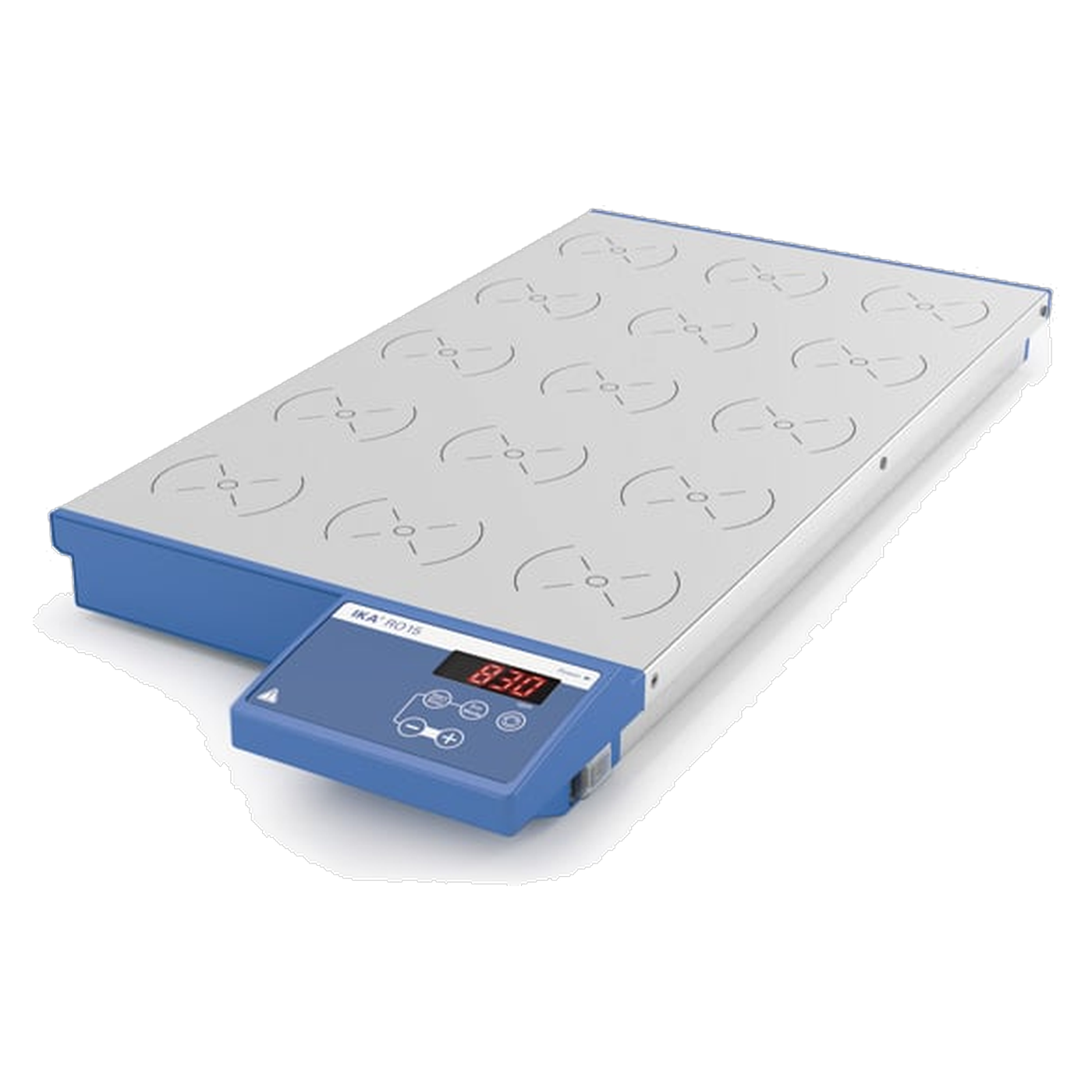

- 1 x IKA RO 15 magnetic stirrer (15 stirring positions)
- 1 x mounting bracket / bath bridge for secure installation
- 1 x mains cable
- 1 x operating instructions
Important note: External PT100 temperature sensors, bath lids and test tube holders are not included in the standard scope of delivery and must be ordered separately according to your specific application.
Warranty
Manufacturer’s warranty from IKA: 2 years, extended to 3 years upon registration at ika.com/register within 90 days of purchase.
Regulatory information
This device is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, IKA, is DE 66784213. Information on the return of old appliances can be found on our page Environment and disposal.
Individual requirements & accessories
The package includes the IKA RO 15 multi-position magnetic stirrer with 15 stirring positions for glass vessels up to 250 ml. To minimise evaporation losses and reduce energy consumption at operating temperatures above 60 °C, matching polycarbonate bath lids and floating insulating balls are available. For precise temperature control directly within your sample vessel, an external PT100 temperature sensor can be connected. For automated control and comprehensive documentation of your temperature profiles, the system can be seamlessly integrated with the labworldsoft® laboratory software. Please use our technical procurement service to configure your digitalised workstation.
| Certification marks: | NRTL (TÜV SÜD, USA/Canada) |
|---|
