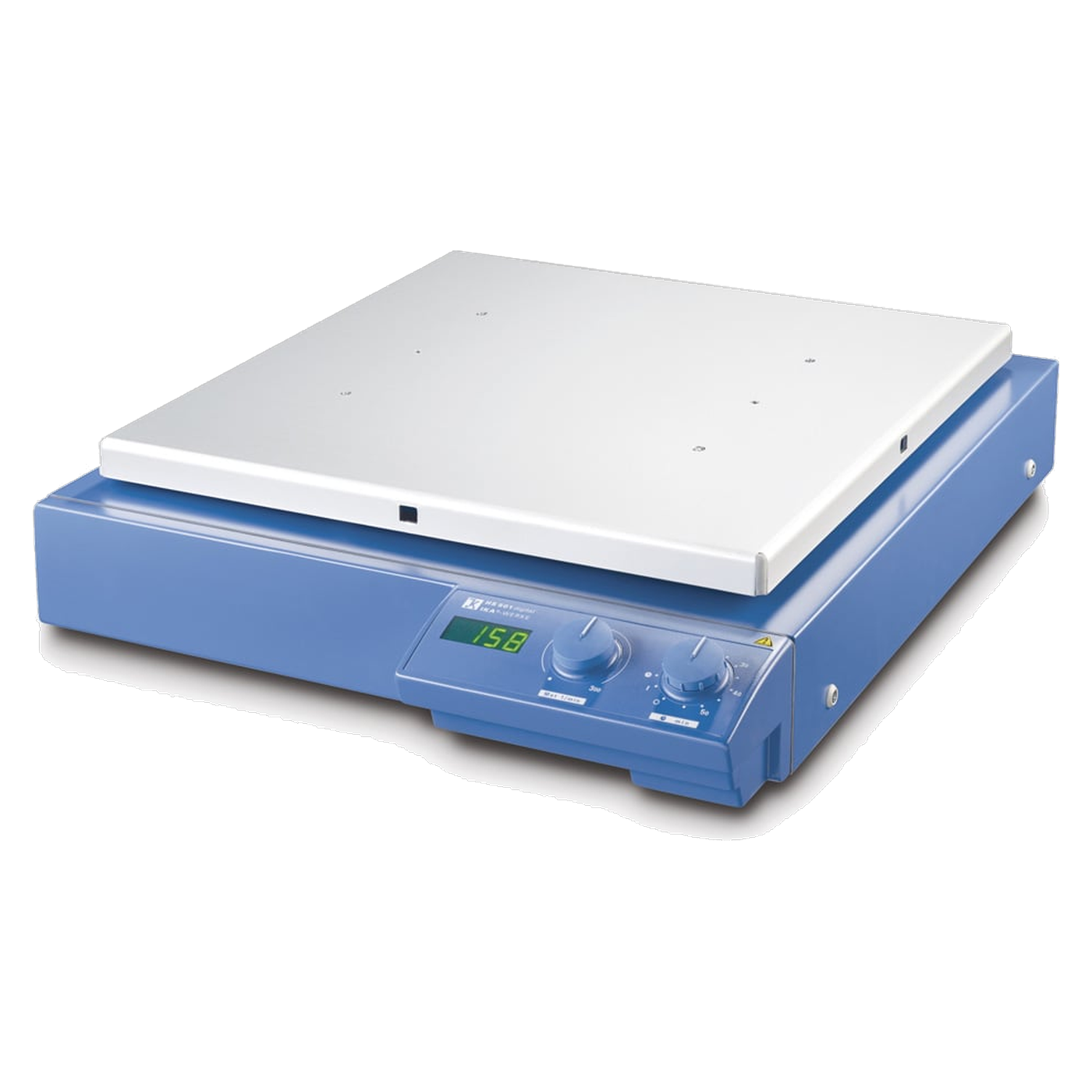

IKA HS 501 digital Horizontal Shaker, Reciprocating, Stroke 30 mm, 15 kg, 0025002982
€4,329.00
% Manufacturer's RRP: €5,772.00 25% below manufacturer's RRP
- Horizontal shaker with reciprocating motion for horizontal vessels such as separating funnels
- Shaking stroke 30 mm, platform 450 x 450 mm, up to 15 kg including attachment
- Speed 0 to 300 rpm, continuously adjustable, 7-segment LED
- Timer: 1 to 55 minutes or continuous operation at 100 per cent duty cycle
- RS-232 and USB-B, USB-A to USB-B cable included in the scope of delivery
- 3-year manufacturer’s warranty upon registration within 90 days
Product information "IKA HS 501 digital Horizontal Shaker, Reciprocating, Stroke 30 mm, 15 kg, 0025002982"
The IKA HS 501 digital (0025002982) is a flat horizontal shaker with a reciprocating, i.e. back-and-forth, motion. IKA recommends it for all horizontal vessels, such as separating funnels. The reciprocating motion has a stroke of 30 mm; the platform measures 450 x 450 mm and can support up to 15 kg, including the attachment.
Reciprocating motion with a 30 mm stroke
The speed is continuously adjustable between 0 and 300 rpm and displayed on a 7-segment LED. The shaker operates in timer or continuous mode; the timer with scale covers 1 to 55 minutes. The permissible duty cycle is 100 per cent; IKA describes continuous operation as indefinite, even under extreme loads. The drive has a power input of 70 W and a power output of 19 W.
Attachments for horizontal vessels
The unit is supplied without attachments. IKA offers the following accessories for the HS 501, amongst others:
- AS 501.2, AS 501.3 and AS 501.6 separating funnel attachments
- AS 501.5 bowl attachment
- AS 501.1 universal attachment and AS 1.10 base mount
- AS 501.4 Clamp holder and clamps for 10 to 2,000 ml
- AS 1.11 tension roller and AS 1.12 support rail
- STICKMAX mat and IO R 2.10 adjustable tube rack
We will provide the item numbers on request to ensure the attachment fits the vessel size.
Typical applications
- Shaking of separating funnels and other horizontal vessels
- Set-ups with a shaking weight of up to 15 kg, including the attachment
- Timed runs from 1 to 55 minutes
- Continuous operation at 100 per cent duty cycle
- Control via RS 232 or USB-B
Comparison: HS 501 digital versus circular shakers
If you wish to move flasks and bottles in a circular motion, choose the KS 501 digital, which has the same platform, stroke and load capacity. For smaller batches up to 7.5 kg, the KS 260 control with a 320 x 320 mm platform is suitable. The table compares the three instruments side by side.
| Model | Motion | Stroke | Shaking weight | Platform | Rotation speed |
|---|---|---|---|---|---|
| HS 501 digital (this unit) | reciprocating | 30 mm | 15 kg | 450 x 450 mm | 0 to 300 rpm |
| KS 501 digital | rotary | 30 mm | 15 kg | 450 x 450 mm | 0 to 300 rpm |
| KS 260 control | rotary | 10 mm | 7.5 kg | 320 x 320 mm | 10 to 500 rpm |
Technical details
| Type of motion | reciprocating |
| Shaking stroke | 30 mm |
| Platform | 450 x 450 mm |
| Maximum test weight (including attachment) | 15 kg |
| Speed range | 0 to 300 rpm |
| Speed display | 7-segment LED |
| Time setting range | 1 to 55 minutes (scale) |
| Operating mode | Timer and continuous operation |
| Permissible duty cycle | 100 % |
| Motor power input / output | 70 W / 19 W |
| Interfaces | RS 232, USB-B |
| Voltage / Frequency | 230 V, 50/60 Hz (other variants: 115 V and 100 V) |
| Device power consumption | 74 W |
| Fuse | 2 x T4A 250 V |
| Permissible ambient temperature range | 5 to 50 °C |
| Permissible relative humidity | 80 % |
| Protection class | IP 21 (DIN EN 60529) |
| Dimensions (W x H x D) | 505 x 120 x 585 mm |
| Weight | 26 kg |
Scope of delivery
- 1 x IKA HS 501 digital horizontal shaker
- 1 x USB A-to-B cable
Attachments are not included and must be ordered to fit the vessel.
Warranty and disposal
IKA manufacturer’s warranty: 2 years, extended to 3 years upon registration at ika.com/register within 90 days of purchase. The warranty applies to the unit, not to the attachments. The unit weighs 26 kg and requires a level, stable surface. At the end of its useful life, as an electrical appliance, it must be disposed of via the separate collection scheme for waste electrical and electronic equipment.
Frequently Asked Questions
Which vessels is the HS 501 digital designed for? IKA lists all horizontal vessels, such as separating funnels.
How long is the warranty valid for? IKA’s manufacturer’s warranty: 2 years, extended to 3 years if registered at ika.com/register within 90 days of purchase.
What is included in the scope of delivery? The horizontal shaker and a USB A-to-B cable. Attachments are not included.
Can the unit run continuously? Yes, the permissible duty cycle is 100 per cent. Alternatively, a timer can be set for between 1 and 55 minutes.
Individual requirements and procurement service
We’ll be happy to advise you on which separating funnel, dish or clamp attachment suits your vessels before you place your order. LT Laborhandel also procures factory calibration certificates and qualification documents. You can arrange this via the procurement service with a single enquiry.
