IKA KS 260 control Circular Shaker with End-point Positioning, Stroke 10 mm, 7.5 kg, 0002980300
€2,919.00
% Manufacturer's RRP: €3,892.00 25% below manufacturer's RRP
- Circular shaker with integrated end-point positioning for robot-controlled sampling
- Shaking stroke 10 mm, platform 320 x 320 mm, up to 7.5 kg including attachment
- Speed 10 to 500 rpm, timer 1 to 5,999 minutes or continuous operation
- LED display, RS-232 interface and analogue output
- Low-profile design 360 x 98 x 420 mm, 8.8 kg
- 3-year manufacturer’s warranty upon registration within 90 days
Product information "IKA KS 260 control Circular Shaker with End-point Positioning, Stroke 10 mm, 7.5 kg, 0002980300"

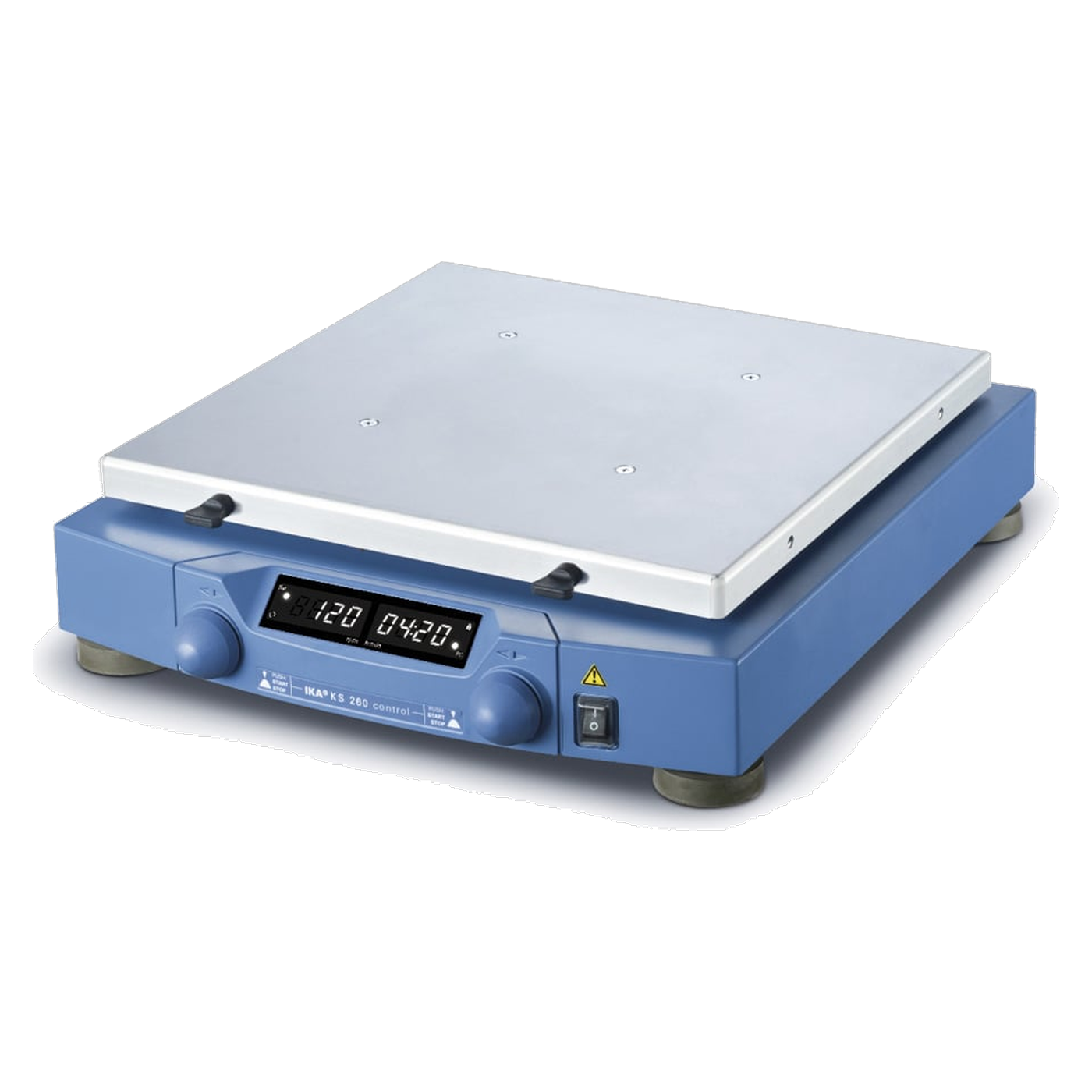

Anyone wishing to have samples taken by a robot needs a shaker that can handle this. The IKA KS 260 control (0002980300) features integrated end-point positioning for this purpose, enabling automated, robot-controlled sampling. This compact, low-profile circular shaker has a shaking stroke of 10 mm, a platform measuring 320 x 320 mm and can accommodate up to 7.5 kg, including the attachment.
Platform, stroke and load capacity
The motion is circular, with a stroke of 10 mm. Depending on the attachment used, vessels of various sizes and shapes can be accommodated on the 320 x 320 mm platform; the permissible shaking load of 7.5 kg includes the attachment. The unit is 360 mm wide, 98 mm high and 420 mm deep, and weighs 8.8 kg. It therefore sits flat on the laboratory bench and can also be used where there is limited headroom. The shaker can be locked in place. The permissible duty cycle is 100 per cent, meaning the shaker may run continuously.
Electronic adjustment of speed and timer
Speed and time are set electronically and displayed on LED readouts. The speed range is from 10 to 500 rpm. The timer runs from 1 minute to 5,999 minutes (99 hours and 59 minutes); alternatively, the unit can run continuously. An RS-232 interface is provided for external control and documentation, along with an analogue output. The motor power is 45 W input and 10 W output.
Typical applications
IKA describes the KS 260 control as being suitable for laboratory applications where samples need to be mixed gently:

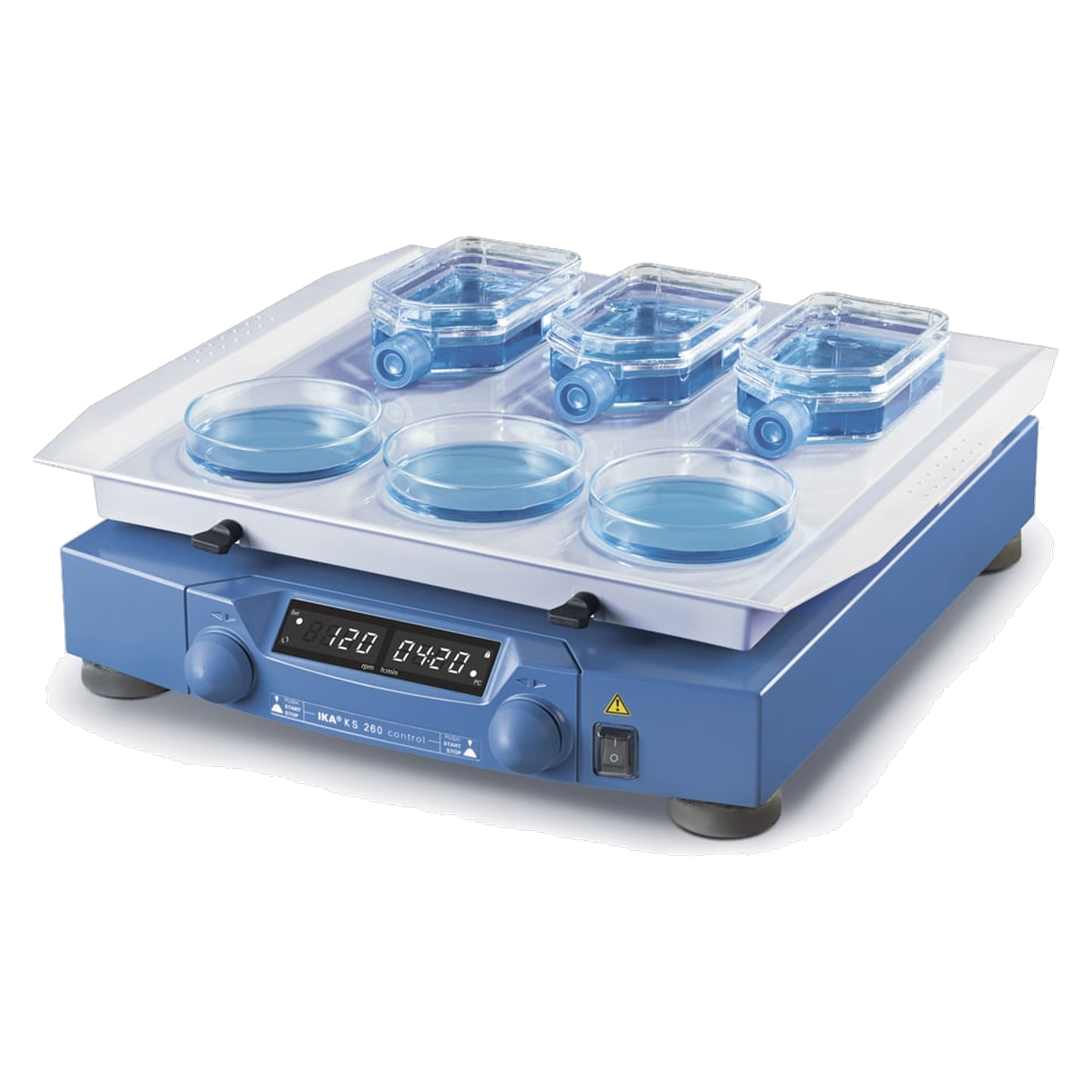

- Gentle mixing of samples in vessels of various sizes and shapes on the 320 × 320 mm platform
- Automated, robot-controlled sampling with integrated end-point positioning
- Shaking tasks with electronically adjustable speeds from 10 to 500 rpm
- Timed runs from 1 minute to 99 hours 59 minutes
- Continuous operation with a permissible duty cycle of 100 per cent
Selection guide within the KS series
The models in the KS 260 family share the same stroke, platform and shaking weight. They differ in terms of display, timer and positioning. The KS 260 basic has a timer ranging from 5 to 50 minutes and uses LED bars as its display. The KS 260 control NOL has the same performance specifications as the KS 260 control, but no end-point positioning. For smaller loads up to 2 kg, the KS 130 control is available with a 230 x 230 mm platform and a 4 mm stroke.
| Model | Stroke | Shaking weight | Speed | Timer | Interfaces |
|---|---|---|---|---|---|
| KS 260 control (this unit) | 10 mm | 7.5 kg | up to 500 rpm | 1 to 5,999 min | RS 232, analogue output |
| KS 260 basic | 10 mm | 7.5 kg | up to 500 rpm | 5 to 50 minutes | Analogue output |
| KS 260 control NOL | 10 mm | 7.5 kg | up to 500 rpm | 1 to 5,999 min | RS 232, analogue output |
| KS 130 control | 4 mm | 2 kg | up to 800 rpm | 1 to 5,999 min | RS 232, analogue output |
Technical details
| Motion type | Circular |
| Shaking stroke | 10 mm |
| Platform | 320 x 320 mm |
| Maximum shaking weight (including attachment) | 7.5 kg |
| Speed range | 10 to 500 rpm |
| Speed display | LED |
| Time setting range | 1 to 5,999 min |
| Timer display | LED |
| Operating mode | Timer and continuous operation |
| Permissible duty cycle | 100 % |
| Motor power input / output | 45 W / 10 W |
| Shaking table lock | yes |
| Interfaces | RS 232, analogue output |
| Voltage / Frequency | 220 to 240 V, 50/60 Hz |
| Power consumption | 45 W |
| Fuse | 2 x T1A 250 V |
| Permissible ambient temperature range | 5 to 50 °C |
| Permissible relative humidity | 80 % |
| Protection class | IP 21 (DIN EN 60529) |
| Dimensions (W x H x D) | 360 x 98 x 420 mm |
| Weight | 8.8 kg |
Scope of delivery
- 1 x IKA KS 260 control circular shaker
- 4 x fixing screws for attachments
- 1 x open-ended spanner
The scope of delivery does not include attachments for the vessels, and they must be ordered separately to suit the application.
Warranty, installation and disposal
IKA manufacturer’s warranty: 2 years; extended to 3 years upon registration at ika.com/register within 90 days of purchase. The appliance is designed for temperatures between 5 and 50 °C and up to 80 per cent relative humidity; protection class IP 21 protects against vertically falling dripping water. As an electrical appliance, the shaker must be disposed of via the separate collection scheme for waste electrical and electronic equipment at the end of its service life and must not be placed in household waste.
Frequently Asked Questions
What does end-point positioning mean for the KS 260 control? According to IKA, the shaker’s integrated end-point positioning enables automated, robot-controlled sampling.
How long is the warranty valid for? IKA’s manufacturer’s warranty: 2 years; extended to 3 years if registered at ika.com/register within 90 days of purchase.
Are attachments included in the scope of delivery? No. The scope of delivery includes fixing screws and a spanner. Attachments for the vessels must be ordered separately.
What is the difference between the KS 260 control and the KS 260 control NOL? Both share the same stroke, shaking weight, speed range and timer. The NOL version does not have end-point positioning.
Individual requirements and procurement service
LT Laborhandel can source suitable attachments, factory calibration certificates or qualification documents on request. If you need to move loads of up to 15 kg with a 30 mm stroke, take a look at the KS 501 digital. The procurement service allows you to tailor your selection to your specific requirements.
