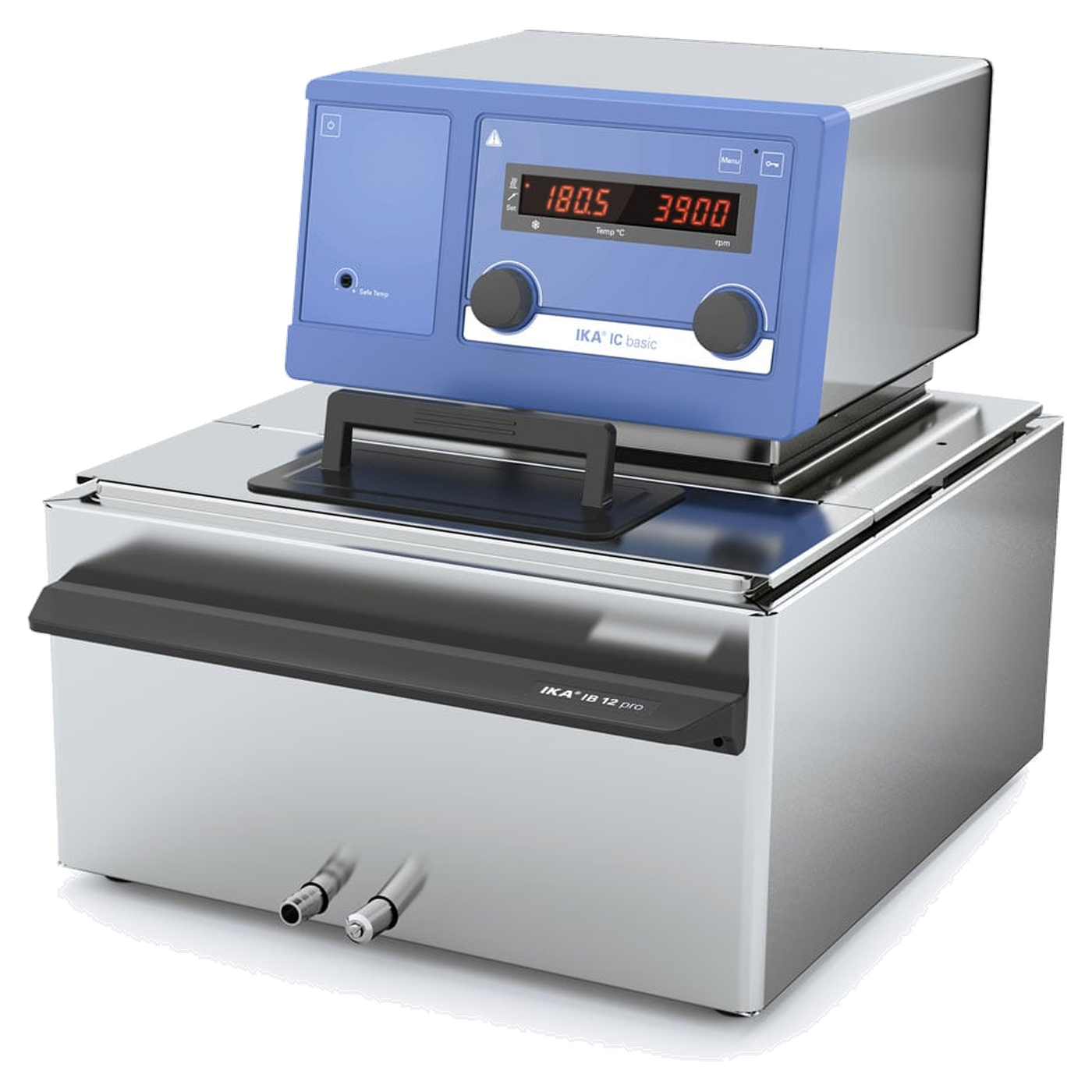

IKA IC basic pro 12 c Bath Package, IB 12 pro Stainless Steel Bath with Lid, 2,500 W, 0008039900

ⓘ  This product description has been translated from German using AI. Despite careful review, we do not guarantee that the translation is error-free; in case of doubt, the German version shall prevail.

Product information "IKA IC basic pro 12 c Bath Package, IB 12 pro Stainless Steel Bath with Lid, 2,500 W, 0008039900"

The IC basic pro 12 c is a ready-to-connect bath package. For it, IKA has assembled the IC basic bridge thermostat with the IB 12 pro stainless steel bath, the CM.IC cover, the BS.IC bath bridge, the CC1 cooling coil and the PT 100.30 temperature probe. The bath is size M. The package is intended as a ready-to-connect assembly with the necessary accessories, so bath, bridge and lid do not have to be procured individually.

What the package brings compared with the standalone thermostat

Compared with the standalone thermostat, the package brings the stainless steel bath, the bath bridge, the cover, the cooling coil and the PT 100.30 temperature probe. The thermostat sits on the bridge, and its universal clamp spans widths of 280 to 375 mm. The technical data of the thermostat apply to the IC basic in the package, and dimensions and bath opening to the complete package.

Heating up to 250 °C, bath up to 200 °C

The thermostat delivers 2,500 W and works from room temperature plus 10 K to 250 °C. A maximum bath temperature of 200 °C applies to the stainless steel bath of the pro series. With external cooling, an operating temperature down to -20 °C is possible. The PID control keeps the temperature constant to ±0.02 K according to DIN 12876. The LED display resolves to 0.1 K, and the set temperature can likewise be set to an accuracy of 0.1 K. An external PT 100 probe can be connected, and the display then indicates operation with an external probe.

Pump and connections

The pressure/suction pump has variable output and delivers up to 31 l/min at 0 bar back pressure. The maximum pump pressure is 0.61 bar, and on the suction side 0.45 bar. The pump connections have the thread M16x1.

Safety and interfaces

The thermostat is classified according to DIN 12876 as class III with marking FL, that is, intended for flammable liquids. The safety circuit can be set between 0 and 260 °C and works with its own PT1000 probe. Low and high level protection as well as visual and audible warning functions, including for over-temperature, are included. RS 232 and Micro-USB are available as interfaces, and a calibration option is provided.

Bath of size M in figures

The package measures 354 x 461 x 359 mm. The bath opening at the base plate is 255 x 80 mm and at the upper bath edge at most 292 x 105 mm. The immersion depth is 95 to 135 mm, and the bath depth must be at least 150 mm. The IC basic pro 20 c, with size L, has a package height of 641 mm, that is 180 mm more.

Typical applications

  • Temperature control of media in the stainless steel bath up to 200 °C
  • Supplying external consumers via the M16x1 pump connections
  • Operation with external PT 100 probe
  • Operation with external cooling down to -20 °C
  • Working with flammable liquids according to DIN 12876 class III FL
  • Connection to a PC via RS 232 or Micro-USB

Selection guide

If you want the finer display and the tighter temperature stability, look at the IC control pro 12 c with TFT display, 0.01 K resolution and ±0.01 K. For a larger bath, the IC basic pro 20 c is the variant with size L. The ICC basic pro 12 c Package offers an immersion circulator instead of a bridge thermostat, likewise with a bath of size M.

Technical details

Device typeBath package made up of IC basic bridge thermostat and IB 12 pro stainless steel bath
Bath sizeSize M
Max. temperature in stainless steel bath (pro series)200 °C
Working temperature of thermostatRoom temp. +10 K @1,000 rpm to 250 °C
Operating temperature min. (with external cooling)-20 °C
Heating power2,500 W
Power consumption2,650 W
Temperature controlPID
Working temperature probePT 100
Safety temperature probePT1000
Connection for external temperature probePT 100
Temperature stability according to DIN 12876±0.02 K
Display of working and safety temperatureLED
Display resolution0.1 K
Setting accuracy of set temperature0.1 K
Safety circuit, adjustable0 to 260 °C
Class and marking according to DIN 12876III, FL
Pump typePressure/suction pump, pump output variable
Max. pump pressure (at 0 l/min flow rate)0.61 bar
Max. pump pressure suction side (at 0 l/min flow rate)0.45 bar
Max. flow rate (0 bar back pressure)31 l/min
Pump connectionsM16x1
Device mountingBridge, clamping width of universal clamp 280 to 375 mm
Permissible duty cycle100 %
Dimensions of thermostat (W x H x D)285 x 313 x 291 mm
Overall dimensions of package354 x 461 x 359 mm
Bath opening (base plate)255 x 80 mm
Max. bath opening (upper bath edge)292 x 105 mm
Immersion depth95 to 135 mm
InterfacesRS 232, Micro-USB
Permissible ambient temperature and relative humidity5 to 40 °C, 80 %
Degree of protection according to DIN EN 60529IP 21
Power supply230 V, 50/60 Hz

Scope of delivery

  • 1 x IC basic bridge thermostat
  • 1 x IB 12 pro stainless steel bath, size M
  • 1 x PT 100.30 temperature probe
  • 1 x CC1 cooling coil
  • 1 x CM.IC cover
  • 1 x BS.IC bath bridge

Regulatory information

This device is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, IKA, is DE 66784213. Information on the return of old appliances can be found on our page Environment and disposal.

Warranty and procurement service

The IKA manufacturer's warranty of 2 years applies to the IC basic pro 12 c, extended to 3 years on registration at ika.com/register within 90 days of purchase. We procure replacement baths, lids, hoses and further accessories on request.
