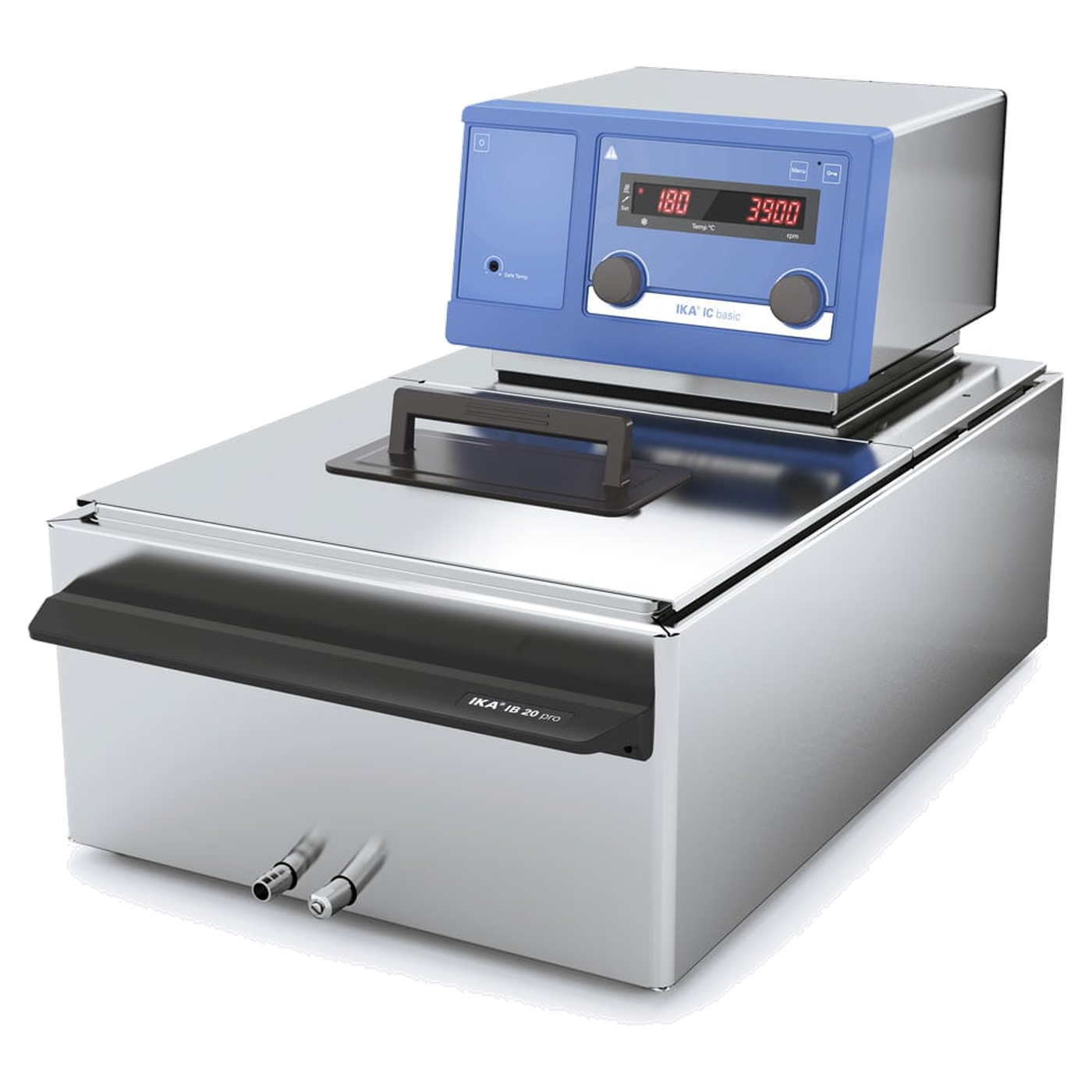

IKA IC basic pro 20 c Bath Package, IB 20 pro Stainless Steel Bath with Lid, 2,500 W, 0008036800
€3,599.25
% Manufacturer's RRP: €4,799.00 25% below manufacturer's RRP
- Bath package with IC basic bridge circulator and IB 20 pro stainless steel bath (size L)
- Bath opening 255 x 262 mm at the bottom, 292 x 278 mm at the upper edge
- Heating power 2,500 W, working temperature up to 250 °C, stainless steel bath up to 200 °C
- Temperature stability ±0.02 K according to DIN 12876
- Pressure/suction pump with up to 31 l/min, connections M16x1
- Class III FL according to DIN 12876 for flammable liquids
- 3-year IKA warranty on registration within 90 days of purchase
Product information "IKA IC basic pro 20 c Bath Package, IB 20 pro Stainless Steel Bath with Lid, 2,500 W, 0008036800"
The IC basic pro 20 c is the basic package with the large bath opening. The IB 20 pro stainless steel bath is size L, and the bath opening measures 255 x 262 mm at the bottom and up to 292 x 278 mm at the upper edge. On it sits the IC basic bridge circulator with 2,500 W heating power. CL.IC cover, BS.IC bath bridge, CC1 cooling coil and PT 100.30 probe are included with the package.
Size L compared with the smaller variant
Compared with the IC basic pro 12 c the package is 641 instead of 461 mm high, and the bath opening at the bottom has a depth of 262 instead of 80 mm. Width and depth of the complete package are the same at 354 x 359 mm. The circulator is an IC basic as there, and heating power, temperature range, temperature stability and pump data are the same. The cover is called CL.IC here instead of CM.IC. The technical data apply to the circulator, overall dimensions and bath opening to the package.
Temperature and control
The circulator works from room temperature plus 10 K to 250 °C. In the stainless steel bath of the pro series, a maximum of 200 °C is permissible. External cooling allows operating temperatures down to -20 °C. Control is by PID, and the temperature stability according to DIN 12876 is ±0.02 K. The LED display shows in steps of 0.1 K, and the setting accuracy of the set temperature is likewise 0.1 K. If an external PT 100 probe is connected, the device indicates operation with an external probe.
Pump
The pressure/suction pump has variable output. It delivers up to 31 l/min at 0 bar back pressure and a pressure of at most 0.61 bar, on the suction side 0.45 bar. External consumers can be connected to the connections with thread M16x1.
Protection
Class III with FL according to DIN 12876 means suitability for flammable liquids. The safety circuit is adjustable from 0 to 260 °C, and a PT1000 probe monitors it. In addition there are low and high level protection and a warning function for over-temperature, visual and audible. Interfaces are RS 232 and Micro-USB, and a calibration option is available.
Typical applications
- Temperature control of media in the stainless steel bath of size L up to 200 °C
- Accommodating larger vessels through the bath opening of 255 x 262 mm
- External temperature control circuit via M16x1 pump connections
- Externally cooled operation down to -20 °C
- Temperature control of flammable liquids according to class III FL
- Operation with external PT 100 probe
Selection guide
The IC control pro 20 c has the same bath of size L, plus a TFT display with 0.01 K resolution and ±0.01 K temperature stability. The ICC basic pro 20 c Package combines an immersion circulator with a stainless steel bath of size L.
Technical details
| Device type | Bath package made up of IC basic bridge circulator and IB 20 pro stainless steel bath |
| Bath size | Size L |
| Overall dimensions of package | 354 x 641 x 359 mm |
| Bath opening (base plate) | 255 x 262 mm |
| Max. bath opening (upper bath edge) | 292 x 278 mm |
| Immersion depth | 95 to 135 mm |
| Min. bath depth | 150 mm |
| Max. temperature in stainless steel bath (pro series) | 200 °C |
| Working temperature of circulator | Room temp. +10 K @1000 rpm to 250 °C |
| Operating temperature min. (with external cooling) | -20 °C |
| Heating power | 2500 W |
| Power consumption | 2650 W |
| Temperature control | PID |
| Temperature stability according to DIN 12876 | ±0.02 K |
| Display of working and safety temperature | LED, resolution 0.1 K |
| Setting accuracy of set temperature | 0.1 K |
| Probe for working and safety temperature | PT 100 and PT1000 |
| Connection for external temperature probe | PT 100 |
| Safety circuit, adjustable | 0 to 260 °C |
| Class and marking according to DIN 12876 | III, FL |
| Pump type | Pressure/suction pump, pump output variable |
| Max. flow rate (0 bar back pressure) | 31 l/min |
| Max. pump pressure / suction side max. (0 l flow rate) | 0.61 bar / 0.45 bar |
| Pump connections | M16x1 |
| Dimensions of circulator (W x H x D) | 285 x 313 x 291 mm |
| Device mounting | Bridge, universal clamp 280 to 375 mm |
| Permissible duty cycle | 100 % |
| Interfaces | RS 232, Micro-USB |
| Ambient temperature / relative humidity | 5 to 40 °C / max. 80 % |
| Protection class according to DIN EN 60529 | IP 21 |
| Power supply | 230 V, 50/60 Hz |
Scope of delivery
- 1 x IC basic bridge circulator
- 1 x IB 20 pro stainless steel bath, size L
- 1 x PT 100.30 temperature probe
- 1 x CC1 cooling coil
- 1 x CL.IC cover
- 1 x BS.IC bath bridge
Warranty and procurement service
The IKA manufacturer's warranty of 2 years applies to the IC basic pro 20 c, extended to 3 years on registration at ika.com/register within 90 days of purchase. On request we procure accessories, replacement baths and covers to suit the package.
