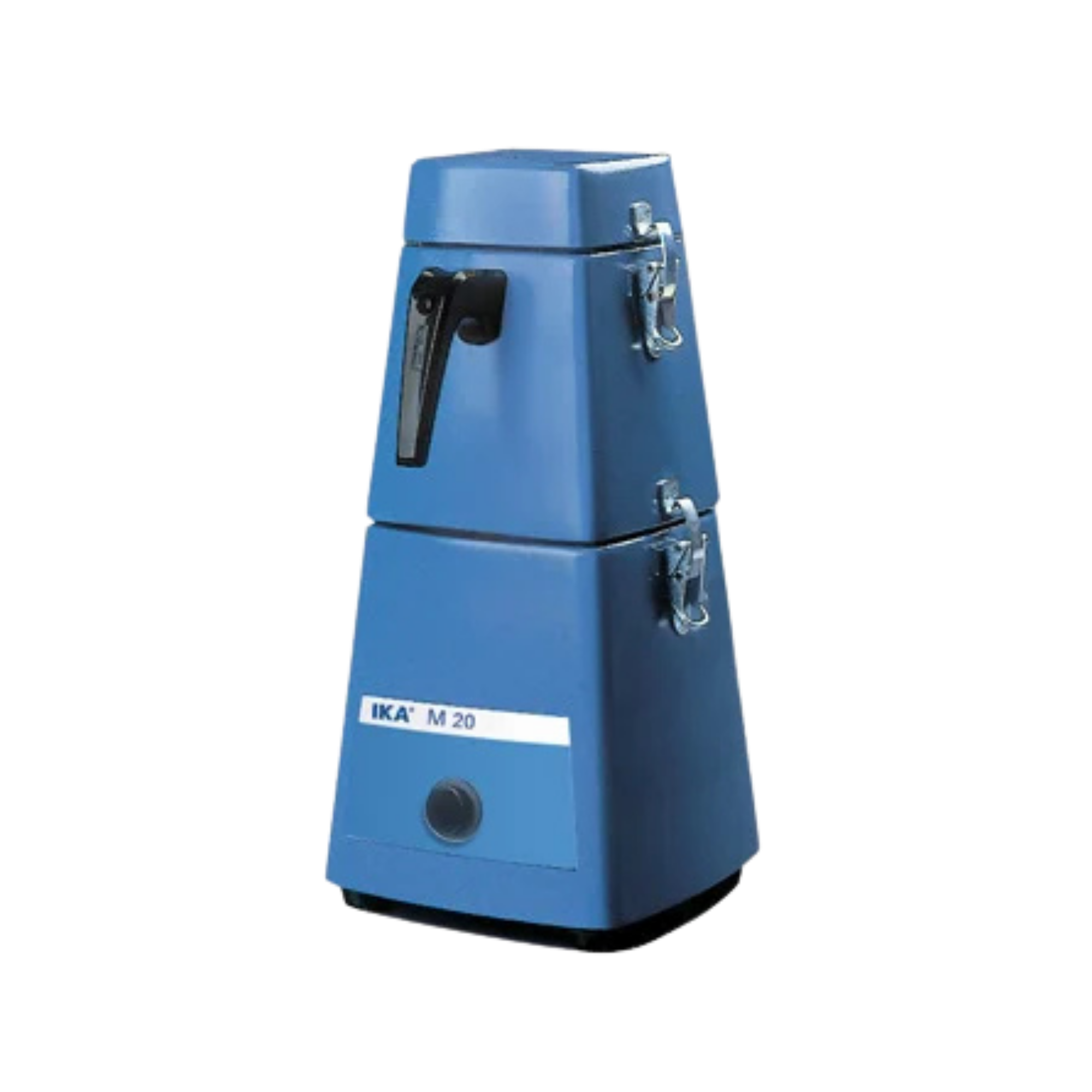

IKA M 20 Universal Mill, batch mill, coolable, 250 ml, 20,000 rpm, 0001603600
€6,228.75
% Manufacturer's RRP: €8,305.00 25% below manufacturer's RRP
- Fixed speed of 20,000 rpm, peripheral speed up to 72 m/s
- Double-walled grinding chamber, coolable with water or dry ice, up to 250 ml
- For feed material with a hardness of up to 5 on the Mohs scale and a particle size of up to 7 mm
- Stainless steel beater M 21 as part of the scope of delivery
- 3-year manufacturer’s warranty upon registration within 90 days
ⓘ This product description has been translated from German using AI. Despite careful review, we do not guarantee that the translation is error-free; in case of doubt, the German version shall prevail.
Product information "IKA M 20 Universal Mill, batch mill, coolable, 250 ml, 20,000 rpm, 0001603600"
Hard, brittle substances can be ground when dry and at high speeds, provided the grinding chamber is able to dissipate the heat generated in the process. The IKA M 20 universal mill operates as a batch mill at a fixed speed of 20,000 rpm in a double-walled, water-coolable grinding chamber with a working volume of up to 250 ml.
Fixed speed of 20,000 rpm for hard, brittle samples
The drive consumes 450 W and transfers 225 W to the grinding tool; the peripheral speed at the beater reaches 72 m/s. The operating principle combines cutting and impact comminution, suitable for feed material up to a hardness of 5 on the Mohs scale and a maximum particle size of 7 mm. The beater and grinding chamber are made of stainless steel (1.4034 and 1.4301 respectively), which makes the mill resistant to repeated contact with various substances.
Double-walled, coolable grinding chamber
The grinding chamber can be cooled with water via two hose connections whilst the machine is running; alternatively, the material being ground can be cooled directly in the chamber using dry ice. Both methods limit the heating of temperature-sensitive samples during grinding. The chamber can be removed for cleaning; for processing different substances, a second grinding chamber (M 20.1) is available as an accessory, which can be operated alternately with the same drive without the need for time-consuming cleaning between batches.
Duty cycle and operation
The duty cycle consists of 7 minutes of operation followed by a 10-minute pause, a setting that is rarely utilised to its full extent in practice during short, intensive grinding runs. Measuring 170 x 350 x 170 mm and weighing 6.6 kg, the M 20 is compact enough for use on a standard laboratory worktop; the power consumption is 550 W at 230 V.
Cleaning and accessories
The grinding chamber can be cleaned between two samples, ensuring that residues from a previous batch do not contaminate the next. For water-cooled operation, IKA offers the suitable H.SI.6 hose as an accessory. Wear parts for the grinding tool are available individually: the standard M 21 stainless steel beater, an M 23 star blade for different grinding profiles, and an M 22 carbide beater for particularly abrasive samples.
Installation and connection
The M 20 operates at 230 V and 50/60 Hz; variants rated at 115 V and 100 V are available for countries with different mains voltages. The water connection for chamber cooling is via two hose connections using standard laboratory hose; a separate cooling water circuit or mains water with a drain is sufficient for operation. A dedicated circuit is not usually necessary due to the 550 W power consumption.
Keeping an eye on maintenance
The M 21 beater is a wearing part and should be checked regularly for wear, depending on the frequency of use and the hardness of the samples being ground; a blunt beater prolongs the grinding time and increases heat build-up in the chamber. Before each use with dry ice cooling, it is worth taking a quick look at the seals on the grinding chamber to ensure that no condensation penetrates the drive mechanism.
Typical applications
- Dry grinding of hard, brittle substances in small batches of up to 250 ml
- Sample preparation where the heat generated during grinding must be dissipated in a controlled manner
- Changing samples with two grinding chambers that can be used alternately
- Pre-crushing to coarse crushing before further processing
Technical details
| Process type | Batch |
|---|---|
| Operating principle | Cutting / impact crushing |
| Motor power input / output | 450 W / 225 W |
| Rotational speed | 20,000 rpm (fixed speed) |
| Max. peripheral speed | 72 m/s |
| Max. working volume | 250 ml |
| Feed material: max. hardness / max. particle size | 5 Mohs / 7 mm |
| Material of beaters / grinding chamber | Stainless steel 1.4034 / Stainless steel 1.4301 |
| Duty cycle ON / OFF | 7 min / 10 min |
| Cooling | Grinding chamber with water, material to be ground with dry ice |
| Dimensions (W x H x D) | 170 x 350 x 170 mm |
| Weight | 6.6 kg |
| Connected load | 230 V, 50/60 Hz, 550 W (other voltage options available) |
| Degree of protection | IP 21 (DIN EN 60529) |
Scope of delivery
- 1 x M 20 universal mill (drive unit with removable, double-walled grinding chamber)
- 1 x M 21 beater, stainless steel
Regulatory information
This device is an electrical appliance within the meaning of the German Electrical and Electronic Equipment Act (ElektroG). The WEEE registration number of the manufacturer, IKA, is DE 66784213. Information on the return of old appliances can be found on our page Environment and disposal.
Selection guide and service
As the successor package to the M 20, IKA offers the MultiDrive basic M20 Successor Package. It separates the drive (MultiDrive basic drive unit, 1,000 W) from the grinding chamber, with a variable speed range of 3,000 to 20,000 rpm instead of a fixed 20,000 rpm. Those who still prefer the compact, removable and directly water-cooled chamber of the M 20 will find this model suitable. For the continuous fine grinding of larger quantities, however, the IKA MF 10 basic micro-fine mill is the more suitable choice, as it operates inline rather than in batches. As an electrical appliance, the M 20 is subject to the WEEE Directive. IKA provides a 2-year manufacturer’s warranty, which is extended to 3 years if the unit is registered at ika.com/register within 90 days of purchase. Through our procurement service, we can assist you with the second M 20.1 grinding chamber and other accessories.
