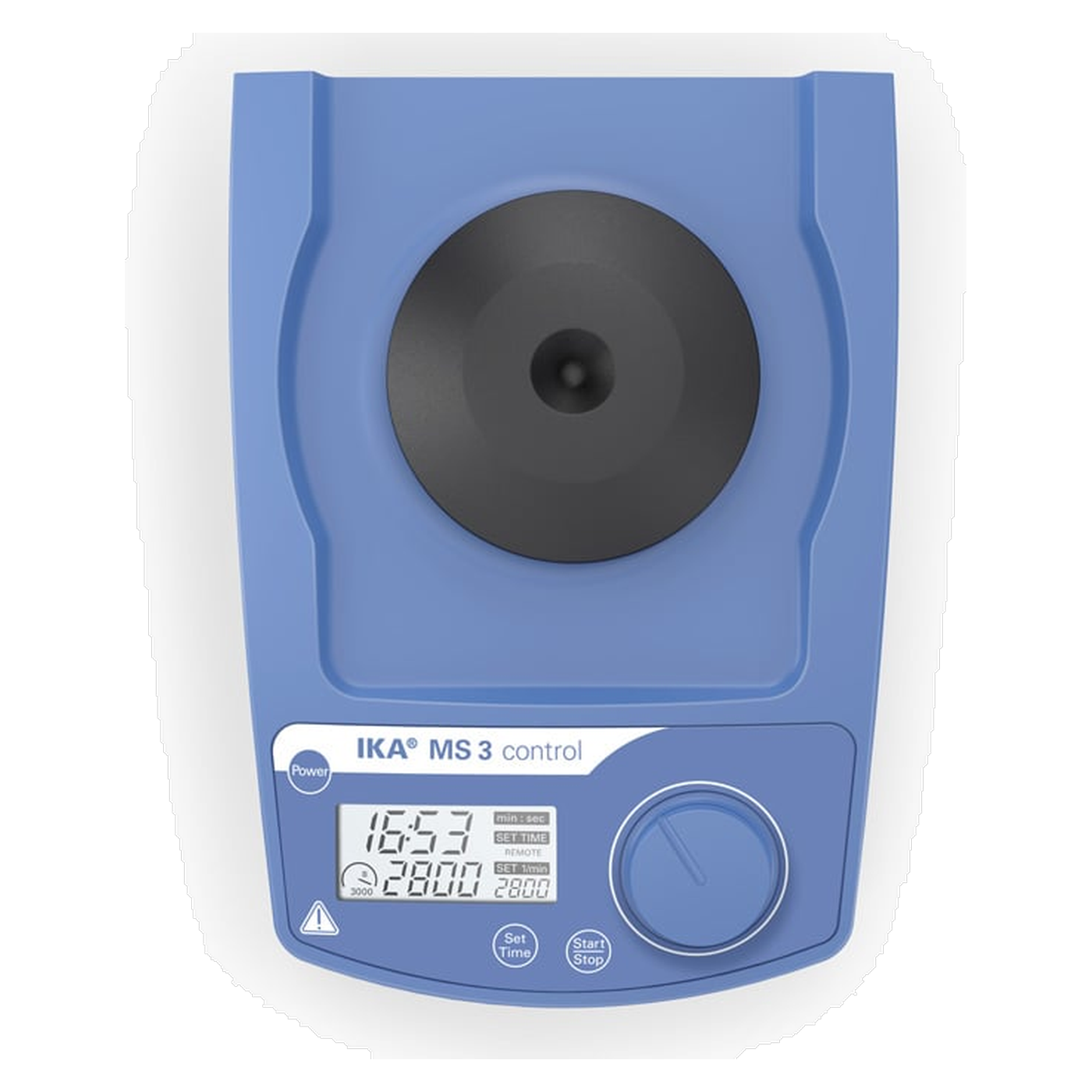

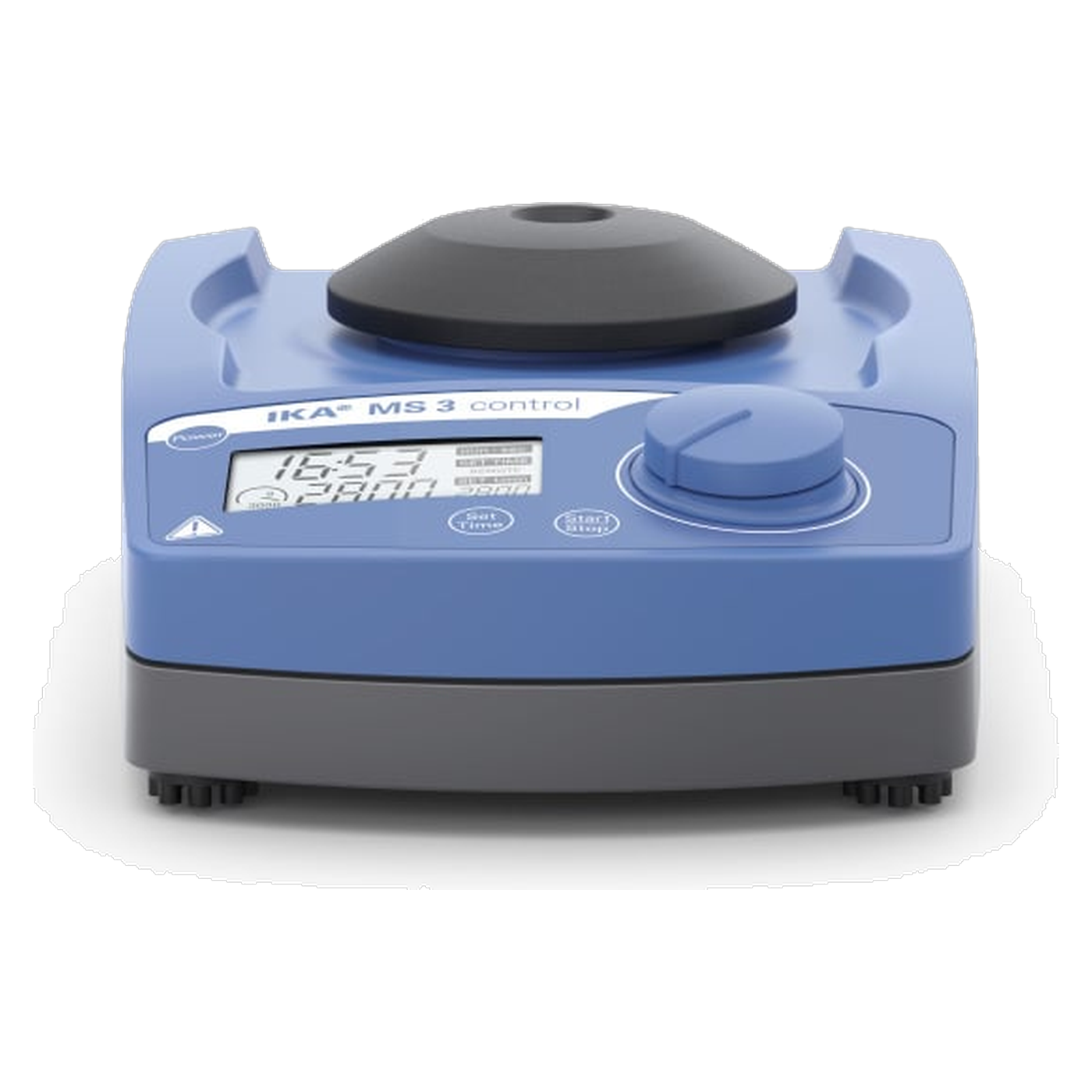

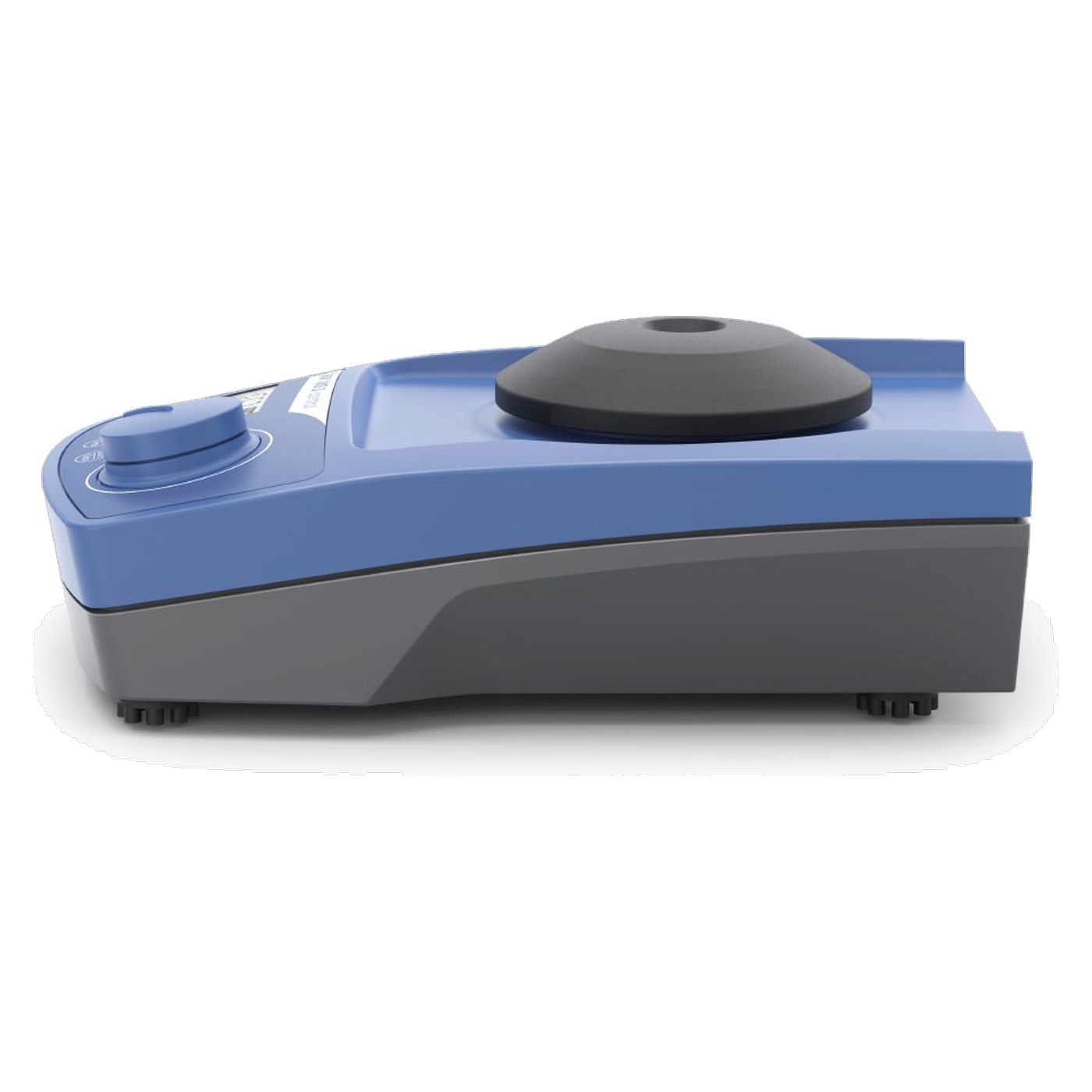

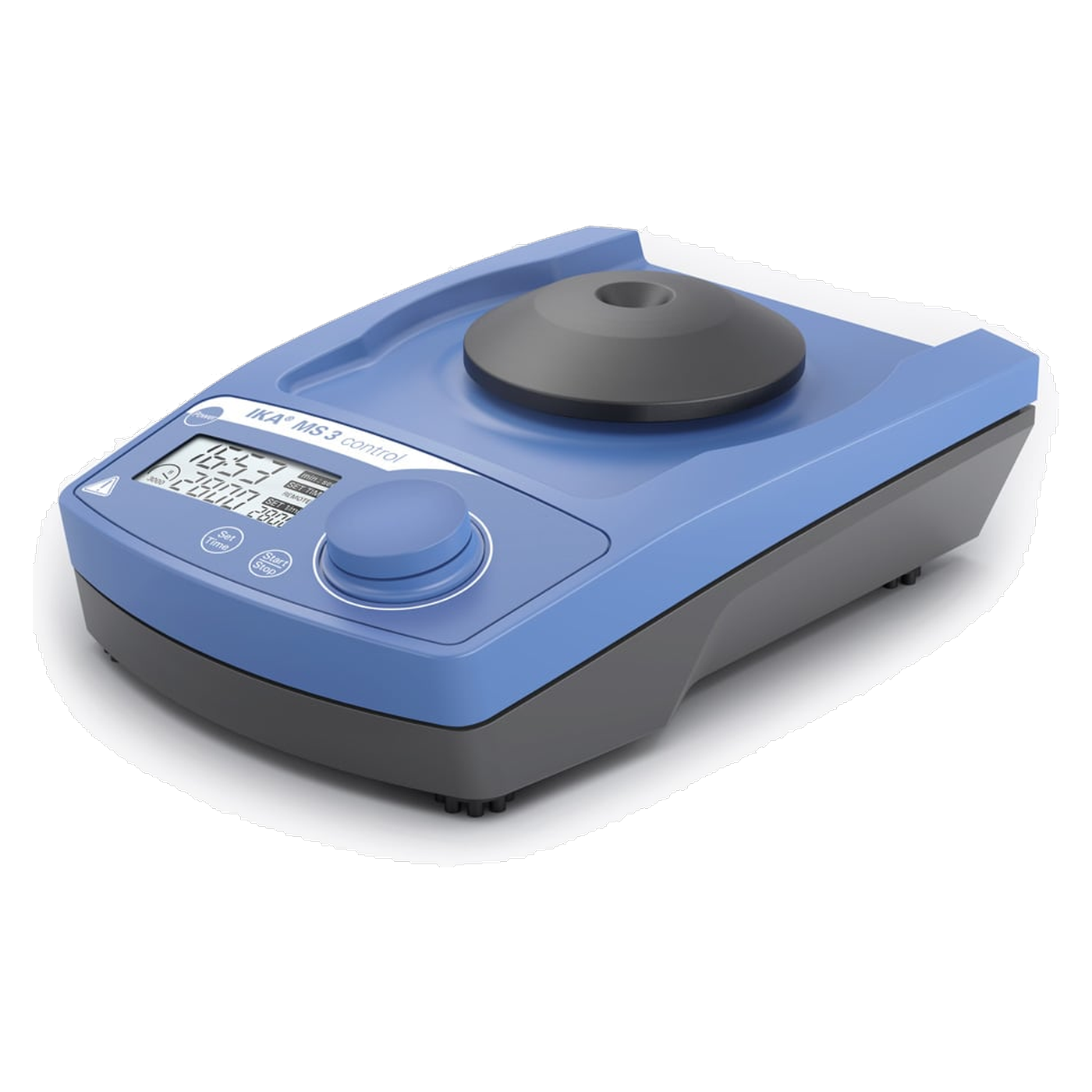

IKA MS 3 control Small Shaker with Attachment Detection, 100 to 3,000 rpm, 0020016017
€818.25
% Manufacturer's RRP: €1,091.00 25% below manufacturer's RRP
- Small shaker with load detection, circular motion, stroke 4.5 mm
- Speed 100 to 3,000 rpm, deviation 1 %
- LCD and timer with countdown from 1 second to 3,599 minutes
- Attachments and inserts for small vessels and a microtitre plate included in the scope of delivery
- Die-cast zinc housing, 148 x 63 x 205 mm, 3.16 kg
- 3-year manufacturer’s warranty upon registration within 90 days
Product information "IKA MS 3 control Small Shaker with Attachment Detection, 100 to 3,000 rpm, 0020016017"
The speed at which the IKA MS 3 control (0020016017) shakes depends on the attachment. The unit recognises the attachment fitted and limits the speed accordingly when operating in safety mode. The small shaker operates in a circular motion with a 4.5 mm stroke at speeds between 100 and 3,000 rpm, can hold up to 0.5 kg including the attachment, and is designed for small vessels and microtitre plates.
Two operating modes: with and without attachment recognition
In Mode A, the safety-controlled mode with attachment detection, the device reaches the maximum speed of 3,000 rpm only with the standard attachment in touch mode. With the other attachments, the speed is limited to 1,300 rpm. In Mode B, without attachment detection, a speed of 3,000 rpm can be achieved with all attachments depending on the application; the permitted combinations are listed in the accessories section of the operating instructions.
Speed, timer and display
Speed and time are displayed on an LCD. The speed deviation is 1 per cent. The timer counts down from 1 second to 3,599 minutes; the deviation of the unit’s clock is no more than 1 per cent. Options include timer mode, continuous operation and touch mode in conjunction with the standard attachment. The permissible duty cycle is 100 per cent. The housing is made of die-cast zinc; it measures 148 x 63 x 205 mm and weighs 3.16 kg. The unit features an RS-232 interface for control; IKA also specifies a USB port for remote operation.
Typical applications
IKA describes the MS 3 control as a universal small-scale shaker:
- Shaking tasks involving all types of small vessels
- Mixing a microtitre plate
- Short-term mixing via touch control using the standard attachment
- Timed runs with a countdown from 1 second to 3,599 minutes
- Remote control via the interface
Selection guide for IKA small shakers
The Vortex 3 has no display, but features a 4 mm stroke and attachments for, amongst other things, tubes, microtitre plates and 250 ml Erlenmeyer flasks. The lab dancer operates at a fixed speed of 2,800 rpm in touch mode only. The VXR basic can handle 2 kg and runs at up to 2,200 rpm.
| Model | Stroke | Shaking capacity | Speed | Display |
|---|---|---|---|---|
| MS 3 control (this unit) | 4.5 mm | 0.5 kg | 100 to 3,000 rpm | LCD with timer |
| Vortex 3 | 4 mm | 0.4 kg | 500 to 2,500 rpm | None |
| Lab Dancer | 4.5 mm | 0.1 kg | fixed at 2,800 rpm | None |
| VXR basic | 4 mm | 2 kg | 100 to 2,200 rpm | Scale |
Technical details
| Type of motion | Circular |
| Shaking stroke | 4.5 mm |
| Maximum shaking weight (including attachment) | 0.5 kg |
| Speed range | 100 to 3,000 rpm |
| Speed display | LCD |
| Speed deviation | 1 % |
| Time setting | 1 s to 3,599 min |
| Device clock deviation | max. 1 % |
| Operating mode | Timer and continuous operation, touch function |
| Microtiter plates | Yes, 1 plate |
| Permissible duty cycle | 100 % |
| Motor power (intake/outlet) | 10 W / 8 W |
| Interface | RS 232 |
| Voltage / Frequency | 100 to 240 V, 50/60 Hz |
| DC voltage / current consumption | 24 V / 800 mA |
| Device power consumption | 20 W |
| Permissible ambient temperature range | 5 to 40 °C |
| Permissible relative humidity | 80 % |
| Protection class | IP 21 (DIN EN 60529) |
| Dimensions (W x H x D) | 148 x 63 x 205 mm |
| Weight | 3.16 kg |
Scope of delivery
- 1 x IKA MS 3 control shaker
- 1 x MS 3.1 standard attachment
- 1 x MS 3.3 universal attachment
- 1 x MS 3.4 microtiter attachment
- 1 x MS 1.21 one-hand insert
- 1 x MS 1.32 test tube insert
Further inserts, an MS 3.5 PCR plate attachment and the PC 2.1 cable are available as accessories.
Warranty and disposal
IKA manufacturer’s warranty: 2 years, extended to 3 years upon registration at ika.com/register within 90 days of purchase. The warranty applies to the instrument, not to attachments or inserts. At the end of its useful life, the unit, as an electrical appliance, must be disposed of via the separate collection scheme for waste electrical equipment.
Frequently Asked Questions
Why does the MS 3 control not reach 3,000 rpm with every attachment? In Mode A with attachment recognition, the speed is limited to 1,300 rpm in touch mode for all attachments except the standard attachment. In Mode B, 3,000 rpm is possible with all attachments, depending on the application.
How long is the warranty valid for? IKA manufacturer’s warranty: 2 years; extended to 3 years upon registration at ika.com/register within 90 days of purchase.
Which attachments are included in the Scope of delivery? Standard attachment MS 3.1, universal attachment MS 3.3, microtitre attachment MS 3.4, one-hand insert MS 1.21 and test tube insert MS 1.32.
How long can the timer run for? The countdown can be set from 1 second to 3,599 minutes. Continuous operation is also possible.
Individual requirements and procurement service
LT Laborhandel supplies additional attachments and inserts, factory calibration certificates, IQ/OQ documents and the data cable for the MS 3 control. We will coordinate the selection with you via the procurement service.
