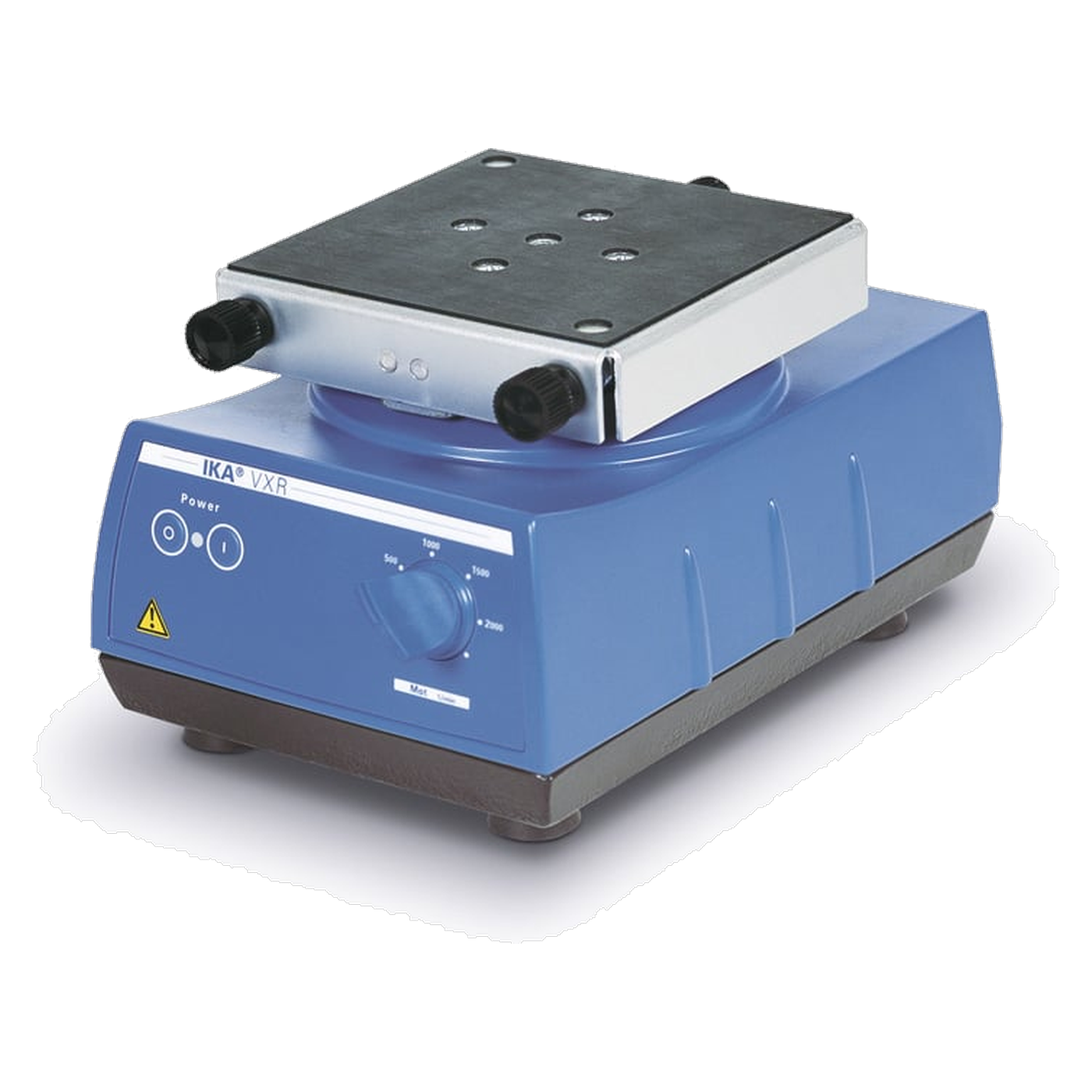

IKA VXR basic Vibrax Circular Shaker, 0 to 2200 rpm, Shaking Stroke 4 mm, 2 kg, 0002819000
€1,482.00
% Manufacturer's RRP: €1,976.00 25% below manufacturer's RRP
- Optoelectronically controlled small shaker, 0 to 2,200 rpm
- Circular motion, shaking stroke 4 mm, shaking load up to 2 kg
- Speed adjustable via a scale, from 100 rpm
- Continuous operation at 100 per cent duty cycle
- Compact: 157 x 130 x 247 mm, 6.1 kg, protection class IP 21
- Accessories for test tubes, dishes and universal vessels available separately
- 3-year manufacturer’s warranty upon registration within 90 days
Product information "IKA VXR basic Vibrax Circular Shaker, 0 to 2200 rpm, Shaking Stroke 4 mm, 2 kg, 0002819000"
2,200 revolutions per minute with a stroke of just 4 mm, that ensures thorough mixing even in small vessels. The IKA VXR basic Vibrax is an optoelectronically controlled small shaker with a very wide speed range from 0 to 2,200 rpm. The motion is circular, and the permissible shaking load, including the attachment, is 2 kg. Users who regularly use the shaker for test tubes, dishes or universal vessels can select the appropriate attachment.
Easy to operate, built for continuous operation
The VXR basic has no timer and no display. The speed is set using a scale; the lower adjustable limit is 100 rpm. The unit operates continuously with a permissible duty cycle of 100 per cent. The motor output is 13.2 W at a power consumption of 35 W; the unit’s total power consumption is 45 W. If you require a timer, display and interface, take a look at the control models.
Attachments for various vessels
The shaker is operated with the attachment that fits the vessel. IKA offers, amongst others, the VX 1 single-vessel attachment, the VX 2 test-tube attachment, the VX 8 universal attachment with VX 8.1 clamping roller, the VX 7 dish attachment and the VX 11 base holder with VX 11.1 to 11.6 test tube inserts. Which attachment variant is suitable depends on the vessel diameter, the number of vessels and the total weight, which must not exceed 2 kg.
Typical applications
- Mixing samples in test tubes using the test tube attachment or test tube inserts
- Shaking individual vessels with the one-handed attachment
- Agitating dishes or flat vessels using the dish attachment
- Mixing different vessel shapes with the universal attachment and clamping roller
- Short or long mixing processes in continuous operation with manually adjusted speed
Which IKA shaker is suitable
The VXR basic combines high speed with a 2 kg shaking capacity. The IKA VORTEX 3 reaches 2500 rpm, but has a capacity of only 0.4 kg. The IKA MS 3 control operates at 100 to 3,000 rpm and features a timer, but has a shaking capacity of only 0.5 kg. If you need a 2 kg capacity with a timer and lower speeds, the KS 130 control is the right choice.
| Model | Speed | Shaking stroke | Shaking weight | Operating mode |
| VXR basic Vibrax (this unit) | 0 to 2200 rpm | 4 mm | 2 kg | Continuous operation |
| VORTEX 3 | 0 to 2,500 rpm | 4 mm | 0.4 kg | Continuous operation |
| MS 3 control | 100 to 3,000 rpm | 4.5 mm | 0.5 kg | Timer and continuous operation |
| KS 130 control | 80 to 800 rpm | 4 mm | 2.0 kg | Timer and continuous operation |
Technical details
| Type of movement | Circular |
| Shaking stroke | 4 mm |
| Permissible shaking weight (including attachment) | 2 kg |
| Motor power input / output | 35 W / 13.2 W |
| Permissible duty cycle | 100 % |
| Speed range | 0 to 2200 rpm, adjustable from 100 rpm |
| Speed display | Scale |
| Operating mode | Continuous operation |
| Dimensions (W x H x D) | 157 x 130 x 247 mm |
| Weight | 6.1 kg |
| Permissible ambient temperature range | 5 to 40 °C |
| Permissible relative humidity | 80 % |
| Protection class | IP 21 (DIN EN 60529) |
| Mains connection | 220 to 240 V, 50/60 Hz, power consumption 45 W |
Scope of delivery
- 1 x IKA VXR basic Vibrax circular shaker
Attachments are accessories and must be ordered separately to fit the vessel.
Warranty and disposal
IKA manufacturer’s warranty: 2 years; extended to 3 years upon registration at ika.com/register within 90 days of purchase. Attachments and other accessories are excluded from this warranty. At the end of its useful life, the unit must be disposed of via the separate collection scheme for waste electrical and electronic equipment.
Individual requirements and procurement service
In addition to the attachments mentioned, the VXR basic is available with VX 2E.n (tube attachment), factory calibration certificates and IQ/OQ documents. If you are unsure which attachment fits your tubes or dishes, simply order it via our procurement service to ensure it is compatible with your device.
Frequently Asked Questions
Does the VXR basic have a timer? No, it runs continuously. The IKA KS 130 control, for example, has a timer and LED display.
How is the speed displayed? Via a scale, adjustable from 100 rpm to 2200 rpm.
What is the maximum weight that can be shaken? Up to 2 kg, including the attachment.
How long is the warranty valid for? IKA manufacturer’s warranty: 2 years; extended to 3 years if registered at ika.com/register within 90 days of purchase.
