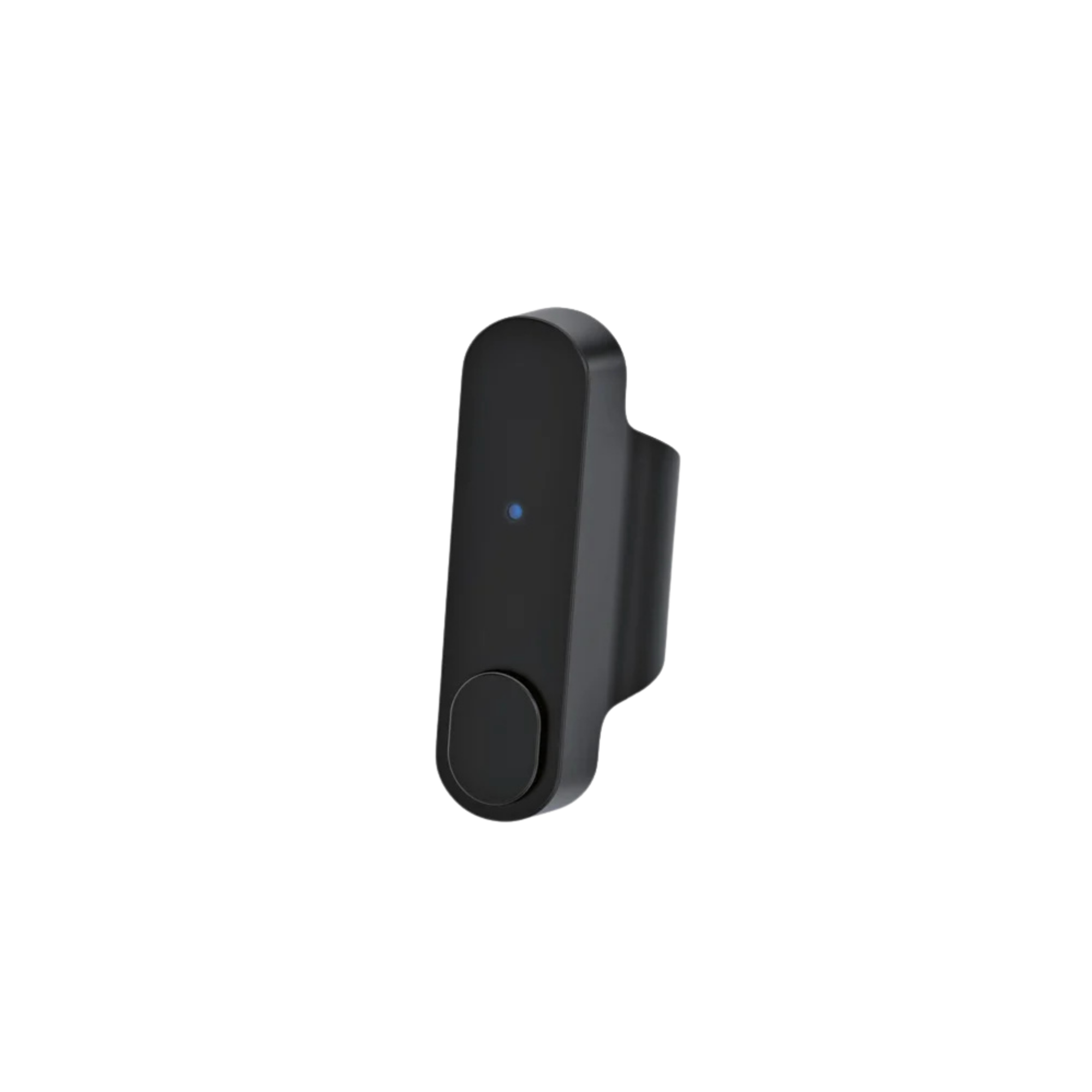

IKA PEN.WiCo wireless control button for IKA PEN electronic pipettes, 0020118751

The IKA PEN.WiCo (MPN 0020118751) is a highly innovative, mechatronic, wireless control solution for advanced liquid handling in modern laboratory environments. Designed as an intelligent, external control button, this ultra-compact module can either be attached directly to the housing of the IKA PEN electronic pipette or operated as an alternative control unit, completely independently and without being tied to the position of the dispensing device. For demanding, highly repetitive pipetting protocols in the field of high-throughput screening or biochemical analysis, this remote control button provides the ergonomic foundation for reliably minimising signs of fatigue among laboratory staff.

Ergonomic relief for repetitive dispensing tasks

The primary technical objective of the PEN.WiCo is to significantly reduce biomechanical strain on the thumb. In conventional pipetting procedures, the constant, repetitive pressing of the trigger button whilst holding a raised pipette leads to muscle fatigue over time. The wireless control button breaks this rigid coupling: Analysts can hold the IKA PEN pipette in a relaxed position, whilst the actual dispensing process is triggered gently and comfortably via the PEN.WiCo, which can be placed independently on the laboratory bench or positioned flexibly. This ensures a noticeably smoother workflow and fatigue-free working in multi-user operation.

Reliable wireless communication and efficient energy management

The module’s electronic system architecture is based on wireless Wi-Fi connectivity, which guarantees a stable communication range of up to 1 metre (depending on the building). The ultra-compact housing, weighing just 10 grams, incorporates a highly efficient energy management system. The integrated lithium-polymer (LiPo) battery provides a remarkable continuous operating time of up to 14 hours. Recharging is carried out via a future-proof, standardised USB-C interface and takes just 1.5 hours, thereby reliably preventing system failures in day-to-day laboratory operations.

Robust housing design for long-term laboratory use

Despite its compact dimensions, the PEN.WiCo is consistently designed for unrestricted routine industrial use. The housing complies with protection class IP 40 in accordance with DIN EN 60529 and is specified for a continuous duty cycle of 100 per cent. The non-porous material surfaces are completely resistant to common disinfectants and cleaning agents, allowing for rapid and residue-free wipe disinfection as part of hygiene management in accordance with GLP guidelines.

Technical details

System & Communication Data

• Product name: PEN.WiCo
• Catalogue number / MPN: 0020118751
• Product group: Laboratory accessories / Wireless control button (Accessory)
• Duty cycle: 100 per cent (approved for continuous operation)
• Wireless interface: WLAN / WiFi (integrated wireless interface)
• Communication range: Max. 1 metre (depending on the building structure)
• User interface: Mechanical push-button (no touchscreen)

Electronics, Power & Geometry

• Battery type: Rechargeable internal lithium-polymer battery (LiPo)
• Battery capacity: 35 mAh
• DC voltage: 3.7 V
• Operating time / battery life: Up to 14 hours of autonomous operation
• Charging time: approx. 1.5 hours to full capacity
• Charging interface: Modern USB Type-C (USB-C)
• Dimensions (W x D x H): 48 x 22 x 18 mm
• Net weight: 0.01 kg (an extremely light 10 grams)

Environmental conditions & protection classes

• Protection class according to DIN EN 60529: IP 40
• Permissible ambient temperature: 5 to 40 degrees Celsius
• Permissible relative humidity: Up to 80 per cent

Contents

• 1 x IKA PEN.WiCo wireless control button (MPN: 0020118751)
• 1 x Quick start guide / Safety instructions

Customised requirements & accessories

As an authorised B2B specialist retailer, we stock the complete system portfolio for the technological modernisation of your liquid-handling infrastructure:

• IKA PEN electronic pipettes: The PEN.WiCo delivers its full process performance when used in combination with the pen-style single-channel pipettes from the IKA PEN series. Available in the volume ranges 0.5 – 10 µl (MPN 0020025101), 5 – 100 µl (MPN 0020025102) and 10 – 200 µl (MPN 0020025103).
• IKA PEN.Stand (MPN 0020133075): The matching, stable single-position stand for the secure vertical storage of your IKA PEN pipette directly at your workstation.
• Certified pipette tips: To ensure reproducible analytical results, whether using ultrapure water or complex sample matrices, we offer high-purity, batch-certified consumables. Please use our technical procurement service to configure your ergonomic pipetting workstation to suit your specific application.
