IKA Plastic Bath IB 18 eco, 18 Litre, 4248200
€480.75
% Manufacturer's RRP: €641.00 25% below manufacturer's RRP
- Versatile size L plastic bath with 18 litre volume
- Working temperature up to 100 °C with water as the bath liquid
- Compact internal dimensions 490 x 286 x 150 mm
- Economical alternative to the stainless steel version
- Designed for use with IKA immersion circulators
Product information "IKA Plastic Bath IB 18 eco, 18 Litre, 4248200"
For everyday laboratory use, where a reliable but not oversized water bath is needed, the IKA plastic bath IB 18 eco (MPN 4248200) is an obvious choice. With 18 litres of volume, size L and a maximum temperature of 100 degrees Celsius, it covers most standard aqueous applications, without having to invest more in purchase, space or water consumption than is actually needed. As one of the longest-established models of the eco series, it forms the reference size on which the other plastic baths of the series are based, for example in the footprint, which was adopted almost unchanged for the tall IB HF 24 eco as well.
Balanced size for everyday laboratory use
With internal dimensions of 490 x 286 x 150 millimetres and external dimensions of 584 x 338 x 155 millimetres, the IB 18 eco offers a footprint with room for several standard vessels at the same time, without being unnecessarily bulky. Compared with the large-volume IB R 52 eco with 52 litres or the tall IB HF 24 eco with greater bath depth, the IB 18 eco is the more compact, everyday-suitable version for applications without special requirements for depth or volume and finds a place on almost any laboratory work surface, without space having to be cleared specially.
Plastic instead of stainless steel where water as the bath medium is enough
The bath is made of robust plastic and is designed for temperatures up to 100 degrees Celsius with water as the bath liquid. Compared with a stainless steel version such as the IB 9 pro or IB 12 pro, the plastic version saves noticeably on the purchase price, without any disadvantage for purely aqueous applications in the temperature range up to 100 degrees Celsius, as long as no oils or other bath media are needed. For the vast majority of routine laboratory applications, which manage with water as the bath medium anyway, this choice of material is therefore the more economically sensible decision. Only if it is foreseeable that oils or temperatures above 100 degrees Celsius will also be used in future is it worth going for the stainless steel version from the outset.
Bath vessel for the immersion circulator
Like all baths of the IB series, the IB 18 eco is supplied without its own heating and is intended for combination with an IKA immersion circulator, which is hung on the bath and takes care of heating and circulation. This modular system makes it possible to combine the same circulator head with baths of different sizes as required, or to replace an existing bath independently of the circulator, for example when the original bath shows signs of wear after years of use but the circulator itself still works perfectly. This separation of bath and circulator noticeably reduces follow-up costs in the event of service, as the complete system does not have to be replaced.
Placement in the IKA IB series
Within the eco series, the IB 18 eco marks the middle size between the compact IB R 9 eco with 9 litres and the larger models IB HF 24 eco and IB R 52 eco. Anyone who only temperature-controls individual small vessels is better served, in terms of space and cost, by the IB R 9 eco, while for larger series or deeper vessels the correspondingly specialised models IB R 52 eco and IB HF 24 eco are the better choice. For average everyday laboratory use with changing standard vessels, however, the IB 18 eco remains the most versatile option, as it is tied to a specific application neither by footprint nor by bath depth.
Typical applications
As a versatile, economical standard bath, the IB 18 eco is suitable, among other things, for:
- Water baths for sample preparation in the routine laboratory
- Warming and thawing samples at constant temperature
- Calibration and comparison measurements of several thermometers in the aqueous temperature range up to 100 degrees Celsius
- Practical courses and training in which an uncomplicated, robust bath without additional functions is required
- Additional bath at existing workstations where an IKA immersion circulator is already in use
Technical details
| Bath type | Open plastic bath (accessory for immersion circulators) |
| Size | L |
| Volume | 18 l |
| Material | Plastic (eco) |
| Max. working temperature | 100 °C, water only |
| Internal dimensions | 490 x 286 x 150 mm |
| External dimensions | 584 x 338 x 155 mm |
Scope of delivery
- 1 x IKA plastic bath IB 18 eco (MPN 4248200)
Individual requirements & procurement service
The IB 18 eco requires an IKA immersion circulator for operation, which takes care of heating and circulation. Suitable circulators and further accessories are available through our procurement service.
Fits

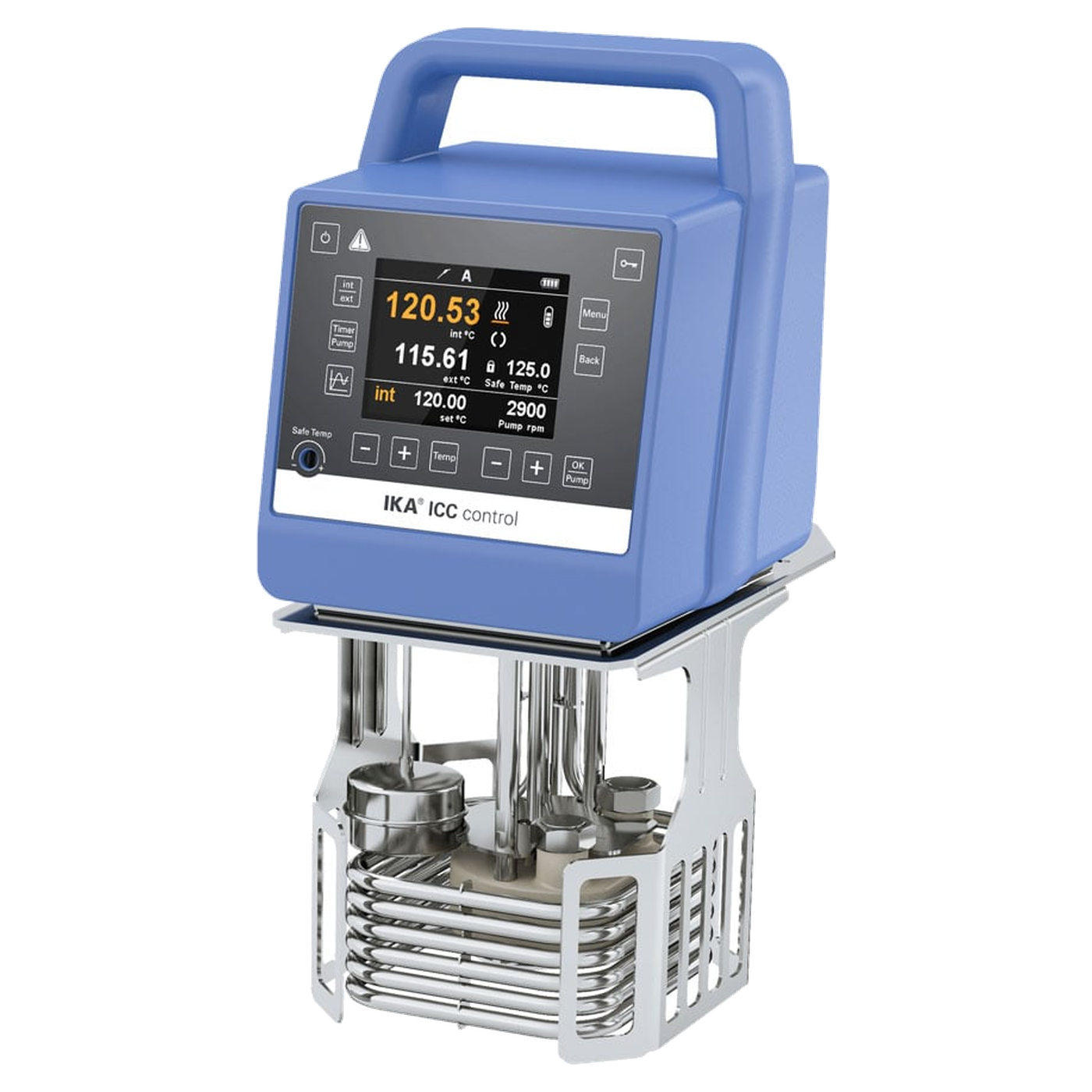

The ICC control (MPN 0004136600) is a compact immersion circulator for temperature control of liquids in open or semi-open bath vessels up to 150 °C. It has a TFT display, a temperature stability of ±0.01 K according to DIN 12876 and an integrated pressure/suction pump. The bath vessel is not included in the scope of delivery, and the circulator is clamped to an existing vessel.Mounting on the bath vesselThe circulator is attached to the bath vessel with a holding clip, and the clamping width of the universal clamp is 0 to 40 mm. The vessel must be at least 150 mm deep. The circulator measures 145 x 340 x 200 mm and weighs 3.75 kg, and a carrying handle and an integrated stand are part of the housing. The permissible duty cycle is 100 %.Control, display and programsThe circulator controls by PID, a PT 100 measures the working temperature and a PT1000 the safety temperature. The TFT display shows both values, and the display resolution is 0.01 K. The set temperature can be set to an accuracy of 0.1 K. There is a connection for an external PT 100 probe, and the display indicates operation with an external probe. The device can store 10 individual procedures with up to 10 steps each.Pump and coolingThe pressure/suction pump is intended for internal and external applications and its output can be varied. It delivers up to 18 l/min at 0 bar back pressure, the maximum pump pressure is 0.3 bar, and on the suction side 0.2 bar. For temperature control below or near ambient temperature, a cooling coil is optionally provided, and with external cooling the minimum operating temperature is -20 °C.Connection and environmentThe circulator runs on 230 V at 50/60 Hz and draws 2100 W, of which 2000 W is heating power. It is protected to IP 21, and the permissible ambient temperature is 5 to 40 °C at no more than 80 % relative humidity. The device includes a calibration option.Safety equipmentAn adjustable safety circuit ranges from 0 to 160 °C. Visual and audible warnings, the over-temperature warning and protection against low and high level are built in. The circulator is classified as DIN 12876 class III and marked FL.As a package with bathIKA combines the ICC control with plastic and stainless steel baths to form ready-to-connect packages. The ICC control eco 8 and the ICC control eco 18 contain circulator, bath and bath bridge, and the ICC control eco 8 c also includes a cover, pump connection set, cooling coil and PT 100.30 probe. The plastic baths are intended for water up to 100 °C. The ICC basic circulator has an LED display instead of TFT and a temperature stability of ±0.02 K.Typical applicationsTemperature control of liquids in open or semi-open bath vessels up to 150 °CInternal or external applications with the integrated pumpTemperature control with external PT 100 probePrograms with up to 10 stepsControl and monitoring via RS 232 or Micro-USB with the IKA labworldsoft softwareTechnical detailsHeating power2000 WWorking temperatureRoom temp. +10 K at 1000 rpm to 150 °COperating temperature min. (with external cooling)-20 °CTemperature controlPIDWorking and safety probePT 100 (working temperature), PT1000 (safety temperature)Display of working/safety temperatureTFTTemperature stability according to DIN 12876±0.01 KDisplay resolution0.01 KSetting accuracy of set temperature0.1 KConnection for external temperature probePT 100Indication of operation with external probeyesPump typePressure/suction pump, output variableMax. flow rate (0 bar back pressure)18 l/minMax. pump pressure (no flow)0.3 barMax. pump pressure suction side (no flow)0.2 barClassification according to DIN 12876III with FL markingWarning functionsvisual, audible, over-temperatureSafety circuit, adjustable0 to 160 °CLow/high level protectionyesCalibrationyesMin. bath depth150 mmDevice mountingClampClamping width of universal clamp0 to 40 mmDimensions (W x H x D)145 x 340 x 200 mmWeight3.75 kgPermissible duty cycle100 %Ambient temperature5 to 40 °CRelative humiditymax. 80 %Protection class (DIN EN 60529)IP 21InterfacesRS 232, Micro-USBPower supply230 V, 50/60 HzPower consumption2100 WScope of delivery1 x ICC control Compact Immersion Circulator1 x Screwdriver1 x USB cable USB A to Micro-B, 2 mThe bath vessel is not included in the scope of delivery.Warranty and procurement serviceThe IKA manufacturer's warranty of 2 years applies to the ICC control, extended to 3 years on registration at ika.com/register within 90 days of purchase. On request we procure cooling coils, bath vessels, covers and other accessories.
The ICC 150 lite (MPN 0020105581) belongs to the lite series of IKA immersion circulators, which is designed for the essential basic functions. It controls the temperature of liquids from room temperature to 150 °C with 2000 W heating power, has a built-in pressure/suction pump and is approved for flammable liquids according to DIN 12876 class III. The housing is made of coated stainless steel.Overflow protection and safety circuitThe circulator detects an overflow of the bath, for example due to an unintentionally increased amount of oil, and safely switches off the heating. It also monitors for low level. The safety circuit is adjustable from 0 to 160 °C, and warnings are visual and audible. A PT1000 measures both the working and the safety temperature.Display and controlThe LED display shows working and safety temperature with a resolution of 0.1 K, and the set temperature can be set to an accuracy of 0.1 K. Control is by PID, and the temperature stability according to DIN 12876 is ±0.05 K. With external cooling the minimum operating temperature of the circulator is -25 °C.PumpThe integrated pressure/suction pump is intended for internal and external applications. It delivers up to 15 l/min at 0 bar back pressure and reaches a maximum pump pressure of 0.3 bar, on the suction side 0.1 bar.Dimensions, clamp and connectionThe circulator measures 135 x 303 x 180 mm and weighs 4.7 kg. It is attached to the bath vessel with a clamp, the universal clamp has a clamping width of 0 to 40 mm, and the vessel must be at least 150 mm deep. A stand is integrated into the housing. The connection is to 230 V at 50/60 Hz, and the power consumption is 2100 W. Via RS 232 and USB-B the device can be monitored, controlled and documented.Comparison with the ICC basicThe ICC basic is somewhat larger at 145 x 340 x 200 mm and 3.75 kg, but lighter. Its temperature stability is ±0.02 K compared with ±0.05 K for the ICC 150 lite, and the pump flow rate is 18 instead of 15 l/min. Both devices have 2000 W heating power, a safety circuit from 0 to 160 °C and an LED display.As a package with stainless steel bathThe ICC 150 lite is also available in ready-to-connect packages with the necessary accessories. In the shop these are, for example, the ICC 150 lite pro 9 with a 9 litre stainless steel bath, the ICC 150 lite pro 12 with 12 litres and the ICC 150 lite pro 20 with 20 litres.Typical applicationsTemperature control of liquids up to 150 °C in an existing bath vesselUse with flammable liquids according to DIN 12876 class IIIApplications with oil in which an overflow is to be detected and the heating switched offInternal or external applications with the integrated pumpMonitoring and documentation on a PC via RS 232 or USB-BTechnical detailsHeating power2000 WWorking temperatureRoom temp. to 150 °COperating temperature min. (with external cooling)-25 °CTemperature controlPIDWorking temperature probePT1000Safety temperature probePT1000Display of working/safety temperatureLEDTemperature stability according to DIN 12876±0.05 KDisplay resolution0.1 KSetting accuracy of set temperature0.1 KPump typePressure/suction pumpMax. flow rate (0 bar back pressure)15 l/minMax. pump pressure (no flow)0.3 barMax. pump pressure suction side (no flow)0.1 barClassification according to DIN 12876III with FL markingWarning functionsvisual, audibleSafety circuit, adjustable0 to 160 °CLow/high level protectionyesMin. bath depth150 mmDevice mountingClampClamping width of universal clamp0 to 40 mmDimensions (W x H x D)135 x 303 x 180 mmWeight4.7 kgPermissible duty cycle100 %Ambient temperature5 to 40 °CRelative humiditymax. 80 %Protection class (DIN EN 60529)IP 21InterfacesRS 232, USB-BPower supply230 V, 50/60 HzPower consumption2100 WScope of delivery1 x ICC 150 lite Immersion CirculatorWarranty and procurement serviceThe IKA manufacturer's warranty of 2 years applies to the ICC 150 lite, extended to 3 years on registration at ika.com/register within 90 days of purchase. On request we procure bath vessels, packages with bath, cooling coils and further accessories.
The ICC basic (MPN 0004134400) is the immersion circulator with LED display and operation via push and rotary knobs. It controls the temperature of liquids in open or semi-open bath vessels up to 150 °C, has a heating power of 2000 W and a temperature stability of ±0.02 K according to DIN 12876. A bath vessel is not included in the scope of delivery.Display and controlWorking and safety temperature appear on an LED display with 0.1 K resolution. The set temperature can be set to an accuracy of 0.1 K. Control is by PID, the working temperature is measured by a PT 100 and the safety temperature by a PT1000. The working temperature ranges from room temperature +10 K at 1000 rpm to 150 °C, and with external cooling the minimum operating temperature is -20 °C.Clamp, dimensions and weightThe universal clamp has a clamping width of 0 to 40 mm, and the holding clip is included. The bath vessel must be at least 150 mm deep. The circulator is 145 mm wide, 340 mm high and 200 mm deep and weighs 3.75 kg. A carrying handle and an integrated stand are present on the housing.Built-in pumpThe pressure/suction pump is intended for internal or external applications, and its output can be varied. The flow rate is up to 18 l/min at 0 bar back pressure, the maximum pump pressure is 0.3 bar, and on the suction side 0.2 bar. For temperature control below or near ambient temperature, a cooling coil is optionally provided.Mains connection and operating conditionsThe connection is to 230 V at 50/60 Hz, and the power consumption is 2100 W. The protection class is IP 21, and ambient temperatures of 5 to 40 °C at no more than 80 % relative humidity are permissible. The permissible duty cycle is 100 %. A calibration option is available.Protection in operationThe safety circuit is adjustable from 0 to 160 °C. The device warns visually and audibly, including in the event of over-temperature, and monitors low and high levels. According to DIN 12876 the circulator is classified as class III with the FL marking. Via RS 232 and Micro-USB the circulator can be controlled and monitored with the IKA labworldsoft software, and the device software can be updated online.Basic or control, with or without bathAs a ready-to-connect system with a plastic bath of size S or L, the device is available as the ICC basic eco 8 c and as the ICC basic eco 18 c, both with cover, pump connection set and cooling coil included in the scope of delivery. The ICC control has a TFT display instead of an LED and a temperature stability of ±0.01 K.Typical applicationsControlling the temperature of liquids in open or semi-open bath vessels up to 150 °COperating the pump for internal or external applicationsControl and monitoring from a PC via RS 232 or Micro-USBTechnical detailsHeating power of circulator2000 WWorking temperature rangeRoom temp. +10 K at 1000 rpm to 150 °CMin. operating temperature with external cooling-20 °CControl typePIDInternal temperature sensorsPT 100 (working temperature), PT1000 (safety temperature)DisplayLEDStability according to DIN 12876±0.02 KReadable resolution0.1 KSet temperature, setting accuracy0.1 KPumpPressure/suction pump, output variableMax. flow rate at 0 bar back pressure18 l/minMax. pump pressure at 0 l flow rate0.3 barMax. suction pressure at 0 l flow rate0.2 barClass according to DIN 12876III with FL markingWarning functionvisual, audible, over-temperatureAdjustable safety circuit0 to 160 °CLow-level and high-level protectionyesCalibration optionyesMinimum bath depth150 mmMountingClampUniversal clamp, clamping width0 to 40 mmCirculator (W x H x D)145 x 340 x 200 mmWeight3.75 kgDuty cycle100 %Permissible ambient temperature5 to 40 °CPermissible relative humiditymax. 80 %Protection class according to DIN EN 60529IP 21InterfacesRS 232, Micro-USBVoltage, frequency230 V, 50/60 HzPower consumption2100 WScope of delivery1 x ICC basic Compact Immersion Circulator1 x Holding clip1 x Screwdriver1 x USB cable USB A to Micro-B, 2 mThe bath vessel is not included in the scope of delivery.Warranty and procurement serviceThe IKA manufacturer's warranty of 2 years applies to the ICC basic, extended to 3 years on registration at ika.com/register within 90 days of purchase. On request we procure cooling coils, bath vessels, covers and other accessories.

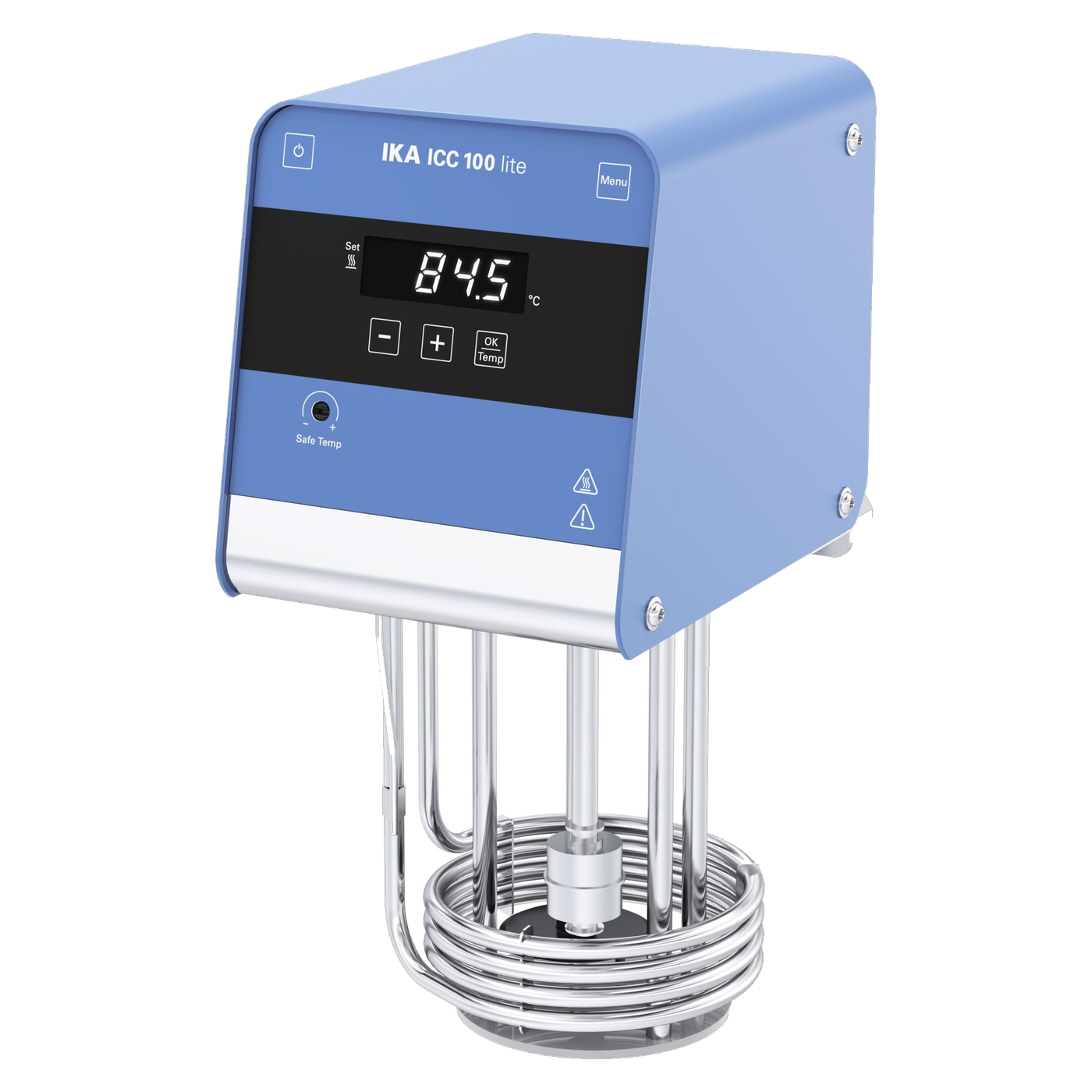

Not every application needs a complete bath package, sometimes a compact immersion circulator that can be clamped to an existing vessel is enough. The IKA ICC 100 lite (MPN 20105647) is designed for exactly this: a stand-alone, compact immersion circulator for temperature control of liquids up to 100 degrees Celsius, without its own bath in the scope of delivery. With a heating power of 2000 watts, a clamp mounting for wall thicknesses of 0 to 40 millimetres and a weight of only 4.2 kilograms, the device can be integrated into existing vessels for which no separate IKA bath is to be purchased. Heating power 2000 watts up to 100 degrees Celsius The ICC 100 lite covers a working temperature range from room temperature to 100 degrees Celsius and holds the temperature via PID control with a stability of ±0.05 kelvin to DIN 12876. The target temperature can be set with a resolution of 0.1 kelvin, and the LED display shows the current temperature with the same resolution. With external cooling, the operating temperature can be lowered to minus 25 degrees Celsius. Safety to DIN 12876 Class III The device is classified to DIN 12876 in Class III and marked FL, meaning it is approved for use with flammable liquids. Both the working and the safety temperature probe use PT1000 sensors, and an adjustable safety circuit from 0 to 110 degrees Celsius as well as visual and audible warning functions provide additional protection against over-temperature. Low-level protection monitors the fill level in the connected bath. Compact design for flexible integration With dimensions of 135 x 303 x 180 millimetres and a weight of 4.2 kilograms, the ICC 100 lite is one of the most compact devices in the ICC series. The housing is made of powder-coated stainless steel, and an integrated stand foot makes cleaning easier and protects important components from damage. The clamp mounting covers a range of 0 to 40 millimetres and can therefore be adapted to bath walls of different thickness. The minimum bath depth is 150 millimetres. Interfaces for monitoring and documentation Via the USB-B and RS 232 interfaces, the ICC 100 lite can be connected to a PC, for example to monitor and control temperature profiles or to record them for documentation. A calibration option makes it possible to compare the temperature display against a reference thermometer if required. The device is connected to the mains at 230 volts and 50 or 60 hertz, and the power consumption of the device is 2100 watts. Use with existing or separately available baths Since the ICC 100 lite is supplied without its own bath, it can be clamped both to existing vessels and to separately available IKA baths. The clamping range of 0 to 40 millimetres covers bath walls of different thickness, so the circulator can be adapted flexibly to different vessel shapes. Compared with the ready-configured ICC packages with a stainless steel or plastic bath, the ICC 100 lite is therefore suitable above all for laboratories that already have a suitable vessel or want to put together the combination of circulator and bath themselves. Uniform PT1000 sensor for working and safety temperature Unlike the ICC basic and ICC control series, which combine a PT 100 probe for the working temperature with a PT1000 probe for the safety temperature, the ICC 100 lite uses PT1000 sensors at both measuring points. This uniform sensor technology simplifies spare parts stocking, as the same sensor type is used for the working and safety probes. The temperature stability of ±0.05 kelvin to DIN 12876 is above the values of the basic series, which fits its positioning as the entry-level device of the lite series, where the focus is on robust basic functions rather than on the highest control precision. Typical applications As a stand-alone immersion circulator without its own bath, the ICC 100 lite is suitable above all where a suitable vessel is already available: Retrofitting existing bath vessels with stand-alone temperature control Compact calibration baths for thermometers and sensors up to 100 degrees Celsius Water baths for routine applications in quality assurance and training Entry into temperature control technology for laboratories with a limited budget Supplementary, second temperature control point alongside an existing larger circulator system Technical details Device typeCompact immersion circulator Class designation to DIN 12876III Marking to DIN 12876FL (approved for flammable liquids) Heating power2000 W Working temperatureRoom temperature to 100 °C Min. operating temperature (with external cooling)-25 °C Temperature controlPID Working temperature probePT1000 Safety temperature probePT1000 Display working/safety temperatureLED Temperature stability to DIN 12876±0.05 K Display resolution0.1 K Setting resolution target temperature0.1 K Visual/audible warning functionyes Safety circuit, adjustable0 to 110 °C Low-level protectionyes Min. bath depth150 mm Calibration optionyes Device mountingClamp Clamping range0 to 40 mm Permissible duty cycle100 % Dimensions (W x H x D)135 x 303 x 180 mm Weight4.2 kg Permissible ambient temperature5 to 40 °C Permissible relative humiditymax. 80 % Protection class to DIN EN 60529IP 21 InterfacesRS 232 and USB-B Power supply230 V, 50/60 Hz Device power consumption2100 W Scope of delivery 1 x IKA ICC 100 lite Compact Immersion Circulator 1 x Power cable 1 x Operating instructions A bath vessel is not included in the scope of delivery and must either already be available or be procured separately. Individual requirements and procurement service Since the ICC 100 lite is supplied without its own bath, we support you through our procurement service in selecting a suitable stainless steel or plastic bath as well as accessories such as bath bridges or covers. Further information and contact options can be found at lt-laborhandel.com/service.
