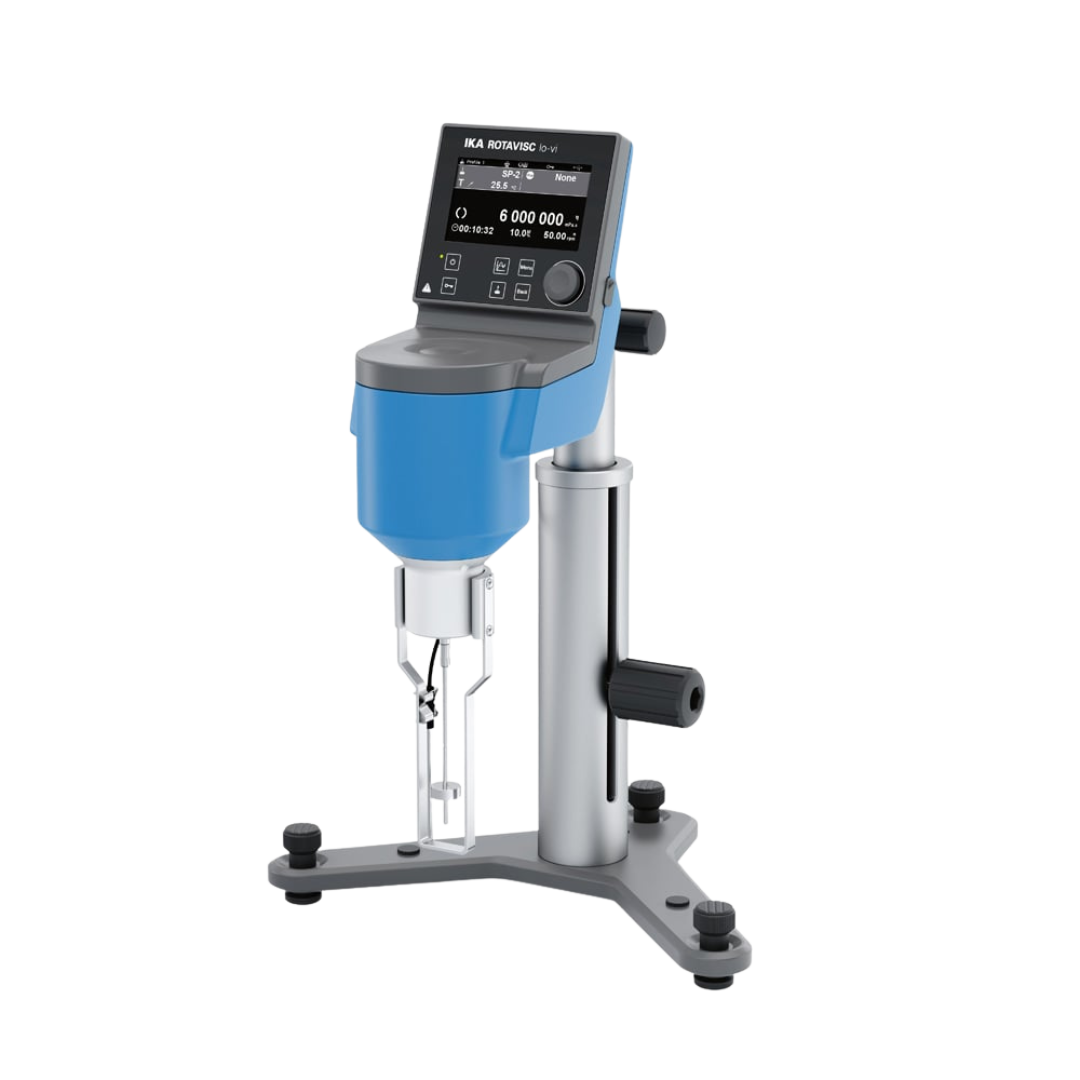

IKA ROTAVISC lo-vi Complete Rotational Viscometer, 0010013826

IKA ROTAVISC lo-vi Complete: The complete viscometer package

The IKA ROTAVISC lo-vi Complete is the all-in-one solution for precise viscosity measurements in the laboratory. This rotational viscometer is specialised for the ‘lo-vi’ (low viscosity) torque range and is ideal for low-viscosity liquids such as juices, oils or solvents.

“Complete” – Everything included

This package (Item No. 0010013826) contains all the components you need to get started straight away:

• ROTAVISC lo-vi base unit: With an intuitive 4.3" TFT display
• SP 1-4 spindle set: Standard spindle set for the “lo-vi” range
• PT 100 temperature sensor: For precise measurement of the sample temperature
• ROTAS-1 stand: Sturdy telescopic stand
• Protective guard: To protect the spindle

Precise measurements and simple operation

The ROTAVISC impresses with its high measurement accuracy (±1 % of the measurement range) and a wide speed range. Operation is straightforward via the graphical display, which shows all relevant parameters. The device can be connected to a PC via the RS-232 and USB interfaces for documentation purposes.

Technical details

• Model: ROTAVISC lo-vi Complete
• Viscosity measurement range: 1 – 6,000,000 mPas
• Torque range: lo-vi (low viscosity)
• Accuracy (at < 10 rpm): ±1 % of full scale
• Reproducibility: ±0.2 %
• Speed range: 0.01 – 200 rpm (continuously variable)
• Display: 4.3″ TFT display
• Temperature sensor connection: Yes (PT 100)
• Measurable temperature: -100 °C to +300 °C
• Interfaces: RS 232, USB
• Motor: Brushless DC motor

Contents of delivery

• ROTAVISC lo-vi base unit (drive unit)
• ROTAS-1 stand
• SP-1 spindle set (includes spindles SP-1, SP-2, SP-3, SP-4)
• PT 100 temperature sensor
• Protective bracket
• USB cable (USB A to Micro-B)
• Mains cable
• User manual
• Note: Calibration fluids (viscosity standards) are not included in the scope of delivery.

Customised requirements & procurement service

This ‘Complete’ package is your starting point for precise viscosity measurements. Do you also require specific viscosity standards (calibration fluids), an adapter set for small samples (VAS) or spare parts such as a PT 100 probe? Our team of experts will be happy to advise you. For accessories not listed here, please use our bespoke procurement service.
