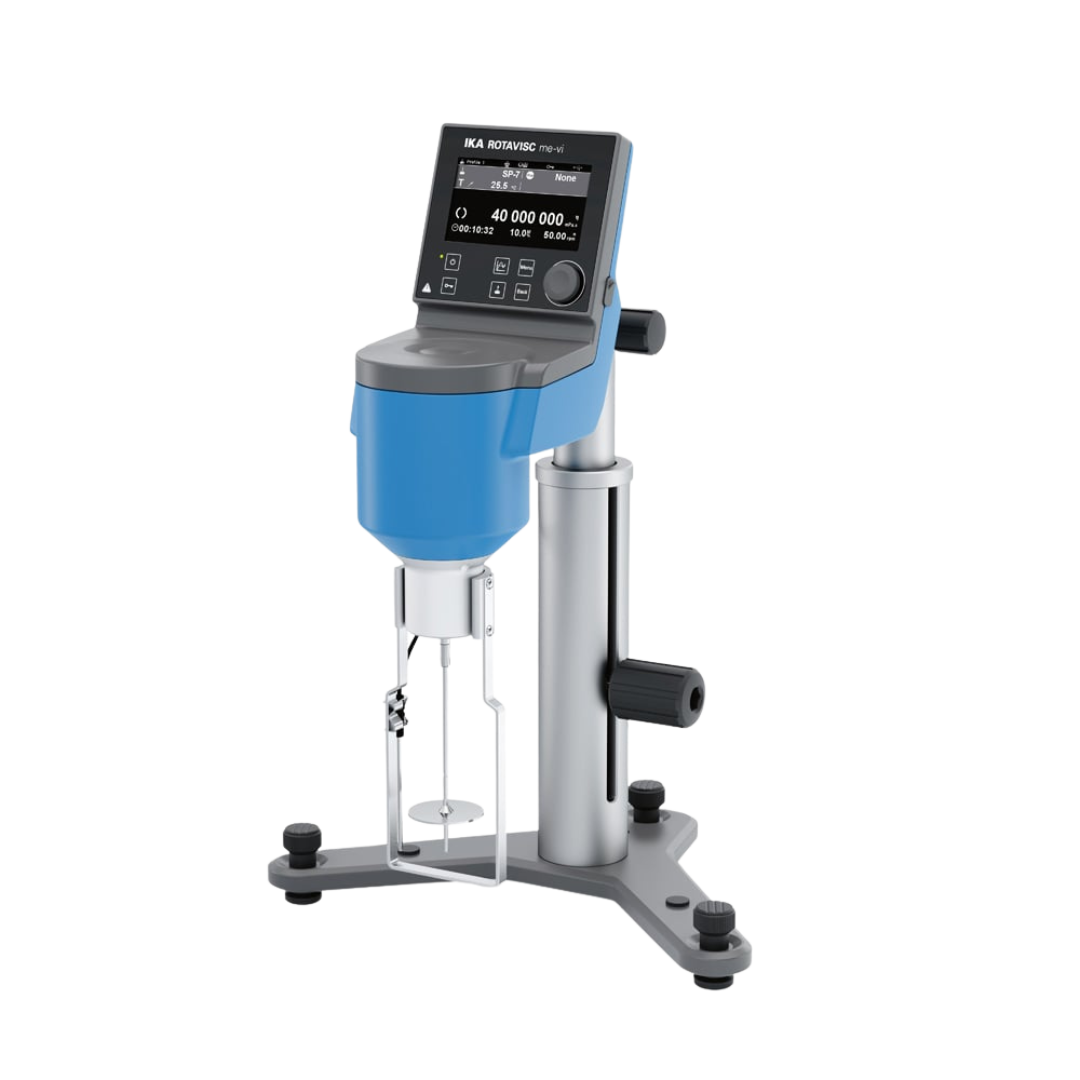

IKA ROTAVISC me-vi Complete Rotary Viscometer (Package), 0010013827

The IKA ROTAVISC me-vi Complete is the ‘all-in-one’ package for precise, reproducible viscosity measurement in the medium viscosity range (‘me-vi’). It is the ideal instrument for specialist buyers in quality control or research who analyse common samples such as paints, varnishes, cosmetics, sauces or dairy products.

‘Complete’ package: Ready to go straight away

This package (MPN 0010013827) has been put together by IKA so that you can start measuring straight away. (Feature) In addition to the basic unit, it includes the stand (ROTAS-1), the essential PT 100 temperature probe and the complete spindle set (SP-7 to SP-12) for the medium viscosity range (Benefit).

Digital precision and ease of use

At the heart of the ROTAVISC is the high-resolution 4.3-inch TFT display. (Feature) It enables intuitive menu navigation, the programming of measurement methods (e.g. ramps) and the precise digital setting of the rotational speed (0.01–200 rpm). (Benefit) This guarantees high reproducibility and compliance with Standard Operating Procedures (SOPs).

Temperature measurement included

The viscosity of a sample is extremely temperature-dependent. For this reason, the PT 100 temperature sensor is already included in the ‘Complete’ package. (Feature) The instrument measures and records the sample temperature in parallel with the viscosity, which is essential for comparable and scientifically valid results (Benefit).

Technical details

• Model: ROTAVISC me-vi Complete
• Viscosity measurement range: 100 – 40,000,000 mPas
• Torque range: me-vi (medium viscosity)
• Accuracy: ±1 % of full scale
• Reproducibility: ±0.2 %
• Rotational speed range: 0.01 – 200 rpm (continuously variable)
• Display: 4.3″ TFT display
• Temperature sensor: PT 100 (included)
• Measurable temperature: -100 °C to +300 °C
• Interfaces: RS 232, USB
• Motor: Brushless DC motor

Contents

• ROTAVISC me-vi base unit (drive unit)
• ROTAS-1 stand
• SP-7 spindle set (includes spindles SP-7, SP-8, SP-9, SP-10, SP-11, SP-12)
• PT 100 temperature sensor
• Protective bracket
• USB cable (USB A to Micro-B)
• Mains lead
• User manual

Customised requirements & procurement service

Do you need advice on the appropriate viscosity standards (calibration fluids) for this ‘me-vi’ device, or are you looking for specific adaptors (e.g. the VANA-S adaptor for small sample volumes)? Our team of experts will be happy to help. For accessories not listed here, please use our bespoke procurement service.
