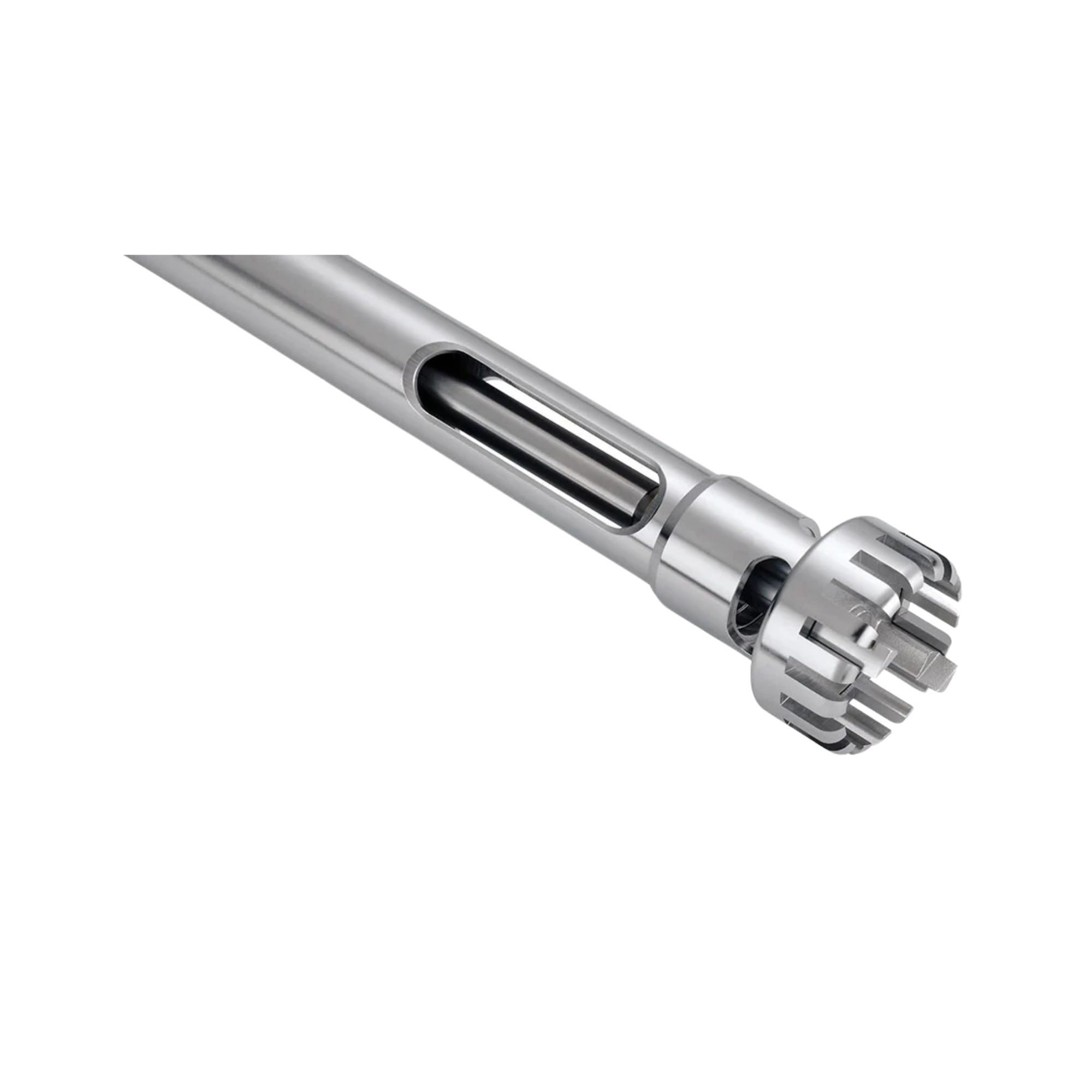

IKA S 50 N - G 45 G dispersing tool, coarse version, 0008003000

ⓘ  This product description has been translated from German using AI. Despite careful review, we do not guarantee that the translation is error-free; in case of doubt, the German version shall prevail.

Product information "IKA S 50 N - G 45 G dispersing tool, coarse version, 0008003000"

The IKA S 50 N - G 45 G dispersing tool is a dispersing tool for the comminution, homogenisation and suspension of sample media on a laboratory and pilot-plant scale. This rotor-stator system is designed for use with the IKA dispersing drives of the ULTRA-TURRAX T 50 series. In complex processes within the chemical industry, food analysis, cosmetics manufacturing or biotechnology, the aim is to disrupt and mix coarse sample structures in order to produce homogeneous suspensions or emulsions for subsequent process or analytical steps.

Fluid-mechanical comminution through optimised rotor-stator geometry

The process-engineering heart of the unit is the generator in the tried-and-tested G version (Coarse). The matched geometry of rotor and stator generates high mechanical impact, cutting and shear forces in the shear gap, whilst maintaining a high axial flow rate. This allows lumpy samples, agglomerates, powders or viscous liquid-liquid phases to be captured, broken down and homogenised. The open design of the generator head supports circulation of the medium, which can reduce thermal hotspots in the sample vessel.

Materials and sterilisability

The dispersing tool is designed for chemical resistance. The parts in contact with the medium are made of stainless steel grade 1.4404 (AISI 316L) and PTFE. A low-friction and wear-resistant PTFE bearing system is used for the shaft bearing. According to IKA, this combination of materials is resistant to acids, alkalis and organic solvents. To reduce the risk of cross-contamination in multi-user operations, the tool can be sterilised in an autoclave or cleaned with standard disinfectants.

Speed, connection and working volume

The tool is rated for speeds of up to 10,000 revolutions per minute. The dispersing shaft can be quickly secured in the T 50 digital drive via the standardised connection without the need for tools. Thanks to the generous immersion depth of up to 250 mm and the fluid-mechanical geometry, the tool is designed for a wide working volume ranging from 0.5 to 20 litres (based on water). This offers laboratory managers and industrial users flexibility when scaling up processes from research to pilot plant scale.

Technical details

Technical data

  • Tool type: Rotor-stator dispersing tool
  • Model designation: S 50 N - G 45 G
  • Working range (volume range for H₂O): 0.5 to 20 litres
  • Generator version: G (Coarse)
  • Maximum speed range: 10,000 rpm
  • Maximum peripheral speed: approx. 18.8 m/s

Construction, materials & geometry

  • Materials in contact with the medium: Stainless steel 1.4404 (AISI 316L), PTFE
  • Stator diameter: 45 mm
  • Rotor diameter: 36 mm
  • Shear gap (distance): approx. 0.5 mm
  • Minimum immersion depth: 70 mm
  • Max. immersion depth: 250 mm
  • Shaft diameter: 30 mm
  • Overall length: 290 mm

Operating conditions & cleaning

  • Solvent resistance: Yes
  • Cleaning: Autoclavable (up to 121 °C) and hot-air sterilisable (up to 180 °C)
  • Bearing type: PTFE plain bearing (shaft-guided)

Scope of delivery

  • 1 x IKA S 50 N - G 45 G dispersing tool

Important note: The required dispersing drive (e.g. IKA ULTRA-TURRAX T 50 digital), stands, boss heads and sample vessels are not included in the standard scope of delivery and must be configured separately.

Individual requirements & accessories

To get the most out of the IKA S 50 N - G 45 G tool, we recommend using it with the original ULTRA-TURRAX T 50 digital dispersing drive. To ensure a safe and vibration-free setup at your laboratory workstation, suitable telescopic stands (R 2722 or R 2723), boss heads (R 271) and vessel holders (RH 5) are also available. Should you wish to process samples requiring finer final homogenisation, we can also source alternative IKA generator heads with medium (M) or fine (F) toothing on request. We can source original PTFE replacement bearings for the regular replacement of wear parts on request. Please use our technical procurement service to put together your complete homogenisation system.
