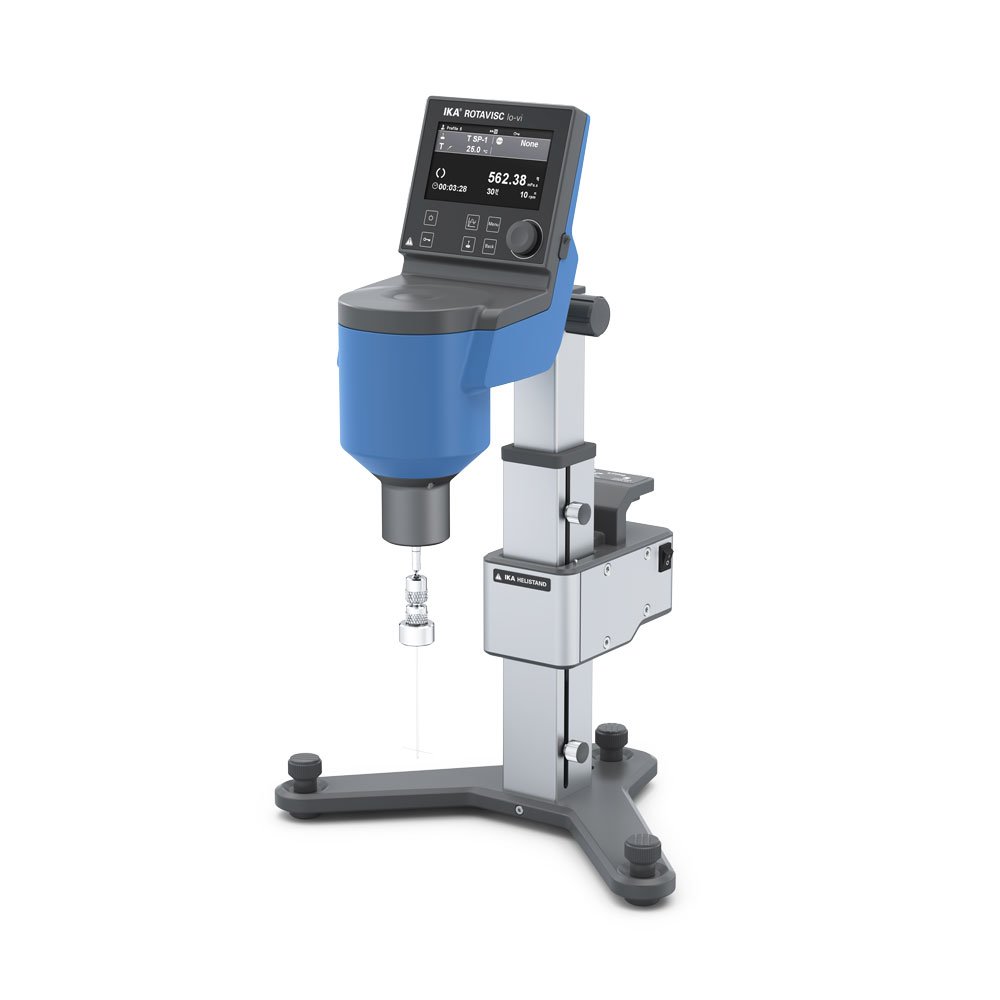

IKA Viscometer Package including electric stand and ROTAVISC lo-vi HELI Complete spindles, 0010013698

ROTAVISC lo-vi HELI Complete
Whether for simple or complex viscosity measurements, the IKA ROTAVISC lo-vi HELI Complete quickly and accurately determines the viscosity of low-viscosity liquids across all areas of application, from the laboratory to quality control.

The scope of delivery includes a standard spindle set (SP 1–SP 4), a protective guard, a temperature sensor and the motorised HELISTAND stand with T-SP set.

A breeze to use
The large 4.3″ TFT display features intuitive menu navigation. A digital spirit level also helps ensure the start conditions are set correctly. The simple ramp function makes repetitive tasks easier.

Highest measurement accuracy
The accuracy of the ROTAVISC rotational viscometers for Newtonian and non-Newtonian liquids is ±1% of the measurement range. Reproducibility is ±0.2%.

Continuously variable speed
With ROTAVISC, you have a viscometer that allows you to adjust the speed continuously.

Viscosity measurement in motion
The motorised IKA HELISTAND stand moves the mounted viscometer and its rotating body slowly and evenly up and down within the sample.

IKA ROTAVISC lo-vi HELI Complete
Viscosity measurement range: 15 – 6,000,000 mPas

Technical data
Viscosity measurement range 6,000,000 mPas
Viscosity accuracy (FSR) 1%
Viscosity repeatability (FSR) 0.2%
Spring torque 0.0673 mNm
Guide rail lo-vi
Measuring spindles SP set-1
Motor power output 4.8 W
Overload protection yes
Motor rotation direction clockwise
Display TFT
Speed display TFT
Speed range 0.01 – 200 rpm
Speed setting accuracy ±0.01 rpm
Speed setting options TFT
torque display yes
Torque measurement yes
Timer yes
Timer display TFT
time setting range 0.017 – 6000 min
Temperature measurement resolution 0.1 K
Operating temperature display TFT
Connection for external temperature probe PT 100
Graph function: yes
Operating modes: timer and continuous operation
Calibration option: yes
Touch function: yes
Permissible density: 9999 kg/dm³
Operating temperature: -100 – 300 °C
Mounting on tripod: boom
Tripod pole diameter (with integrated stand mounting) 16 mm
Stroke of telescopic stand 142 mm
Quick-release coupling (Ø) 12 mm
Base vessel volume 600 ml
HELISTAND
stand Stroke max. 61 mm
Diameter 16 mm
Dynamic load 3.2 kg
Dimensions (W x H x D) 351 x 629 x 372 mm
Weight 7.1 kg
Permissible ambient temperature range 5 – 40 °C
Permissible relative humidity 80 %
Protection class according to DIN EN 60529 IP 40
RS-232 interface yes
USB interface yes
Voltage 100–240 V
Frequency 50/60 Hz
Power consumption (active) 24 W
Power consumption (standby) 0.06 W
DC voltage 24 V=Current
consumption 1000 mA

Accessories and spare parts available on request
