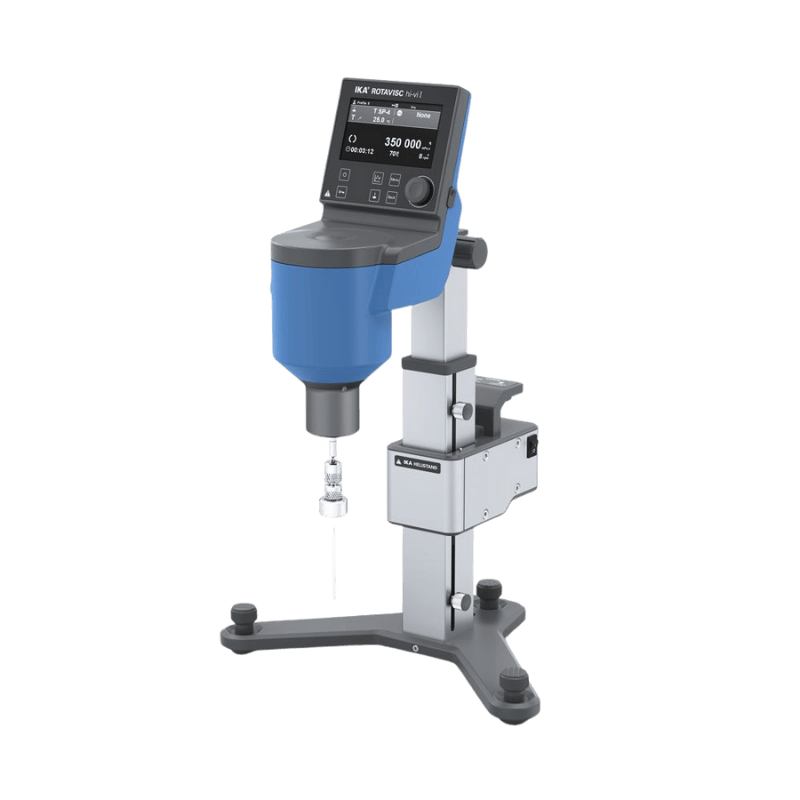

IKA Viscometer, package including electric stand and spindles ROTAVISC hi-vi I HELI Complete, 0010013745

The IKA ROTAVISC hi-vi I HELI Complete is a high-precision viscometer for determining the viscosity of medium- to high-viscosity liquids. It offers intuitive operation, high measurement accuracy and a comprehensive range of accessories – making it ideal for use in research, development and quality control.

Thanks to the supplied electric stand, raising and lowering the measuring head is conveniently automated. The integrated HELI stirring system ensures that even non-Newtonian substances and samples with an uneven consistency can be measured reliably.

With touchscreen operation, precise torque control and compatibility with common standards (e.g. ISO 2555), the ROTAVISC offers maximum user-friendliness and reproducible results.

Key features:

• Complete package including electric stand, HELI stirring system & spindle set
• Suitable for medium to high-viscosity liquids
• Intuitive operation via 4.3-inch touchscreen
• Speed range: 0.01 – 200 rpm
• Measuring range: 10 – 30,000,000 mPas
• Torque accuracy: ± 1 %
• HELI system for measuring non-Newtonian substances
• Automated spindle detection & measuring head control
• Interfaces: USB & RS 232 for data transfer
• Simple documentation & GLP-compliant

Technical specifications (excerpt):

• Torque range: 0.06 – 13 Ncm
• Measurement accuracy: ± 1 %
• Repeatability: ± 0.2 %
• Speed: 0.01 – 200 rpm
• Temperature measurement via PT 100 sensor possible
• Dimensions (W × H × D): 360 × 660 × 360 mm
• Weight: approx. 11 kg
• Power supply: 100 – 240 V, 50/60 Hz

Contents (package):

• ROTAVISC hi-vi I viscometer
• Electric stand
• HELI stirring system
• Spindle set
• PT 100 temperature sensor
• Power supply & accessories

The IKA ROTAVISC hi-vi I HELI Complete is the ideal solution for laboratories requiring precise viscosity measurements, even with difficult samples – fully equipped, intuitive to use and reliable.
