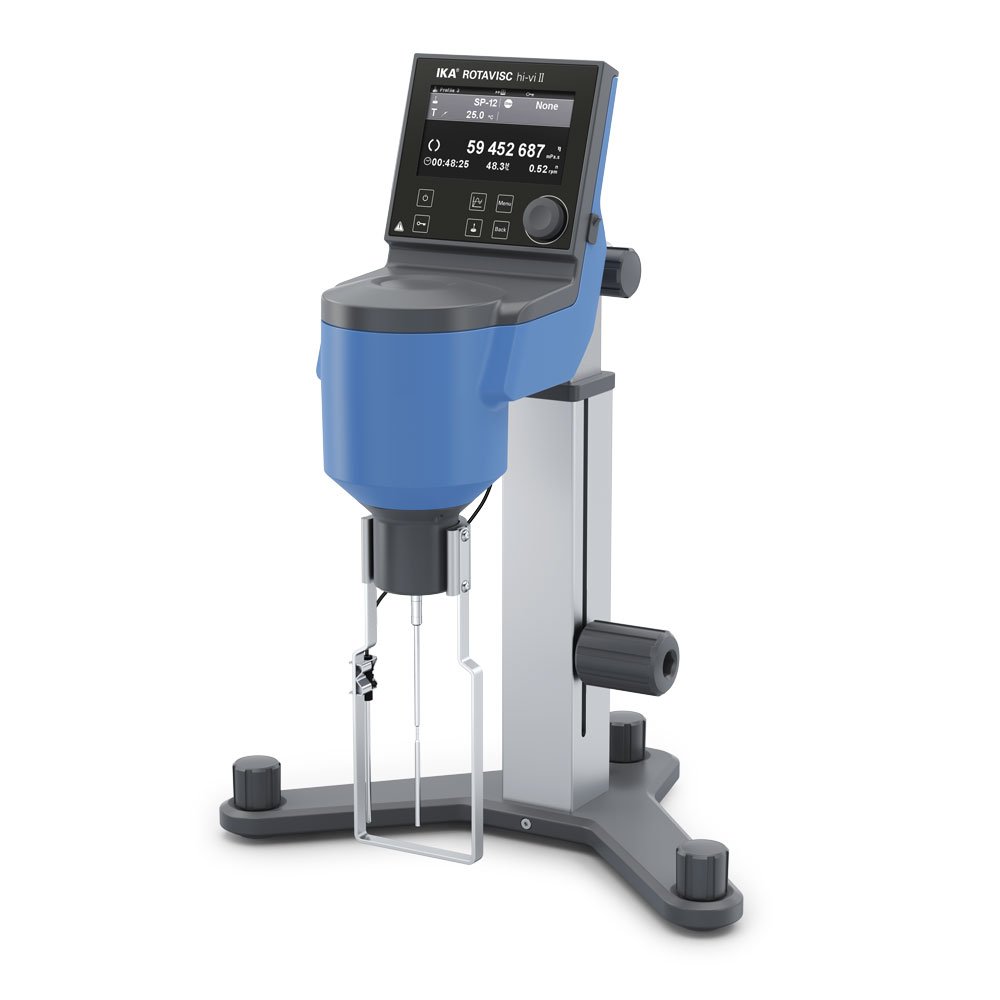

IKA Viscometer Package including stand and spindles, ROTAVISC hi-vi II Complete, 0010013829

ROTAVISC hi-vi II Complete
The ROTAVISC series determines the viscosity of liquids across all areas of application, from the laboratory to quality control. The four instruments each measure within different viscosity ranges. Whether for simple or complex viscosity measurements – with ROTAVISC you get fast and accurate results. The scope of delivery includes a standard spindle set (SP7–SP12), a protective guard, a temperature sensor and a ROTASTAND stand.

Extremely easy to use
The large 4.3″ TFT display features intuitive menu navigation. A digital spirit level also assists in correctly setting the start conditions. The simple ramp function makes recurring tasks easier.

Highest measurement accuracy
The accuracy of the ROTAVISC rotational viscometer is ±1% of the measurement range for both Newtonian and non-Newtonian liquids. Reproducibility is ±0.2%.

Continuously variable speed
With the ROTAVISC, you have a viscometer that allows you to adjust the speed continuously.

IKA ROTAVISC hi-vi II Complete
Viscosity measurement range 800 – 320,000,000 mPas

Technical data
: Viscosity measurement range 320,000,000 mPas
; Viscosity accuracy (FSR) 1%
; Viscosity repeatability (FSR) 0.2%
Spring torque 5.7496 mNm
Guide rail me-vi
Measuring spindles SP set-2
Motor power output 4.8 W
Overload protection yes
Motor rotation direction clockwise
Display TFT
Speed display TFT
Speed range 0.01 – 200 rpm
Speed setting accuracy ±0.01 rpm
Speed setting options TFT
torque display yes
Torque measurement yes
Timer yes
Timer display TFT
time setting range 0.017 – 6000 min
Temperature measurement resolution 0.1 K
Operating temperature display TFT
connection for external temperature sensor PT 100
Graph function: yes
Operating modes: timer and continuous operation
Calibration option: yes
Touch function: yes
Permissible density: 9999 kg/dm³
Operating temperature: -100 – 300 °C
Mounting on tripod: boom
Tripod pole diameter (with integrated stand mounting) 16 mm
Stroke of telescopic stand 200 mm
Quick-release coupling (Ø) 12 mm
Base vessel volume 600 ml
Rotating
stand Stroke max. 61 mm
Diameter 16 mm
Dynamic load 5 kg
Dimensions (W x H x D) 351 x 629 x 372 mm
Weight 7.1 kg
Permissible ambient temperature range 5 – 40 °C
Permissible relative humidity 80%
Protection class according to DIN EN 60529 IP 40
RS-232 interface yes
USB interface yes
Voltage 100–240 V
Frequency 50/60 Hz
Power consumption (operating) 24 W
Power consumption (standby) 0.06 W
DC voltage 24 V=Current
consumption 1000 mA

Accessories and spare parts available on request
