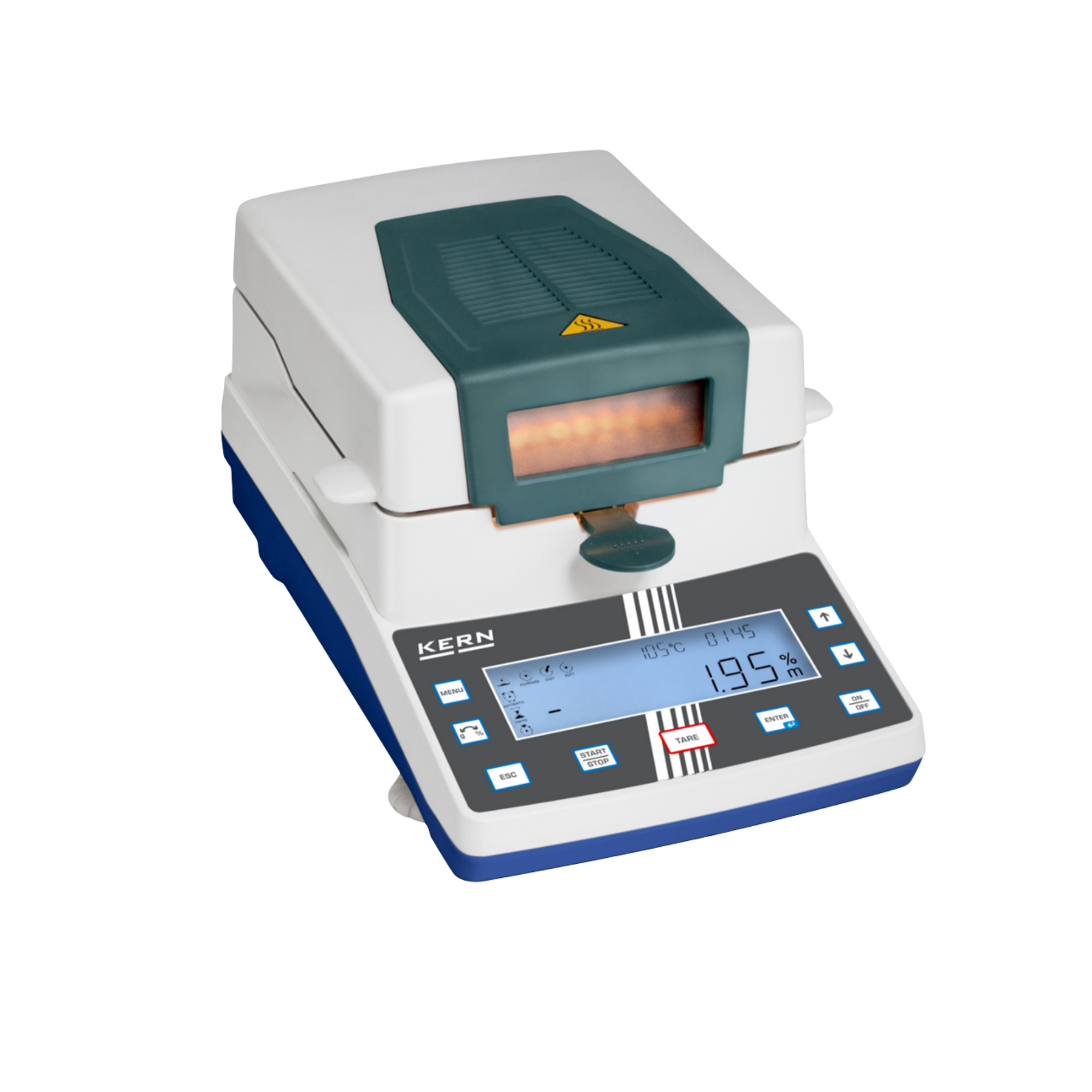

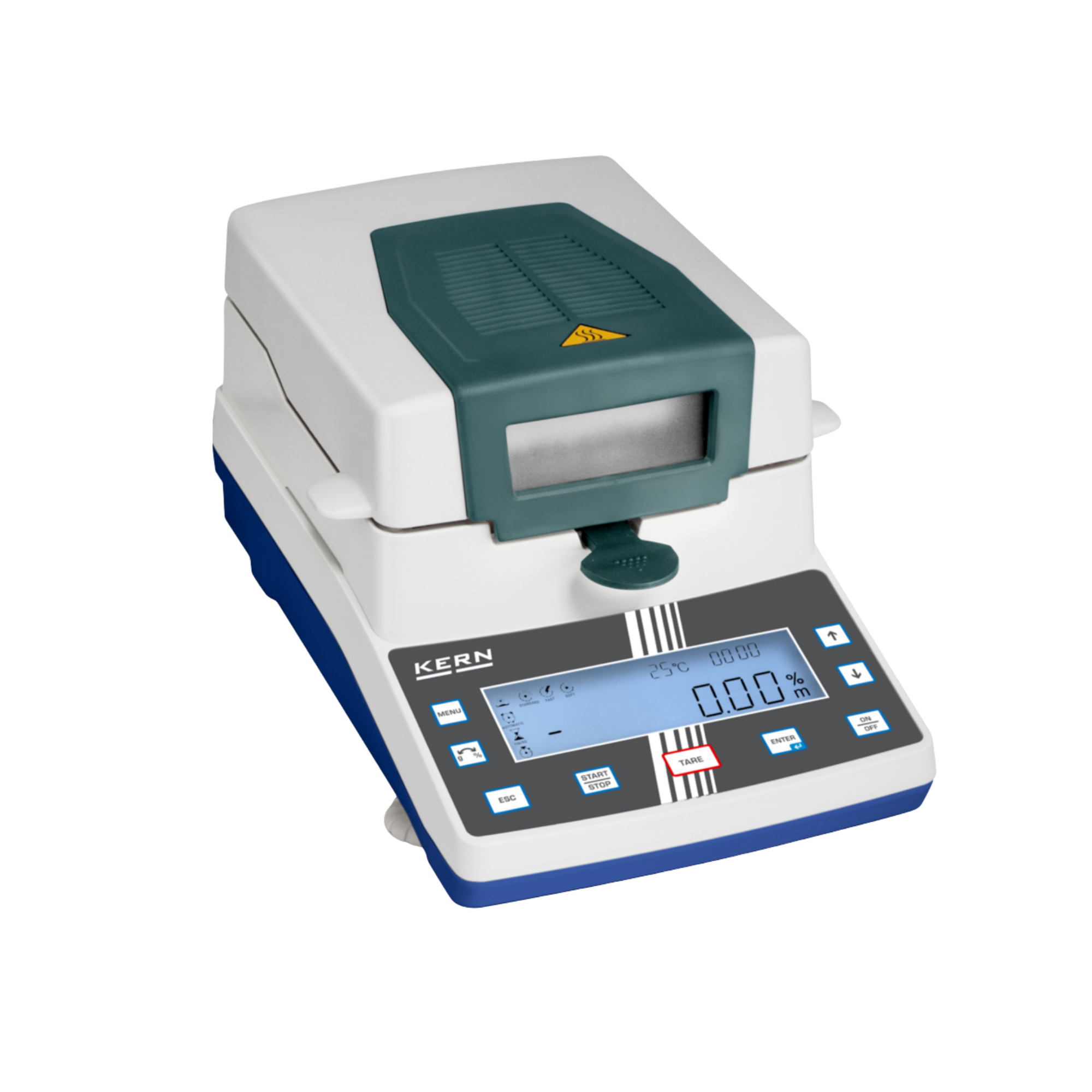

KERN DAB 100-3 Halogen Moisture Analyser, 110 g / 0.001 g (0.01 %)

Unrivalled precision in moisture analysis: KERN DAB 100-3

The KERN DAB 100-3 (MPN DAB 100-3) is the high-resolution version of the successful DAB series. It has been developed for laboratories and quality control applications where every tenth of a per cent counts. With an outstanding readability of 0.001 g (corresponding to 0.01% moisture), this halogen moisture analyser delivers accurate and highly reproducible results. Whether for testing plastic granules (residual moisture prior to injection moulding), in the food industry or for analysing building materials – the instrument guarantees maximum reliability with a weighing range of up to 110 g.

Rapid halogen drying

A powerful 400-watt halogen quartz glass lamp.

• Speed: Halogen heats up extremely quickly and brings your sample to the desired target temperature without any preheating time.
• Uniformity: The heat is distributed evenly across the 90 mm sample dish, ensuring uniform evaporation of the moisture.
• Flexibility: The drying temperature can be precisely adjusted in 1 °C increments from 40 °C to 199 °C .

Graphic display for intuitive operation

Despite its high precision, the DAB 100-3 is incredibly easy to use. The backlit graphic LCD guides you visually through the entire measurement process. You always have all the critical parameters at a glance:

1. Current moisture content in %
2. Current temperature
3. Drying time to date
4. Active drying programme
5. Live display of the drying curve

Automate routine measurements

To make your day-to-day laboratory work easier, the instrument offers extensive storage and automation functions:

• Shut-off criteria: The instrument stops fully automatically when the sample’s weight remains constant over a defined period. Alternatively, a time-controlled or manual shut-off is possible.
• 15 programme memories: Store up to 15 complete drying profiles (temperature, duration, shutdown criterion) for your most frequently used samples in the internal memory. A single press of a button is all it takes to start the routine measurement.
• Viewing window: Allows visual inspection of the sample at any time during drying.

Technical Specifications

• Model: DAB 100-3
• Weighing range (max): 110 g
• Resolution (weight / moisture): 0.001 g / 0.01%
• Reproducibility (2 g sample): 0.15 %
• Reproducibility (10 g sample): 0.03
• Heating technology: Halogen quartz glass heater (400 W)
• Temperature range: +40 °C to +199 °C (in 1 °C increments)
• Display modes: Moisture (%), dry matter (%), ATRO (%), residual weight (g)
• Programme memory: 15 drying programmes
• Sample dishes: Ø 90 mm

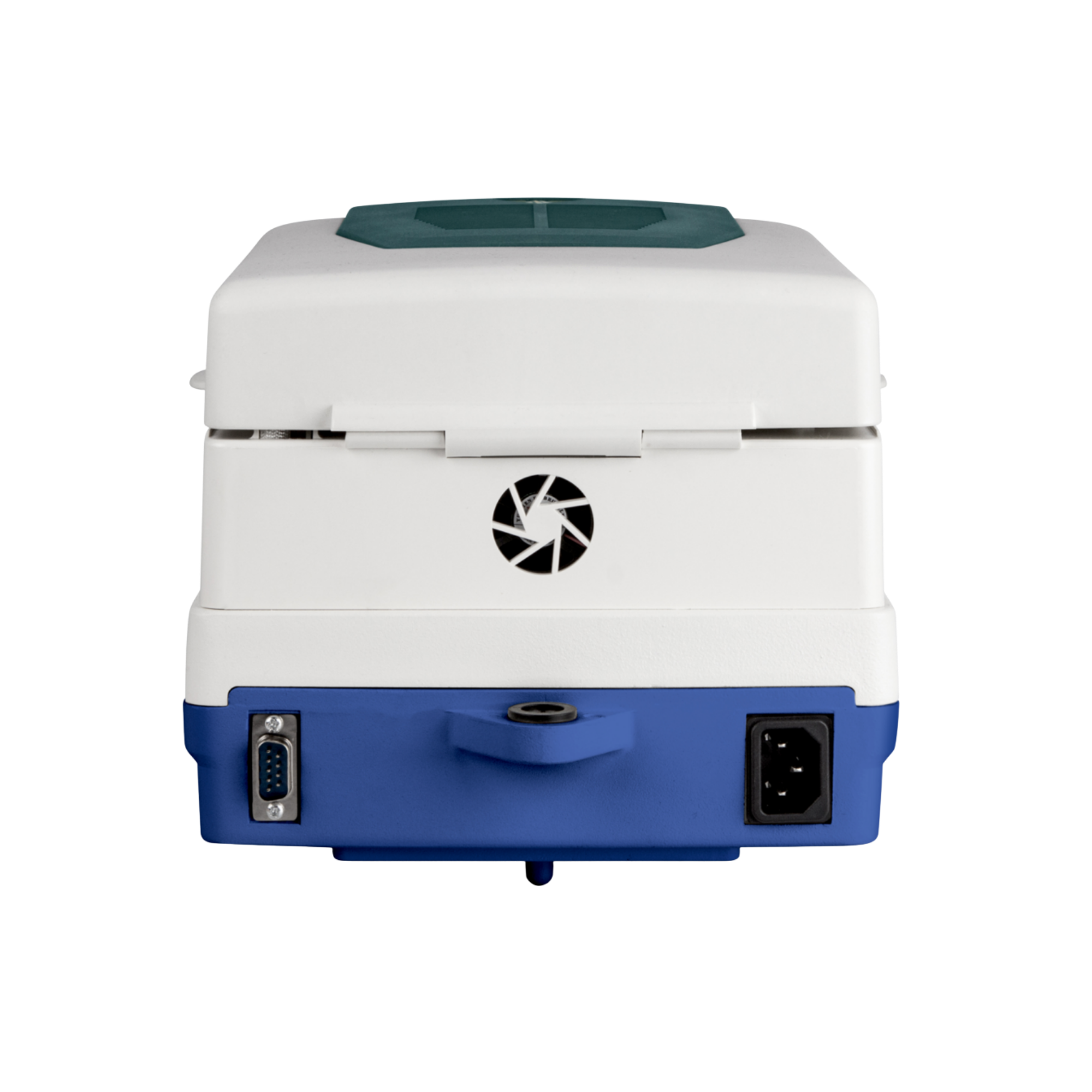

• Interface: RS-232 (for PC or printer)
• Dimensions (W x D x H): 240 x 365 x 180 mm
• Weight: approx. 4.8 kg

Contents

• 1 x KERN DAB 100-3 moisture analyser
• 50 x aluminium sample dishes (Ø 90 mm)
• 1 x sample-taking tongs
• 1 x mains adaptor/cable
• 1 x safety hood
• 1 x Operating instructions / Application manual

Custom requirements & accessories

To make full use of the high accuracy of 0.001 g, we recommend using round glass fibre filters (as a suction pad for liquid/paste-like samples or as a splash guard). For complete GLP documentation, you can connect the device to a KERN matrix printer via the RS-232 interface. Make sure you also stock up on sufficient spare aluminium trays straight away. Please contact our procurement service.
