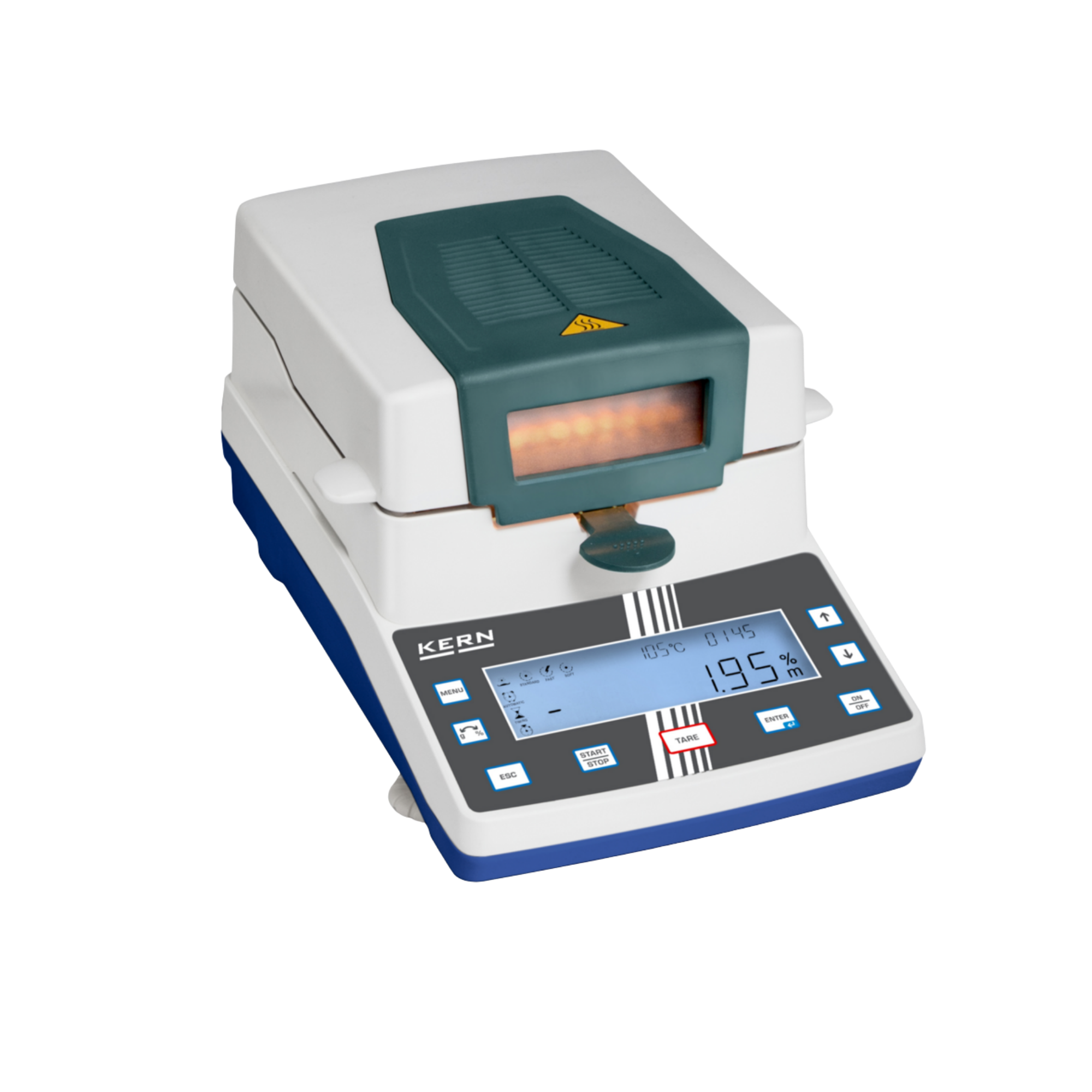

KERN DAB 100-3IR Infrared Moisture Analyser, 110 g / 0.001 g (0.01 %)

Precision meets gentle drying: KERN DAB 100-3IR moisture analyser

The KERN DAB 100-3IR (MPN DAB 100-3IR) is the specialist solution for laboratories that demand the highest standards of accuracy whilst analysing temperature-sensitive samples. With outstanding readability of 0.001 g (corresponding to 0.01% moisture) and a weighing range of up to 110 g, it meets the most demanding quality control requirements. Its key feature, however, is its heating system: a 400-watt infrared heater that dries the sample particularly gently.

Why use infrared technology for high-precision measurements?

With a resolution of 0.001 g, even the slightest burning of the sample dramatically distorts the measurement result. Infrared heat penetrates the sample more evenly than conventional halogen light.

• No burning: Dark, light-absorbing samples dry thoroughly without charring on the surface.
• No crust formation: With sugary or pasty substances (e.g. in food analysis), IR prevents the formation of a crust that would block the escape of residual moisture.
• Temperature range: The drying temperature can be precisely adjusted in 1 °C increments from 40 °C to 199 °C.

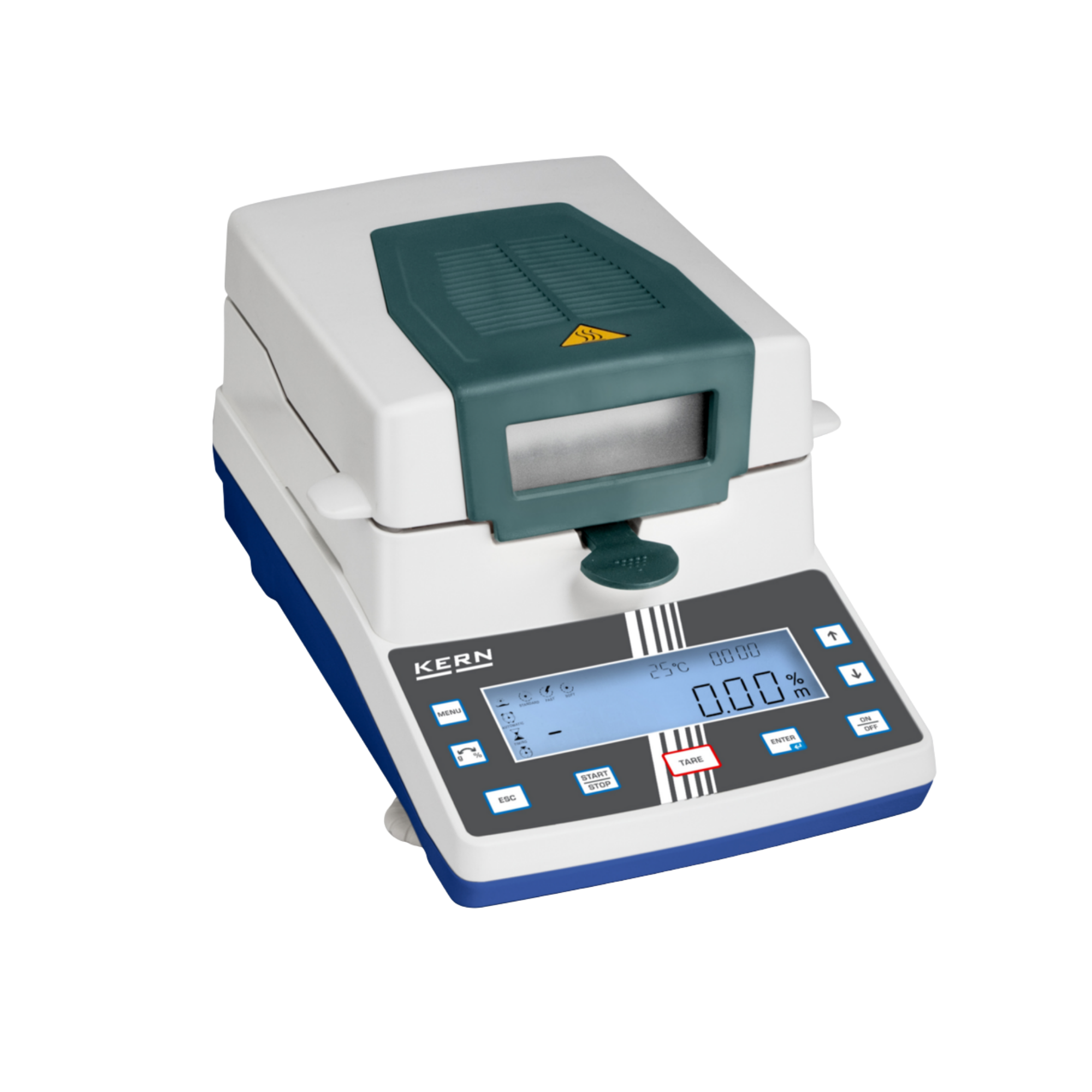

Visual monitoring thanks to the graphic display

Operating the DAB 100-3IR is intuitive and safe. The backlit graphic LCD guides you through the measurement process and displays all key parameters in real time:

1. Current moisture content in %
2. Current temperature
3. Drying time to date
4. Active drying programme
5. Live display of the drying curve

Efficiency through automation

Save time in your day-to-day laboratory work with intelligent automation features:

• Shut-off criteria: The balance automatically detects when the weight remains constant and terminates the measurement. Time-controlled or manual stops can also be selected.
• 15 programme memories: Save complete drying profiles (temperature, stop criteria) for your 15 most common samples. A single press of a button is all it takes to start.

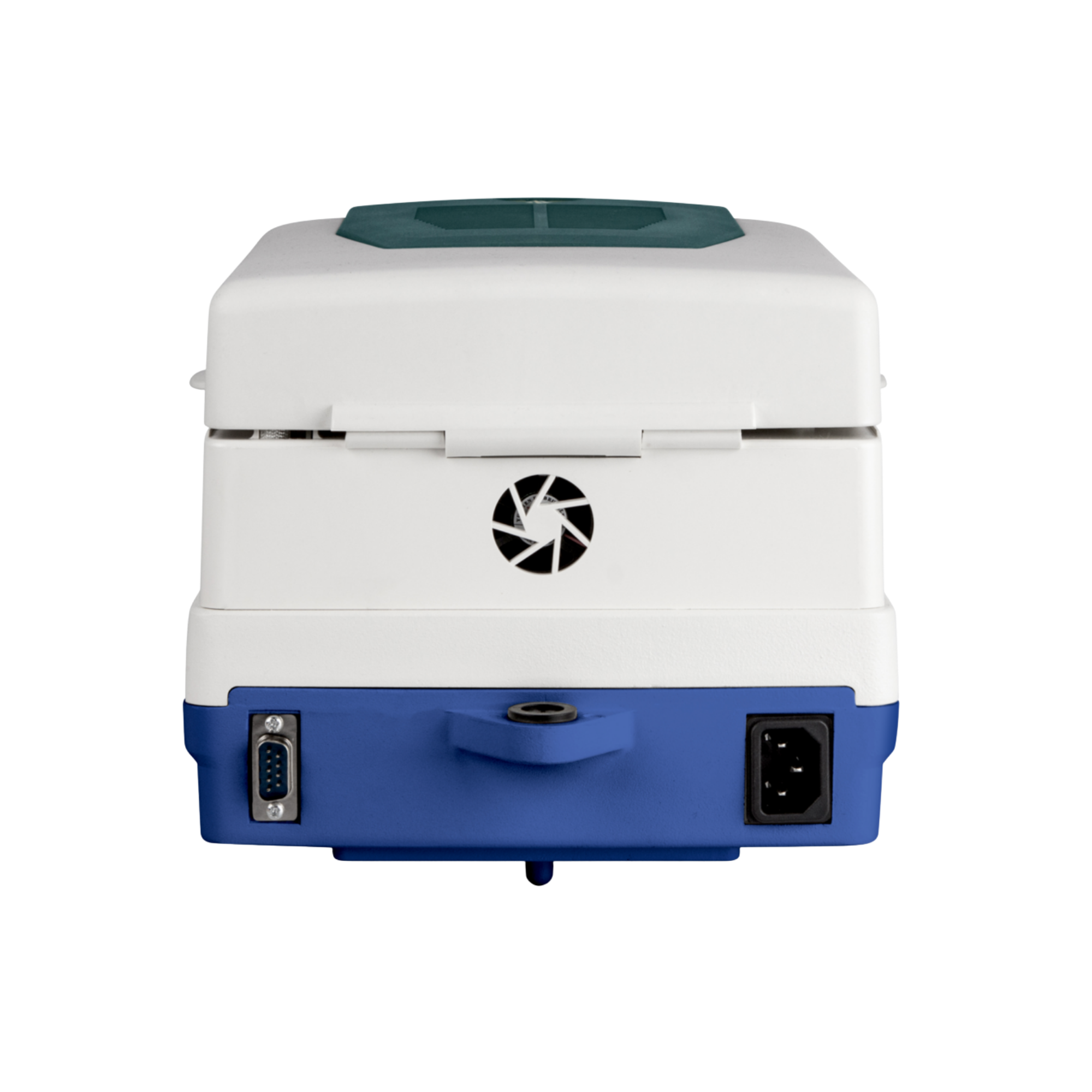

• GLP documentation: Via the RS-232 interface, reports can be sent to a printer or PC in accordance with standards (including date and time).

Technical Specifications

• Model: DAB 100-3IR
• Weighing range (max): 110 g
• Resolution (weight / moisture): 0.001 g / 0.01 %
• Reproducibility (2 g sample): 0.15 %
• Reproducibility (10 g sample): 0.03 %
• Heating technology: Infrared heater (400 W)
• Temperature range: +40 °C to +199 °C (in 1 °C increments)
• Display modes: Moisture (%), dry matter (%), ATRO (%), residual weight (g)
• Programme memory: 15 drying programmes
• Sample dishes: Ø 90 mm
• Interface: RS-232
• Dimensions (W x D x H): 240 x 365 x 180 mm
• Weight: approx. 4.8 kg

Contents

• 1 x KERN DAB 100-3IR infrared moisture analyser
• 50 x aluminium sample dishes (Ø 90 mm)
• 1 x sample retrieval tongs
• 1 x mains adaptor/cable
• 1 x safety hood
• 1 x Operating instructions / Application manual

Customised requirements & accessories

To realise the full potential when analysing liquid or paste-like samples, we recommend round glass fibre filters. These increase the surface area of the sample and significantly speed up infrared drying without compromising the accuracy of 0.001 g. Why not stock up on a bulk pack of aluminium sample dishes at the same time? Please contact our procurement service.
