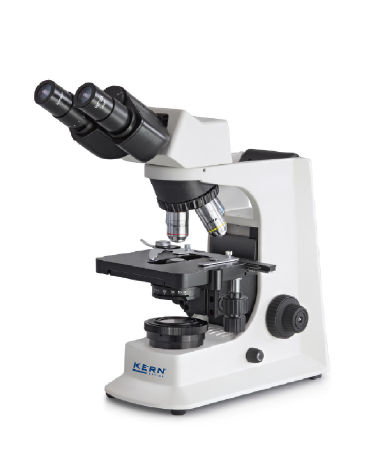

KERN OBL 127 Transmitted Light Microscope

OBL 127 Transmitted-light Microscope

Product family: OBL-12

The versatile laboratory aid with infinity optics and fixed, pre-centred Köhler illumination

Description

The OBL series is characterised by its infinity optics and is therefore ideally suited to demanding transmitted light applications. The robust and ergonomic stand ensures safe and comfortable working

Powerful and continuously dimmable 3W LED illumination

The fixed pre-centred and focusable 1.25 Abbe condenser with aperture and field diaphragm enables simplified Köhler illumination without the centre being displaced

The large mechanical cross-table and its specimen holder can accommodate up to two specimens simultaneously and focus quickly and easily via coaxial coarse and fine adjustment mechanisms on both sides

A wide range of eyepieces, objectives and colour filters, as well as a dark-field condenser, a simple polarisation unit, various phase-contrast kits and even HBO and LED fluorescence units are available as accessories

A dust cover, eyecups and a multilingual user manual are included in the scope of delivery

Technical Specifications

Optical system: Infinity

Tube type: Binocular

Eyepiece magnification 10×

Eyepiece field of view 20 mm

Standard objectives: 4x, 10x, 40x, 100x

Objective quality: Infinity E-Plan

Objective turret screw-in positions: 4

Illumination type: transmitted light

Illumination type: LED transmitted light

Type of reflected light: none

Condenser type: ABBE

Condenser aperture 1.25

Condenser mounting: fixed

Focusing mechanism: Coaxial coarse and fine adjustment

Minimum fine adjustment 0.002 mm

Dimensions (W×D×H) 395×200×380 mm

GTIN/EAN number 4045761267756
